Brookstone IConvert Manuel utilisateur

681999_INS_Mini Scanner Wand

Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

Mini Document &

Photo Scanner

ULTRA-PORTABLE SCANNER

SCANS ANYWHERE

i-Convert®

TABLE OF CONTENTS

Warnings and Cautions ........................................................ 2

LCD Screen Icons............................................................. 2

Included Accessories.......................................................... 2

Location of Parts and Controls ................................................. 3

Charging the Scanner ......................................................... 4

Formatting Your microSD Card ................................................. 4

Calibrating the Scanner........................................................ 5

Setting the Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Stitch File..................................................................... 6

Setting the Time and Date ..................................................... 7

Scanning ..................................................................... 8

Viewing Your Scans............................................................ 9

Viewing the Scan’s Date and Time Created . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Editing and Saving After Scanning.............................................12

Speciﬁcations................................................................13

Computer System Minimum Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting ..............................................................15

Warranty.....................................................................17

BATTERY PRECAUTIONS

Important: Dispose of this product as you would an exhausted battery.

SAVE THESE INSTRUCTIONS

681999_INS_Mini Scanner Wand

Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

LCD SCREEN ICONS

1. microSD Card Indicator

2. Battery Indicator

3. Selected Resolution Indicator (High 600dpi/Low 300dpi)

4. Scan Count/Time/Date Indicator

1. Scanner

2. White Balance Calibration Sheet

3. Lens Cleaning Cloth

4. Mini USB Cable

5. Software CD

6. Scanner Drawstring Bag

INCLUDED ACCESSORIES

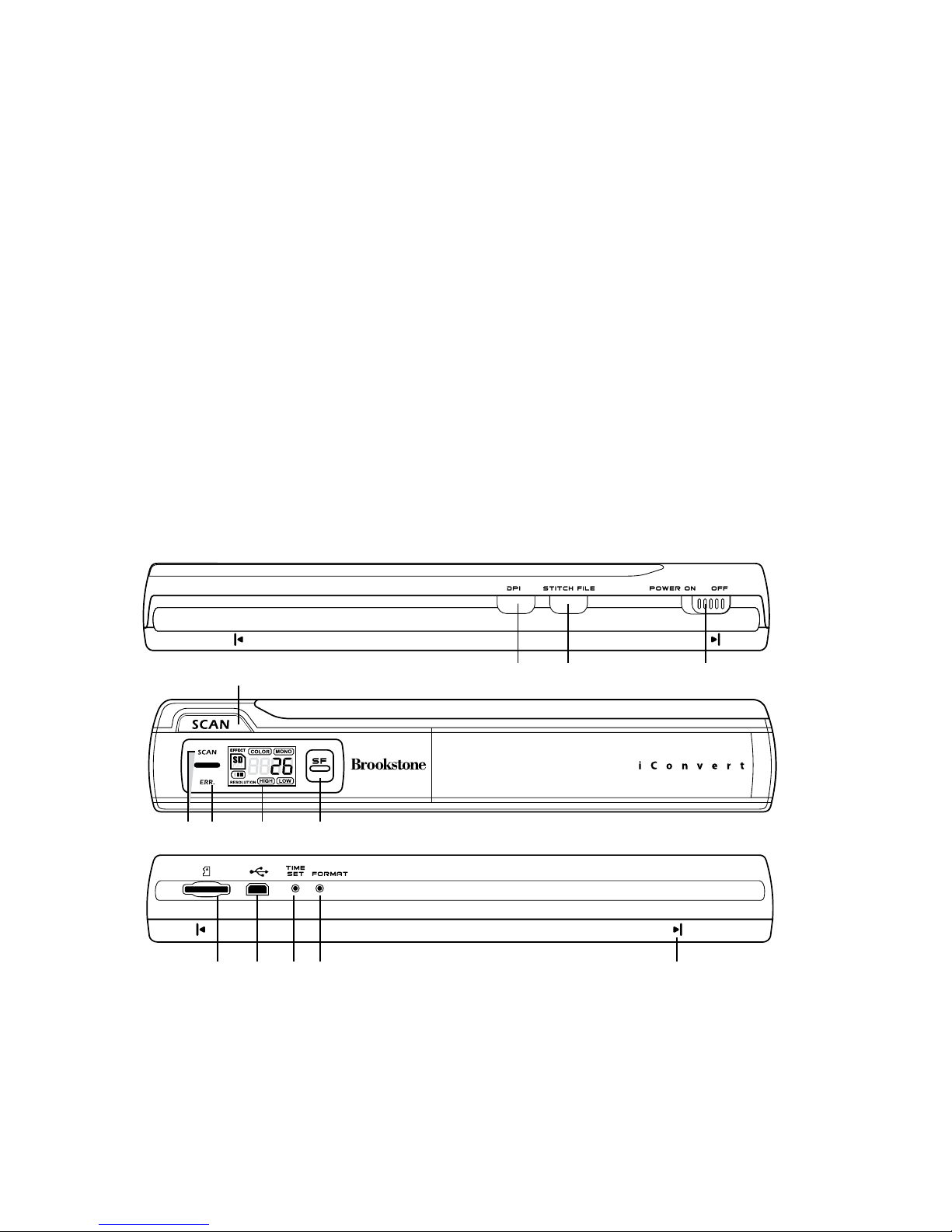

LOCATION OF PARTS AND CONTROLS

1. DPI Resolution Button

2. Stitch File

3. Power Switch

4. Scan Button

5. Scan LED Indicator

6. Error LED Indicator

7. LCD Screen

8. SF LED Indicator

9. microSD Card Slot

10. mini USB Port

11. Time Set Button

12. Format Button

13. Scan Guides (2)

1 2 3

5 6 7 8

9 10 11 12 13

681999_INS_Mini Scanner Wand

Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

CHARGING THE SCANNER

The BATTERY INDICATOR on the LCD screen will show if the batteries need

to be charged.

In power-off mode, connect your Scanner to your computer with the included

USB cable to charge the battery.

FORMATTING YOUR microSD CARD

Important: The microSD card must be formatted before scanning.

Note: All content on the microSD card will be erased during formatting.

1. With the Scanner off, insert a microSD card (not included) into the

microSD CARD SLOT on the Scanner until it has clicked into place.

Note: Do not force the microSD card into place. Forcing the card may

damage the microSD card or the Scanner. See the diagram on the Scanner

to insert the microSD card correctly.

2. Turn the Scanner on by sliding the POWER switch.

3. Press the FORMAT button with a thin, blunt object, such as a paperclip

or pencil tip, once. An “F” will show on the LCD screen.

4. Press the SCAN button once to begin formatting the microSD card.

5. The microSD CARD INDICATOR will blink until the formatting process

is complete.

CALIBRATING THE SCANNER

1. Turn the Scanner on by sliding the POWER switch.

2. Place the Scanner on the White Balance Calibration Sheet.

3. Press and hold the STITCH button. While holding the STITCH button,

press the SCAN button once and then release both to enter into auto-

calibration mode. The microSD CARD INDICATOR will flash.

4. The green and red LED light will then turn on. Do not move the Scanner

until the red LED light turns off. The green LED will remain lit.

5. Start rolling the Scanner over the White Balance Calibration Sheet slowly

and evenly until the green light turns off (you may have to roll the Scanner

backwards if necessary).

6. When the green LED light turns off, the calibration is complete.

Slide the POWER switch to turn the Scanner off.

SETTING THE RESOLUTION

1. Turn the Scanner on by sliding the POWER switch.

2. By pressing the DPI button on the Scanner, you may choose between

high resolution (600 dpi) and low resolution (300 dpi).

3. The high or low resolution mode will be displayed on the LCD screen

to reflect your choice.

681999_INS_Mini Scanner Wand

Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

STITCH FILE

Use the stitch file function to group a set of scanned files into a folder on the

microSD card. By saving files in a separate file folder, it makes it easier for you

to keep track of the files you want stitched together. For free stitching software,

download the program from the following link:

http://research.microsoft.com/en-us/um/redmond/groups/ivm/ice/

USING THE STITCH FUNCTION

1. Press the STITCH file button to create a new folder. The SF LED light will

illuminate white.

2. Scan the document. The scanned document will be saved in the new

file folder.

Note: No matter how many times the STITCH button has been pressed,

and no matter if the SF LED is illuminated while scanning, a single new

file folder will be created the next time you scan, and this is where the

scan will be filed.

Additional Note: If you have pressed the STITCH button by mistake,

and do not want to make an additional file folder, shut the Scanner off.

This will cancel the new file folder from being created the next time you

scan, and the next scan you make will be filed in the last file folder used.

SETTING THE TIME AND DATE

1. Turn the Scanner on by sliding the POWER switch.

2. Press the TIME/SET button on the Scanner.

3. The LCD SCREEN will read 1 XX for the year.

4. Press the STITCH or DPI buttons to locate the current year

and press the SCAN button to select.

5. The LCD SCREEN will now read 2 XX for the month.

Repeat step 4 to select the Month, Day, Hour and Minute.

INDICATOR SET

1 XX Year

2 XX Month

3 XX Day

4 XX Hour

5 XX Minute

6. After you set 5 XX (Minute), press the TIME/SET button

on the Scanner again to save TIME/SET settings.

SCANNING

1. With a microSD card inserted into the Scanner, turn the Scanner on by sliding

the POWER switch.

2. Hold the document you wish to scan securely on a flat surface.

3. Place the Scanner flat against the document, scanning screen side down,

making sure the material you want to scan is between the SCAN GUIDES.

4. Press the SCAN button once. The green SCAN LED INDICATOR light will

illuminate to show the Scanner is scanning.

5. Roll the Scanner over the document you wish to scan slowly and evenly.

This will allow you to get the best quality scan possible.

6. When you reach the end of the document, press the SCAN button again

to stop scanning.

7. The COUNTING INDICATOR on the LCD screen will tell you the number

of saved scans you have completed.

VIEWING YOUR SCANS

1. Connect the mini USB cable to the Scanner and then to a USB 2.0 port on

your computer.

2. Turn the Scanner on by sliding the POWER switch.

3. Your computer should recognize the Scanner as a removable disk.

Click “Open Folder to View Files” to view and import scans.

Note: If the Removable Device window did not launch automatically, go to

your “My Computer” (PC) and find the device under Removable Storage.

Note: In power-off mode, connect Scanner to computer to charge the battery.
