FLEXI-FLOW™ Compact

Mass Flow & Pressure Meter/Controller

with TCS Technology

Quick Start Guide English

Doc. no.: 9.17.157 rev. A

Date: 29-03-2022

FLEXI-FLOW™ Compact

Mass Flow & Pressure Meter/Controller

with TCS Technology

Quick Start Guide English

Doc. no.: 9.17.157 rev. A

Date: 29-03-2022

Customer Care

For current information about Bronkhorst® and worldwide service addresses, please visit our

website.

For after-sales questions, help and guidance, our Customer Care department can be contacted by e-

mail:



aftersales@bronkhorst.com

No matter the time zone, our experts within the Customer Care department are available to answer

your request immediately or take appropriate further action. Our experts can be reached at:



+31 859 02 18 66

Service and returns

For current information about Bronkhorst®, worldwide service addresses and return

information, visit the Service & Support section on our website:



www.bronkhorst.com/service-support (or scan the QR code)

Disposal

If you are a customer within the European Union and wish to dispose of Bronkhorst®

equipment bearing the symbol of a crossed out waste disposal bin, Bronkhorst can take

care of proper dismantling, recycling and/or reuse. Just return the item(s) following the

return instructions on our website; please mention in the covering letter that you are

returning the product for disposal.

In countries outside the EU, disposal of electrical and electronic equipment (EEE) may be subject to

local or national directives and/or legislation. If applicable, consult local or national authorities to

learn how to handle EEE properly in your area.

Disclaimer

This document has been reviewed and is believed to be accurate. Bronkhorst High-Tech B.V. does

not assume liability for errors, inaccuracies or absence of information. The material in this document

merely serves information and illustration purposes; no rights can be derived from its contents.

Bronkhorst High-Tech B.V. reserves the right to modify or improve its products and documentation

without prior notice. Device specifications and the contents of the package may deviate from what

is stated in this document.

Bronkhorst High-Tech B.V.

Nijverheidsstraat 1a

NL-7261 AK Ruurlo, The Netherlands

+31 573 45 88 00

info@bronkhorst.com

www.bronkhorst.com

Complete documentation

For a comprehensive instruction manual, hook-up diagrams and other applicable

ocumentation about the FLEXI-FLOW™ Compact, visit the Bronkhorst® product

ages:



www.bronkhorst.com/flexi-flow (or scan the QR code)

Intended use

he FLEXI-FLOW™ Compact has been developed to measure and/or control mass flow rates and

ressures of clean, dry, non-corrosive and non-toxic gases in a fluid system.

he product is suited for general purpose indoor (dry) applications, like laboratories and machine

nclosures, under the following constraints:

Ambient temperature

0 … 50 °C

Operating pressure

16 bar (g) max.

Power supply

24 Vdc

esponsibility for the use of the equipment regarding its intended use, suitability for the intended

pplication, cleaning and compatibility of process media with the applied materials lies solely with

he user.

Safety notes

The product(s) described in this document may only be handled by qualified personnel

who are familiar with combined fluid and electrical systems and who recognize the

associated hazards (e.g. (high) fluid pressure, electric shock).

The user is responsible for taking the necessary safety measures to prevent damage

and/or injury while working with the equipment and process media (as described in the

associated Material Safety Data Sheets).

The equipment and its accessories must be used in accordance with their intended use,

specifications and operating instructions.

Opening the equipment is not allowed.

If the product is defective or otherwise does not meet your requirements, please contact

your Bronkhorst representative for assistance or advice.

Complete documentation

For a comprehensive instruction manual, hook-up diagrams and other applicable

documentation about the FLEXI-FLOW™ Compact, visit the Bronkhorst® product

pages:



www.bronkhorst.com/flexi-flow (or scan the QR code)

Intended use

The FLEXI-FLOW™ Compact has been developed to measure and/or control mass flow rates and

pressures of clean, dry, non-corrosive and non-toxic gases in a fluid system.

The product is suited for general purpose indoor (dry) applications, like laboratories and machine

enclosures, under the following constraints:

Ambient temperature

0 … 50 °C

Operating pressure

16 bar (g) max.

Power supply

24 Vdc

Responsibility for the use of the equipment regarding its intended use, suitability for the intended

application, cleaning and compatibility of process media with the applied materials lies solely with

the user.

Safety notes

The product(s) described in this document may only be handled by qualified personnel

who are familiar with combined fluid and electrical systems and who recognize the

associated hazards (e.g. (high) fluid pressure, electric shock).

The user is responsible for taking the necessary safety measures to prevent damage

and/or injury while working with the equipment and process media (as described in the

associated Material Safety Data Sheets).

The equipment and its accessories must be used in accordance with their intended use,

specifications and operating instructions.

Opening the equipment is not allowed.

If the product is defective or otherwise does not meet your requirements, please contact

your Bronkhorst representative for assistance or advice.

Product overview

1. Power & signal connector (9-pin D-sub)

2. Address selection switch

3. Service port (USB-C)

4. Fluid inlet

5. Status indication LED

6. Control valve

7. Fluid outlet

8. Flow direction

Installation

RS-485 D0 (A/A')

Not connected

0 Vs

Not connected

RS-485 D1 (B/B')

+Us (24 Vdc)

0 Vs

Shield

Mounting

Use mounting holes to attach instrument to

stable underground

Electrical connection

9-pin D-sub male connector - pinning

Verify that the power supply has sufficient capacity to install the instrument into the

network.

Always turn off electrical power before connecting equipment electrically.

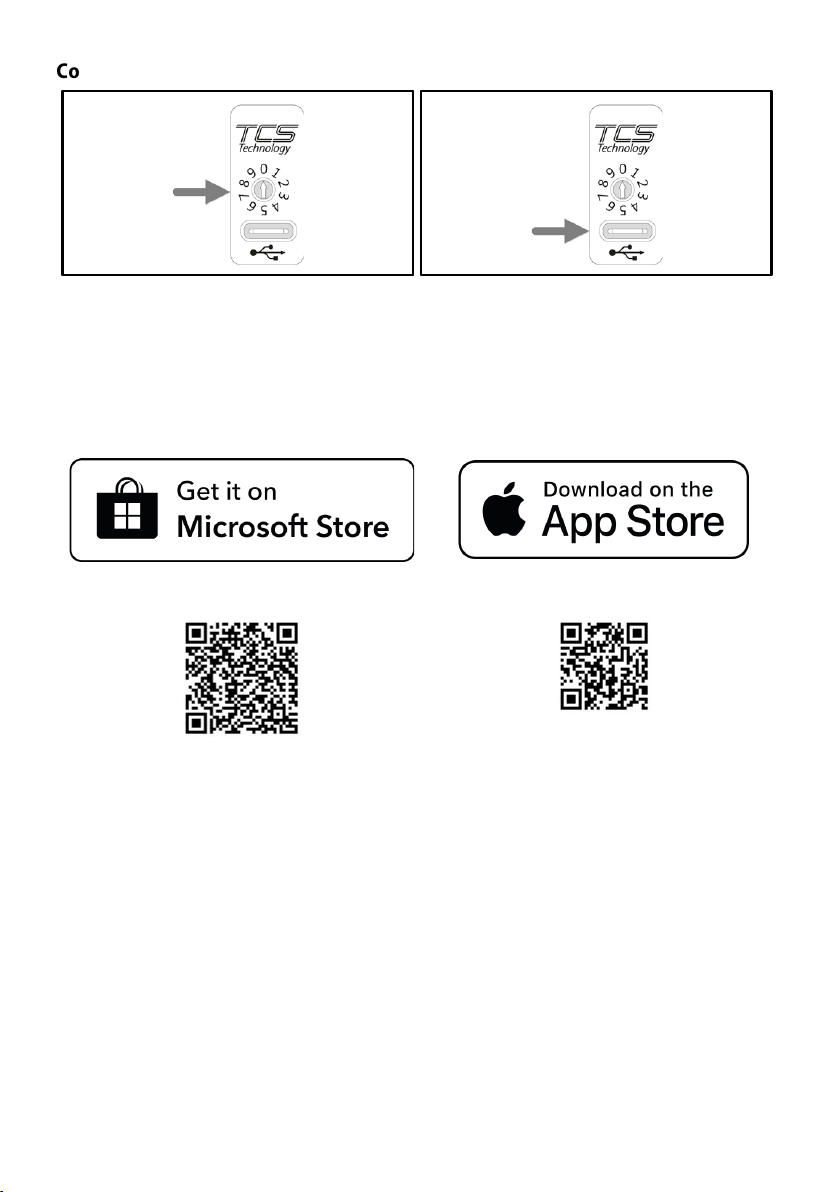

Configuration

Set instrument address

0: digital parameter setting

1-9: set manually (overrides the digital

parameter)

Digital configuration

After installing FlowSuite, establish

connection through service port (USB-C)

Configure with FlowSuite

Install FlowSuite

bronkhorst-flowsuite

Product overview

1. Power & signal connector (9-pin D-sub)

2. Address selection switch

3. Service port (USB-C)

4. Fluid inlet

5. Status indication LED

6. Control valve

7. Fluid outlet

8. Flow direction

Installation

RS-485 D0 (A/A')

Not connected

0 Vs

Not connected

RS-485 D1 (B/B')

+Us (24 Vdc)

0 Vs

Shield

Mounting

Use mounting holes to attach instrument to

stable underground

Electrical connection

9-pin D-sub male connector - pinning

Verify that the power supply has sufficient capacity to install the instrument into the

network.

Always turn off electrical power before connecting equipment electrically.

Configuration

Set instrument address

0: digital parameter setting

1-9: set manually (overrides the digital

parameter)

Digital configuration

After installing FlowSuite, establish

connection through service port (USB-C)

Configure with FlowSuite

Install FlowSuite

bronkhorst-flowsuite bronkhorst-flowsuite

Powering up

Check leak tightness of fluid system before applying full operating pressure

For reliable operation, make sure fluid stream is uncontaminated.

1. Power up 2. Pressurize fluid system

3. Green indication LED: ready to use!

FLEXI-FLOW™ Compact

Mass Flow & Pressure Meter/Controller

with TCS Technology

Quick Start Guide English

Doc. no.: 9.17.157 rev. A

Date: 29-03-2022

Powering up

Check leak tightness of fluid system before applying full operating pressure

For reliable operation, make sure fluid stream is uncontaminated.

1. Power up

2. Pressurize fluid system

3. Green indication LED: ready to use!

Customer Care

For current information about Bronkhorst® and worldwide service addresses, please visit our

ebsite.

or after-sales questions, help and guidance, our Customer Care department can be contacted by e

ail:



aftersales@bronkhorst.com

o matter the time zone, our experts within the Customer Care department are available to answer

our request immediately or take appropriate further action. Our experts can be reached at:



+31 859 02 18 66

Service and returns

For current information about Bronkhorst®, worldwide service addresses and return

nformation, visit the Service & Support section on our website:



www.bronkhorst.com/service-support (or scan the QR code)

Disposal

If you are a customer within the European Union and wish to dispose of Bronkhorst®

quipment bearing the symbol of a crossed out waste disposal bin, Bronkhorst can take

are of proper dismantling, recycling and/or reuse. Just return the item(s) following the

eturn instructions on our website; please mention in the covering letter that you are

eturning the product for disposal.

n countries outside the EU, disposal of electrical and electronic equipment (EEE) may be subject to

ocal or national directives and/or legislation. If applicable, consult local or national authorities to

learn how to handle EEE properly in your area.

Disclaimer

his document has been reviewed and is believed to be accurate. Bronkhorst High-Tech B.V. does

ot assume liability for errors, inaccuracies or absence of information. The material in this document

erely serves information and illustration purposes; no rights can be derived from its contents.

ronkhorst High-Tech B.V. reserves the right to modify or improve its products and documentation

ithout prior notice. Device specifications and the contents of the package may deviate from what

s stated in this document.

Bronkhorst High-Tech B.V.

Nijverheidsstraat 1a

NL-7261 AK Ruurlo, The Netherlands

+31 573 45 88 00

info@bronkhorst.com

www.bronkhorst.com
