Premium "T" Gas Grill

Owner’s Manual

T3-1, T3N-1 Models

T3C-1, T3CN-1 Models

T3CF-1, T3CFN-1 Models

Page 2 B101051-0-1106

WARNING

Reference this manual for proper installation and maintenance instructions. Improper installa-

tion, adjustment, alteration, service or maintenance can cause personal injury or property dam-

age. For assistance or additional information consult a qualiﬁed installer, service agency or the

gas supplier.

WARNING

Broilmaster® Gas Grills must ONLY use propane cylinders equipped with an Overﬁll Protection

Device (OPD). Use only a reputable propane dealer when exchanging or ﬁlling cylinders. An

overﬁlled or improperly ﬁlled propane cylinder can be dangerous.

DANGER

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2. Extinguish any open ﬂame.

3. Open the grill lid.

4. If odor continues, keep away from the appliance and immediately

call your gas supplier or ﬁre department.

CAUTION:

Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the

unpacking, assembly and installation.

WARNING

1. Do not store or use gasoline or other ﬂammable liquids or vapors in the vicinity of this or any

other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance.

IMPORTANT

This manual should be read thoroughly by the person installing the grill and all persons who will

use and maintain the grill. The installer should be sure the manual is left in the possession of the

user. The user should retain this manual for future reference when using or cleaning the grill and

to properly identify any repair parts that may be required.

Page 3B101051-0-1106

Congratulations!

Welcome to the beauty, durability, and prestige of a Premium Gas Grill by

Broilmaster®. With award-winning excellence built into every feature and du-

rability that surpasses other Premium gas grills, Broilmaster has manufactured

the ultimate gas grill for discriminating outdoor chefs for over 30 years.

At Broilmaster, we continually strive to enhance the performance and quality

of our products for your grilling enjoyment. Every effort will be made to en-

sure that Broilmaster continues to be your choice as the Premium grill of the

future.

Whether you are at the lake or in the privacy of your own backyard, the Broil-

master Premium Gas Grill performs far beyond the ordinary and is designed to

provide your family with years of outdoor cooking pleasure.

Thank You!

Page 4 B101051-0-1106

Model No. Dealer

Serial No. Dealer Phone No.

Gas Type: Propane Natural Date of Purchase

Your Broilmaster Premium Gas Grill is identiﬁed by model number, serial number, and gas type. This

information is provided on a product identiﬁcation label located on the grill’s control panel. For your

convenience, complete this section for future reference when contacting your dealer.

Hardware Package ............................................................................................................................................... 5

Parts Diagram .......................................................................................................................................................6

Parts List

.................................................................................................................................................................7

Grill Assembly ...............................................................................................................................................8-12

Propane Gas Grills ........................................................................................................................................13-15

Gas Conversion ..................................................................................................................................................16

Natural Gas Grills ..............................................................................................................................................17

Operation- Propane & Natural Grills ............................................................................................................18-19

Maintenance ...........................................................................................................................................................20

Troubleshooting ....................................................................................................................................................21

Warranty ................................................................................................................................................................22

Notes ......................................................................................................................................................................23

Congratulations!

You have chosen the ﬁnest grill for your outdoor cooking pleasure. Please take time to read this entire manual

before assembling your Premium Broilmaster gas grill.

TABLE OF CONTENTS

Page 5B101051-0-1106

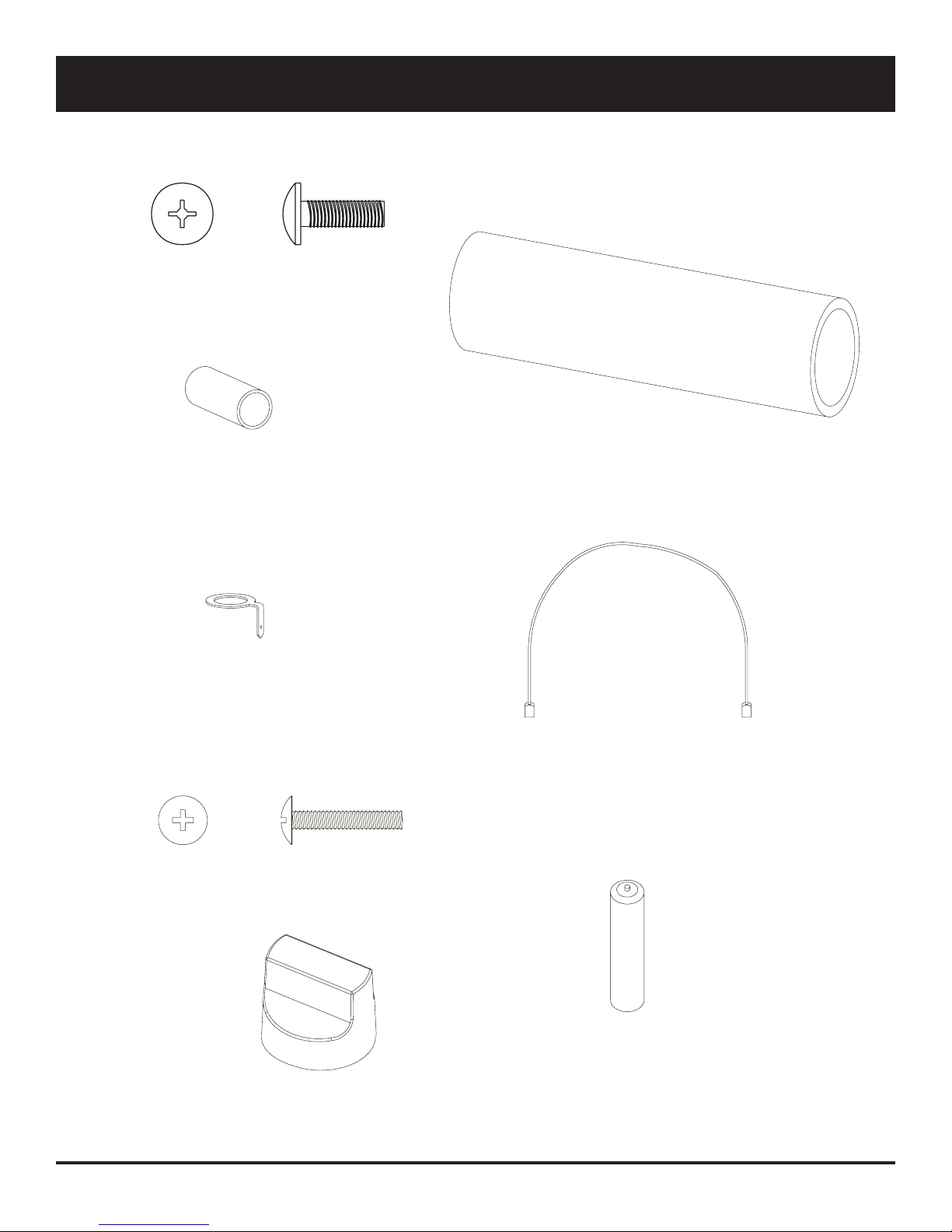

HARDWARE PACKAGE

B069743 SPACER, IGNITOR

B069747 LUG, IGNITOR GROUND

B073097 FOAM GRIP

B101048 WIRE, IGNITOR GROUND

B076529 BATTERY, AA

R3918 KNOB

B072217 SCREW 1/4-20 X 3/4 PH TRUSS HEAD SS

B073978 SCREW #10-24 X 1 PHILLIPS TRUSS STAINLESS

Page 6 B101051-0-1106

All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your area,

contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate

service, please provide the following information when placing a repair part order: Model Number, Serial Number,

Part Name, Part Number, and Quantity of parts needed.

PARTS DIAGRAM

15 12

10 13

Page 7B101051-0-1106

PARTS LIST

Index

Number

Description T3

Part

Number

T3C

Part

Number

T3CF

Part

Number

T3N

Part

Number

T3CN

Part

Number

T3CFN

Part

Number

1 GRILL BODY TOP - BLACK B101039 B101039 B101039 B101039 B101039 B101039

2 HEAT INDICATOR (STAINLESS) DPP18SS DPP18SS DPP18SS DPP18SS DPP18SS DPP18SS

3 LID HANDLE (STAINLESS) B070486 B070486 B070486 B070486 B070486 B070486

4 FOAM GRIP B073097 B073097 B073097 B073097 B073097 B073097

5 RETRACT-A-RACK B100594 B072695 B072695 B100594 B072695 B072695

6 COOKING GRID (SET OF 2) DPP103 DPP103 DPP103 DPP103 DPP103 DPP103

6 COOKING GRID (SINGLE) B101053 B101053 B101053 B101053 B101053 B101053

7 BRIQUET RACK B101061 B101061 N/A B101061 B101061 N/A

8 BURNER DPP104 DPP104 DPP104 DPP104 DPP104 DPP104

9 FLAVOR SCREEN N/A N/A DPA103 N/A N/A DPA103

10 COLLECTOR BOX ASSEMBLY B101031 B101031 B101031 B101031 B101031 B101031

11 IGNITOR SPACER B069743 B069743 B069743 B069743 B069743 B069743

12 GROUND LUG B069747 B069747 B069747 B069747 B069747 B069747

13 RADIATION SHIELD DPP106 DPP106 DPP106 DPP106 DPP106 DPP106

14 GRILL BODY BOTTOM - BLACK B101044 B101044 B101044 B101044 B101044 B101044

15 LID STOP KIT N/A DPA106 DPA106 N/A DPA106 DPA106

16 VALVE SHIELD B101046 B101046 B101046 B101046 B101046 B101046

17 VALVE ASSEMBLY (NO ORIFICE) B101042 B101042 B101042 B101042 B101042 B101042

18 MANIFOLD AND VALVE ASSEMBLY B101040 B101040 B101040 B101112 B101112 B101112

19 ELECTRONIC IGNITOR B072218 B072218 B072218 B072218 B072218 B072218

20 CONTROL PANEL ASSEMBLY B101033 B101066 B101066 B101033 B101066 B101066

21 CONTROL PANEL LABEL B101028 B101028 B101028 B101028 B101028 B101028

22 VALVE KNOB R3918 R3918 R3918 R3918 R3918 R3918

23 HOSE AND LP REGULATOR B069756 B069756 B069756 N/A N/A N/A

24 PIN, SHELF B073963 B073963 B073963 B073963 B073963 B073963

N/S CHAR-MASTER BRIQUETS B058122 B058122 N/A B058122 B058122 N/A

N/S HARDWARE PACK B101047 B101047 B101047 B101047 B101047 B101047

N/S IGNITOR GROUND WIRE B101048 B101048 B101048 B101048 B101048 B101048

N/S BRIDGE PIN B057805 B057805 B057805 B057805 B057805 B057805

N/S HINGE PIN B057804 B057804 B057804 B057804 B057804 B057804

N/S NATURAL GAS CONVERSION KIT B101062 B101062 B101062 N/A N/A N/A

N/S ORIFICE, LP #55 B101111 B101111 B101111 N/A N/A N/A

N/S ORIFICE, NAT #49 N/A N/A N/A B101063 B101063 B101063

Page 8 B101051-0-1106

Recommended Tools

These items are recommended for the assembly of your

grill:

• Phillips screwdriver

• Adjustable wrench set

• Socket set

• Soapy water solution (to test for leaks)

• Liquid soap (for foam grip)

Grill Mountings

Assemble your base option before assembling your Broil-

master grill head.

Refer to the Broilmaster Cart, Base, and Post instructions

provided with each accessory for assembly, installation, and

mounting procedures.

Before You Begin

All Broilmaster grills require some assembly and installation.

Follow all instructions unless noted to apply only to other

speciﬁc models.

If you purchased an accessory with your Broilmaster, follow

the instructions provided with the accessory for assembly

and installation. If an instruction refers to a step that is not

required for your grill model, please continue to the next

step.

In each step, parts are identiﬁed with “Key” numbers. Key

numbers appear in parenthesis after a part name is mentioned

for the ﬁrst time in the instructions. You can reference each

part by its key number on the Parts List if you need help in

identifying a part.

Compare the parts found in the shipping container to the

parts list provided. If any parts are missing contact your

Broilmaster dealer before beginning assembly.

CAUTION: FOR YOUR SAFETY

Parts may have sharp edges. Wear leather work

gloves and handle parts carefully during the unpack-

ing, assembly and installation.

GRILL ASSEMBLY

Page 9B101051-0-1106

1. Mount grill onto cart, post or base per the mounting in-

structions.

2. Place radiation shield (13) (ﬂange side up) onto four

raised bosses located on the interior bottom of the grill.

Secure with four 1/4-20 x 3/4 screws. See Figure 1.

3. Place burners (8) into grill and insert burner tubes over

oriﬁce ﬁttings on valve (17). Secure each burner with

one (1) 1/4-20 x 3/4 phillips screw. See Figures 2, 3 and

GRILL ASSEMBLY

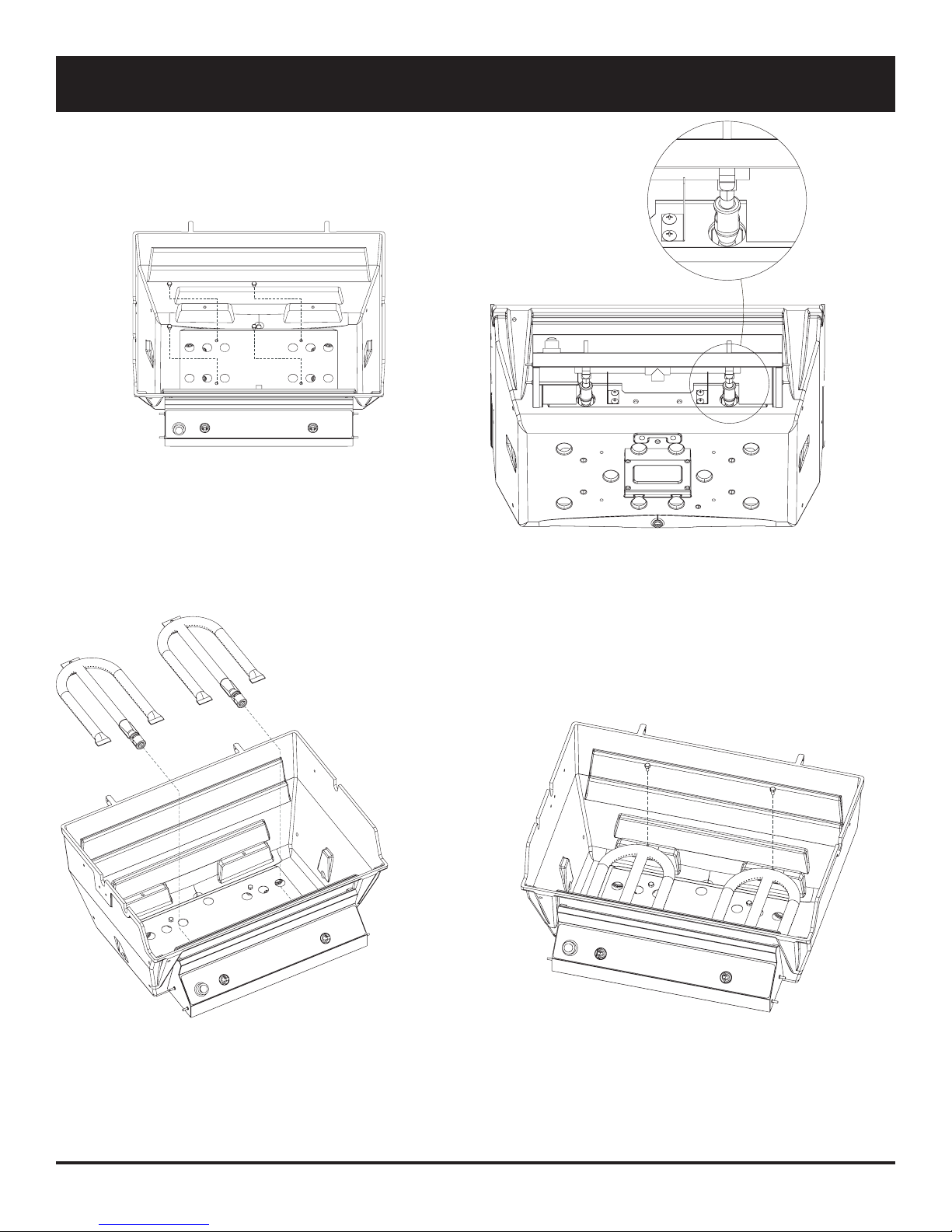

Figure 1

Figure 2

Figure 3

Figure 4

Page 10 B101051-0-1106

4. Slide ignitor spacers (11) onto collector box assem-

blies (10) and secure with nuts. See Figure 5.

Attention: Do not cut or damage ignitor wires.

5. Insert collector box assemblies into holes adjacent to

burners. See Figure 6.

6. Slide ground lugs (12) over ignitor wires and onto col-

lector box assemblies. Slide nuts over ignitor wires and

secure collector box assemblies to grill. See Figure 7.

7. Attach ignitor ground wire ends onto ground lugs. See

Figure 8.

8. Attach ignitor wires to terminals on the ignitor. See Fig-

ure 9.

GRILL ASSEMBLY

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9
