Broan RANGEMASTER RM65000 Series Manuel utilisateur

BReAN E

(RANGE AST oR)

GE O0

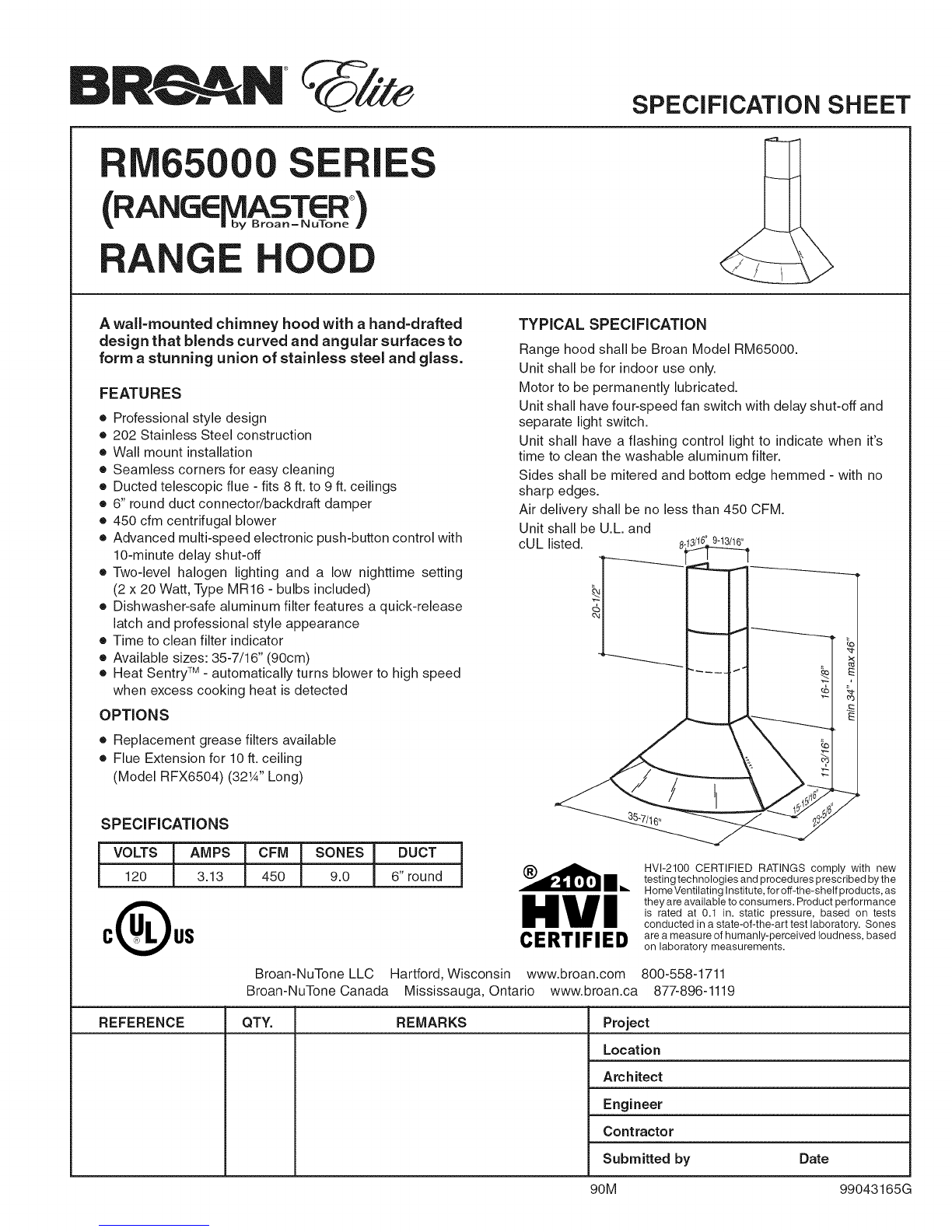

SPECiFiCATiON SHEET

A wall-mounted chimney hood with a hand=drafted

design that blends curved and angular surfaces to

form a stunning union of stainless steel and glass.

FEATURES

® Professional style design

• 202 Stainless Steel construction

® Wall mount installation

• Seamless corners for easy cleaning

• Ducted telescopic flue - fits 8 ft. to 9 ft. ceilings

® 6" round duct connector/backdraft damper

® 450 cfm centrifugal blower

® Advanced multi-speed electronic push-button control with

10-minute delay shut-off

® Two-level halogen lighting and a low nighttime setting

(2 x 20 Watt, Type MR16 - bulbs included)

• Dishwasher-safe aluminum filter features a quick-release

latch and professional style appearance

® Time to clean filter indicator

• Available sizes: 35-7/16" (90cm)

® Heat Sentry TM - automatically turns blower to high speed

when excess cooking heat is detected

OPTIONS

® Replacement grease filters available

® Flue Extension for 10 ft. ceiling

(Model RFX6504) (32W' Long)

TYPICAL SPECiFiCATiON

Range hood shall be Broan Model RM65000.

Unit shall be for indoor use only.

Motor to be permanently lubricated.

Unit shall have four-speed fan switch with delay shut-off and

separate light switch.

Unit shall have a flashing control light to indicate when it's

time to clean the washable aluminum filter.

Sides shall be mitered and bottom edge hemmed - with no

sharp edges.

Air delivery shall be no less than 450 CFM.

Unit shall be U.L and

cUL listed. 9-13/16.

SPECiFiCATiONS

VOLTS AMPS CFM SONES DUCT

120 3.13 450 9.0 6" round

CERTIFIED

HVI-2100 CERTIFIED RATINGS comply with new

testing technologies and procedures prescribed by the

Home Ventilating Institute, for off-the-shelf products, as

they are available to consumers. Product performance

is rated at 0.1 in. static pressure, based on tests

conducted in a state-of-the-art test laboratory. Sones

are a measure of humanly-perceived loudness, based

on laboratory measurements.

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

90M 99043165G

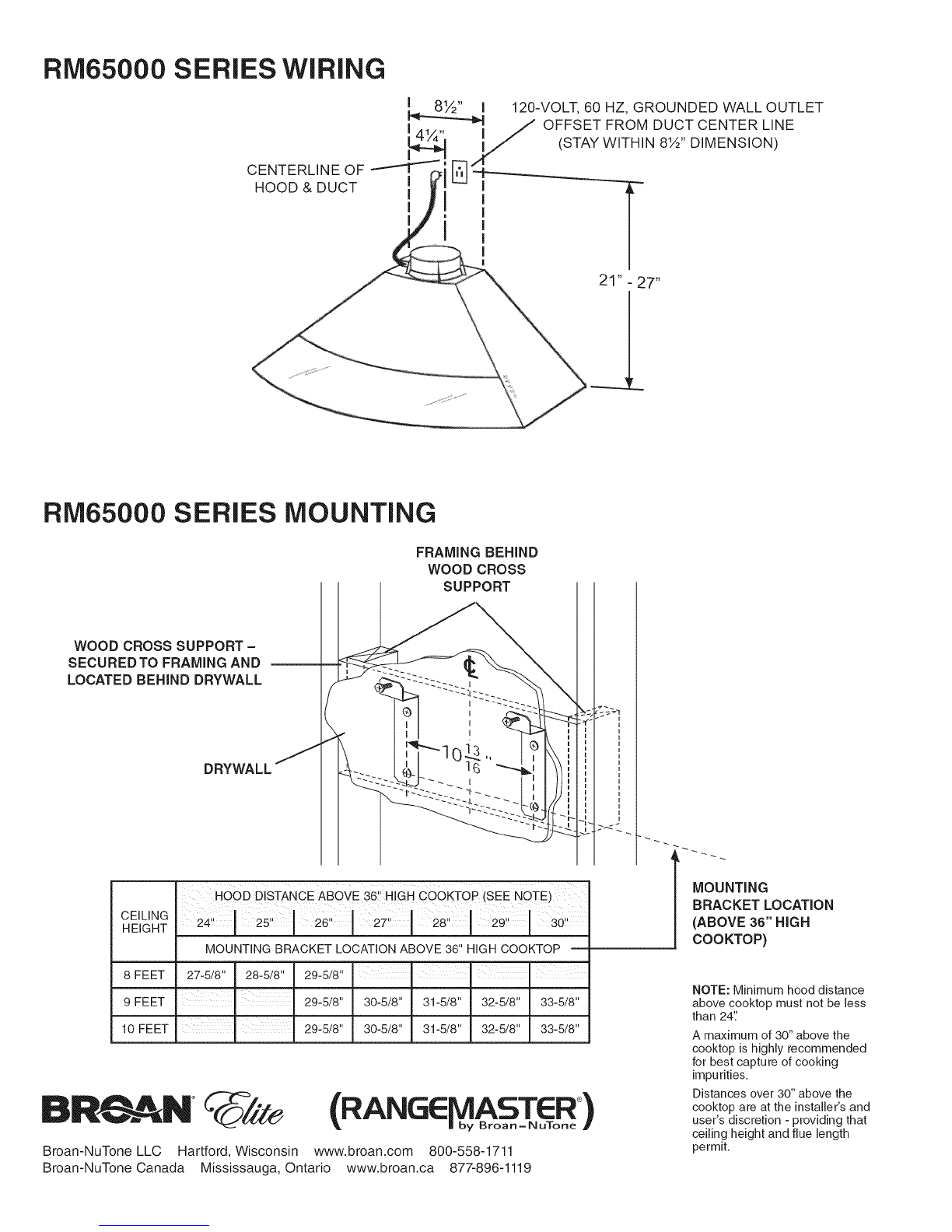

RM65000 SERIES WiRiNG

CENTERLINE OF

HOOD & DUCT

81½'' I 120-VOLT, 60 HZ, GROUNDED WALL OUTLET

OFFSET FROM DUCT CENTER LINE

_ (STAY WITHIN 8½" DIMENSION)

21" - 27"

RM65000 SERIES MOUNTING

WOOD CROSS SUPPORT -

SECUREDTO FRAMING AND

LOCATED BEHIND DRYWALL

DRYWALL

FRAMING BEHIND

WOOD CROSS

SUPPORT

CEILING

HEIGHT

8 FEET

9 FEET

10 FEET

HOOD DISTANCE ABOVE 36" HIGH COOKFOP (SEE NOTE)

MOUNTING BRACKET LOCATION ABOVE 36" HIGH COOKTOP

27-5/8" 28-5/8" 29-5/8" I I

I 29-5/8" 30-5/8" 31-5/8" 32-5/8" 33-5/8"

29-5/8" 30-5/8" 31-5/8" 32-5/8" 33-5/8"

BR_N °__ (RANGE_AS_TEo_oR)

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119

MOUNTING

| BRACKET LOCATION

|(ABOVE 36" HIGH

| COOKTOP)

NOTE: Minimum hood distance

above cooktop must not be less

than 24'_

A maximum of 30" above the

cooktop is highly recommended

for best capture of cooking

impurities.

Distances over 30" above the

cooktop are at the installer's and

user's discretion -providing that

ceiling height and flue length

permit.
