Broan Best UP27E Series Manuel utilisateur

SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted By Date

70K 99044126A

UP27E SERIES

RANGE HOOD

Best by Broan, P.O. Box 140, Hartford, WI 53027

Best by Broan, 550 Lemire Blvd., Drummonville, QC J2C 7W9 Canada

RMP Series Backsplash

(Optional)

For domestic

cooking only.

30” TO 48”

IN 6” INCREMENTS

30” TO 48”

IN 6” INCREMENTS

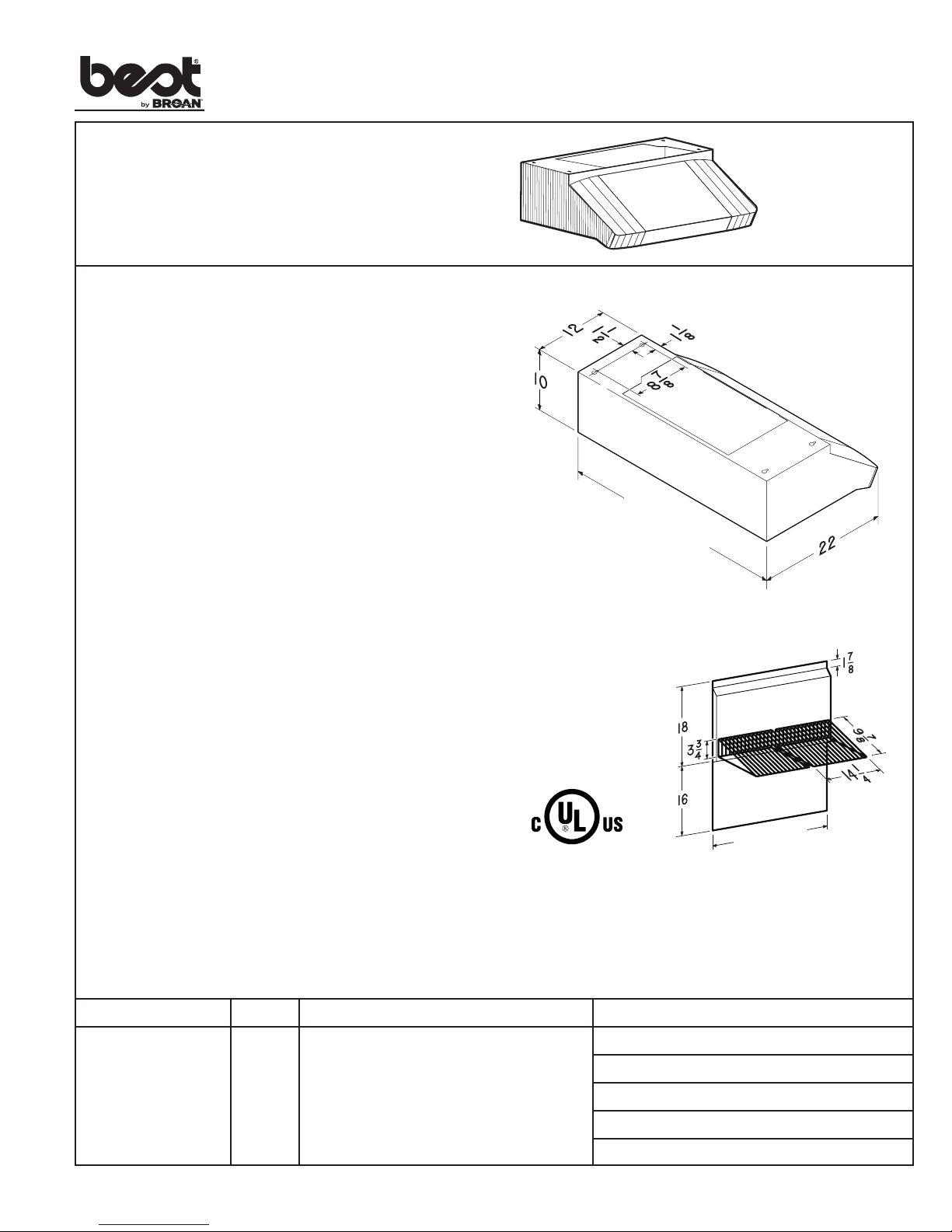

Offers modern styling, high performance, and durable

under-cabinet construction to meet the needs of

professional-quality residential cooktops.

A complete installation requires several optional components.

Refer to page 2 when planning your installation.

FEATURES

HOOD:

•Widths available - 30” to 48” in 6” increments

•Stainless Steel, 20 gauge, type 304

•Stainless Steel bafe lters with removable mesh element

- easily accessible, dishwasher safe

•Variable cooktop lighting (Uses 50W, GU10 halogen lamps.

30” & 36” wide hoods = 2 lamps, 42” & 48” wide hoods = 4

lamps. Bulbs included.)

•Solid-State, innite speed blower control with speed memory

•Exclusive, Heat Sentry™ turns blower ON to HIGH speed

when excess heat is detected

•Evolution™ lter - bafe lter with integrated micromesh

lter

BACKSPLASH:

RMP Series (Optional)

•Widths - 30” to 48” in 6” increments

•Stainless steel, 22 gauge, type 430 - protects back wall and

wipes clean easily

•Two (2) dual position condiment storage shelves

SPECIFICATION:

•120 VAC, 60 Hz,

•0.8 Amps without blower (30” & 36” widths)

1.7 Amps without blower (42” & 48” widths)

UP27E Series Hood

BEST BY BROAN

UP27E

HOOD SYSTEM

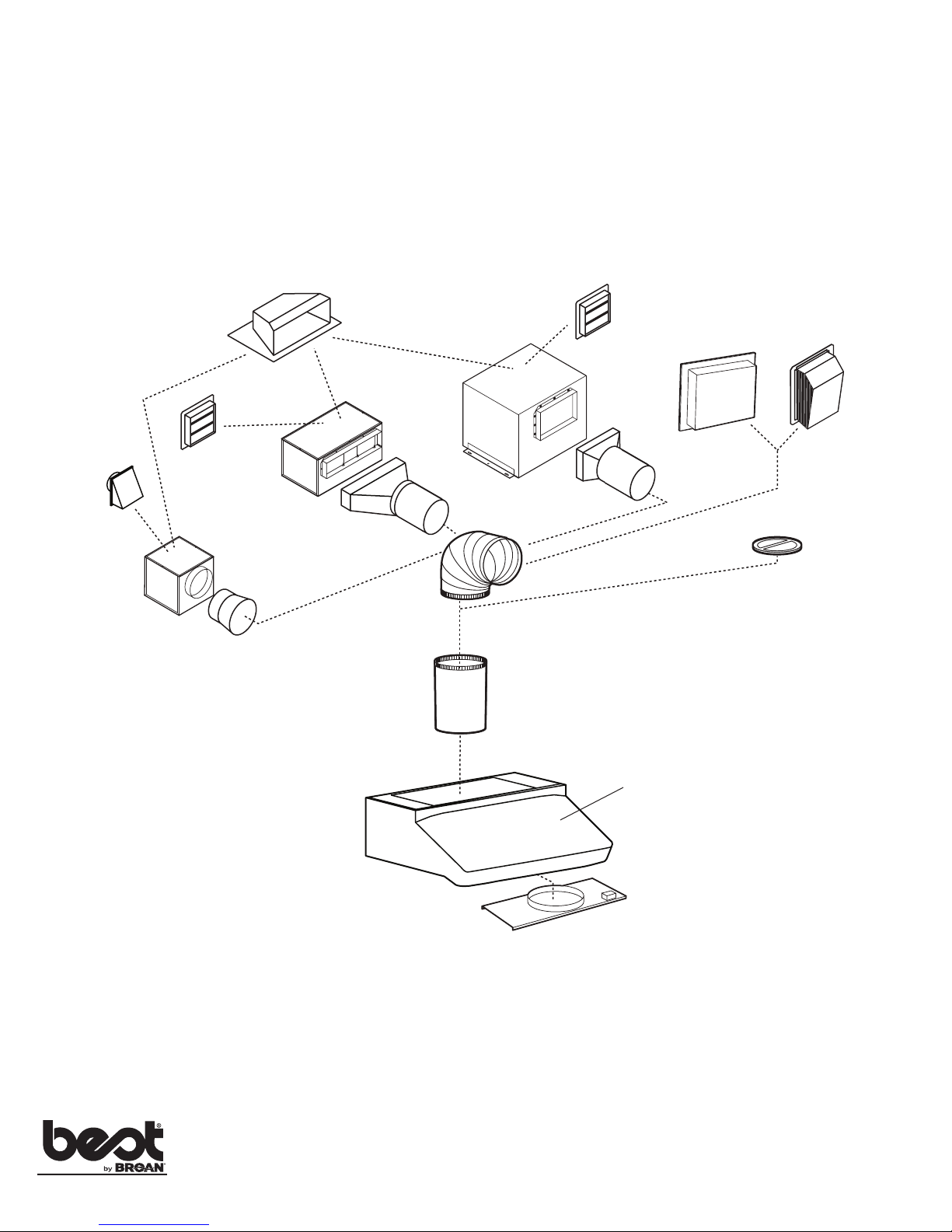

-UP27E SERIES RANGE HOOD SYSTEM -

IN-LINE AND EXTERIOR BLOWERS

In-line and exterior blower rough-in kit

(included with EB6, EB9, EB12, EB15,

ILB3, ILB6, ILB9 and ILB11 blowers.)

Model 418

10” Round

adjustable elbow

(optional)

Model ILB3 (280 cfm)

in-line blower

(includes one 8” to 10”

round transition)

Model EB6 (600 cfm)

or EB9(900 cfm)

exterior blower

Model EB12 (1200 cfm)

or EB15 (1500 cfm)

exterior blower

Model 441

(10” Round

wall cap)

Model 437

(High capacity roof cap)

Model 441

(10” Round wall cap)

Model 421

(10” Round vert.

in-line damper)

Recommended

for use with

exterior blowers

Model 410

(10” Round duct

—2ft. sections)

Model ILB6 (600 cfm)

in-line blower

(includes two 4½” x 18½”

to 10’’ round transitions)

Model ILB9 (800 cfm)

or ILB11 (1100 cfm)

in-line blower

(includes two 8” x 12” to

10’’ round transitions)

UP27E

SERIES HOOD

(Canopy with

blower controls

& lighting.

required for all

installations.)

Model 643

(8” Round

wall cap)
