Bristan IRBS3-CP Instructions de montage

Models Covered:

IRBS3-CP, IRBS3-BN,

IRBS5-CP

Please keep this booklet for future

reference.

Installer, when you have read these

instructions please ensure you leave

them with the user.

Installation Instructions

and User Guide

Infrared Automatic Basin Spouts

Contents

• Important Safety Information 3

• Speciﬁcation 4

• Product Features 5

• Dimensions (mm) 6

• Installation Requirements 7

• Installation 8-10

• Installation - Electrical Connections 11-12

• Installation - Water Connections 12-13

• Operation 14

• Maintenance 14-15

• Troubleshooting 16-17

• Notes 18-19

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Contents

Thank you for choosing Bristan, the UK’s leading showers and taps expert.

Your Bristan basin spout has a non-touch control which uses infrared sensing

technology to detect human presence. Once detected, the spout instantly

dispenses water and automatically stops once the user moves their hands

away to eliminate unnecessary water wastage, whilst creating a more hygienic

washroom solution.

All products manufactured and supplied by Bristan are safe and comply to

legislative requirements. Providing they are installed correctly and receive

regular maintenance in accordance with these instructions your user experience

will not be aected.

For a safe and successful installation these instructions should be used as

guidance, thereafter they should be left with the user.

• Before starting any installation

please consider the following: before

drilling into walls, check that there are

no hidden electrical wires, cables or

water supply pipes. This can be checked

with the aid of an electronic detector.

• If power tools are used do not

forget to:

- Wear eye protection

- Unplug equipment after use

• Fitting isolating valves to the

inlet feeds is required for ease of

maintenance.

• Warning: Before installing

the new spout it is essential

that you thoroughly

ﬂush through the pipework

in order to remove any remaining swarf,

solder, etc. Failure to carry out this

procedure could cause problems or

damage to the workings of the spout.

• This product must not be modiﬁed

in any way as this will invalidate the

guarantee.

• Please read these instructions

thoroughly and retain for future use.

• All products manufactured and

supplied by Bristan are safe provided

they are installed, used correctly

and receive regular maintenance in

accordance with these instructions.

• If you are in any doubt about

your ability to install this product

safely you must employ the

services of an experienced qualiﬁed

plumber/electrically qualiﬁed

person.

• Warning: Do not

operate the product

if you suspect it is

frozen. Do not site the

product where it might be subjected

to freezing conditions.

• These ﬁttings need to be

installed in accordance with, and

meet the requirements of the Water

Supply (Water Fittings) Regulations

1999

and current byelaws.

• Remove all packaging and check

the contents for damage before

starting installation

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 3

Important Safety Information

Power Supply Box Inlet Connection: G1/2”.

Power Supply Box Outlet Connection:

G1/2”

Operating Pressure Range: Min. 1.0 Bar -

Max. 5.0 Bar

Maximum Static Pressure: 10 Bar

Inlet Water Supply Temperature Range:

5°C - 45°C

Power Supply: AC: 220V-240V; 50/60HZ

DC: 6V

(4 x AA alkaline batteries - Not Supplied)

Power Consumption: Static <0.3MW

Active: <3W

Sensing Range:

IRBS3-CP/BN: 27-31cm

IRBS5-CP: 15-25cm

Self-close Override Time: 55 seconds ± 5

seconds

Recommended Usage

Domestic Heavy

Commercial

Light

Commercial Health Care

This product has been tested to meet the

requirements of the Water Regulations

Advisory Scheme (WRAS) and satisﬁes

the requirements of the Water Supply

(Water Fittings) Regulations 1999 and

current byelaws.

BS 6700 recommends the temperature

of stored water should never exceed

65°C. A stored water temperature of

60°C is considered sucient to meet all

normal requirements and will minimise

the build up of limescale in hard water

areas.

This product should be installed in

compliance with the current Water

Regulations.

If in doubt, contact a registered plumber

or your Local Water Authority or the

Secretary of The Institute of Plumbing,

address as follows;-

The Institute of Plumbing,

64 Station Lane,

Hornchurch,

Essex, RM12 6NB

Tel:01708 472791

IMPORTANT

In order to meet Part G building

regulations, an approved

thermostatic blending valve is

required in order to install this

tap correctly.

Please visit our website for more

details on our blending valves.

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Speciﬁcation

Water Ecient

When the users hands enter the sensing

range, the indicator light in the sensor

will illuminate. Water will ﬂow out

immediately until the user draws their

hands back from the sensor.

The water will automatically stop after

a maximum of 55 seconds ± 5 seconds

to avoid wasting water. If more water is

required wait 4 seconds and then place

hands back in the sensing range.

More Hygienic

The proximity sensor removes the need

to touch the spout body, reducing the

spread of germs and reducing the chance

of cross infection.

Battery Override

In the event of a power failure, the

product will automatically switch to

battery operated mode to ensure the

spout continues to function. The tap can

also operate on the battery alone if no

mains power source is available.

Low Battery Warning

When the batteries run low and the

power falls below 3.9V the sensor light

will ﬂicker to indicate the batteries are

running low and need replacing.

When the batteries are exhausted the

sensor light will not light up.

IRBS3-CP/BN

Sensor

IRBS5-CP

Sensor

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 5

Product Features

IRBS5-CP

IRBS3-CP/BN

35 125

141

159

120

G 1/2”

170

120

125

G 1/2”

169

154

243

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

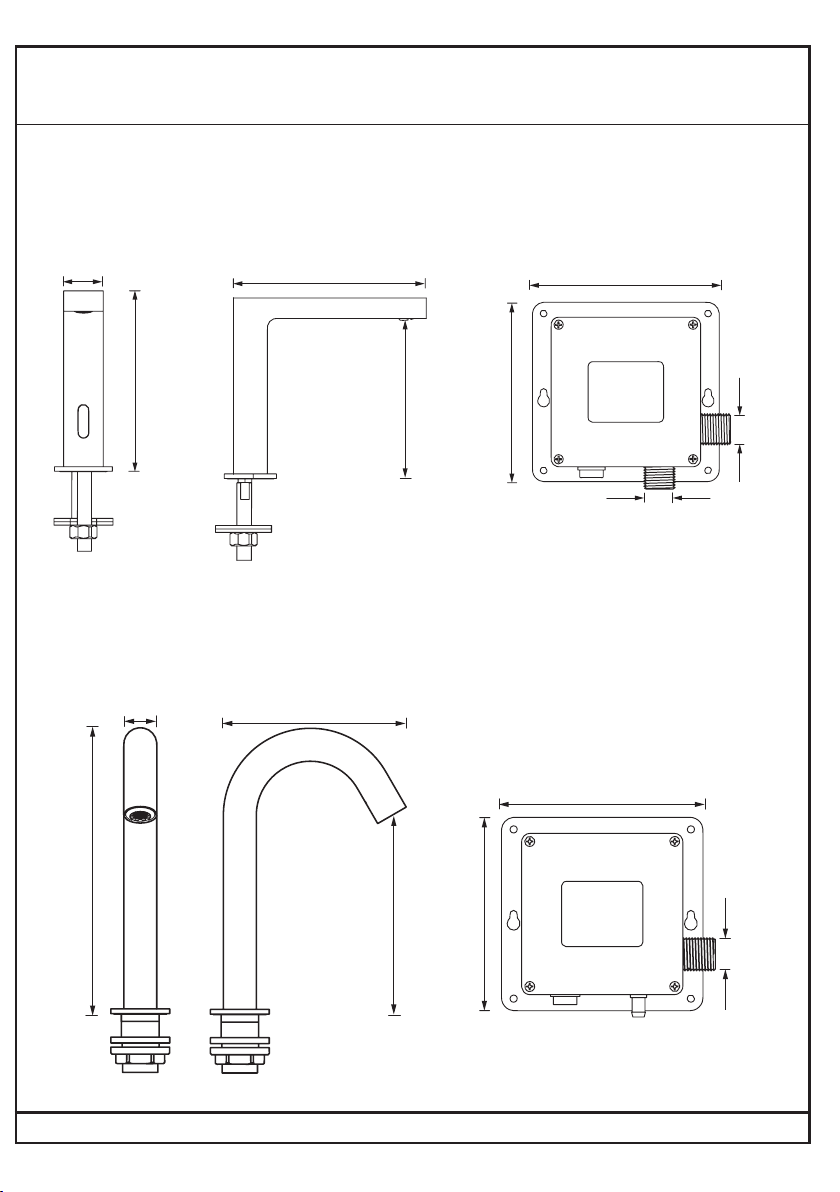

Dimensions (mm)

Electrical Connections

Regulations: The electrical installation

must be carried out in accordance with

the national electrical regulations and

installed by a qualiﬁed person.

Safety: In the interests of electrical

safety a 30 mA residual current device

(R.C.D not supplied) should be installed

in the supply circuit. This may be part of

a consumer unit or a separate unit.

Before starting work on the electrical

supply ensure the power supply is

isolated.

DO NOT allow the supply cord to

contact hot surfaces. The cord should

be safely routed and secured by cable

clips.

Connections: The power supply box

must be permanently connected to the

ﬁxed wiring of the mains supply using

the factory ﬁtted supply cord, via a

switched fused spur o the ring main.

The wires in the mains lead are coloured

in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the

mains lead of this appliance may not

correspond with the coloured markings

identifying the terminals in your

connection unit proceed as follows;-

The wire which is coloured blue must

be connected to the terminal which is

marked with the letter ‘N’ or is coloured

black.

The wire which is coloured brown must

be connected to the terminal which is

marked with the letter ‘L’ or is coloured

red.

Fuse: This following fuse size should be

used.

Model Fuse Size

(AMPS)

IRBS3-CP 3

IRBS3-BN 3

IRBS5-CP 3

Supply Cord Replacement

If the supply cord is damaged, it must

be replaced by a genuine Bristan supply

cord. Contact Bristan Customer Services

on 0330 026 6273 to request new spare

parts.

N L

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 7

Installation Requirements

Sensor

Cable

Sensor

Cable

Flexi Hose

IRBS3-CP/BN

1. Fit The Spout

Fit the spout to the sink / work surface

ensuring the sensor cable is threaded

through the hole in the sink / work

surface.

Important: It is advised

to ensure that the

product is at least

360mm away from

reﬂective surfaces to prevent the tap

from automatically switching on and o.

2. Secure Spout to Sink/Work Surface

Thread the rubber washer and metal

washer onto the ﬁxing rod up to the

underside of the sink/work surface.

Secure the spout in place by screwing

the ﬁxing nut onto the ﬁxing rod.

Tighten the ﬁxing nut using a suitable

spanner.

3. Connect Sensor Cable

Go to the ‘Electrical Connections’

section.

4. Connect Water Supplies

Screw the ﬂexi hose into the bottom of

the ﬁxing rod, ensuring it is tightened

fully by hand only.

Connect the ﬂexi hose to the

power supply box. Go to the ‘Water

Connections’ section.

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation

IRBS5-CP

1. Fit The Spout

Fit the spout to the sink / work surface

ensuring the sensor cable is threaded

through the hole in the sink / work

surface.

Important: It is advised

to ensure that the

product is at least

360mm away from

reﬂective surfaces to prevent the tap

from automatically switching on and o.

2. Secure Spout to Sink/Work Surface

Secure the spout in place by screwing

the backnut on to the threaded tail.

Tighten fully using a suitable spanner.

3. Connect Sensor Cable

Go to the ‘Electrical Connections’

section.

4. Connect Water Supplies

Screw the ﬂexi hose into the bottom of

the ﬁxing rod, ensuring it is tightened

fully by hand only.

Connect the ﬂexi hose to the

power supply box. Go to the ‘Water

Connections’ section.

B acknut

Inlet Water

Hos e

S ens or

Cable

Sensor

Cable

Inlet Water

Hose

Backnut

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 9

Installation

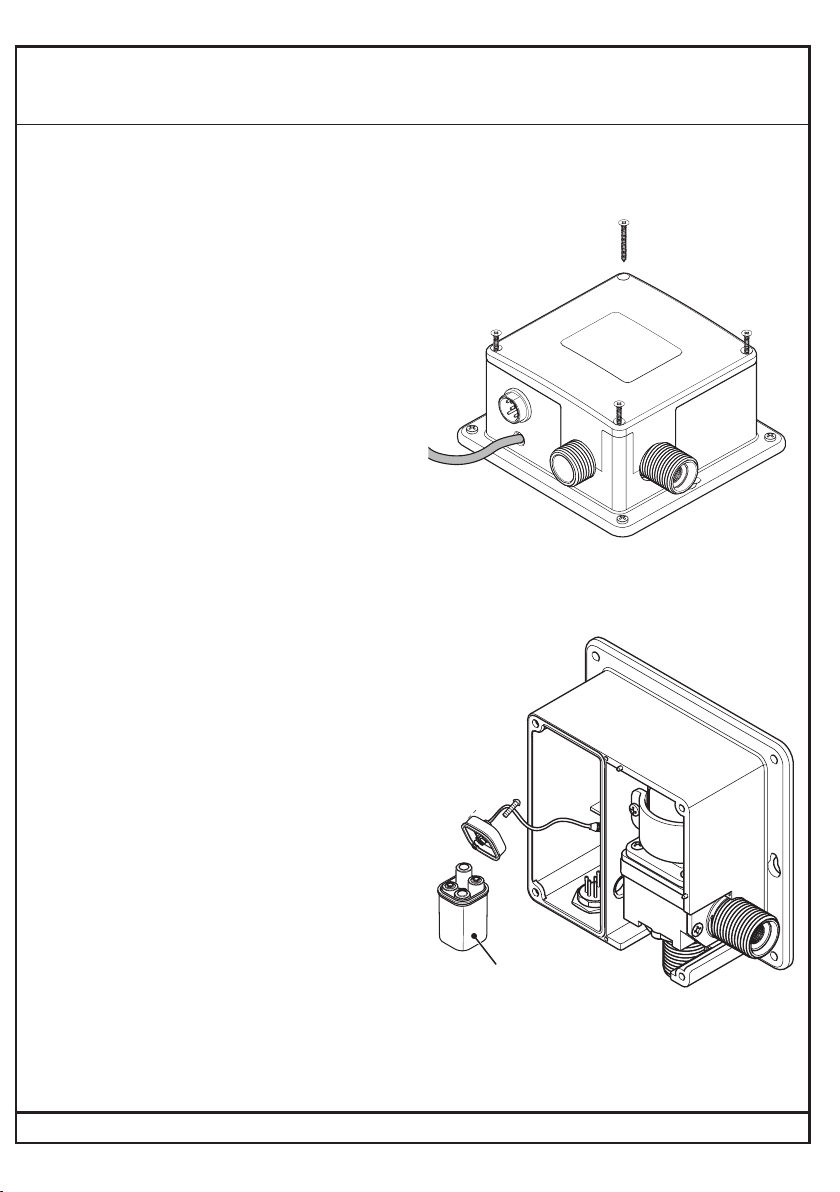

Inserting Batteries

Your infrared spout is supplied with a

back up battery pack. In the event of a

power failure the batteries will override

the mains power supply to ensure the

spout continues to function.

Note: If you do not have a mains power

supply, this product can run o the

battery pack.

Before ﬁtting the power supply box into

position on the wall/ﬂoor, batteries (not

included) will need to be ﬁtted.

1. Remove Power Supply Box Cover

Remove all four screws in each corner of

the power supply box and remove the

cover.

2. Remove Battery Box

Remove the battery case from the power

supply box and remove the screw in the

centre of the case.

3. Insert Batteries

Insert 4 x AA batteries into the battery

box ensuring they are inserted the

correct way.

Note: Only use 1.5V AA (LR6) Alkaline

batteries (preferably => 2000mAh for

good battery life).

4. Replace Battery Box

Replace the battery case cover. Replace

and tighten the screw. Insert the battery

case back into the power supply box.

5. Replace Power Supply Cover

Replace the power supply cover and

tighten all 4 screws ensuring they are all

fully tightened.

Battery

Case

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bristan Appareil de salle de bains

Bristan

Bristan FH SLSQ01 C Manuel utilisateur

Bristan

Bristan IRBS3-BN Instructions de montage

Bristan

Bristan 1500 Instructions de montage

Bristan

Bristan SM385 W Instructions de montage

Bristan

Bristan W CL1 C Schéma de câblage

Bristan

Bristan COMP TSTACK1 C Manuel utilisateur

Bristan

Bristan SOL85 W Instructions de montage

Bristan

Bristan Artisan Evo Instructions de montage

Bristan

Bristan Java J BAS C Manuel utilisateur

Bristan

Bristan IRBS4-BN Instructions de montage

Bristan

Bristan SOQ3 SHXAR C Schéma de câblage

Bristan

Bristan Java Manuel utilisateur

Bristan

Bristan Hourglass HOU 1HBF C Schéma de câblage

Bristan

Bristan IRBS1-CP Instructions de montage

Bristan

Bristan W BATH01 C Schéma de câblage

Bristan

Bristan Bliss series Instructions de montage

Bristan

Bristan VAL2 BIB C CD Schéma de câblage

Bristan

Bristan Cheer CHE85 W Instructions de montage

Bristan

Bristan W CL C 1 Manuel utilisateur

Bristan

Bristan DUC THBSM C Manuel utilisateur

Bristan

Bristan AR2 SHXVOFF C (D2) Schéma de câblage

Bristan

Bristan TFP4001 Manuel utilisateur

Bristan

Bristan Jute JU EBAS C Manuel utilisateur

Bristan

Bristan W BATH08 C Manuel utilisateur

Manuels Appareil de salle de bains populaires d'autres marques

DURAVIT

DURAVIT C.1 C15240 0090 Manuel

Heatstore

Heatstore HSTRL500WTN Manuel utilisateur

Sunshower

Sunshower PURE SOLO Manuel utilisateur

Delabie

Delabie Delabie Sporting 714700 Manuel utilisateur

Kohler

Kohler K-13056 Instructions de montage

ESS

ESS Container TCL-11 Manuel utilisateur

Mustee

Mustee 22C Manuel utilisateur

VITRA

VITRA V-Flow Manuel utilisateur

baliv

baliv DUK-80.30 T Manuel utilisateur

Malmet

Malmet B105BT Manuel utilisateur

bathstore

bathstore Transition H1690MM Mode d’emploi

BELLOSTA

BELLOSTA Edward 0800/M Manuel utilisateur

baliv

baliv DU-5160 Manuel utilisateur

Franke

Franke PRTR0006 Manuel utilisateur

Gessi

Gessi RILIEVO 59011 Manuel utilisateur

noken

noken VITAE 100188525-N299998810 Manuel utilisateur

Allen + Roth

Allen + Roth 1142VA-30-201 Manuel utilisateur

Britex

Britex HBDA Manuel utilisateur
