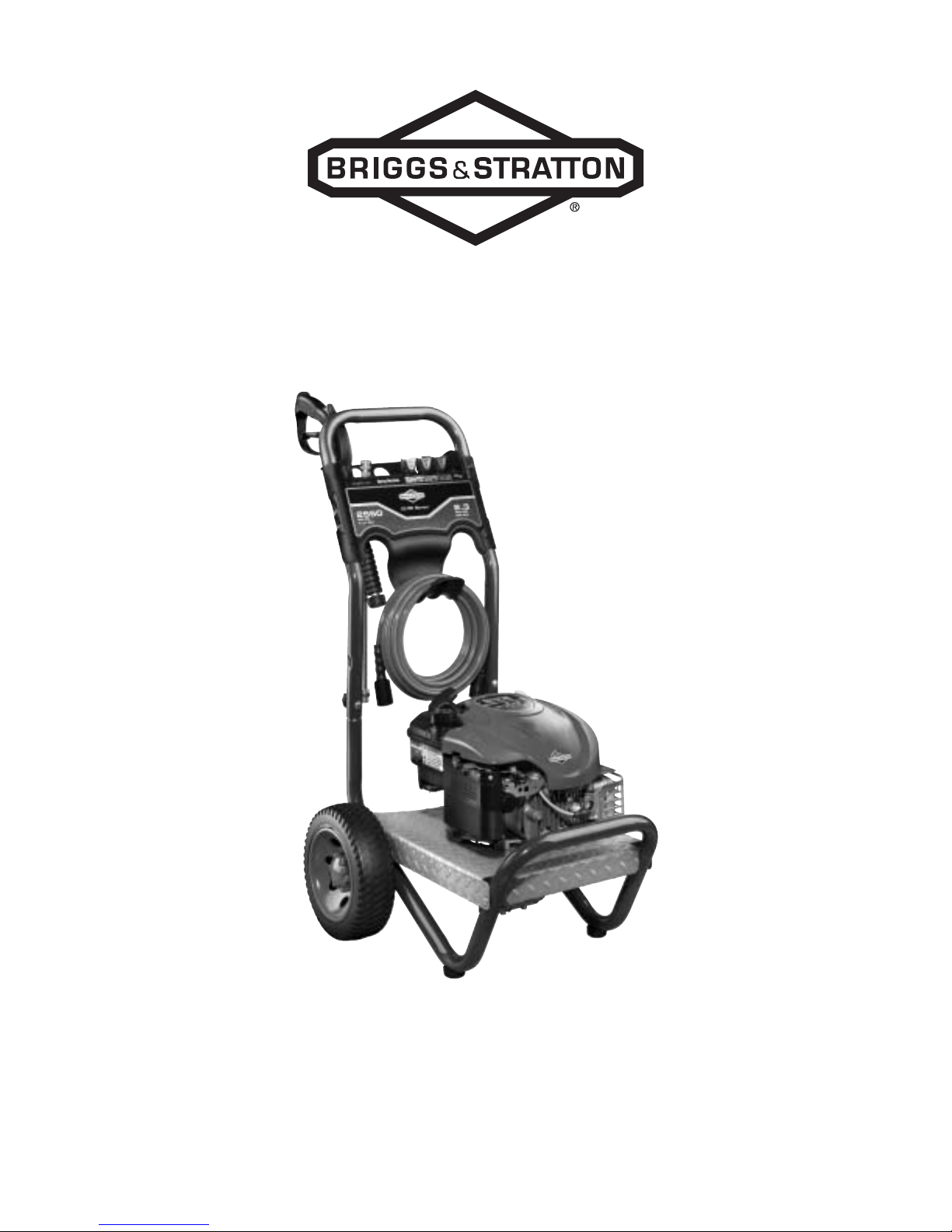

Briggs & Stratton 20319 Guide de configuration

Model No. 020319 (2550 PSI (155.1 BARS) Pressure Washer) Manual No. 203767A Revision A (04/30//2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

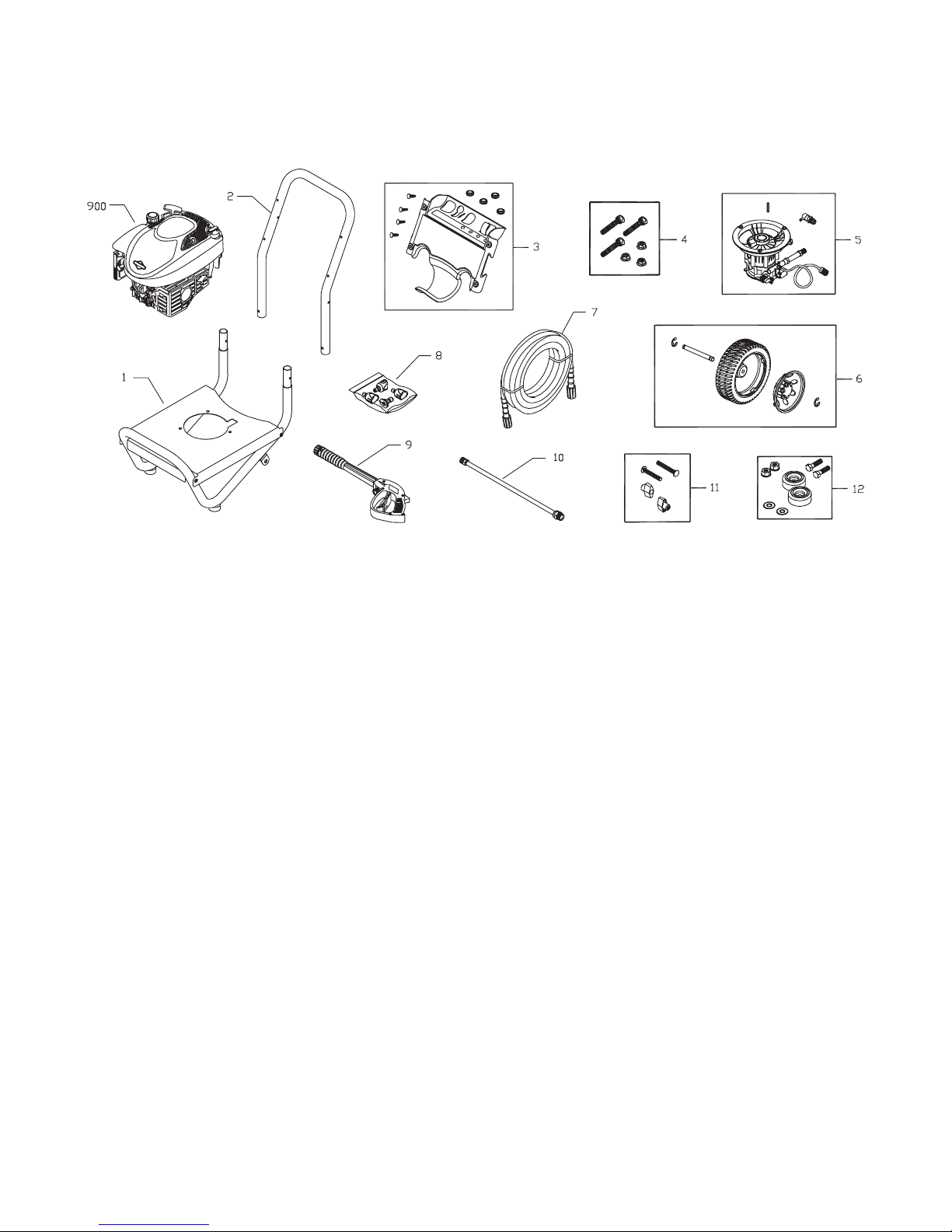

Exploded View and Parts List — Main Unit

Item Part # Description

1 202791GS ASSY, Base

2 Y199110GS HANDLE

3 203075GS ASSY, Billboard w/Decals & Clips

195964GS Clip

30809GS Grommet

4 192529GS KIT, Pump Mounting Hardware

5 202605GS ASSY, Pump

23139GS Key

194298GS Valve, Thermal Relief

6 202483GS KIT, Wheel

201313GS Axle

200520GS CAP, Hub

192050GS E-Ring

7 202017GS HOSE

8 202181GS KIT, Nozzle

201580RGS Nozzle, Project Pro, Yellow

201580XGS Nozzle, Project Pro, Orange

201580AEGS Nozzle, Project Pro, Red

198841GS Nozzle, Plastic, Soap

9 193482GS GUN

10 200595GS EXTENSION, QC

11 B2203GS KIT, Handle Connector

12 192310GS KIT, Vibration Mount

900 § ENGINE

Items Not Illustrated:

203767GS MANUAL, Operator’s

BB3061BGS OIL BOTTLE

87815GS GOGGLES

275034 LABLE, Warning

793943 COVER, Static/Label Assy

202502GS DECAL, Eng, Shroud

194256GS KIT, Tag Warning

Optional Accessories

6039 PUMP SAVER

6048 KIT, O-Ring Maintenance

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

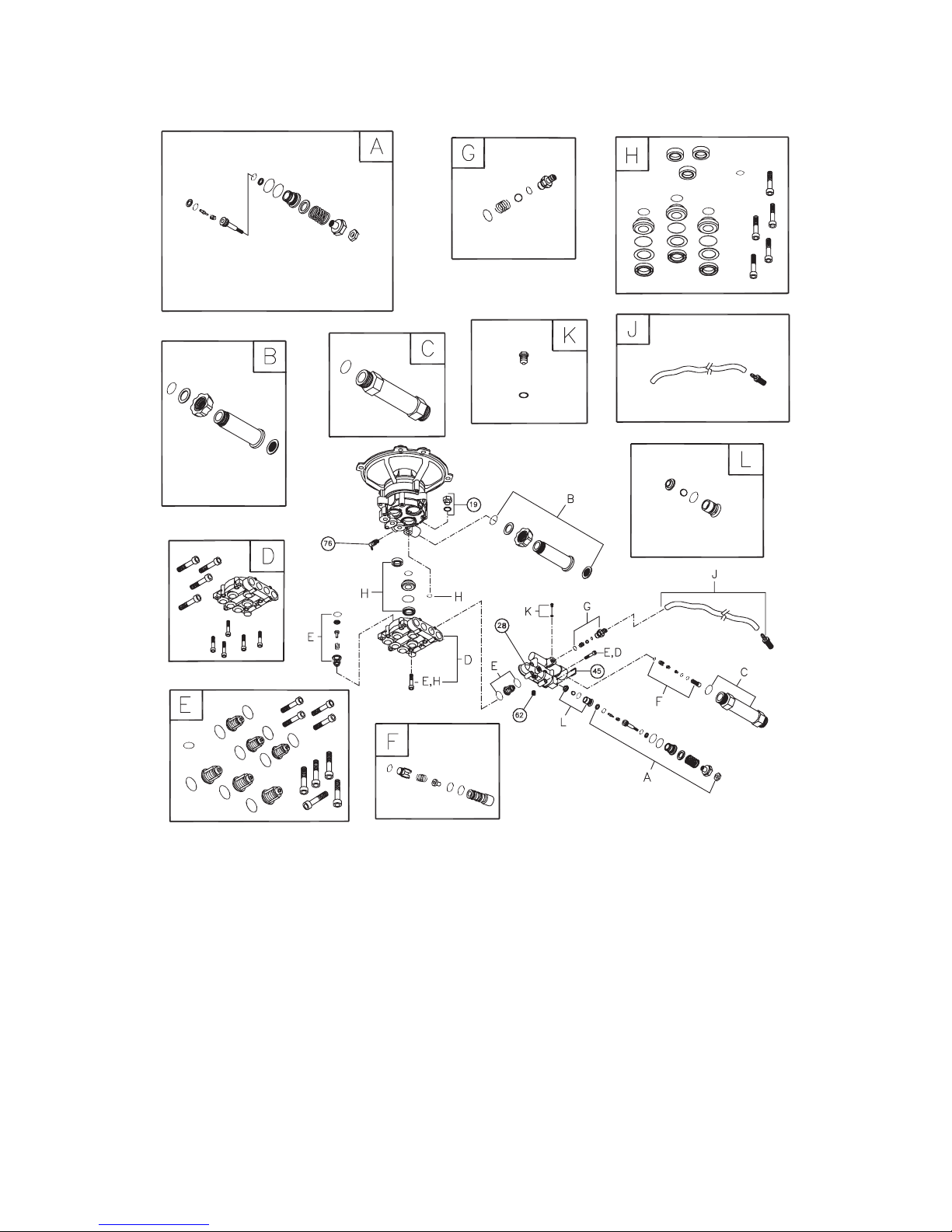

Exploded View and Parts List — Pump

Item Part # Description

19 190571GS CAP, Oil

28 190627GS MANIFOLD

45 190578GS PIN

62 190581GS CAP, 1/8

76 194298GS THERMAL RELIEF

A 203641GS KIT, UNLOADER STEM

B 190632GS KIT, WATER INLET, ALUMINIUM

C 190634GS KIT, OUTLET, ALUMINIUM

D 203631GS KIT, HEAD ALUMINIUM

E 193806GS KIT, CHECK VALVES

F 190592GS KIT, INLET CHECK

G 203640GS KIT, CHEMICAL INJECTION

H 193807GS KIT, SEAL SET

Item Part # Description

J 189971GS KIT, CHEMICAL HOSE

K 193971GS KIT, PIPE FITTING

L 193972GS KIT, UNLOADER SEAT

Parts Not Illustrated

B2384GS FILTER, Inlet

Optional Accessories

186452GS FILTER, Inlet, Bag of 10

NOTE: Item letters A - L are service kits and include all parts

shown within the box.
