Briggs & Stratton 30385 Guide de configuration

030385

(8000W)

Illustrated Parts List

Las Partes ilustradas Listan

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

web: www.briggsandstratton.com

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A. Manual No. 195693A

Revision A (01/23/2008)

8000W Portable Generator

EXPLODED VIEW - MAIN UNIT

8000W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M195438GS KIT, Cradle (Includes Items 20 & 31)

2 196400GS KIT, Vibration Mount

3 M92531GS BRACKET, Support Engine

4 190220GS ADAPTER, Engine

5 NSP ASSY., Alternator (see page 4)

6 * NUT, Hex, M8 - 1.25

7 M190723GS BRACKET, Support Eng/Muffler

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, Lock, 5/16 - M8

10 190274DGS SBHC, 3/8-16 x 7/8"

11 73068GS HHCS, 5/16 - 24 x 8-7/8

12 189302LGS ASM WIRE, #16, Red

13 * HHCS, M8 - 1.25 x 40

14 92532GS BRACKET, Muffler

15 710250 GASKET, Exhaust

16 * HHCS, M6 - 1.0 x 12

17 B4206GS MUFFLER

18 67989GS NUT, M8 Flange Serrated

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 195625GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

24 194390GS ASSY., Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

27 * HHCS, M8 - 1.25 x 25

30 * HHCS, 5/16 - 18 x 3/4

31 196830GS DECAL, Exhaust Warning

32 * NUT, 1/4 - 20

33 * WASHER, 1/4 Lock

34 195422GS COVER, RBC Plastic w/Cap

35 791745 KIT, Hose, Fuel (cut to fit)

36 192376GS SCREW, 12 - 24 x 1/2 Thread

Forming

37 56893GS CRIMPTITE, 10-24 x 1/2

38 B2153GS SCREW, Self Driller, 12-14 x 7/8

39 B196810GS BRACKET, Starter

40 199256GS BOLT, Shoulder, M6-1.0, w/Neoprene

Washer

41 192980GS VALVE, Fuel

43 691656 SOLENOID

Item Part # Description

44 194217GS ASSY., Tank Fuel (Includes Items 41,

50, 51, 52 & 53)

45 B4363GS CAP, Tank Fuel

46 B4135GS PIN, Handle Release

47 77395GS NUT, M6 Flange Lock

48 195373GS WIRE, Ground

50 188333GS DECAL, Instruction Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 194034GS KIT, Fold-down Handle Hardware

54 194448GS KIT, Insulation w/ clip

55 197798GS DECAL, Fuel Shutoff

56 202997GS DECAL, Warning, CO

57 * ASSY. Control Panel

59 189164GS PALNUT, 3/16

60 195537GS HEATSHEILD

61 B4300GS HHS, 1/4 - 20 x 1/2, Trilobular

68 195680GS TRAY, Battery

69 193463GS BATTERY

70 87799GS SWITCH, Rocker On/Off

71 196626GS ASSY, Jack, Coax, DC

73 192351GS LUG, 1/4, #22/18

74 193347GS KIT, Hardware Battery

75 196627AGS WIRE-A, #13, Red

76 185939KGS ASM WIRE, #55 Blk

77 196627BGS WIRE-A, #13B, Red

78 189302MGS ASM WIRE, #13 Red

81 196627EGS WIRE-A, #0, Blk

85 B193200GS ASSY,. Fold Down Handle

86 198669GS GRIP, Handle

900 § ENGINE

Parts Not Illustrated

195693GS MANUAL, Operator’s

BB3061BGS BOTTLE, Oil (Qty 2 Required)

B4177GS CHARGER, Battery

194274GS HARNESS, Wire, Power

197112GS KIT, Decal Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

8000W Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 195616GS ROTOR (Includes Item 11)

3 196706AGS STATOR

4 193336GS RBC, (with O-Ring p/n 189197GS)

5 86308KGS HHCS, M6 - 1.0 x 140 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY, Wire, Ground

11 65791GS BEARING

12 189769GS BOARD, Circuit, System Control

8000W Portable Generator

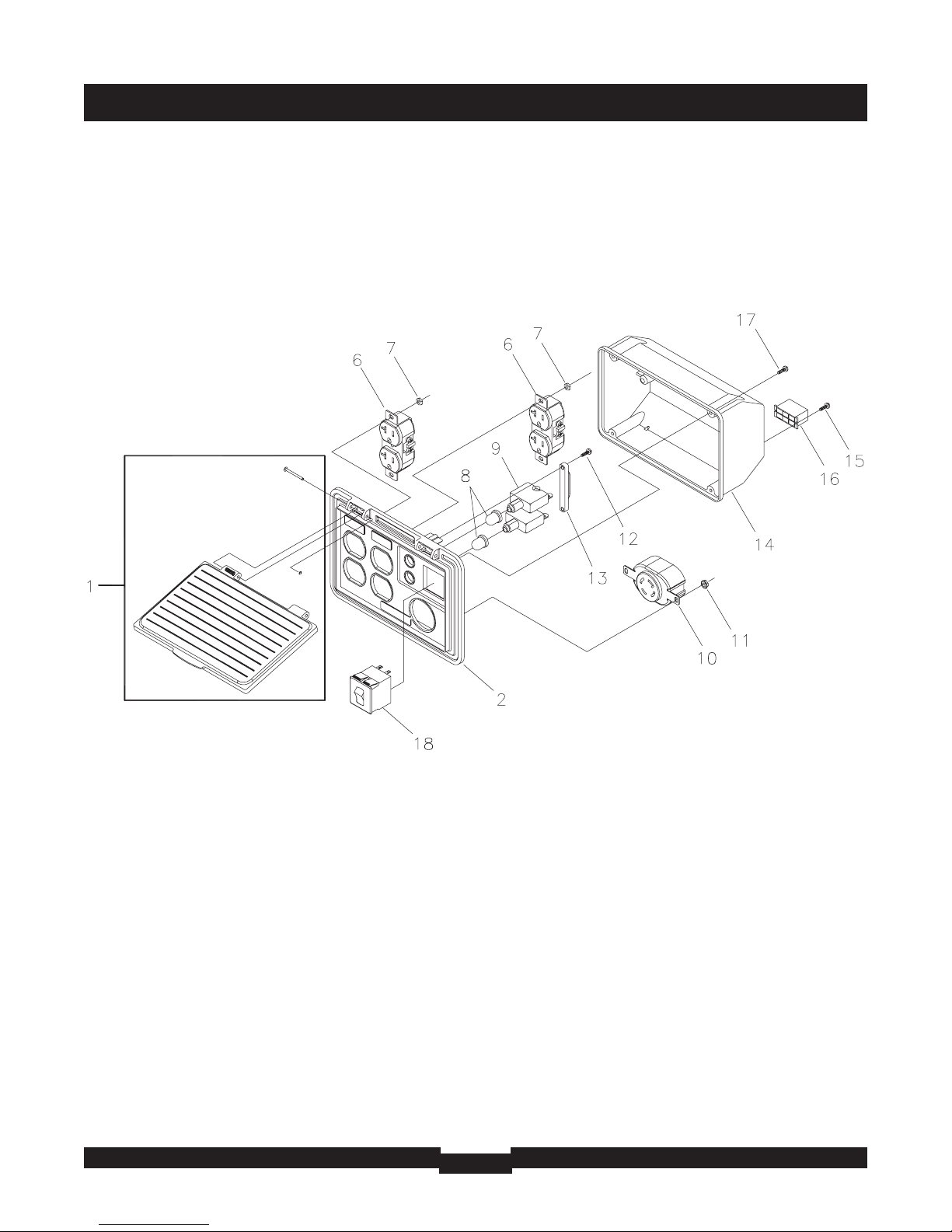

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS ASSY, Control Lid Panel

2 192273DGS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20Amp, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Circuit Breaker

9 75207GS CIRCUIT BREAKER

10 43437GS OUTLET, 120/240 Locking, 30A

11 * NUT, Palnut, Pushnut, 3/16

12 * PPHMS, 3.5 x 18

13 93857GS BAR, Retaining

14 192274GS BOX, Rear Cover

15 82308GS SCREW, Tapping, STC 3 x 18

16 22694GS HOUSING, Receptacle

17 192241GS SCREW, Tapping, 3.5 x 14

18 192785GS BREAKER, 30A

* - Items without part numbers are common fasteners and are

available at your local hardware store.

8000W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 B4966GS WHEEL

2 * WASHER, 5/8"

3 191267RGS AXLE, 5/8"

4 191265GS E-RING

5 * HHCS, M8 1.25 x 20

6 52858GS NUT, M8 - 1.25, Lock

10 195686GS Assy Support

Parts Not Illustrated

199919GS SUBKIT, Hardware

* - Items without part numbers are common fasteners and are

available at your local hardware store.
