BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A. Manual No. 200309A

Revision - (05/23/2006)

EXL8000

13500 STARTING WATTS

Illustrated

Parts List

Models / Modelos

030254

EXPLODED VIEW

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

PARTS LIST

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 B194898GS KIT, Cradle

2 194155GS KIT,Vibration Mount

3 B92531GS BRACKET, Support Engine

4 190220GS ADAPTER, Engine

5 NSP ASSY,Alternator (see page 5)

6 * NUT, Hex M8 - 1.25

7 B92731GS BRACKET, Support Eng/Muffler

8 96796GS WASHER

9 * WASHER, Lock M8

10 190274BGS SBHC, 3/8-16 x 1"

11 47481GS HHCS, 5/16 - 24 x 10.62

12 189302LGS ASSY,Wire, #16, Red

13 * HHCS, M8 1.25 x 45

14 92532GS BRACKET, Muffler

15 90239GS GASKET, Exhaust

16 * NUT, Hex M6 1.0

17 A7433GS MUFFLER

18 * SHCS, M8 - 1.25 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 198222GS KIT,Vibration Mount

22 86494GS SCREW,Wing M6 - 1.0 x 16

23 86292GS SCREW, 10 - 16 x 3/4, Self Drill

24 194390GS ASSY, Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

27 67989GS NUT, M8 Flange Serrated

30 * HHCS, M8 - 1.25 x 25

31 200310GS DECAL, Caution Hot Muffler

32 * NUT, 1/4 - 20

33 * WASHER, 1/4 Lock

34 195422GS COVER, RBC, Plastic w/ Cap

35 791745 KIT, Fuel Hose (cut to fit)

36 * HHCS, M6 1.0 x 12

37 56893GS CRIMPTITE, 10-24 x 1/2

38 B2153GS SCREW, Self Driller, 12-14 x 7/8

39 B196810GS BRACKET, Starter

40 198221GS KIT, Fuel Tank Hardware (Includes

Qty of 4)

41 189133GS VALVE, Fuel

42 * HHCS, 5/16 - 18 x 3/4

43 691656 SOLENOID

44 200590GS ASSY,Tank Fuel (Includes Items 41,

50, 51, 52 & 55)

45 189135GS CAP,Tank Fuel

46 B4135GS PIN, Handle Release

47 77395GS NUT, M6 Flange Lock

48 195373GS WIRE, Ground

Item Part # Description

49 192376GS SCREW, 12-24 x 1/2,Thread Forming

50 188333GS DECAL, Instruction Fuel Level

51 194984GS DECAL,Warning

52 94480GS DECAL, Start Instructions

53 194034GS KIT, Folddown Handle Hardware

54 194448GS KIT, Insulation w/ Clip

55 197797GS DECAL, Fuel Shutoff

56 192724GS GAUGE, Fuel

57 * HHCS, M6 - 1.0 x 12

58 198238GS ASSY, Control Panel (see page 4)

59 198611GS PPHS, 1/4 - 20 x 0.5

60 195537GS HEATSHEILD

61 B4300GS HHS, 1/4 - 20 x 1/2,Trilobular

62 195940GS DECAL, Neutral, Grnd, Neutral

63 195459GS DECAL, Grnd, Neutral

64 200311GS DECAL, Neutral Bonded, Frnch

68 195680GS TRAY, Battery

69 193463GS BATTERY

70 87799GS SWITCH, Rocker On/Off

71 196626GS ASSY, Jack, Coax, DC

73 192351GS LUG, 1/4, #22/18

74 193347GS KIT, Hardware Battery

75 196627AGS ASSY,Wire, #13, Red

76 185939KGS ASSY,Wire, #55 Blk

77 196627BGS ASSY,Wire, #13B, Red

78 189302MGS ASSY,Wire, #13 Red

81 196627EGS ASSY,Wire, #0, Blk

85 B193200GS ASSY, Fold Down Handle (Includes

Item 86)

86 198669GS GRIP, Handle

99 189759GS KIT, Fuel Valve Repair

900 § ENGINE

Parts Not Illustrated

200309GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil

B4177GS CHARGER, Battery

195236GS FUSE (5 Pack)

195237GS CAP, Fuse (4 Pack)

191895DGS SET, Cord

199384GS DECAL, Family, CA EVP

100031 STABILIZER, Fuel

198220GS KIT, Decal Srv

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

EXPLODED VIEW AND PARTS LIST

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 198237GS PANEL, Control

2 198239GS BOX, Control Panel

3 192785GS BREAKER, Circuit, 30A

4 198245GS METER, Hour

5 75207DGS BREAKER, Circuit, 15A

6 * WASHER, Shakeproof, Int. #8

7 94373GS OUTLET, 120V, 15A Duplex

8 43437GS OUTLET, 120/240V, 30A

9 * WASHER, Flat, M4

10 * WASHER, Lock, M4

11 * NUT, M4 - 0.7

12 198495GS SCREW, 4 x 18,Tapping

Item Part # Description

13 193095GS JUMPER,Terminal Block

14 193427GS STRIP,Terminal, 3 Pole

15 * WASHER, Flat, M5

16 * WASHER, Lock, M5

17 * NUT, M5 - 0.8

18 38057GS GROMMET

19 77043BGS CONDUIT, Flex Tubing

20 188632GS BOOT,Wire Outlet, Rubber

* - Items without part numbers are common fasteners and

are available at your local hardware store.

EXPLODED VIEW AND PARTS LIST

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 194773GS ASSY, Rotor (Includes Item 10)

3 198498AGS STATOR

4 193336GS RBC, (with O-Ring p/n 189197GS)

5 86308KGS HHCS, M6 - 1.0 x 175 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 189769GS BOARD, Circuit, System Control

9 81917GS PIN, Roll, 4mm x 10

10 65791GS BEARING

EXPLODED VIEW AND PARTS LIST

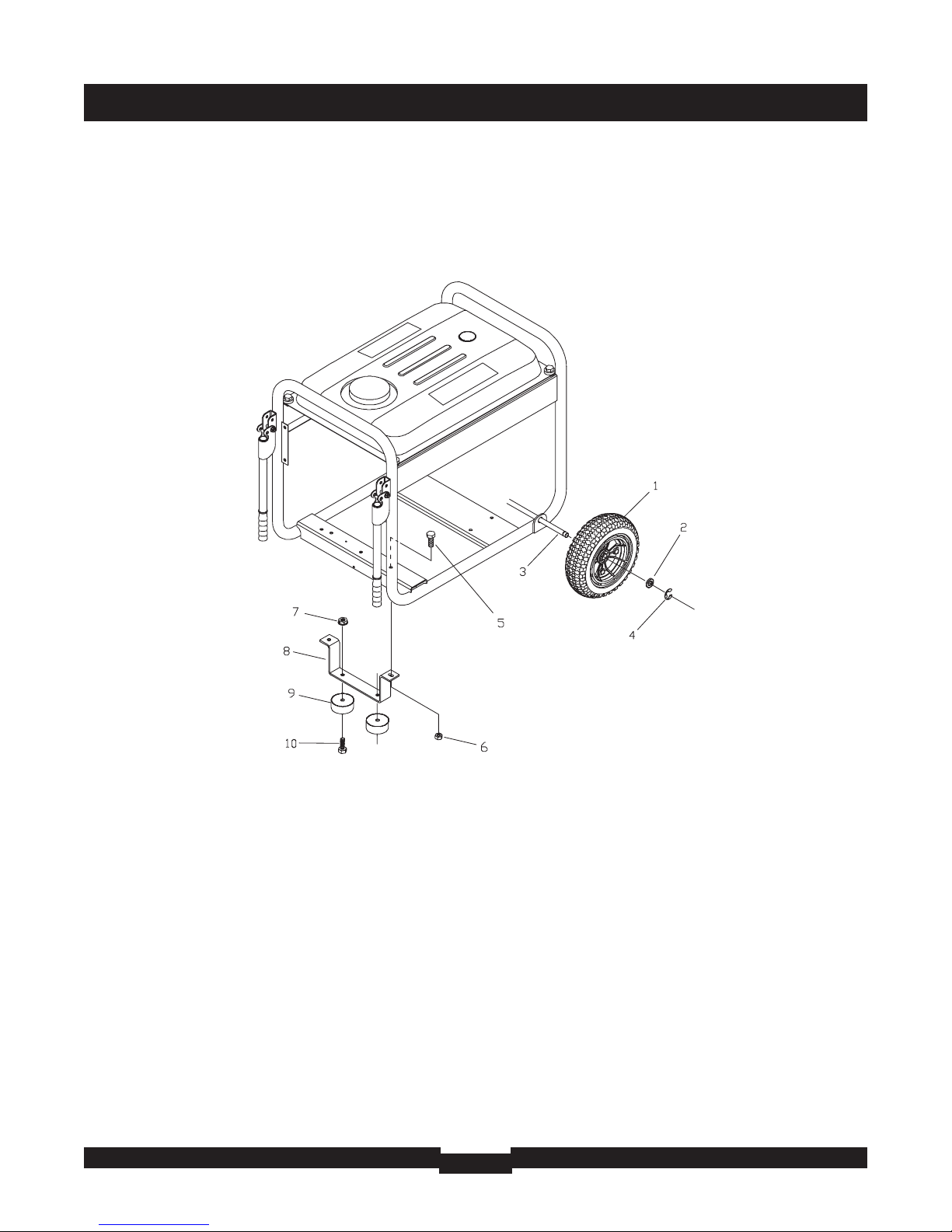

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 196517GS WHEEL

2 * WASHER, 5/8"

3 191267RGS AXLE, 5/8"

4 191265GS E-RING

5 * HHCS, M8 1.25 x 20

6 67989GS NUT, M8, Flange Serrated

7 194005GS NUT, 1/4 - 20 Flange, Nylok

8 B186927GS SUPPORT,Wheel Kit

9 191413GS MOUNT,Vibration

10 * HHCS, 1/4 - 20 x 1

* - Items without part numbers are common fasteners and are

available at your local hardware store.
