Briggs & Stratton 30358 Guide de configuration

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

BRIGGSandSTRATTON.COM

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

6200 Watt Portable Generator

Illustrated Parts List

Las Partes ilustradas Listan

030358 Manual No. 204330A Revision - (07/31/2007)

6200W Portable Generator

EXPLODED VIEW - MAIN UNIT

6200W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 J204103GS KIT, Cradle (Includes 20, 31, 55 &

62)

2 194150GS KIT, Vibration Mount, 45°

3 67989GS NUT, M8 Flange Serrated

4 190220GS ADAPTER, Engine

5 NSP ASSY., Alt (see page 4)

6 * NUT, Hex M8 - 1.25

7 195398GS TPHMS, M8 1.25 x 35

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, 5/16 - M8 Lock

10 190274BGS SBHC, 3/8-16 x 1"

11 187365FGS HHCS, 5/16 - 24 x 7.44

12 189302JGS ASM WIRE, #16, Red

13 * HHCS, M8 - 1.25 x 25

14 189009GS BRACKET, Muffler

15 695398 GASKET, Exhaust

16 * HHCS, M6 - 1.0 x 12

17 189008GS MUFFLER

18 * SHCS, 5/16-18 x 3/4

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

24 194390GS ASSY., Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

27 204342GS BOX, Cover

28 62265GS GROMMET

29 204626GS TPHMS, M6 - 1 x 12, Taptite

31 200310GS DECAL, Warning, Exhaust

32 * NUT, 1/4 - 20

33 * WASHER, 1/4 Lock

34 195422GS COVER, RBC Plastic with Cap

35 791745 KIT, Hose, Fuel (cut to fit)

37 56893GS CRIMPTITE, 10-24 x 1/2

38 B2153GS SCREW, Self Driller, 12-14 x 7/8

39 196441GS BRACKET, Switch/Jack

40 195477GS KIT, Fuel Tank Hardware (Includes

Qty of 4)

41 192980GS VALVE, Fuel

Item Part # Description

43 691656 SOLENOID

44 197303GS ASSY., Tank Fuel (Includes Items 41,

50, 51 & 52)

45 B4363GS CAP, Fuel Gauge

47 77395GS NUT, M6 Flange Lock

48 195373GS WIRE, Ground

49 * WASHER, Shakeproof, Ext

50 188333GS DECAL, Instruction Fuel Level

51 194984GS DECAL, Warning

52 94480GS DECAL, Start Instructions

54 194448GS KIT, Insulation w/clip

55 197789GS DECAL, Fuel Shutoff

56 196908GS LOAD MONITOR

57 * HHCS, M6 - 1.0 x 12

58 201576GS ASSY. Control Panel

59 189164GS PALNUT, 3/16

60 194389GS HEATSHEILD

61 198245GS METER, Hour Digital

62 200311GS DECAL, Neutral Bonded

68 198760GS ASSY, Battery Tray w/Studs

69 193043GS BATTERY

70 87799GS SWITCH, Rocker On/Off

71 199152GS ASSY, Jack, Coax, DC

73 192351GS LUG, 1/4, #22/18

74 193347GS KIT, Hardware Battery

75 198871GGS WIRE, #13 Red

76 185939KGS WIRE, #55 Black

77 198871HGS WIRE, #13B Red

78 189302MGS WIRE, #13 Red

900 § ENGINE

Parts Not Illustrated

204330GS MANUAL, Operator’s

B4177GS CHARGER, Battery

204635GS KIT, Decals Srv

§ - Contact Engine Manufacturer

* - Items without part numbers are common fasteners and

are available at your local hardware store.

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

6200W Portable Generator

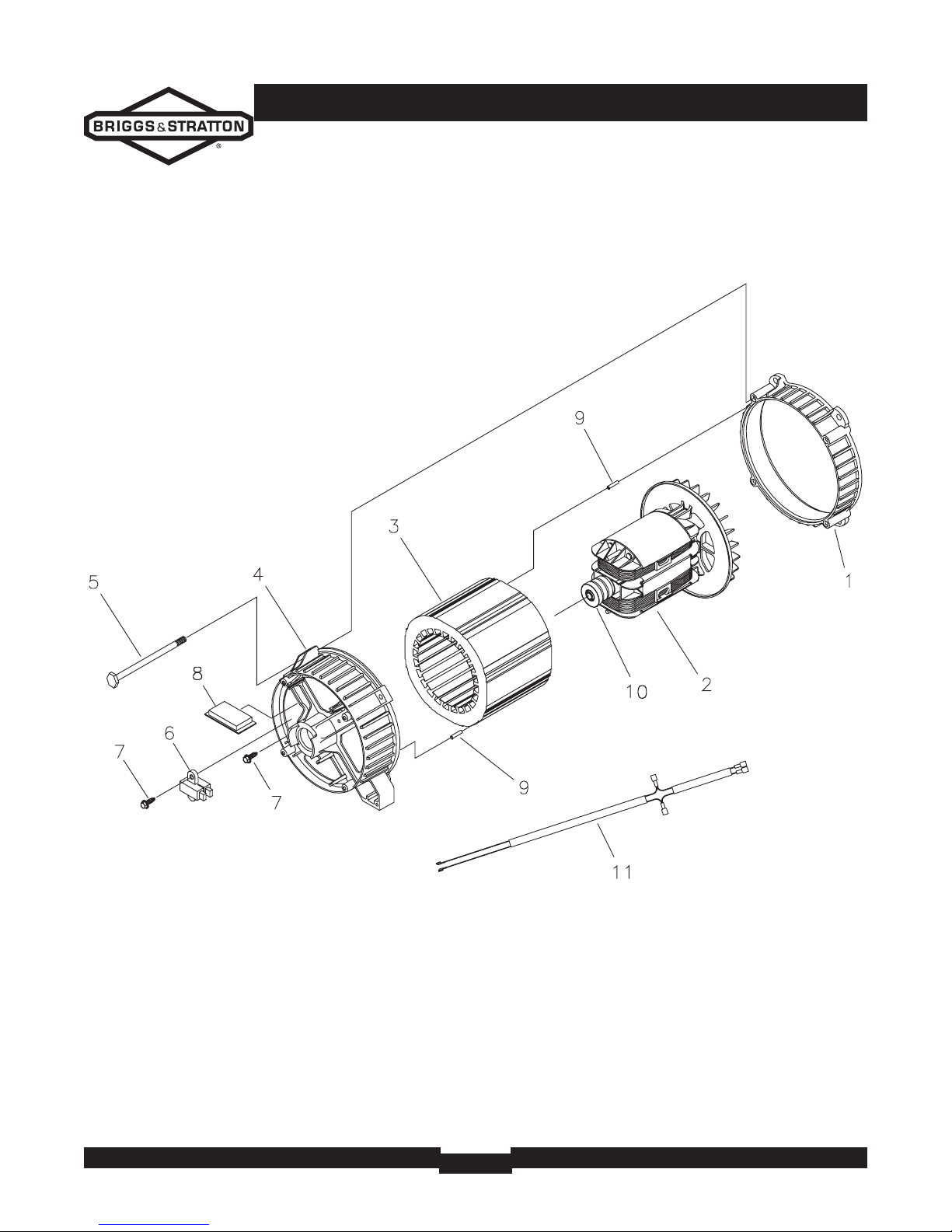

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 191876GS ASSY, Rotor (Includes Item 10)

3 203480GS STATOR

4 193336GS RBC, (with O-Ring p/n 189197GS)

5 86308HGS HHCS, M6 - 1.0 x 140 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 198339GS REGULATOR

9 81917GS PIN, Roll, 4mm x 10

10 65791GS BEARING

11 204389GS HARNESS, Monitor Load

6200W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 198468GS PANEL, Control

2 197472GS COVER, Flip Outlets

3 201573GS BOX, Control Panel

4 191481GS BOOT, Circuit Breaker

5 202033GS BREAKER, Circuit, 30A

6 202951GS LIGHT, Led Panel

7 197958GS SCREW, 3 x 6, Tapping

8 84198GS CAP, Breaker, Circuit

9 202394GS BREAKER, Circuit, 20A

10 202932GS BAR, Retaining

11 84543BGS PPPHS, M3-0.5 x 12

12 43437GS OUTLET, 120/240V, 30A

13 189164GS PALNUT, 3/16

14 197731GS OUTLET, 120V, 15/20A

15 201678GS HOUSING, 6-Pin, Plug, Ark-les

6200W Portable Generator

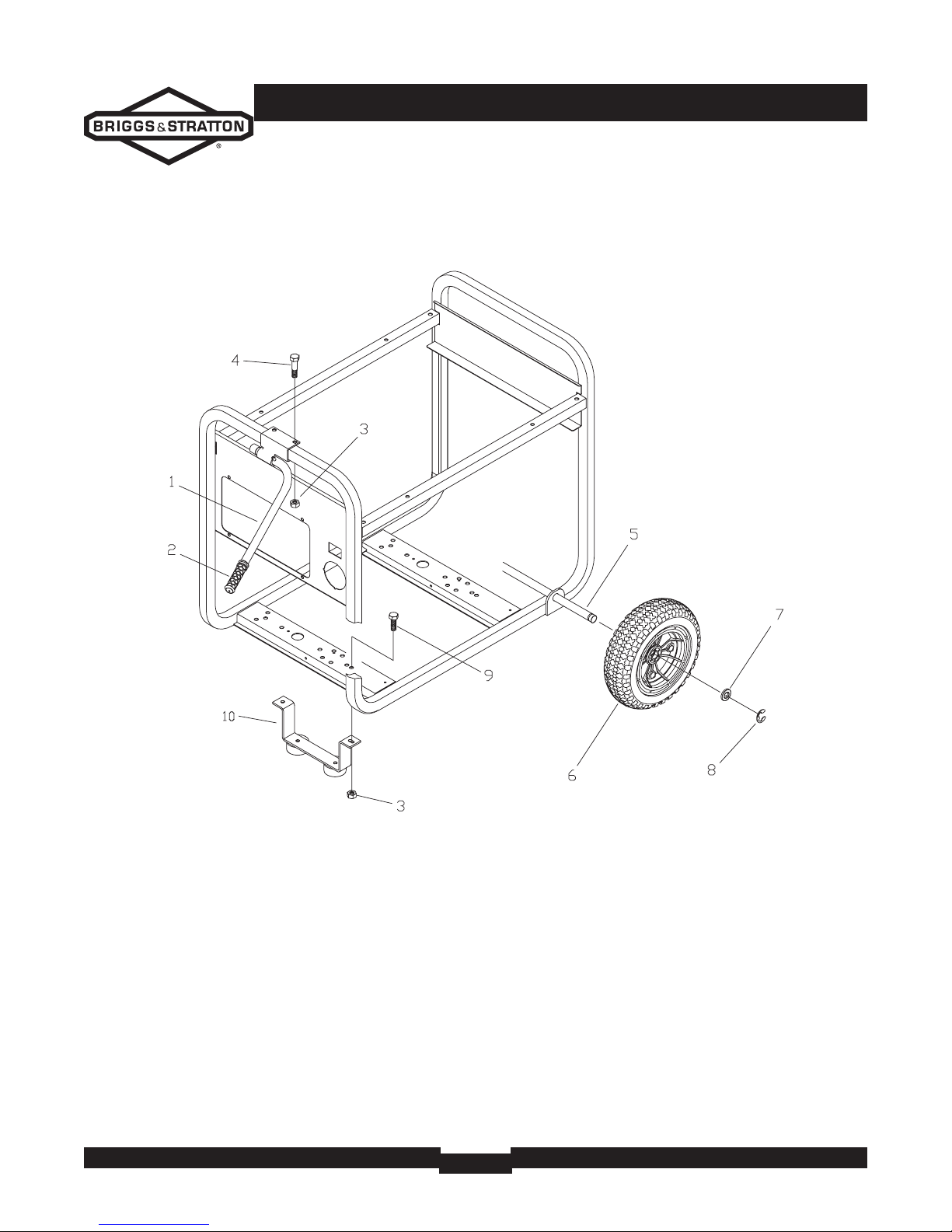

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 189715GS ASSY, Handle with Grip

2 189718GS GRIP

3 67989GS NUT, M8 Flange Serrated

4 * HHCS, M8 - 1.25 x 45

5 191267GGS AXLE, 5/8 x 23.62"

6 196517GS WHEEL

7 * WASHER, 5/8"

8 191265GS E-RING

9 * HHCS, M8 - 1.25 x 20

10 204536GS ASSY, Leg Support

Parts Not Illustrated

204249GS KIT, Hardware, Wheel

* - Items without part numbers are common fasteners and are

available at your local hardware store.
