3500 Watt Portable Generator

Illustrated Parts List

Las Partes ilustradas Listan

030208-2 Manual No. 203476A Revision - (11/06/2007)

3500W Portable Generator

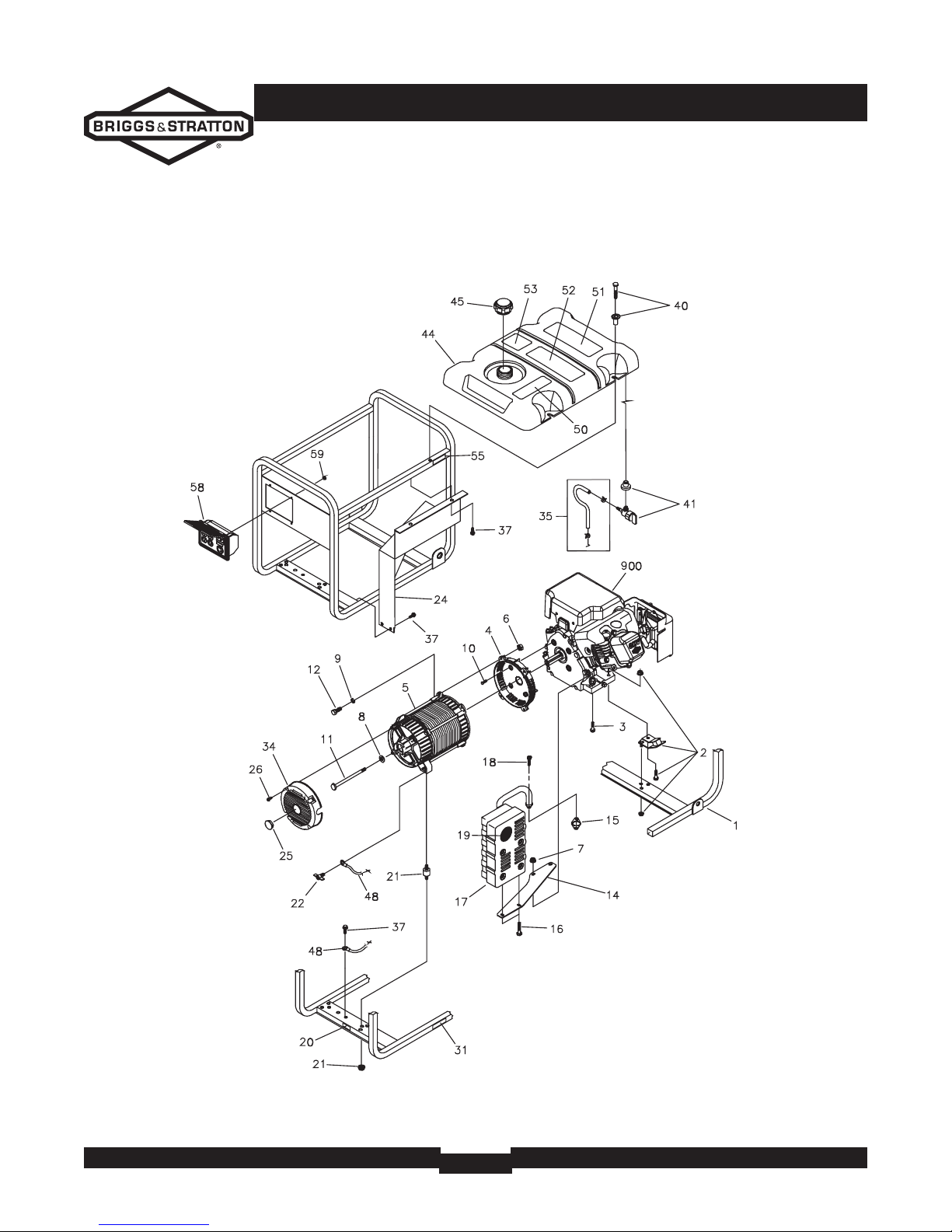

EXPLODED VIEW - MAIN UNIT

3500W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M194779GS CRADLE

2 194150GS KIT, Vibration Mount

3 * TPHMS, M8 1.25 x 35

4 186058AGS HOUSING, Engine Adapter

5 NSP ASSY, Alternator (see page 4)

6 * NUT, Hex, M8 - 1.25

7 67989GS NUT, M8 Flange Serrated

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, Lock M8

10 86307GS HHCS, 5/16-24 x 3/4, SEMS

11 24823GS HHCS, 5/16-24 x 7-7/8”

12 * HHCS, M8 - 1.25 x 25

14 191785GS BRACKET, Muffler

15 697815 GASKET, Exhaust

16 * HHCS, M6 1.0 x 12 with Lock

Washer

17 188301GS MUFFLER

18 * SHCS, M6 - 1.0 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

22 86494GS SCREW, Wing M6 - 1.0 x 16

21 194153GS KIT, Vibration Mount

24 191790GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10

31 196830GS DECAL, Caution Exhaust

Item Part # Description

34 195422GS COVER, RBC with Cap

35 195207GS KIT, Fuel Hose with Clamp

37 B2153GS HHCS, 12 - 14 x 7/8" Self Driller

40 194398GS KIT, Fuel Tank Hardware

41 192980GS KIT, Valve, Tank

44 193645GS ASSY., Tank, Fuel Service (includes

Items 41, 50, 51, 52 & 53)

45 200095GS CAP, Fuel

48 195373GS WIRE, Ground

50 188333GS DECAL, Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Operating Instructions

53 202997GS DECAL, CO Warning

55 197798GS DECAL, Fuel Shut Off

58 191743AGS ASSY, Control Panel

59 * (189164) NUT, Palnut, 3/16"

900 § (203492) ENGINE

Parts Not Illustrated

203476GS MANUAL, Operator’s

BB3061BGS OIL BOTTLE

195576GS KIT, Decals, Service

§ - Contact Engine Manufacturer

* - Items without part numbers are common fasteners and

are available at your local hardware store.

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

3500W Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 191685GS ROTOR

3 191686AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197)

5 86308GS HHCS, M6 - 1.0 x 115 SEMS

6 91825GS ASSEMBLY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS WIRE-A, Ground

13 194274GS HARNESS, Wire, Power

14 65791GS BEARING

3500W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS KIT, Cover Control Panel

2 188889AGS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20A, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Breaker, Circuit

9 75207DGS BREAKER, Circuit

10 68867GS OUTLET, 120/240V Locking, 20A

11 * NUT, Palnut, Pushnut, 3/16

12 * PPPHS, M3 - 0.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 * SCREW, 3 x 18, Tapping

16 22694GS HOUSING, Receptacle

17 * SCREW, 3.5 x 14, Tapping

* - Items without part numbers are common fasteners and are

available at your local hardware store.

3500W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 189715GS ASSY, Handle (Includes Item 11)

2 94034GS LEG, Mounting

3 67989GS NUT, M8 Flange Serrated

4 * HHCS, M8 - 1.25 x 45

5 93728GS AXLE

6 197061GS WHEEL

7 87005AGS PIN

8 * WASHER, Flat M12

9 94222QGS NUT, 5/8 - 18 Jam Lock

10 * HHCS, M8 - 1.25 x 20

11 189718GS GRIP, Handle

Parts Not Illustrated

191932GS SUBKIT, Hardware

* - Items without part numbers are common fasteners and are

available at your local hardware store.
