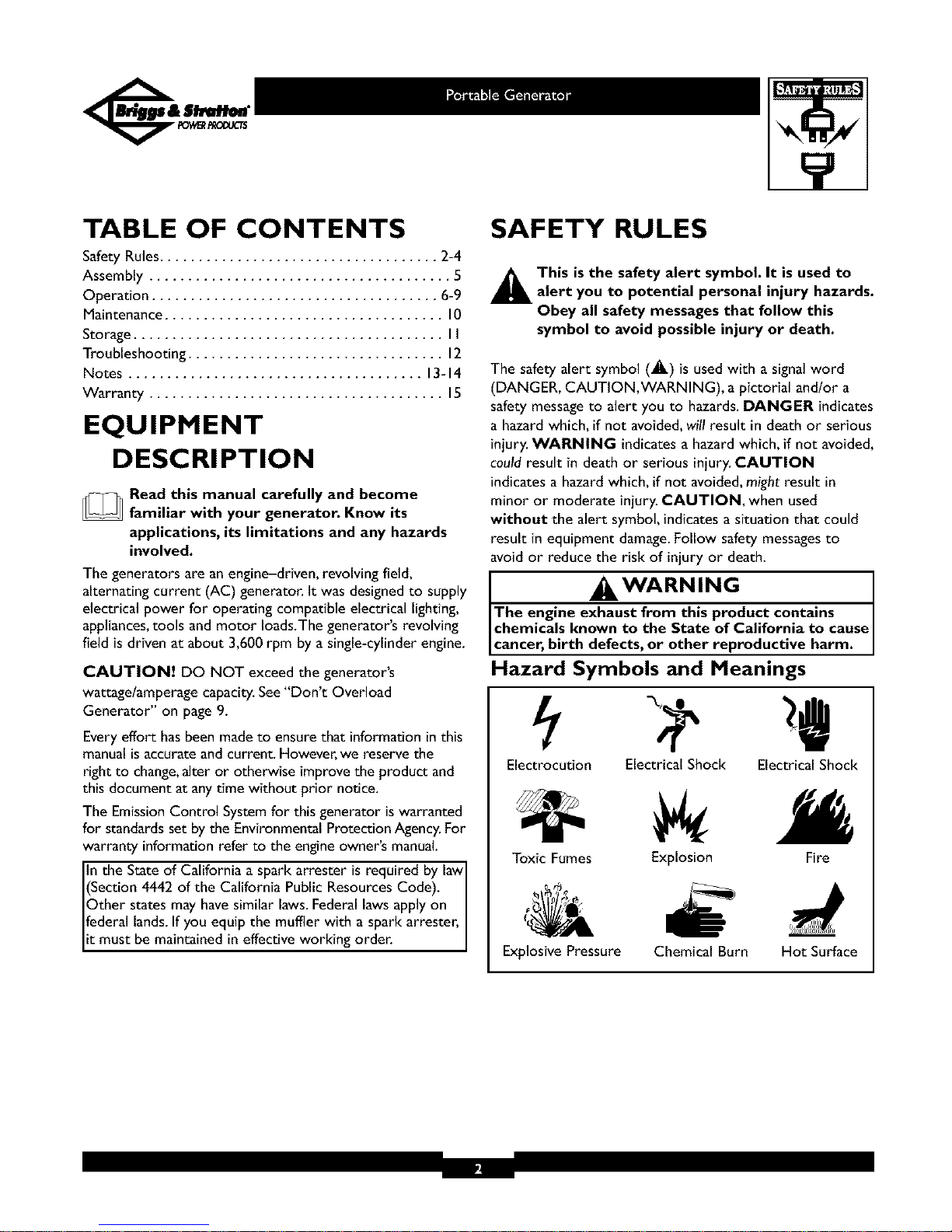

TABLE OF CONTENTS

SafetyRules.................................... 2-4

Assembly ....................................... 5

Operation ..................................... 6-9

Maintenance.................................... 10

Storage........................................ II

Troubleshooting ................................. 12

Notes ...................................... 13-14

Warranty ...................................... 15

EQUIPMENT

DESCRIPTION

_Read this manual carefully and become

familiar with your generator. Know its

applications, its limitations and any hazards

involved.

The generators are an engine-driven, revolving field,

alternating current (AC) generator. It was designedto supply

electrical power for operating compatible electrical lighting,

appliances,tools and motor loads.The generator's revolving

field is driven at about 3,600rpm by a single-cylinder engine.

CAUTION! DO NOT exceed the generator's

wattage/amperage capacity.See"Don't Overload

Generator" on page 9.

Everyeffort hasbeenmadeto ensurethat informationinthis

manualisaccurateand current. However,we reserve the

right to change,alter or otherwise improvethe product and

this document at anytime without prior notice.

The EmissionControl Systemfor this generator iswarranted

for standardsset by the EnvironmentalProtection Agency.For

warranty informationrefer to the engineowner's manual.

In the State of California a spark arrester is required by lawI

(Section 4442 of the California PublicResources Code).

Other states may havesimilar laws.Federallawsapply on

federal lands.If you equip the muffler with a spark arrester,

it must be maintained ineffective working order.

SAFETY RULES

_IL his is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this

symbol to avoid possible injury or death.

The safety alert symbol (A.) is usedwith a signalword

(DANGER, CAUTION,WARNING), a pictorial and/or a

safety messageto alert you to hazards.DANGER indicates

a hazard which, if not avoided,will result in death or serious

injury.WARNING indicatesa hazardwhich,if not avoided,

couldresult in death or serious injury.CAUTION

indicatesa hazardwhich, if not avoided,might result in

minor or moderate injury.CAUTION, when used

without the alert symbol, indicatesa situation that could

result in equipment damage.Followsafety messagesto

avoid or reduce the risk of injuryor death.

, WARNING

The engine exhaust from this product contains I

chemicals known to the State of California to cause

cancer, b rth defects, or other reproduct ve harm.

Hazard Symbols and Meanings

Electrocution Electrical Shock Electrical Shock

Toxic Fumes

Explosive Pressure

Explosion Fire

Chemical Burn Hot Surface

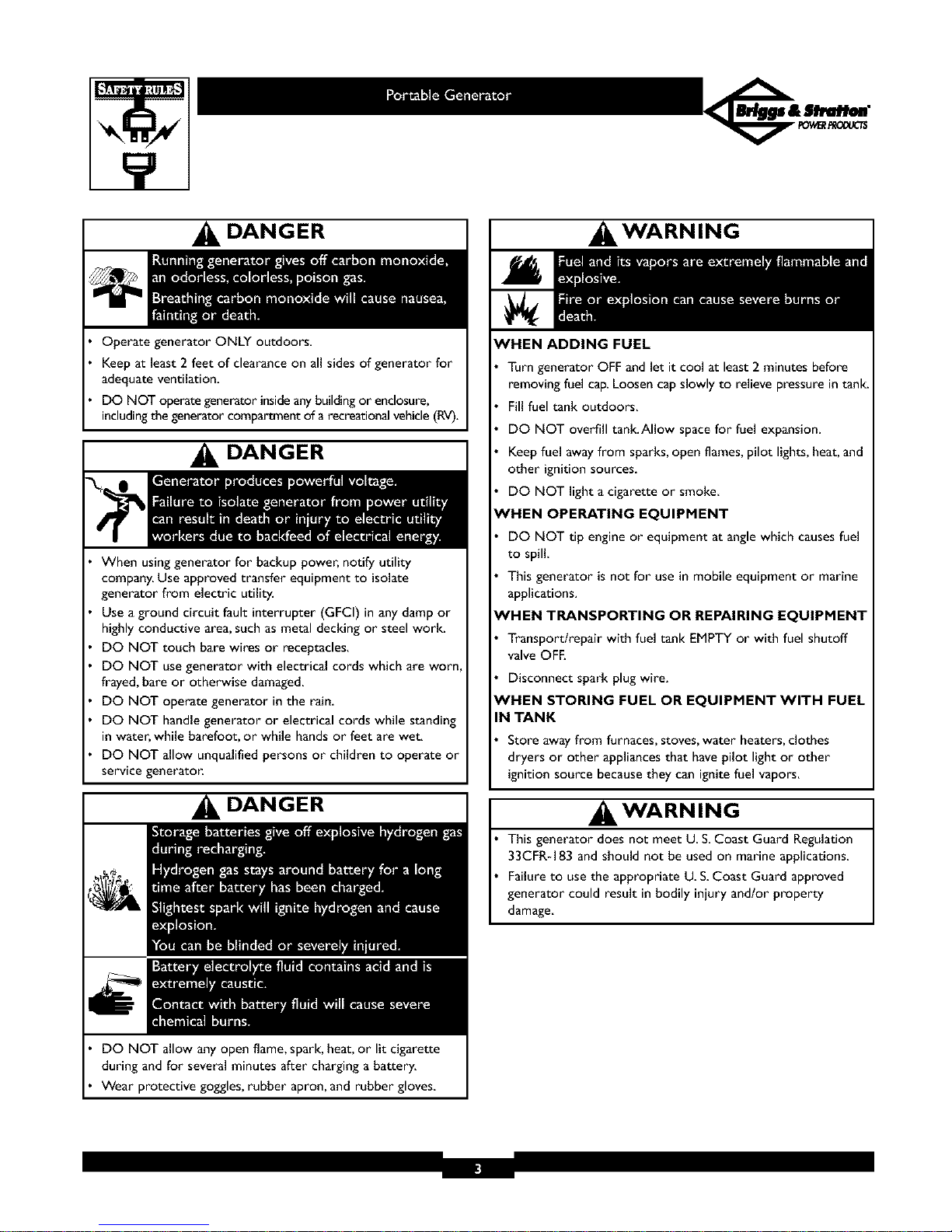

DANGER

Operate generator ONLY outdoors.

Keep at least 2 feet of clearance on all sides of generator for

adequate ventilation.

DO NOT operate generator inside any building or enclosure,

including the generator compartment of a recreational vehicle (RV).

DANGER

When usinggenerator for backup power, notify utility

company.Use approved transfer equipment to isolate

generator from electric utility.

Use a ground circuit fault interrupter (GFCI) in anydamp or

highly conductive area,such asmetal decking or steel work.

DO NOT touch bare wires or receptacles.

DO NOT use generator with electrical cords which are worn

frayed,bare or otherwise damaged.

DO NOT operate generator in the rain.

DO NOT handle generator or electrical cords while standing

in water, while barefoot, or while handsor feet are wet.

DO NOT allow unqualified persons or children to operate or

service generator.

DANGER

DO NOT allow any open flame, spark, heat, or lit cigarette

during and for several minutes after charging a battery.

Wear protective goggles, rubber apron, and rubber gloves

, WARNING

WHEN ADDING FUEL

Turn generator OFF and let it cool at least 2 minutes before

removing fuel cap. Loosen cap slowly to relieve pressure in tank.

Fill fuel tank outdoors.

DO NOT overfill tank.Allow space for fuel expansion.

Keep fuel away from sparks, open flames, pilot lights, heat, and

other ignition sources.

DO NOT light a cigarette or smoke

_/HEN OPERATING EQUIPMENT

DO NOT tip engine or equipment at angle which causes fuel

to spill

This generator is not for use in mobile equipment or marine

applications.

_/HEN TRANSPORTING OR REPAIRING EQUIPMENT

Transport/repair with fuel tank EMPTY or with fuel shutoff

valve OFE

Disconnect spark plug wire.

_/HEN STORING FUEL OR EQUIPMENT WITH FUEL

IN TANK

Store away from furnaces, stoves, water heaters, clothes

dryers or other appliances that have pilot light or other

ignition source because they can ignite fuel vapors.

, WARNING

This generator does not meet U. S.Coast Guard Regulation

33CFR-183 and should not be used on marine applications

Failure to use the appropriate U. S.Coast Guard approved

generator could result in bodily injury and/or property

damage

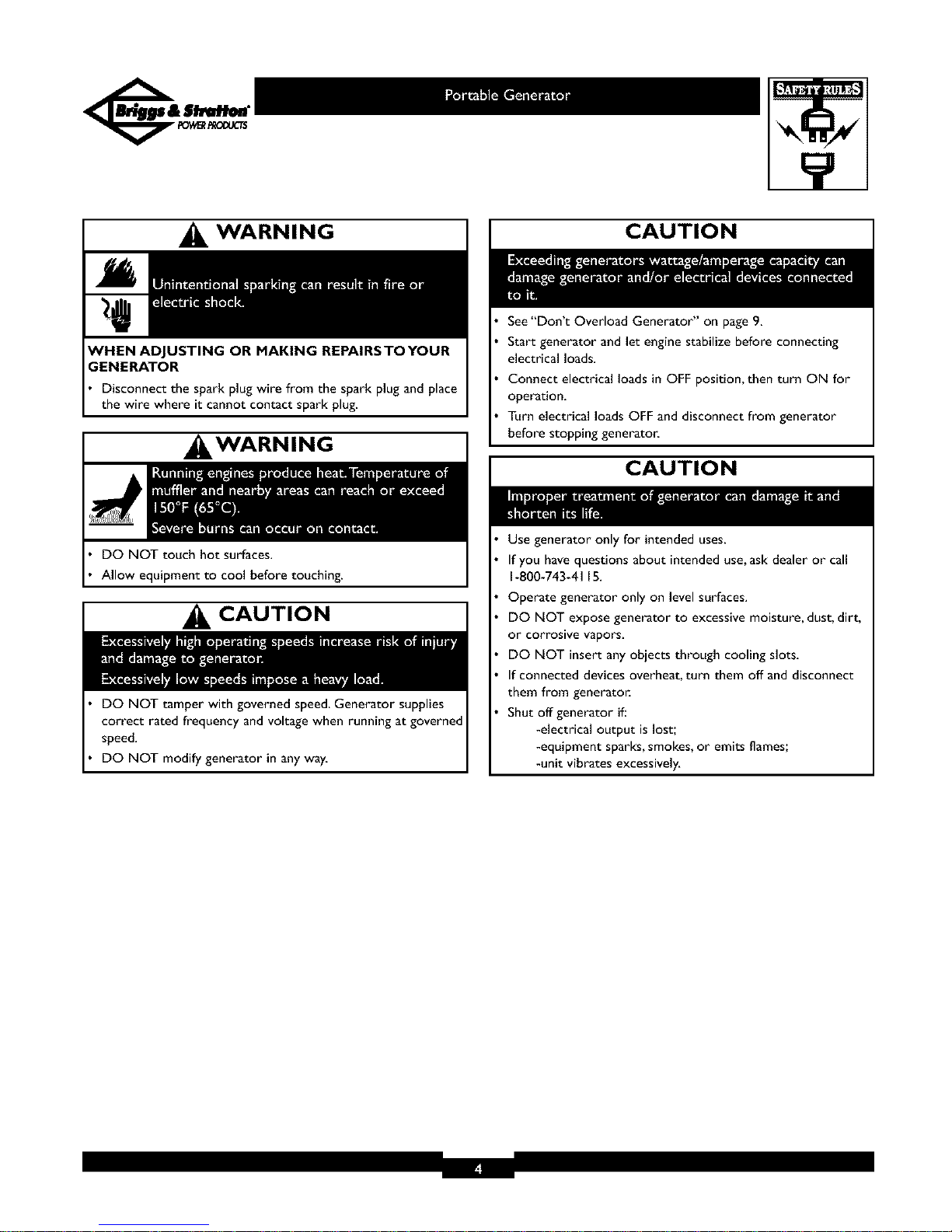

WARNING

Disconnect the spark plug wire from the spark plug and place

the wire where it cannot contact spark plug.

, WARNING

DO NOT touch hot surfaces.

Allow equipment to cool before touching.

CAUTION

DO NOT tamper with governed speed. Generator supplies

correct rated frequency and voltage when running at governed

speed.

DO NOT modify generator in any way.

CAUTION

See"Don't Overload Generator" on page 9.

Start generator and let engine stabilize before connecting

electrical loads.

Connect electrical loads in OFF position, then turn ON for

operation.

Turn electrical loads OFF and disconnect from generator

before stopping generator.

CAUTION

Use generator only for intended uses.

If you have questions about intended use, ask dealer or call

1-800-743-4115.

Operate generator only on level surfaces.

DO NOT expose generator to excessive moisture, dust, dirt,

or corrosive vapors.

DO NOT insert any objects through cooling slots.

If connected devices overheat, turn them off and disconnect

them from generato_

Shut off generator if:

-electrical output is lost;

-equipment sparks, smokes, or emits flames;

-unit vibrates excessively.

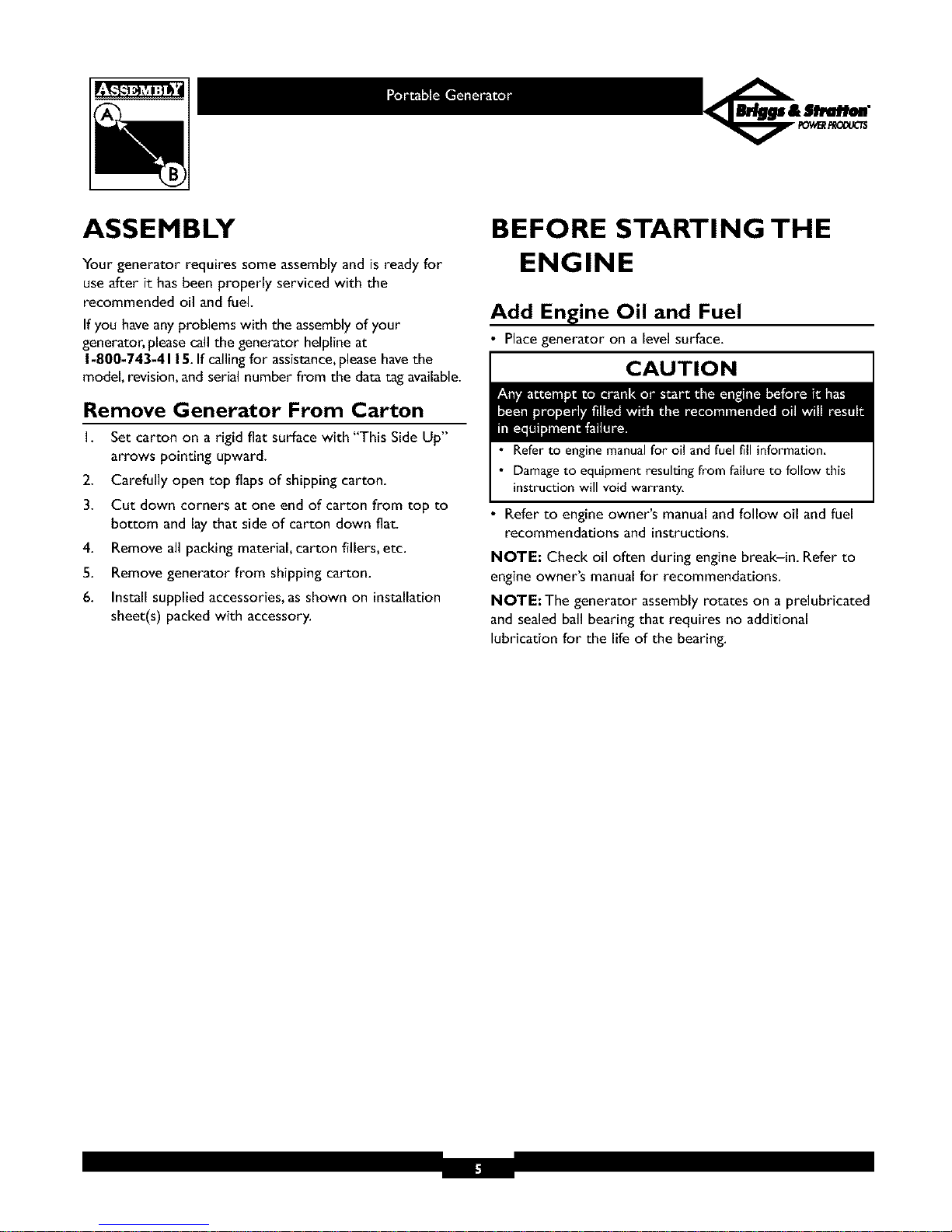

ASSEMBLY

Your generator requires some assembly and isready for

useafter it hasbeen properly serviced with the

recommended oil and fuel.

If you haveanyproblems with the assemblyof your

generator,pleasecallthe generator helpline at

1-800-743-4115. If callingfor assistance,pleasehavethe

model, revision,and serialnumber from the datatagavailable.

Remove Generator From Carton

I. Set carton on arigid fiat surfacewith"This Side Up"

arrows pointing upward.

2. Carefully open top flapsof shippingcarton.

3. Cut down corners at one end of carton from top to

bottom and laythat side of carton down fiat.

4. Removeall packing material, carton fillers, etc.

5. Removegenerator from shipping carton.

6. Install supplied accessories,asshown on installation

sheet(s) packedwith accessory.

BEFORE STARTING THE

ENGINE

Add Engine Oil and Fuel

•Placegenerator on a levelsurface.

CAUTION

• Refer to engine manual for oil and fuel fill information,

• Damage to equipment resulting from failure to follow this

instruction will void warranty,

• Refer to engine owner's manual and follow oil and fuel

recommendations and instructions.

NOTE: Check oil often during engine break-in. Refer to

engine owner's manual for recommendations.

NOTE:The generator assembly rotates on a prelubricated

and sealed ball bearing that requires no additional

lubrication for the life of the bearing.

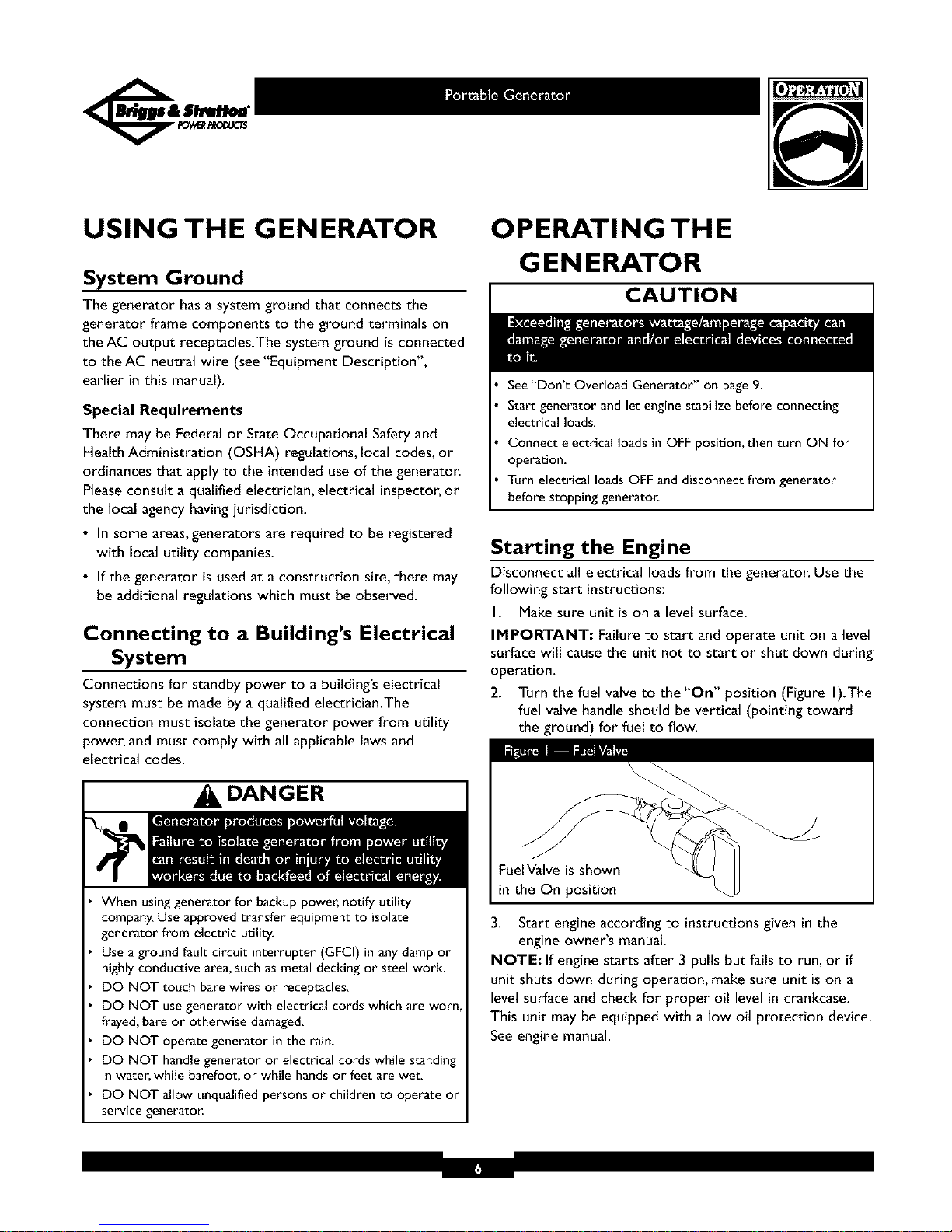

USING THE GENERATOR

System Ground

The generator hasa systemground that connects the

generator frame components to the ground terminals on

the AC output receptacles.The systemground is connected

to the AC neutral wire (see"Equipment Description",

earlier in this manual).

Special Requirements

There may be Federalor State Occupational Safetyand

Health Administration (OSHA) regulations,local codes,or

ordinances that apply to the intended useof the generator.

Pleaseconsult a qualified electrician, electrical inspector, or

the local agencyhavingjurisdiction.

• In some areas,generators are required to be registered

with local utility companies.

• If the generator is usedat a construction site,there may

be additional regulations which must be observed.

Connecting to a Building's Electrical

System

Connections for standby power to a building's electrical

system must be made by a qualified electrician.The

connection must isolate the generator power from utility

power, and must comply with all applicable laws and

electrical codes.

DANGER

When using generator for backup power, notify utility

company. Use approved transfer equipment to isolate

generator from electric utility.

Use a ground fault circuit interrupter (GFCI) in any damp or

highly conductive area, such as metal decking or steel work.

DO NOT touch bare wires or receptacles.

DO NOT use generator with electrical cords which are worn

frayed, bare or otherwise damaged,

DO NOT operate generator in the rain.

DO NOT handle generator or electrical cords while standing

in water, while barefoot, or while hands or feet are wet,

DO NOT allow unqualified persons or children to operate or

service generator,

OPERATING THE

G EN ERATO R

CAUTION

See "Don't Overload Generator" on page 9.

Start generator and let engine stabilize before connecting

electrical loads.

Connect electrical loads in OFF position, then turn ON for

operation.

Turn electrical loads OFF and disconnect from generator

before stopping generator.

Starting the Engine

Disconnect all electrical loads from the generator. Use the

following start instructions:

I. Make sure unit is on a level surface.

IMPORTANT: Failure to start and operate unit on a level

surface will cause the unit not to start or shut down during

operation.

2. Turn the fuel valve to the"On" position (Figure I).The

fuel valve handle should be vertical (pointing toward

the ground) for fuel to flow.

Fuel Valve is shown

in the On position

3. Start engine according to instructions given in the

engine owner's manual.

NOTE: If engine starts after 3 pulls but fails to run, or if

unit shuts down during operation, make sure unit is on a

level surface and check for proper oil level in crankcase.

This unit may be equipped with a low oil protection device.

See engine manual.

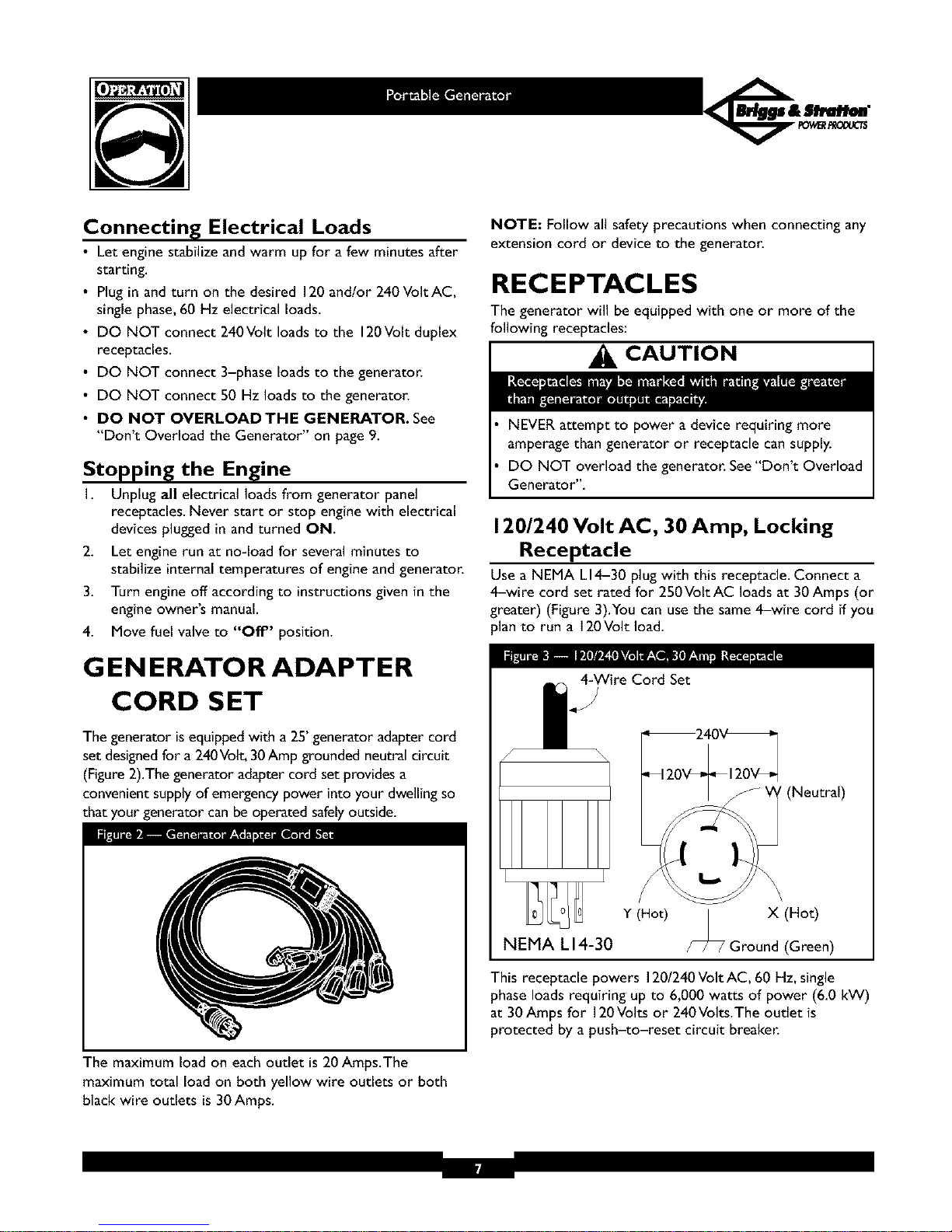

Connecting Electrical Loads

• Let engine stabilizeand warm up for a few minutes after

starting.

• Plugin and turn on the desired 120and/or 240VoltAC,

single phase,60 Hz electrical loads.

• DO NOT connect 240Volt loads to the 120Volt duplex

receptacles.

• DO NOT connect 3-phase loads to the generator.

• DO NOT connect 50 Hz loads to the generator.

•DO NOT OVERLOAD THE GENERATOR. See

"Don't Overload the Generator" on page 9.

Stopping the Engine

I. Unplug all electrical loads from generator panel

receptacles.Never start or stop engine with electrlcal

devices pluggedin and turned ON.

2. Let engine run at no-load for several minutes to

stabilize internal temperatures of engine and generator.

3. Turn engine off according to instructions given in the

engine owner's manual.

4. Move fuel valve to "Off' position.

G EN ERATOR ADAPTER

CORD SET

The generator isequippedwith a 25' generator adaptercord

set designedfor a 240Volt, 30Amp grounded neutral circuit

(Figure2).The generator adaptercord set providesa

convenientsupplyof emergencypowerintoyour dwellingso

that your generator canbe operated safelyoutside.

The maximum load on each outlet is 20 Amps.The

maximum total load on both yellow wire outlets or both

black wire outlets is 30 Amps.

NOTE: Follow all safety precautions when connectingany

extension cord or device to the generator.

RECEPTACLES

The generator will be equipped with one or more of the

following receptacles:

,_ CAUTION

NEVER attempt to power a device requiring more

amperagethan generator or receptacle cansupply.

DO NOT overload the generator. See"Don't Overload

Generator".

120/240 Volt AC, 30 Amp, Locking

Receptacle

Use a NEMA LI4-30 plug with this receptacle. Connect a

4-wire cord set rated for 250Volt AC loads at 30 Amps (or

greater) (Figure 3).You can usethe same4-wire cord ifyou

_lanto run a 120Volt load.

4-Wire Cord Set

' (Neutral)

Y (Hot) X (Hot)

NEMA LI4-30 Ground (Green)

This receptacle powers 120/240Volt AC, 60 Hz, single

phaseloads requiring up to 6,000 watts of power (6.0 kW)

at 30Amps for 120Volts or 240Volts.The outlet is

protected by a push-to-reset circuit breaker.

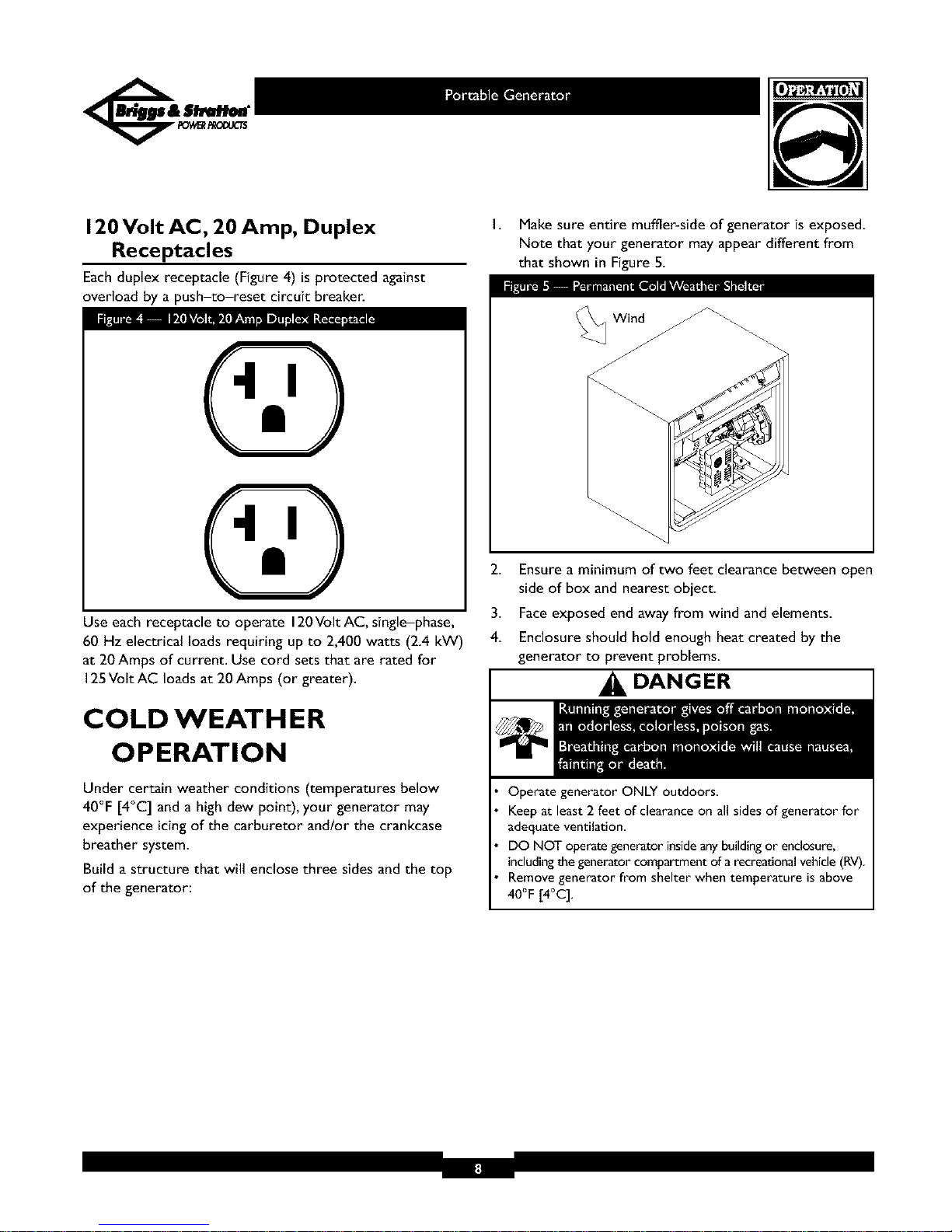

120 Volt AC, 20 Amp, Duplex

Receptacles

Eachduplex receptacle (Figure 4) isprotected against

overload by a push-to-reset circuit breaker.

Use each receptacle to operate 120Volt AC, single-phase,

60 Hz electrlcal loads requiring up to 2,400 watts (2.4 kW)

at 20Amps of current. Use cord sets that are rated for

125Volt AC loads at 20 Amps (or greater).

COLD WEATH ER

OPERATION

Under certain weather conditions (temperatures below

40°F [4°C] and a high dew point), your generator may

experlence icing of the carburetor and/or the crankcase

breather system.

Build a structure that will enclose three sidesand the top

of the generator:

I* Make sure entire muffler-side of generator isexposed.

Note that your generator may appear different from

that shown in Figure 5.

Wind

2. Ensurea minimum of two feet clearance between open

side of box and nearest object.

3. Faceexposed end awayfrom wind and elements.

4. Enclosure should hold enough heat created by the

generator to prevent problems.

_, DANGER

Operate generator ONLY outdoors.

Keep at least 2 feet of clearance on all sidesof generator for

adequateventilation.

DO NOT operategenerator insideanybuildingor enclc_ure,

includingthe generator compartment of arecreationalvehicle(RV)

Remove generator from shelter when temperature is above

40°F [4°C].

l:I

DON'T OVERLOAD

G EN ERATO R

Capacity

You must make sure your generator can supply enough

rated (running) and surge (starting) watts for the items you

will power at the same time. Follow these simple steps:

I. Select the items you will power at the same time.

2. Total the rated (running) watts of these items.This is

the amount of power your generator must produce to

keep your items running. See Figure 6.

3. Estimate how many surge (starting) watts you will

need. Surge wattage isthe short burst of power

needed to start electric motor-drlven tools or

appliances such as a circular saw or refrigerator.

Because not all motors start at the same time, total

surge watts can be estimated by adding only the

item(s) with the highest additional surge watts to the

total rated watts from step 2.

Example:

Tool or Appliance

Window Air

Conditioner

Refrigerator

Deep Freezer

Television

Light (75 Watts)

Rated (Running)

Watts

1200

800

500

3075 Total

Running Watts

Total Rated (Running)Watts = 3075

Highest Additional SurgeWatts = 1800

Total Generator Output Required = 4875

Additional Surge

(Starting) Watts

1800

1600

500

1800 Highest

SurgeWatts

Power Management

To prolong the life of your generator and attached devices,

it is important to take carewhen addingelectrical loads to

your generator.There should be nothing connected to the

generator outlets before starting it'sengine.The correct

and safeway to managegenerator power isto sequentially

add loads asfollows:

I. With nothing connected to the generator, start the

engine asdescribed in this manual.

2. Plugin and turn on the first load,preferably the largest

load you have.

3. Permit the generator output to stabilize (engine runs

smoothly and attached device operates properly.

4. Plug in and turn on the next load.

5. Again,permit the generator to stabilize.

6. Repeat steps 4 and 5 for each additional load.

NEVER add more loads than the generator capacity.Take

special care to consider surge loads ingenerator capacity,

asdescribed above.

Tool or Appliance

Essentials

Light Bulb - 75 watt

Deep Freezer

Sump Pump

Refrigerator/Freezer - 18Cu. Ft.

Water Well Pump - I/3 HP

Heating/Cooling

Window AC - I 0,000 BTU

Window Fan

FurnaceFanBlower - 1/2HP

Kitchen

Microwave Oven - 1000Watt

Coffee Maker

Electric Stove - SingleElement

Hot Plate

Family Room

DVD/CD Player

VCR

Stereo Receiver

Color Television -27"

Personal Computer w/I 7" monitor

Other

Security System

AM/FM Clock Radio

GarageDoor Opener - I/2 HP

Electric Water Heater -40 Gallon

DIY/Job Site

Quartz Halogen Work Light

Airless Sprayer - I/3 HP

Reciprocating Saw

Electric Drill - I/2 HP

Circular Saw-7 I/4"

Miter Saw- 10"

Table Planer - 6"

Table Saw/RadialArm Saw-I0"

Air Compressor - I-I/2 HP

Rated*

(Running)

Watts

500

8O0

1000

1200

3O0

8O0

IOOO

15oo

2500

Additional

Surge

(Starting)

Watts

500

1200

1600

2000

1800

600

1300

IOO

450

5oo

800

18o

300

480 520

4000

IOOO

600 12oo

960 960

1000 1000

1500 1500

1800 1800

2000 2000

2500 2500

*Wattages listed are approximate only. Check tool or

appliance for actual wattage.

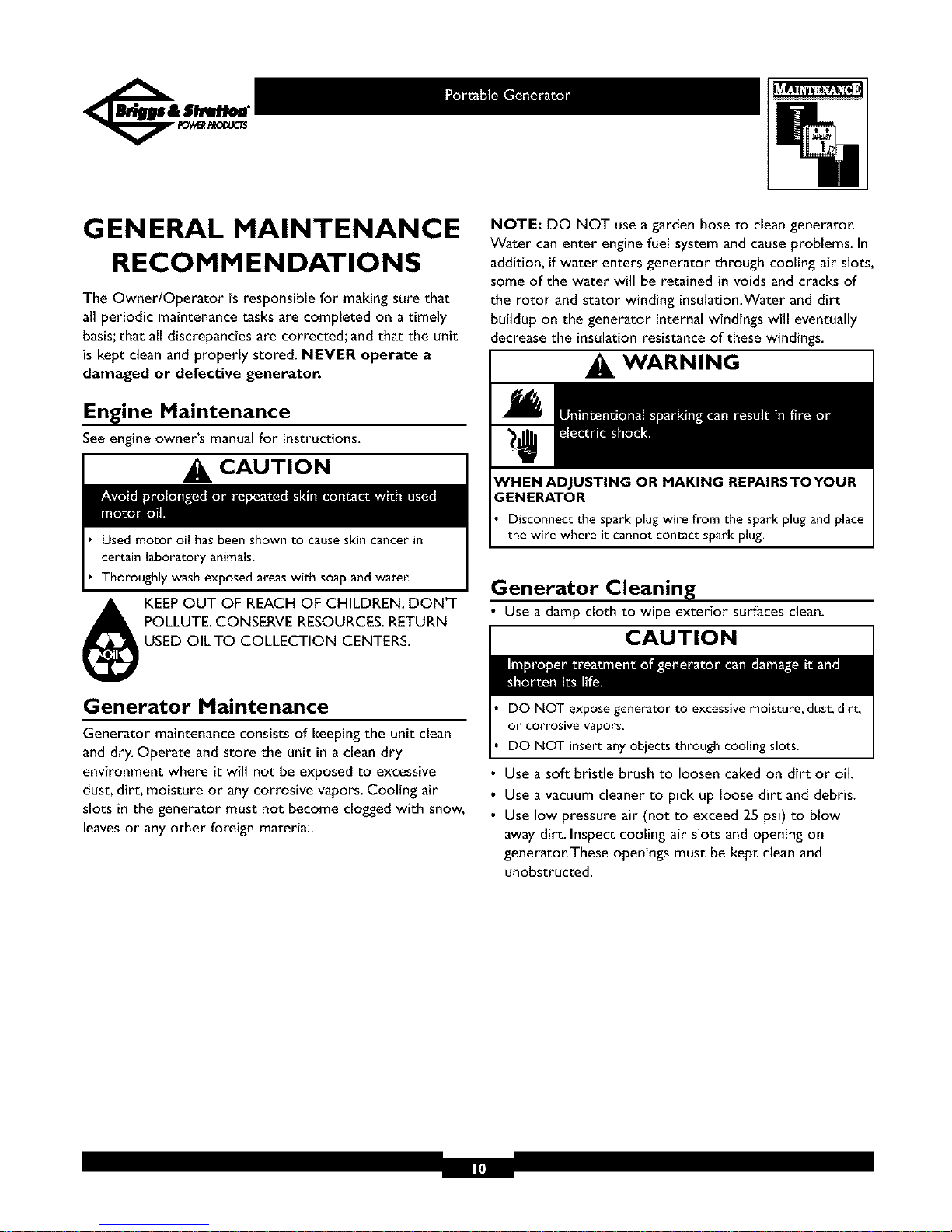

GEN ERAL MAINTENANCE

RECOMMENDATIONS

The Owner/Operator is responsible for making sure that

all periodic maintenance tasks are completed on atimely

basis;that all discrepancies are corrected; and that the unit

is kept clean and properly stored. NEVER operate a

damaged or defective generator.

Engine Maintenance

See engineowner's manualfor instructions.

CAUTION

Used motor oil has been shown to cause skin cancer in

certain laboratory animals,

Thoroughly wash exposed areas with soap and water.

KEEPOUT OF REACH OF CHILDREN. DON'T

POLLUTE.CONSERVERESOURCES.RETURN

USED OIL TO COLLECTION CENTERS.

Generator Maintenance

Generator maintenance consists of keepingthe unit clean

and dry. Operate and store the unit in a clean dry

environment where itwill not be exposed to excessive

dust, dirt, moisture or anycorrosive vapors.Cooling air

slots in the generator must not become cloggedwith snow,

leavesor anyother foreign material.

NOTE: DO NOT use a garden hose to cleangenerator.

Water can enter engine fuel systemand causeproblems. In

addition, ifwater enters generator through cooling air slots,

some of the water will be retained in voids and cracks of

the rotor and stator winding insulation.Waterand dirt

buildup on the generator internalwindings will eventually

decreasethe insulationresistance of these windings.

WARNING

Disconnect the spark plug wire from the spark plug and place

the wire where it cannot contact spark plug.

Generator Cleaning

•Use a damp cloth to wipe exterior surfaces clean.

CAUTION

DO NOT expose generator to excessive moisture, dust, dirt,

or corrosive vapors.

DO NOT insert any objects through cooling slots,

• Use a soft bristle brush to loosen caked on dirt or oil.

• Use a vacuum cleaner to pick up loosedirt and debris.

• Use low pressure air (not to exceed 25 psi) to blow

away dirt. Inspect cooling air slots and opening on

generator.These openings must be kept clean and

unobstructed.

Autres manuels pour 1970

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Briggs & Stratton Générateur portable

Briggs & Stratton

Briggs & Stratton 6200 Watt Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Generator Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 40277 Guide de configuration

Briggs & Stratton

Briggs & Stratton Kincrome KP10105 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton PRO8000 Guide de configuration

Briggs & Stratton

Briggs & Stratton 30677 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 030208-1 Guide de configuration

Briggs & Stratton

Briggs & Stratton PowerBoss 30220 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 030430 Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton PRO6500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 30230 Guide de configuration

Briggs & Stratton

Briggs & Stratton 30218 Guide de configuration

Briggs & Stratton

Briggs & Stratton 30430 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Home Generator Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Portable Generator Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Home Generator Manuel d'installation et d'exploitation

Briggs & Stratton

Briggs & Stratton 30254 Guide de configuration

Briggs & Stratton

Briggs & Stratton 30426 Guide de démarrage rapide

Briggs & Stratton

Briggs & Stratton PowerBoss 30221 Guide de configuration

Briggs & Stratton

Briggs & Stratton 30553 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 030669-0 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 196382GS Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 204330GS Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 206405GS Manuel utilisateur

Manuels Générateur portable populaires d'autres marques

Kohler

Kohler 20EORZ Mode d’emploi

Powerhorse

Powerhorse 83171 Manuel utilisateur

HURST

HURST ML-630-SI Manuel utilisateur

ETQ

ETQ TG4000 Manuel utilisateur

ConMed

ConMed 7550 Manuel utilisateur

Owon

Owon Waveform Generator Manuel utilisateur

evertz

evertz 7700 Series Manuel utilisateur

Power Stroke

Power Stroke PS906025 Manuel utilisateur

Firefly

Firefly Cygnus CYG2400/460/24 Manuel utilisateur

Draper

Draper PG950S Mise à jour du firmware

PowerBoss

PowerBoss PowerBoss Manuel utilisateur

SDMO

SDMO SH 4000 Manuel utilisateur

EINHELL

EINHELL STE 5500 Manuel utilisateur

Wanco

Wanco WI3000P Manuel utilisateur

Full Boar

Full Boar FBT-3300 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments ASG Manuel utilisateur

Westinghouse

Westinghouse WH1000i Series Manuel utilisateur

Wallenstein

Wallenstein GF5000A Manuel utilisateur
