ASSEMBLY INSTRUCTION
MD_MONT-039-Em-hemiplegiarmlene_EU_EN_NO_Rev. C_2016_05_15
Hemiplegia armrest
Hemiplegiarmlen
Description Article number
RHS / HØ 3406015
LHS / VE 3406016
2
1. Montering

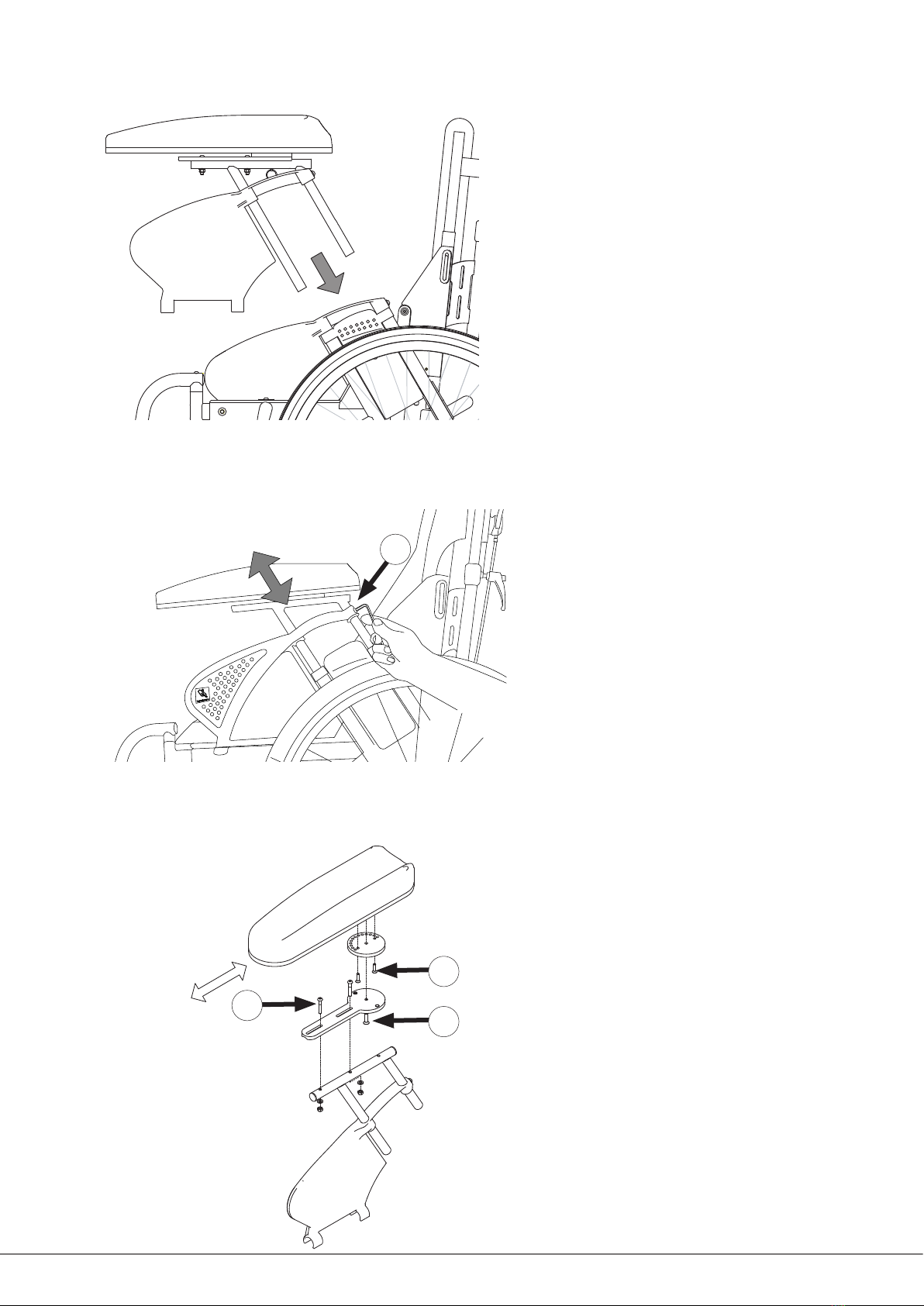

Skyv armlenet ned i armlenerørene som vist i figur 1.
2. Justering av høyde på armlene
For å justere høyden på armlenet, må du løsne
skruen (A). Hev eller senk armlenet til ønske posisjon.
Skru til skruen igjen.
3. Flytte armlenepadsen framover/bakover
Løsne først armlenepadsen fra armlenerøret ved å
skru ut skruene (B).
Skru ut skruene (C).
Skru ut skruene (D) og flytt dem til de fremre/bakre
hullene i armlenepadsen.
Skru til skruene igjen.
1. Mounting
To fit the hemiplegia armrest on, place it in the
armrest tubing.
2. Adjusting the height of the armrests
To adjust the height of the armrest, loosen the
screw (A). Raise or lower the armrest to the desired
position. Re-tighten the screw.
3. Moving the armrest forward/backward
In order to move the armrest pad, you first have to
dismount the armrest pad from the armrest tube by
screwing out the screw (B).
Screw out the screw (C).
Screw out the screws (D) and place them into the
foremost/backmost holes of the armrest pad.
Retighten the screws.

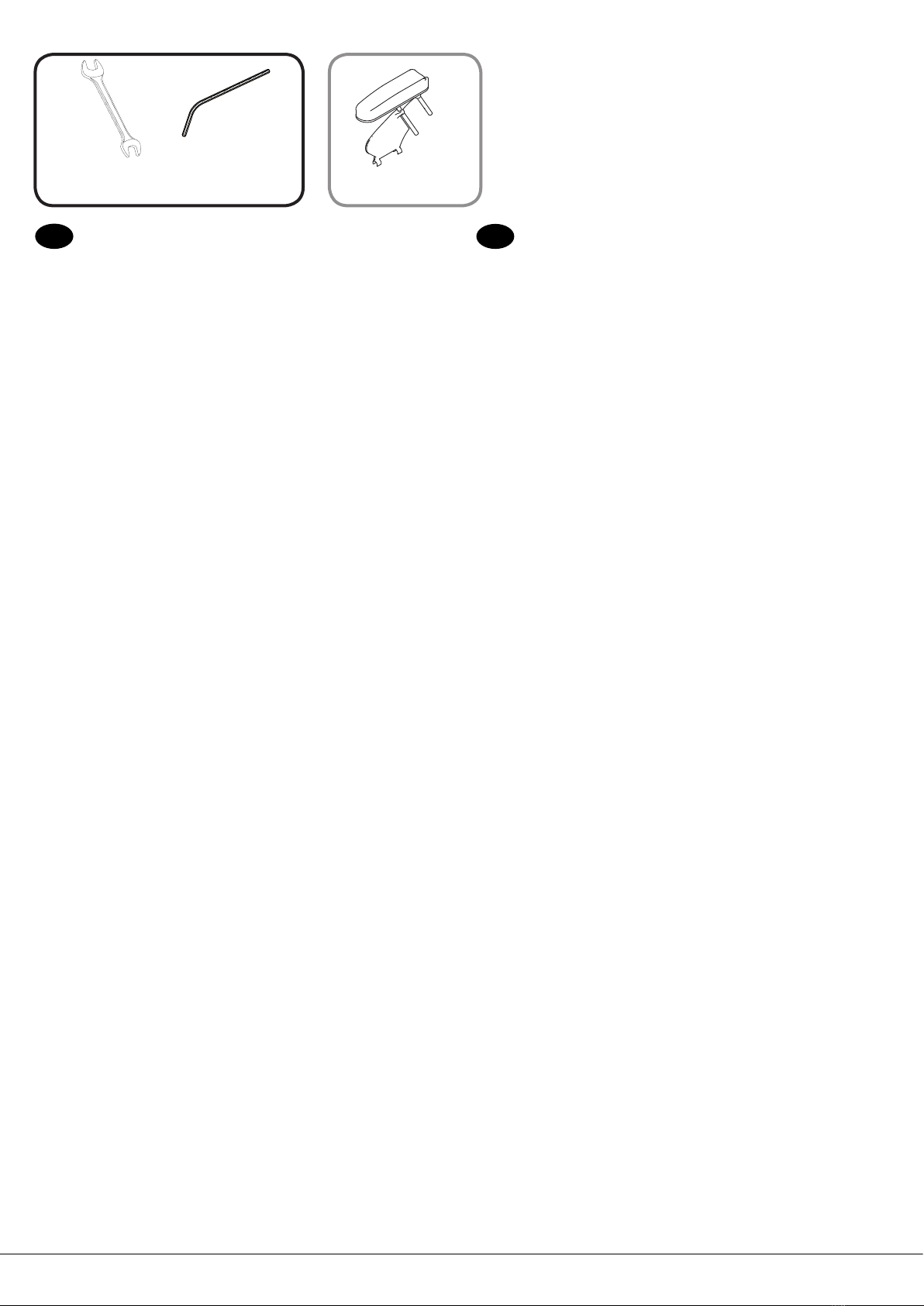

3mm
1x
6 mm10 mm
NO
EN
3
A
C
D
B
1
2
3
Sunrise Medical HCM B.V.
Vossenbeemd 104
5705 CL Helmond
The Netherlands
T: +31 (0)492 593 888
customerser[email protected]
www.SunriseMedical.eu
