Bravo IND-1035 Manuel utilisateur
USER MANUAL
V1.2
Bravo View Technology
19917 HARRISON AVE
WALNUT, CALIFORNIA 91789
United States of America
909-869-0699
www.bravoview.com
Thank You for purchasing the
IND-1035
3.5” Single DIN DVD/CD Player
With 180watt AM/FM Tuner
1
Safety Precautions
4. To ensure safe driving, please adjust the volume to a safe
& comfort level in case of emergency situations.
5. Never expose this unit, amplifier, and speakers to moisture or
water for preventing electric sparks or fires.
6. Please don't change the fuse on the power cord without
professional guidance, using improper fuse may cause damage to
this unit or even cause fire.
7. Please power off this unit at once and send it back to the after-
sales service center or the dealer/distributor you purchased
from if one of the following symptoms is found:
(a). No audio output;
(b). No image output;
(c). Water or other obstacle
enters the unit;
(d). Smoking;
(e). Peculiar smell.
1. Only connect the unit to a 12-volt power supply with negative
grounding.
MUTE
OK
MUTE
OK
2. Never install this unit where the operation & condition for safety
driving is restrained.
MUTE
OK
MUTE
OK
3. Never use the video display function in the front when driving to
prevent the violation of laws & regulations and also to reduce the
risk of traffic accident except using for rear view video camera.
MUTE
OK
MUTE
OK
MUTE
OK
MUTE
OK
OK
TA/
AF
PTY
AMS
OK
TA/
AF
PTY
AMS
OK
TA/
AF
PTY
AMS
OK
TA/
AF
PTY
AMS
2
Safety Information
Warning
To reduce the risk of re or electric shock, do not expose this product to rain or
moisture.
Caution
This product is a CLASS 1 LASER PRODUCT. Use of controls or adjustments
or performance of procedures other than those specified herein may result in
hazardous radiation exposure. Do not open covers and do not repair yourself.
Refer servicing to qualied personnel.
Two Laser Products
Wave length: CD: 780nm DVD: 650nm
Laser power: No hazardous radiation is emitted with safety protection.
To reduce the risk of re electric shock, and annoying interference, use only the
included components.
Disc Notes
• Playing a defective or dusty disc can cause dropouts in sound.
• Hold discs as illustrated.
• Do not touch the unlabeled side.
• Do not attach any seal, label or data protection sheet to either
side of a disc.
• Do not expose a disc to direct sunlight or excessive heat.
• Wipe a dirty disc from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol.
• This unit cannot play 3-inch (8cm) discs.
• Never insert a 3-inch disc contained in the adapter or an irregularly shaped CD.
The unit may not be able to eject it.
Contents
Safety Precautions.................................................1
Safety Information..................................................2
Faceplate Control ..................................................3
Remote Control.................................................. 4-5
Getting Started.......................................................6
USB/SD/MMC/MP3 Playback................................7
General Operation .................................................8
Rotary Knob Menu........................................... 9-11
Radio ...................................................................12
DVD & AV IN Mode .............................................13
Radio and Clock ..................................................13
Disc Playback ......................................................14
Disc Playable.......................................................14
Audio/Video/Picture File Playback.......................15
Track Playback .............................................. 16-17
DVD Playback......................................................18
DVD Setup...........................................................19
DVD System Setup........................................ 19-20
DVD Language Setup..........................................21
DVD Audio Setup.................................................22
DVD Video Setup.................................................23
Electrical Connections .........................................24
Installation Guide.................................................25
Anti-Theft System ................................................26
Troubleshooting...................................................27
Specications.......................................................28
To provide a clear demonstration and an alternative
for easy understanding of the operation of this
unit, graphic illustration was used. However, this
illustration is not necessary printed as the actual
image found on the unit.
3
Faceplate Control
Power on/off: Press to turn on/off the unit.
19 - Radio tune
- Track skip/seek
- Last track (DVD,CD mode)
- Fast rewind (DVD,CD mode，press more than 2 seconds)
- Manual tuning backwards (Radio mode)
- Menu cursor left (MP3 mode)
20 - Radio tune
- Track skip/seek
- Next track (DVD, CD mode)
- Fast forward (DVD, CD mode，press more than 2 seconds)
- Manual tuning forwards (Radio mode)
- Menu cursor right (MP3 mode)
21 FM Stereo/Mono
- Menu cursor up (MP3 mode)
22 - AMS: Radio auto preset/Radio preset scan
- Menu cursor down (MP3 mode)
23 Conrm operation (in settings mode)
1 Faceplate open
2 Display switch/Time adjust
3 Button 1: Play/Pause
4 Button 2: Intro play
5 Button 3: Track repeat play
6 Button 6: - DVD audio channel
- VCD audio channel L/R/ST
- Folder down (USB/SD/MP3 Disc)
7 Button 5: - Video system PAL/NTSC/AUTO
- Folder up (USB/SD/MP3 Disc)
8 Button 4: Track random play
9 Button 1~6: Radio preset: Press to listen to a preset
station, and hold for more than 2 seconds to store station.
10 Mute
11 Power on/off
12 - Rotate the knob to adjust volume level.
- Press to select BAS/TRE/BAL/FAD/BRI/CON/SAT,
- Rotate the knob to adjust level.
13 - Radio
- Disc (When disc inserted)
- USB (When USB inserted)
- Card (When SD/MMC inserted)
- AV IN (External peripheral could be connected to this unit
via rear RCA Video Input & front 3.5mm AUX IN [for Audio])
The auxiliary input allows you to connect a portable CD, MP3,
MiniDisc, video game or computer to the receiver.
14 - Band switch: FM1→FM2→FM3→AM1 (MW1)→AM2 (MW2)
- Stop
15 3.5 inch TFT display
16 Loudness
17 AUX in hole
18 Remote sensor
OK
MON
AMS
LOU
4
14 - Radio
- Disc (when disc inserted)
- USB (when USB inserted)
- Card (when SD/MMC inserted)
- AV IN
15 Repeat
16 Repeat A→B
17 Stop/Return
18 Play/Pause
19 Goto search
20 - DVD menu
- PBC (for VCD 2.0 or up)
21 On screen display
22 - DVD audio
- VCD audio L/R/ST
23 On faceplate display
24 Angle (DVD only)
25 - Video system PAL/NTSC/AUTO
- Radio band
Remote Control
Power on/off: Press to turn on/off the unit.
1 Zoom (DVD/VCD only)
2 Title (DVD only)
3 Power on/off
4 Setup
5 Menu cursor
6 Enter
7 Program
8 Digit area
9 - Audio mode select Bas/Tre/Bal/Fad/Bri/Con/Sat
- Press more than 2 seconds to menu mode
10 Volume
11 Mute
12 - Radio tune
- Track skip/seek
13 Subtitle (DVD only)
5
Remote control operating range
The remote control can operate within a distance of 3~5m.
1
(CR 2025)
2
Remote Control
Replacing the lithium battery of remote control
unit.
When the range of the operation of the card remote control
becomes short or no longer functions while operating, replace the
battery with a new lithium battery. Make sure the battery polarity
replacement is correct.
1. Pull out the battery holder while pressing the stopper.
2. Insert the button-type battery with the stamped (+) mark facing
upward. Insert the battery holder into the remote control.
Warning
• Store the battery where children cannot reach. If a child
accidentally swallows the battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or
dispose it in a re.
• Do not expose or bring into contact the battery with other metallic
materials.
• When throwing away or saving the battery, wrap it in tape and
insulate; otherwise, the battery may give off heat, crack or even
cause a re.
6

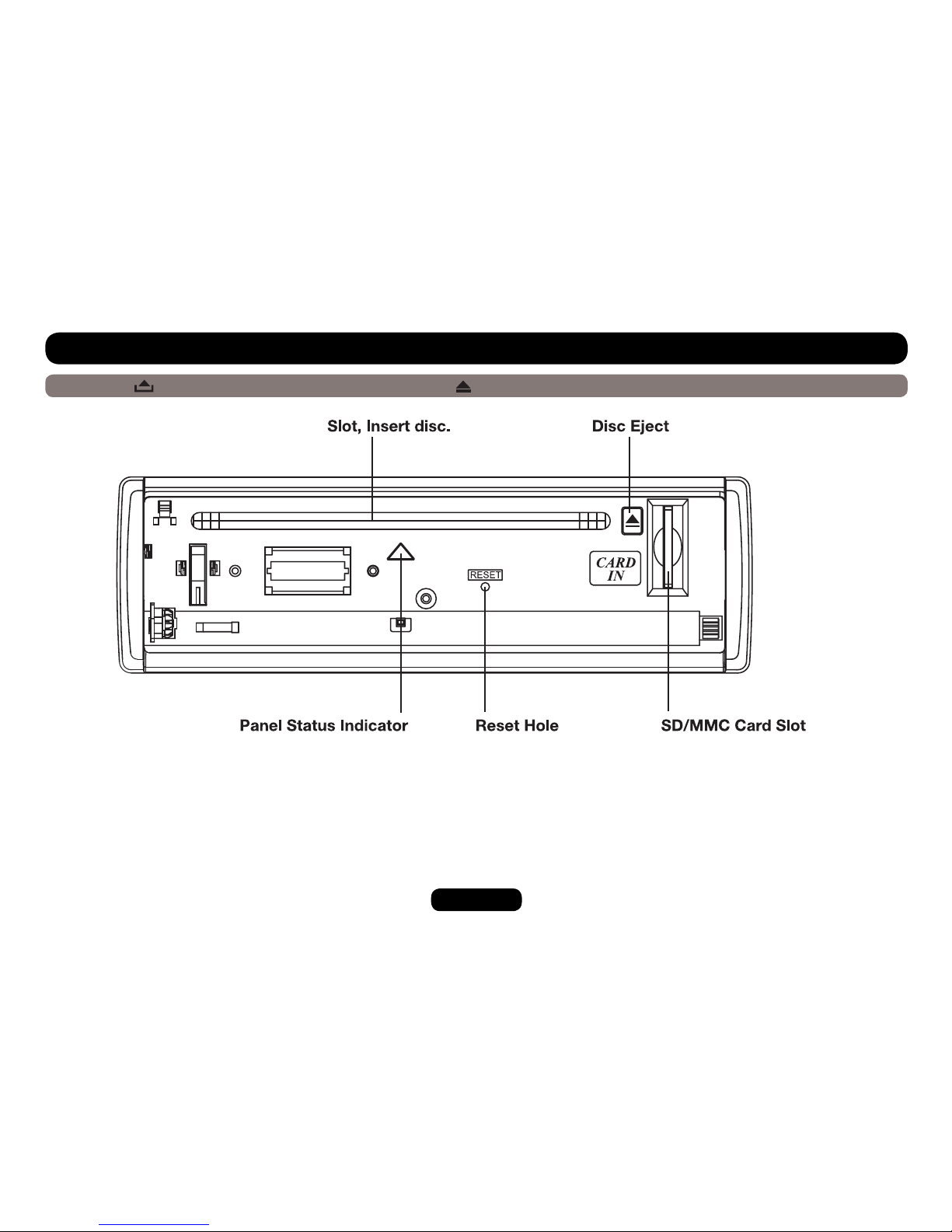

Press the button to open the faceplate and press to eject the disc.
Light up when you slide the
faceplate down; flash when
you remove the faceplate.
Note: Pressing the RESET button
by inserting a pointed tool such as
the end of an unbent paper clip.
Getting Started
7
1. Load SD/MMC card
USB/SD/MMC/MP3 Playback
Press the SRC button to non-USB mode and take out the USB
device from the USB jack.
USB/SD/MMC Notes
USB functions (ash memory type) MP3 music play
1. SD/MMC card support
2. USB ash memory 2 in 1 (SD/MMC ) support
3. Support FAT 16 & FAT 32
4. File name: 32 byte/dir name: 32 byte/tag name: 32 byte
5. Tag (id3 tag ver 2.0)
- Title/artist/album: 32 byte support
6. Multi card reader not support
7. USB 1.1 support
Not all kinds of USB devices are compatible with the unit.
Open the faceplate and insert the SD/MMC card into the slot. Close
the faceplate, the unit will read the le of the card automatically.
2. Take out SD/MMC card
Press SRC button to non-SD mode, press the SD/MMC card to pop
out. Take out the card.
3. Load USB device
Insert USB device into the USB jack. The unit will read the le in
the USB device automatically.
4. Take out USB device
8
Switching on and off
1. Press to turn on the unit.
2. Press SRC once or more to select your desired function: DISC, Tuner (Radio), USB & SD/MMC, AV IN.
3. Press to power off.
4. When you switch off the system or car ignition, the settings, tuner presets and the volume level will be retained in the unit's memory.
VOL Knob Function
Press the knob once to select BASS/TREBLE/BALANCE/FADER/BRIGHTNESS/CONTRAST/SATURATION, and rotate the knob to adjust.
General Operation
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
SETTING
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
SETTING
SETTING
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
SETTING
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
SETTING
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
SETTING
BASS
TREBLE
BALANCE
FADER
BRIGHTNESS
CONTRAST
SATURATION
SETTING
9
Rotary Knob Menu
EQ mode
Rotate the knob to select EQ sound effect:
ROCK - POP - CLASSIC - FLAT - EQ OFF
EQ MODE
BEEP
12/24 MODE
VOL MODE
A-VOL
PARKING
SUBWOOFER
SUBW-VOL
BEEP ON/OFF mode
Rotate the knob to choose button beep sound on or off.
EQ MODE
BEEP
12/24 MODE
VOL MODE
A-VOL
PARKING
SUBWOOFER
SUBW-VOL
Press the knob more than 2 seconds to enter menu mode, then
each press changes the mode as follows:
EQ MODE BEEP 12 /24 MODE VOL MODE A-VOL
PARKING SUBWOOFER SUBW-VOL
EQ MODE
BEEP
12/24 MODE
VOL MODE
A-VOL
PARKING
SUBWOOFER
SUBW-VOL
Table des matières
Autres manuels Bravo Récepteur de voiture
Bravo
Bravo IND-5000BT Manuel utilisateur
Bravo
Bravo SD-100U Manuel utilisateur
Bravo
Bravo SD-100U Manuel utilisateur
Bravo
Bravo IND-400BT Manuel utilisateur
Bravo
Bravo IND-2065 Manuel utilisateur
Bravo
Bravo IND-7000BT Manuel utilisateur
Bravo
Bravo IND-100U Manuel utilisateur
Bravo
Bravo IND-3000U Manuel utilisateur
Bravo
Bravo IND-X600U Manuel utilisateur
