Braun 83XXcc Manuel utilisateur
www.braun.com
Type 5795
Modèle 5795
Modelo 5795
83XXs
83XXcc
Series 8
m
91818850/III-18
91818850_83XXcc&s_W&D_NA_Type_5795.indd 191818850_83XXcc&s_W&D_NA_Type_5795.indd 1 07.05.18 14:3507.05.18 14:35
Stapled booklet, 120 x 170 mm, 48 pages (incl. 8 pages cover), 2/2c = PMS485c + black
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 1 of 48
English 6
Français 21
Español 35
EN/FR/ES
Braun Infolines
Lignes d’assistance Braun
Líneas de información de Braun
Thank you for purchasing a Braun product.
We hope you are completely satisfied with
your new Braun product.
If you have any questions, please visit
www.service.braun.com or call:
US residents 1-800-BRAUN-11
1-800-272-8611
Canadian residents 1-800-387-6657
Merci d’avoir fait l’achat d’un produit Braun.
Nous espérons que vous serez entièrement
satisfait de votre nouveau produit Braun.
Si vous avez des questions, veuillez visiter le
www.service.braun.com ou appeler
Braun Canada : 1-800-387-6657
Gracias por haber comprado un producto Braun.
Esperamos que quede completamente
satisfecho con su nuevo producto Braun.
91818850_83XXcc&s_W&D_NA_Type_5795.indd 291818850_83XXcc&s_W&D_NA_Type_5795.indd 2 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 2 of 48
S8
wet&dry
11
1
2
3
8
9
7
4
5
6
5c 5d
5a 5f
5b 5e*
5g*
10a*
10a*
5f
5e*
5g*
5a
5b
13
16
17
12
15a 15b 15c*
15
14
10
S8
wet&dry
Series 8
Series 8
S8
wet&dry
Series 8
3
91818850_83XXcc&s_W&D_NA_Type_5795.indd 391818850_83XXcc&s_W&D_NA_Type_5795.indd 3 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 3 of 48
4
2
1
20°
10°
0° 10°
20°
10°
0° 10° 20°
90°
C
B
A
91818850_83XXcc&s_W&D_NA_Type_5795.indd 491818850_83XXcc&s_W&D_NA_Type_5795.indd 4 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 4 of 48
5
2
1
2
1
D
E
F
91818850_83XXcc&s_W&D_NA_Type_5795.indd 591818850_83XXcc&s_W&D_NA_Type_5795.indd 5 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 5 of 48
6
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
When disconnected, the hand-held part of this shaving appliance
may be used in a bath or shower. For safety reasons, the
appliance can only be operated cordless.
DANGER
To reduce the risk of electric shock:
1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug
immediately.
3. Do not place, store or charge the appliance where it can fall or be
pulled into a tub or sink. Do not place in or drop into water or other
liquid.
4. Except when charging, always unplug this appliance from the
electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated
Safety Extra Low Voltage power supply. Do not exchange or
manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.
English
91818850_83XXcc&s_W&D_NA_Type_5795.indd 691818850_83XXcc&s_W&D_NA_Type_5795.indd 6 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 6 of 48
7
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Close supervision is necessary when this appliance is used by, on, or
near children or persons with disabilities.
2. Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or if the
power supply has been dropped into water. Return the appliance to a
service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products are
being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious
skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To disconnect,
turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America, use a
plug adapter to match the outlet’s pin configuration.
10. Caution: The battery used in this device may present a fire or
chemical burn hazard if mistreated. Do not disassemble, heat above
100 °C (212 °F), or incinerate.
11. To recharge the battery, only use the detachable power supply
provided with this appliance. If the appliance is marked
492-XXXX, only use Braun power supplies coded 492-XXXX.
SAVE THESE INSTRUCTIONS
91818850_83XXcc&s_W&D_NA_Type_5795.indd 791818850_83XXcc&s_W&D_NA_Type_5795.indd 7 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 7 of 48
8
Our products are designed to meet the highest standards of quality, functionality and
design. Thank you for your trust in Braun’s quality, and we hope you enjoy your new
Braun shaver.
Important
Do not open the appliance! Only at the end of the product’s useful life, disassemble the
rechargeable battery for disposal reasons as shown in the battery removal section.
This product is for household use only.

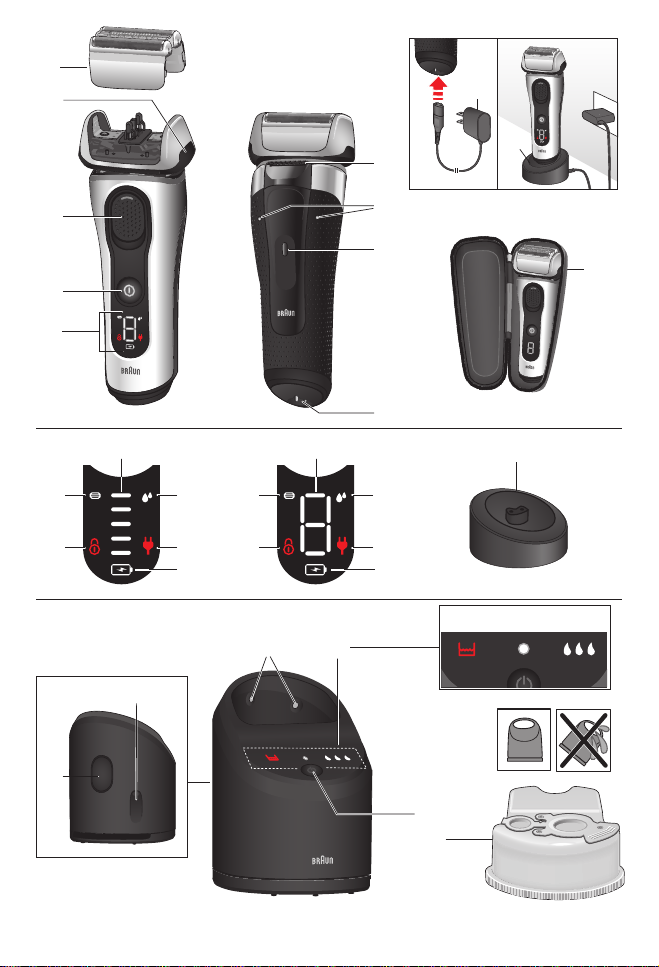

Shaver
1 Foil & Cutter cassette
2 Cassette release button
3 Multi Head Lock switch
4 On / off button
5 Shaver display**
5a Travel lock
5b Replacement indicator for Foil & Cutter cassette
5c Status segments
5d Minutes left display
5e Cleaning indicator*
5f Plug reminder
5g Battery icon*
6 Precision trimmer
7 Shaver-to-station contacts
8 Release button for precision trimmer
9 Shaver power socket
10 Power supply**
10a Charging stand*/**
11 Travel case
* not with all models (see display box)
** design can differ
For electric specifications, see printing on the power supply.
Basic operating information
• A full charge takes 1 hour and provides up to 60 minutes of cordless shaving time.
This may vary depending on your beard growth and ambient temperature.
• Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C. The
battery may not charge properly or at all under extreme low or high temperatures.
• Recommended ambient temperature for shaving is 60 °F to 95 °F / 15 °C to 35 °C.
• Do not expose the shaver to temperatures higher than 122 °F / 50 °C for extended
periods of time.
• When the shaver is connected to an electrical outlet, it may take some minutes until
the display illuminates.
91818850_83XXcc&s_W&D_NA_Type_5795.indd 891818850_83XXcc&s_W&D_NA_Type_5795.indd 8 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 8 of 48
9
Charging
• Connect the shaver to an electrical outlet by snapping the power supply (10) into the
power socket of the shaver (9) or the charging stand (10a). For cc models plug into
the station power socket (see chapter «Clean & Charge Station»).
• For first-time charge, charge continuously for at least 1 hour.
• The actual charge status is shown on the display.
Display
• The display information is dependent on the model.
• Some models only show icons during charging or operation. On other models a series
of icons is also shown after the shaver has been turned off.
• The table below shows the icons that can appear on the shaver display.
Battery status
The battery status is shown with segments and additionally
in digits (for some models also with a battery icon).
• The status segments appear / disappear gradually with the
status of the battery power.
• The digital number shows the remaining shaving time in
minutes.
Plug reminder (low charge / cordless operation only)
1. Flashing: Battery is in low charge, i.e. 5 minutes shaving
time are left.
2. Fast flashing: This appliance can only be operated
cordless. Disconnect the shaver from the power supply
before turning it on.
Travel lock
When the travel lock icon appears on the display, the shaver is
locked.
Replacement indicator for Foil & Cutter cassette
The replacement indicator shows the usage of the
Foil & Cutter cassette. The status segments disappear
gradually with the numbers of shaves.
91818850_83XXcc&s_W&D_NA_Type_5795.indd 991818850_83XXcc&s_W&D_NA_Type_5795.indd 9 07.05.18 14:3507.05.18 14:35
Business Use - P&G AUTHORIZED POA-00044124 Rev 001 Effective Date 2018-05-09 Printed 2018-07-25 Page 9 of 48
10
Cleaning indicator (with Clean & Charge station usage only)
The cleaning indicator lights up after
each shave as a reminder that the shaver
should be cleaned in the Clean & Charge
Station.
Usage
Make sure that the shaver is disconnected from the power supply. Press the on / off
button (4) to operate the shaver.

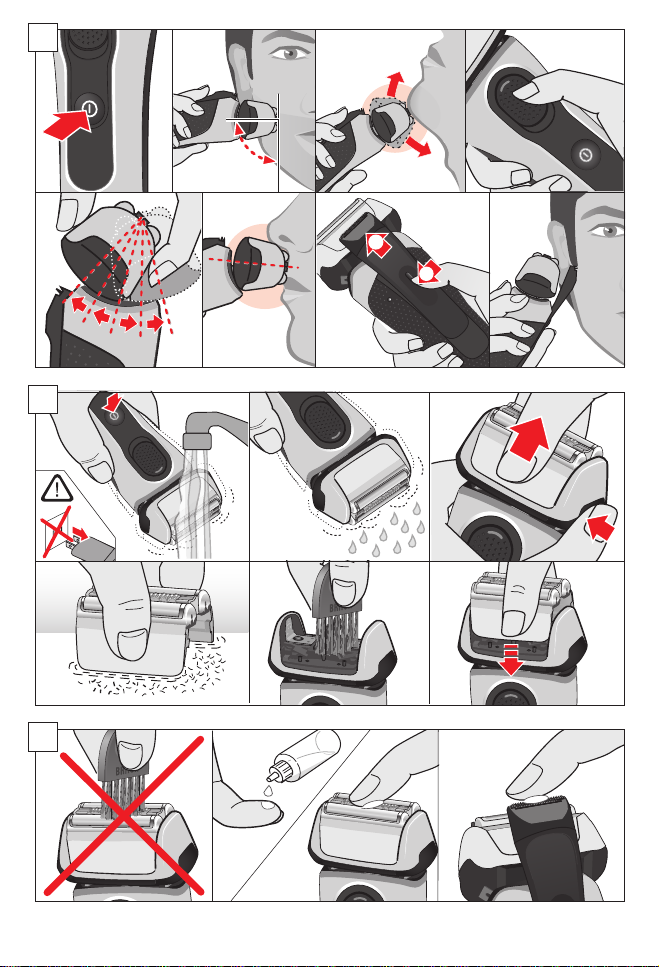

Tips for a perfect shave
1. Position the shaver at the right angle (90°) to your skin.
2. Stretch your skin slightly with your hand.
3. Shave against the direction of your beard growth.
MultiHeadLock switch (head lock)
The shaver head can be locked in five positions to shave hard-to-reach areas
(e.g. under the nose).
• Slide the Multi Head Lock switch (3) down to lock the shaver head.
• Move the shaver head manually to your desired position.
• For automatic cleaning in the Clean & Charge Station the head lock needs to be
released.
Precision trimmer
The trimmer can be used to trim sideburns, moustache or beard.
• Press the release button (8) and slide the trimmer (6) upwards.
Travel lock
The shaver can be locked to avoid unintended starting of the motor (e.g. for storing in a
suitcase).
• Press the on / off button (4) for 3 seconds to lock / unlock the shaver. This is
confirmed by a beep sound and the lock icon appearing / disappearing on the
display.
Foil replacement
To maintain 100% shaving performance, replace the Foil & Cutter cassette (1), when
the foil replacement indicator lights up and no status segments are visible.
• To remove the Foil & Cutter cassette press the release button (2).
• Press the on / off button for 8 seconds to reset the counter.
• Afterwards you need to unlock the shaver (see chapter «Travel lock»).
• On some shaver models the replacement indicator will reset automatically after
7 shaves.
91818850_83XXcc&s_W&D_NA_Type_5795.indd 1091818850_83XXcc&s_W&D_NA_Type_5795.indd 10 07.05.18 14:3507.05.18 14:35
