IMPORTANT SAFETY

INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water.

Unplug immediately.

2. Do not use while bathing or in a shower when the appliance is connected to an

electrical outlet.

3. Do not place, store or charge the appliance where it can fall or be pulled

into a tub or sink. Do not place in or drop into water or other liquid.

4. When not using for a longer period of time, unplug this appliance from the

electrical outlet.

5. Unplug this appliance before cleaning.

6. This appliance is provided with a special cord set with integrated Safety Extra

Low Voltage power supply. Therefore, you must not exchange or manipulate

any part of it.

FOR HOUSEHOLD USE

SAVE THESE INSTRUCTIONS

English

5644453_NA_4-34 Seite 4 Donnerstag, 8. Januar 2004 12:28 12

WARNING

To reduce the risk of burns, ﬁre, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near

children or invalids.

2. Use this appliance only for its intended use as described in this manual.

Do not use attachments not recommended by the manufacturer.

3. The appliance should never be exposed to temperatures of less than

32 ºF / 0 ºC and more than 105 ºF/+40ºC for longer than a few hours.

Be sure to completely dry appliance after use. Keep cord and adapter dry at

all times. Do not store in a damp environment. To avoid damage do not wind

the cord around the appliance. It is important to check the cord for damage

periodically particularly at each end where the cord enters the plug.

4. Never operate this appliance if it has a damaged cord or plug, if it is not wor-

king properly, if it has been dropped or damaged, or dropped into water.

Return the appliance to a service center for examination and repair.

5. Keep the cord away from heated surfaces.

6. Never drop or insert any object into any opening.

7. Do not use outdoors or operate where aerosol (spray) products are being

used or where oxygen is being administered.

8. Do not use this appliance with a damaged or broken foil, as serious facial

injuries may occur.

9. Always attach plug to appliance ﬁrst, then to outlet.

To disconnect, turn all controls to «off», then remove plug from outlet.

5644453_NA_4-34 Seite 5 Donnerstag, 8. Januar 2004 12:28 12

Your Activator (shaver with Clean&Charge station)

is a system equipped with highly advanced electronic

processors. It ensures unsurpassed closeness and

comfort for you and optimum care for your shaver:

• The system automatically adapts to any voltage

worldwide.

•The system recognizes when cleaning of your shaver is

required, and automatically recognizes which of the

three cleaning programs is appropriate.

•While the shaver is connected to an electrical outlet, the

system automatically takes care of charging and

discharging in a way that is optimized for the shaver’s

battery capacity and life span.

• The system takes care of lubrication of the shaver’s

cutting parts.

Important

In order to avoid any leakage of the cleaning fluid,

place the Clean&Charge station on a flat, stable

surface.

Do not tip, move suddenly or transport the station in

any way if a cleaning cartridge is installed.

Do not place the station in a mirror cabinet, nor store

it over radiators, nor place it on polished or laquered

surfaces. Do not expose to direct sunlight.

The station contains highly flammable liquid. Keep it

away from sources of ignition.

No smoking.

Keep out of reach of children.

Do not refill cartridge.

Use only original Braun refill cartridge.

5644453_NA_4-34 Seite 6 Donnerstag, 8. Januar 2004 12:28 12

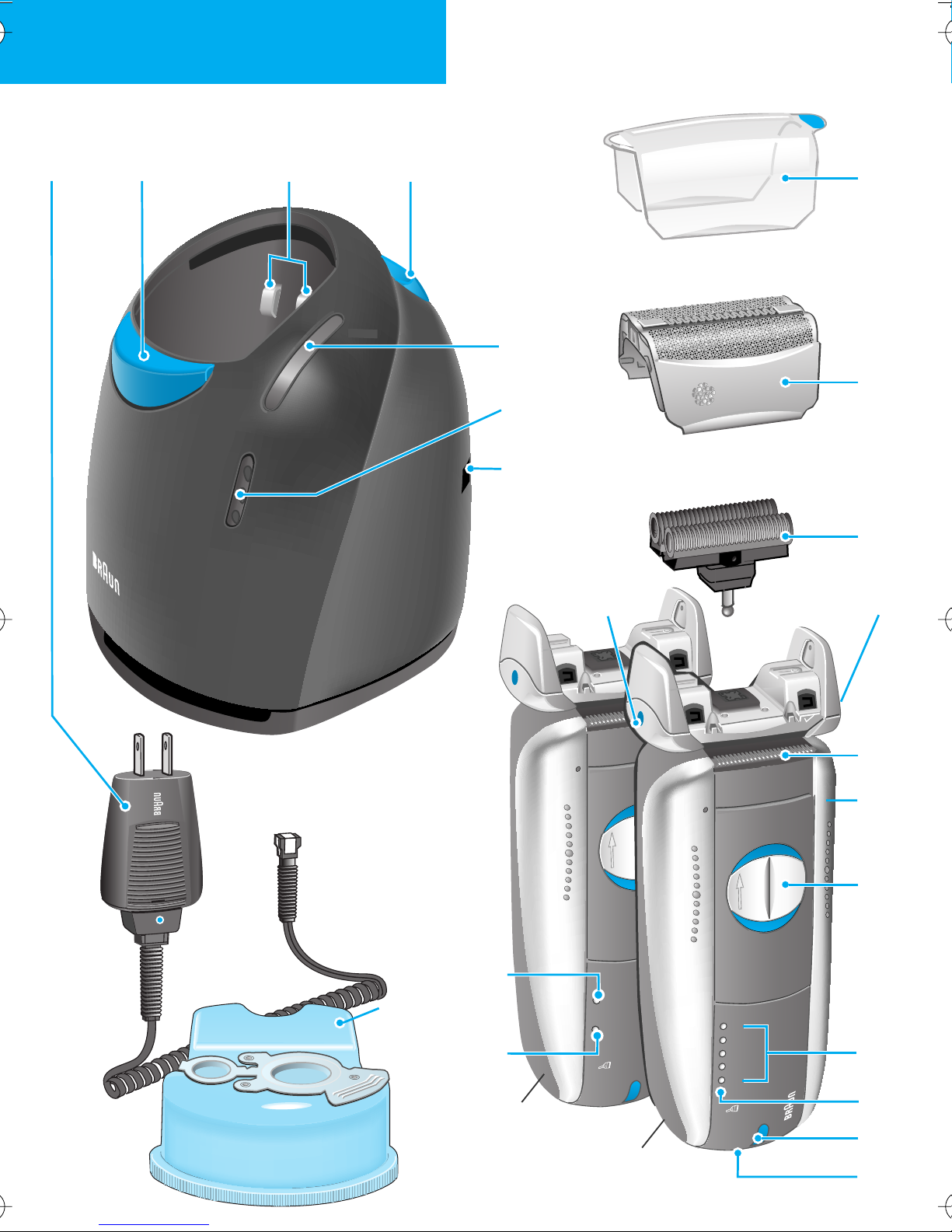

Description

1. Special cord set

2. «start cleaning» button

3. Station-to-shaver connecting contacts

4. Station lift button for cartridge exchange

5. Display for cleaning programs

6. Display for cleaning fluid status

7. Station socket

8. Cleaning cartridge

9. Shaver foil protection cap

10. Shaver foil

11. Cutter block

12. Foil release buttons

13. Long hair trimmer

14. Shaver-to-station connecting contacts

(shaver backside)

15. Switch

16. Shaver charging lights (green)

17. Shaver low-charge light (red)

18. Pilot light

19. Shaver socket

Before shaving

If you wish, you may start shaving right away (if the shaver

is charged). However, we recommend to follow the

procedure described here:

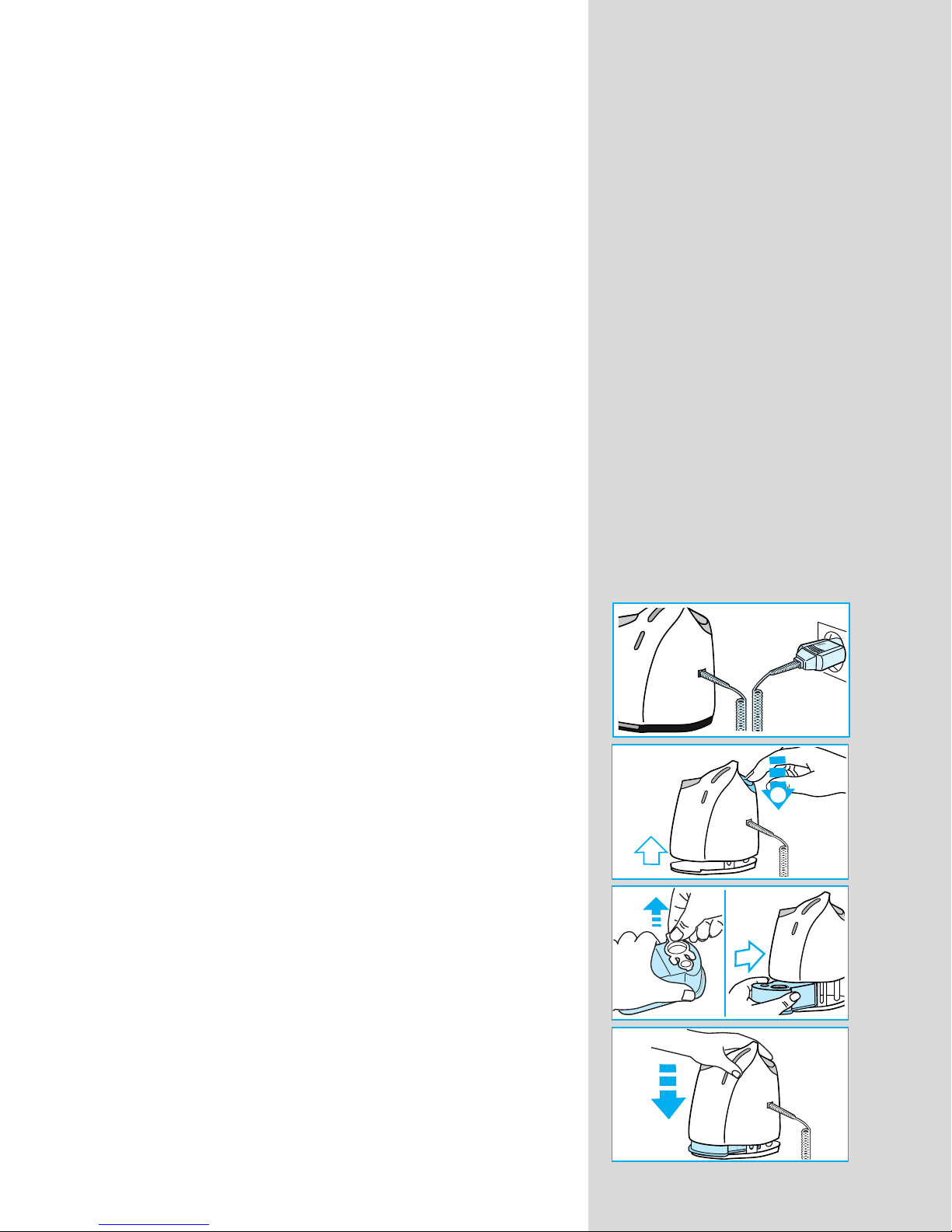

•Using the special cord set (1), connect the socket of the

Clean&Charge station (7) to an electrical outlet.

• Press the station lift button (4) to open the housing.

• Hold the cleaning cartridge (8) down on a flat, stable

surface (e.g. table).

• Carefully remove the lid from the cartridge.

• Slide the cartridge into the base of the station as far

as it will go.

• Slowly close the housing by pushing it down until it

locks.

eco

normal

intensive

auto s

full

cartridge

empty

clean

eco

normal

intensive

full

cartridge

auto select

empty

clean

eco

normal

intensive

full

cartridge

auto select

empty

clean

eco

normal

intensive

full

cartridge

auto select

empty

5644453_NA_4-34 Seite 7 Donnerstag, 8. Januar 2004 12:28 12

The display for cleaning fluid (6) will show how much

cleaning fluid is in the cartridge:

a) Cleaning solution sufficiently available

b) Up to 7 cleanings left

c) New cartridge required

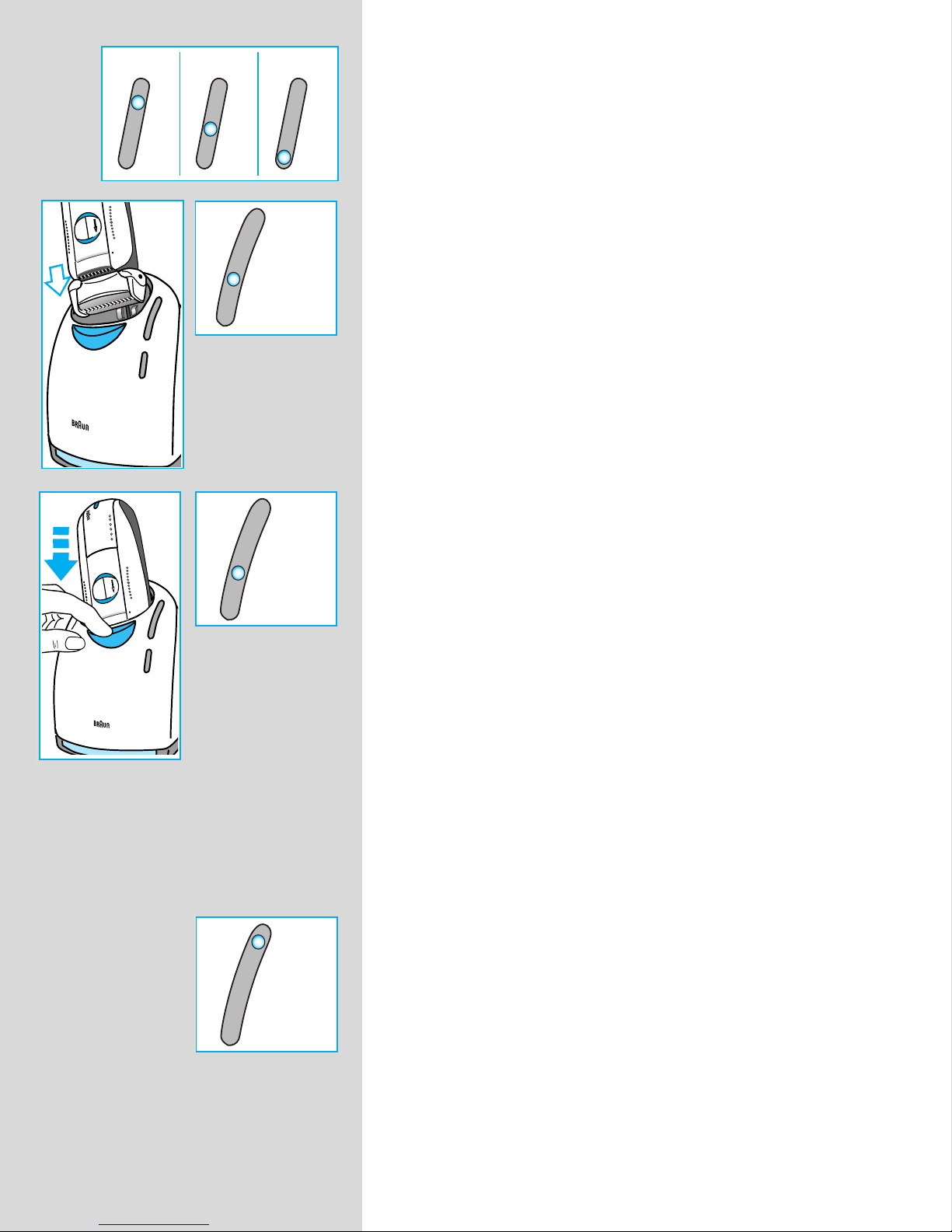

Make sure the foil protection cap (9) is removed from the

shaver. Insert the shaver head down into the station (the

contacts on the back of the shaver (14) will correspond to

the contacts in the station (3)). If necessary, the system

will now charge the shaver.

Also, the cleaning status will be automatically analyzed

and one of the four diodes of the cleaning program display

(5) will light up:

a) The shaver is clean

b) Eco(nomic), i.e. short cleaning required

c) Normal cleaning required

d) Intensive cleaning required

If the system has selected one of the three cleaning

programs, it will not start until you push down the «start

cleaning» button (2). This locks the shaver into the station

and starts the cleaning process.

We recommend cleaning after each shave.

While cleaning is in progress, the respective cleaning

program light will flash. Each cleaning consists of several

cycles (where the cleaning fluid is flushed through the

shaver head) and a heat drying period. The total cleaning

time is 33 to 50 minutes.

Cleaning processes in the Clean&Charge should not

be interrupted. While the shaver is drying, the metal

parts of the shaver may be hot. Also, if the shaver is

taken out prematurely and is not dry, its electronics

could be harmed.

When the program is finished, the blue «clean» light will

shine. You can release the shaver by pushing the «start

cleaning» button.

Your shaver is now clean, charged and ready for use.

cartridge

full

empty

cartridge

full

empty

cartridge

full

empty

abc

full

cartridge

auto select

empty

eco

normal

intensive

clean

321off

auto select

eco

normal

intensive

clean

auto select

eco

normal

intensive

clean

full

cartridge

auto select

empty

eco

normal

intensive

clean

321off

0...2040

8590

6080100

auto select

eco

normal

intensive

clean

5644453_NA_4-34 Seite 8 Donnerstag, 8. Januar 2004 12:28 12

Shaving

If the shaver is locked into the Clean&Charge station,

push the «start cleaning» button (2) to release the shaver

and take it out.

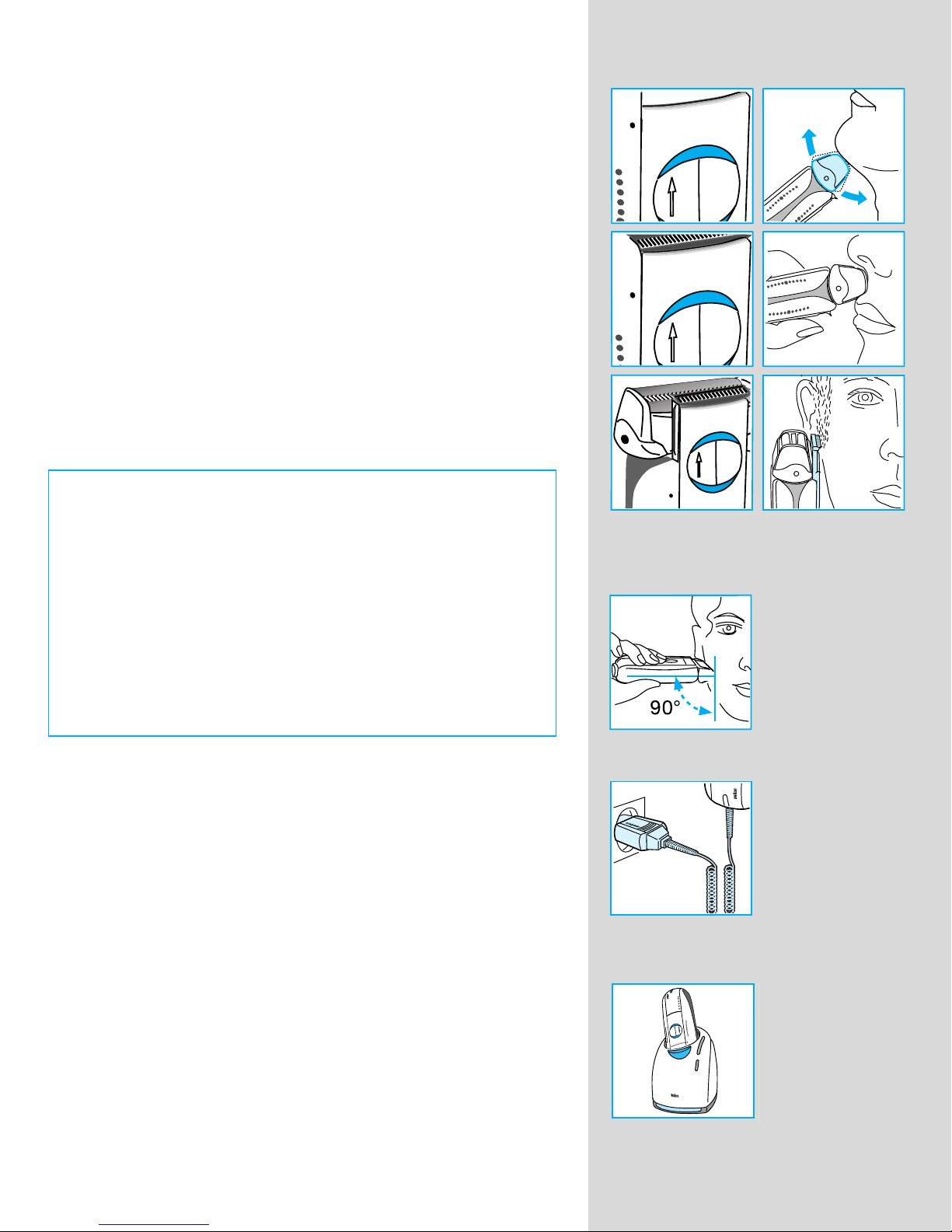

Switch positions

0 = Off (switch is locked)

Press and push up the switch to operate the shaver:

1 = Shaving with the pivoting head

(the pivoting cutting system automatically adjusts to

every contour of your face).

2 = Shaving with the pivoting head locked at an angle

(to permit shaving in difficult areas, e.g. under the

nose).

3 = The long hair trimmer is activated

(for trimming sideburns, moustache and beard).

Shaving with the cord

If the shaver is completely discharged and you do not

have the time to recharge in the Clean&Charge station,

you may also shave with the shaver connected to an

electrical outlet via the special cord set.

After shaving

Automatic cleaning

After each shave, return the shaver to the Clean&Charge

station and proceed as described above in the section

«Before shaving». All charging and cleaning needs are

then taken care of. With daily use, a cleaning cartridge

should be sufficient for about 30 cleaning cycles.

The hygienic cleaning solution cartridge contains alcohol

which, once opened, will naturally evaporate slowly into

the surrounding air. Each cartridge, if not used daily,

should be replaced after approximately 8 weeks.

Tips for the perfect shave

• Shave before washing your face or taking a shower,

as skin tends swell after washing.

•The dryer the skin, the closer the shaving results will

be.

• Hold the shaver at right angles (90°) to the skin.

Stretch your skin and shave against the direction of

beard growth.

• To maintain 100% shaving performance, replace

your foil and cutter block every 18 months or when

worn.

321

8590

full

cartridge

auto select

empty

eco

normal

intensive

clean

321off

0...2040

8590

6080100

5644453_NA_4-34 Seite 9 Donnerstag, 8. Januar 2004 12:28 12

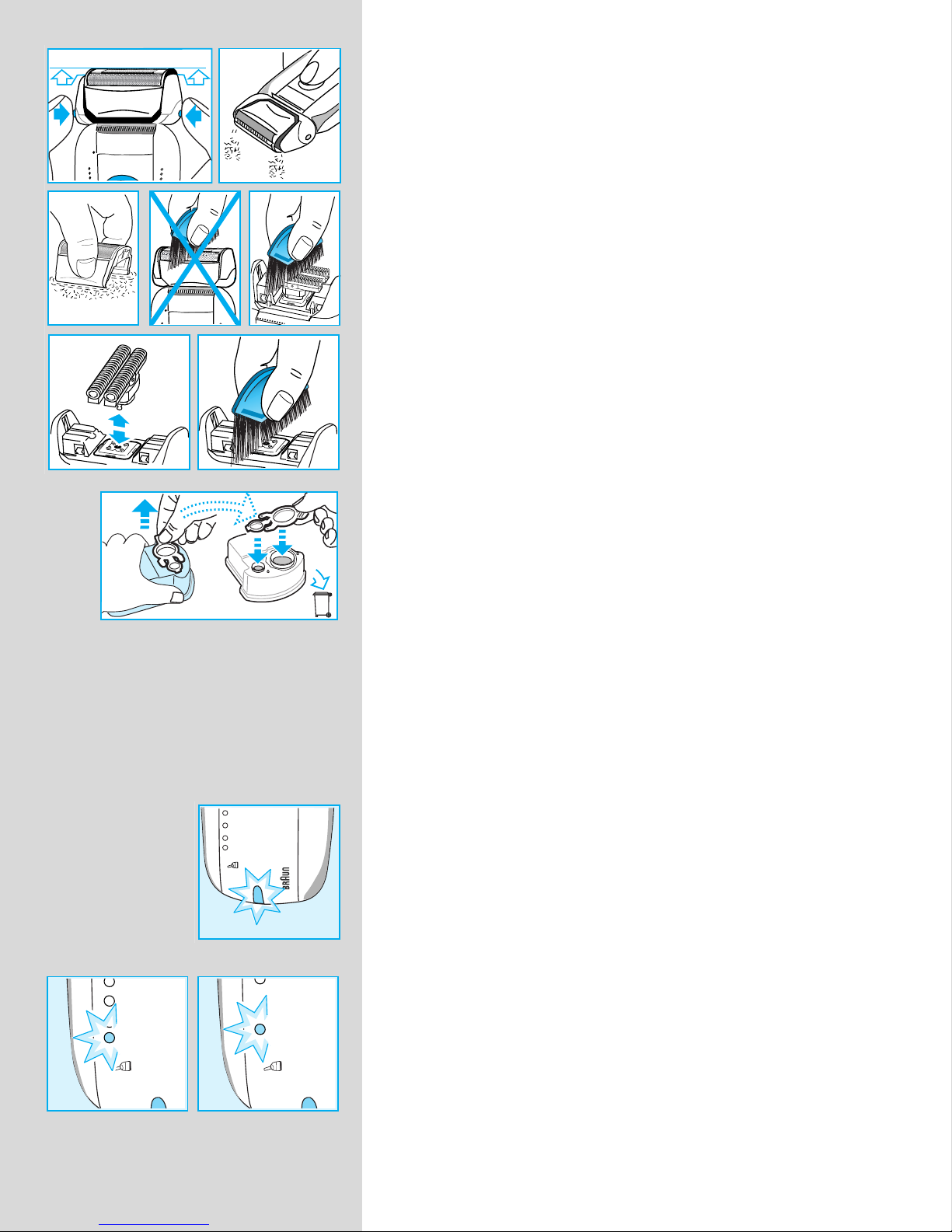

Quick cleaning

Press the foil release buttons (12) to lift the shaver foil

(do not remove the foil completely). Switch on the shaver

for approx. 5–10 seconds so that the shaved stubbles can

fall out.

Thorough manual cleaning

Manual cleaning is recommended only when the

Clean&Charge station is not available, e.g. when travel-

ling. Never use water to clean the shaver.

Remove the shaver foil and tap it out on a flat surface.

Using the brush, clean the cutter block and the inner area

of the pivoting head. If you do not use the Clean&Charge

station for a longer period of time, you should apply a drop

of light machine oil onto the shaver foil.

Replacing the cartridge

After having pressed the lift button (4) to open the

housing, wait for a few seconds before removing the used

cartridge.

Before discarding the used cartridge, make sure to close

the openings using the lid of the new cartridge, since

the used cartridge will contain contaminated cleaning

solution.

Cleaning shaver and Clean&Charge housing

Clean the housing of shaver and Clean&Charge station

from time to time using a damp cloth, paying special

attention to the opening of the station where the shaver

rests.

The shaver indicator lights

Pilot light (18): the shaver is connected to an electrical

outlet.

The red low-charge light (17) flashes when the battery

capacity has dropped below 20%, provided the shaver is

switched on. The remaining capacity will then be sufficient

for 2 to 3 shaves.

21off

1off

old

new

8590 0...20 40 60

0...20 40 6

8590

empty ch

8585

5644453_NA_4-34 Seite 10 Donnerstag, 8. Januar 2004 12:28 12

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Braun Rasoir électrique

Braun

Braun Series 3 Manuel utilisateur

Braun

Braun 8 Pro Series Manuel utilisateur

Braun

Braun 5708 Manuel utilisateur

Braun

Braun 190s-1 Manuel utilisateur

Braun

Braun 9095cc wet&dry Manuel utilisateur

Braun

Braun 799cc-7 Wet & Dry Manuel utilisateur

Braun

Braun SmartControl 150s-1 Manuel utilisateur

Braun

Braun SyncPro System 7680 5491 Manuel utilisateur

Braun

Braun 5515 Manuel utilisateur

Braun

Braun 7 series Manuel utilisateur

Braun

Braun bodycruZer Manuel utilisateur

Braun

Braun S9 Manuel utilisateur

Braun

Braun 765cc-6 Manuel utilisateur

Braun

Braun 5513 Manuel utilisateur

Braun

Braun SERIES 5 550 CC-4 Manuel utilisateur

Braun

Braun BT 3040 Manuel utilisateur

Braun

Braun SyncroPro 5492 Manuel utilisateur

Braun

Braun BT 3040 Manuel utilisateur

Braun

Braun 330 Manuel utilisateur

Braun

Braun Gillette SmartControl3 330 Manuel utilisateur

Braun

Braun 730s-4 Manuel utilisateur

Braun

Braun Silk-epil 5-541 Manuel utilisateur

Braun

Braun 9426s Manuel utilisateur

Braun

Braun Flex XP 5600 Manuel utilisateur

Manuels Rasoir électrique populaires d'autres marques

Philips

Philips MicroAction 4402LC Manuel utilisateur

Philips

Philips HQ7740 Manuel utilisateur

Philips

Philips Norelco BG2022 Bodygroom Manuel utilisateur

Norelco

Norelco Quadra 7610X Manuel utilisateur

Philips

Philips 7616X Manuel utilisateur

Philips

Philips HQ802 Manuel utilisateur

Philips

Philips HQ7363/17 Manuel utilisateur

Philips

Philips NORELCO S7371 Manuel utilisateur

Daga

Daga MT-400 Manuel

Philips

Philips RQ119x Manuel utilisateur

Remington

Remington BHT100 Manuel utilisateur

Philips

Philips Bodygroom BG2000 Manuel utilisateur

Kompernass

Kompernass KH 5537 Manuel utilisateur

Remington

Remington BHT6100 Manuel utilisateur

Philips

Philips qc5365 Manuel utilisateur

MIA

MIA Aqua Body Manuel utilisateur

Philips

Philips NORELCO AT880 Manuel utilisateur

Matheo

Matheo MLR 15 Manuel utilisateur
