Braun 5544 Manuel utilisateur

www.braun.com

Type 5544

Modèle 5544

Modelo 5544

91835115/IV-18

91835115_MGK7021_7020_5080_NA.indd 191835115_MGK7021_7020_5080_NA.indd 1 05.04.18 08:4905.04.18 08:49

Stapled booklet, 105 x 148 mm, 32 pages (incl. 4 pages cover), 1/1c = black

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 1 of 32

Braun Infolines

Lignes d’assistance Braun

Líneas de información de Braun

Thank you for purchasing a Braun product.

We hope you are completely satisfied with

your new Braun product.

If you have any questions, please visit

www.service.braun.com or call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Merci d’avoir fait l’achat d’un produit Braun.

Nous espérons que vous serez entièrement

satisfait de votre nouveau produit Braun.

Si vous avez des questions, veuillez visiter le

www.service.braun.com ou appeler

Braun Canada : 1-800-387-6657

Gracias por haber comprado un producto

Braun.

Esperamos que quede completamente

satisfecho con su nuevo producto Braun.

English 5

Français 15

Español 24

EN/FR/ES

91835115_MGK7021_7020_5080_NA.indd 291835115_MGK7021_7020_5080_NA.indd 2 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 2 of 32

1a 1b

2b* 2c*

2d* 2e*

91835115_MGK7021_7020_5080_NA.indd 391835115_MGK7021_7020_5080_NA.indd 3 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 3 of 32

91835115_MGK7021_7020_5080_NA.indd 491835115_MGK7021_7020_5080_NA.indd 4 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 4 of 32

English

IMPORTANT SAFETY

INSTRUCTIONS

When using an electrical appliance, basic precautions should

always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaving

appliance may be used in a bath or shower. For safety

reasons, the appliance can only be operated cordless.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in

shower.

2. Do not reach for an appliance that has fallen into water. Unplug

immediately.

3. Do not place, store or charge the appliance where it can fall or

be pulled into a tub or sink. Do not place in or drop into water

or other liquid.

4. Except when charging, always unplug this appliance from the

electrical outlet immediately after using.

5. This appliance is provided with a special cord set with

integrated Safety Extra Low Voltage power supply. Do not

exchange or manipulate any part of it.

6. Do not use an extension cord with this appliance.

7. Unplug this appliance before cleaning.

91835115_MGK7021_7020_5080_NA.indd 591835115_MGK7021_7020_5080_NA.indd 5 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 5 of 32

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by,

on, or near children or persons with disabilities.

2. Use this appliance only for its intended use as described in this

manual. Do not use attachments not recommended by the

manufacturer.

3. Never operate this appliance if it has a damaged cord or plug,

if it is not working properly, if it has been dropped or damaged,

or if the power supply has been dropped into water. Return the

appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of this

appliance.

6. Do not use outdoors or operate where aerosol (spray) products

are being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken cutter or

comb, as serious skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To

disconnect, turn all controls off, then remove plug from outlet.

9. When plugging to an electrical outlet outside North America,

use a plug adapter to match the outlet’s pin configuration.

10. Caution: The battery used in this device may present a fire or

chemical burn hazard if mistreated. Do not disassemble, heat

above 100 °C (212 °F) or incinerate.

11. To recharge the battery, only use the detachable power supply

provided with this appliance. If the appliance is marked

491 or 492, only use Braun power supplies coded

491-XXXX or 492-XXXX.

SAVE THESE INSTRUCTIONS

91835115_MGK7021_7020_5080_NA.indd 691835115_MGK7021_7020_5080_NA.indd 6 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 6 of 32

Important

Do not open the appliance! Only at the end of the product’s useful life,

disassemble the rechargeable battery for disposal reasons as shown in the

battery removal section.

This appliance is designed for household use only.

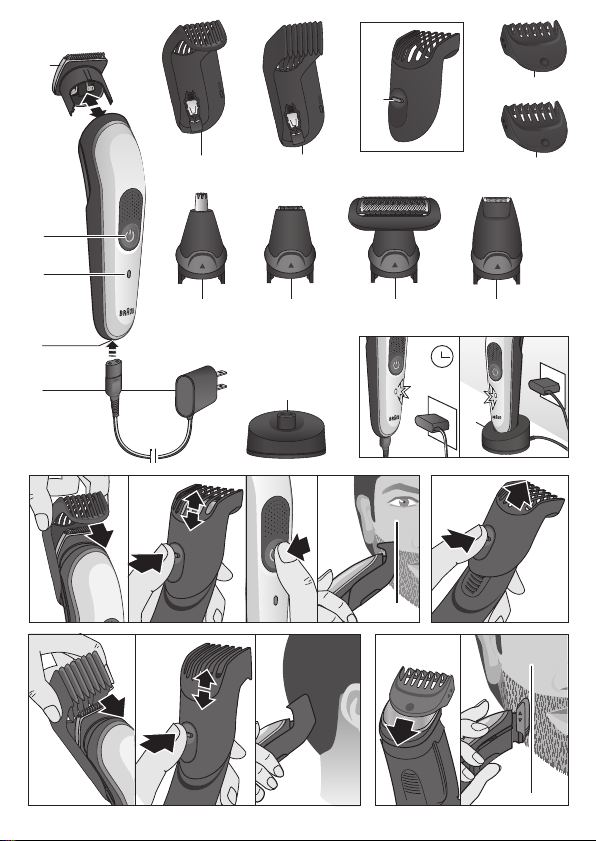

Description

1a Sliding beard comb (3 – 11 mm in 2 mm steps)

1b Sliding hair comb (13 – 21 mm in 2 mm steps)

1c Release button sliding combs

1d Fix comb 1 (1 mm)

1e Fix comb 2 (2 mm)

2a Trimmer head (design can differ)

2b Ear & nose trimmer head*

2c Detailed trimmer head*

2d Body groomer head*

2e Mini foil shaver head*

3 On/off button

4 Charging indicator

5 Power socket

6 Special cord set (design can differ)

7 Charging stand*

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 41 °F to 95 ° F / 5 °C to

35 °C. The battery may not charge properly or at all under extreme low or

high temperatures. Recommended ambient temperature for trimming is

60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures

higher than 122 °F / 50 °C for extended periods of time.

• Connect the appliance (switched off) via the special cord set (6) to an

electrical outlet.

• A full charge takes approx. 1 hour and provides up to 100 minutes of

cordless operation time.

• Once the appliance is completely charged, discharge it through normal

use. Then recharge again to full capacity.

91835115_MGK7021_7020_5080_NA.indd 791835115_MGK7021_7020_5080_NA.indd 7 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 7 of 32

Charging indicator (4)

• The charging indicator blinks green when the appliance is being charged.

• It lights up permanently green for a few seconds when the battery is fully

charged. During usage it shines permanently green.

• The charging indicator shines permanently red when the battery is

running low. Once it flashes red, connect the appliance to the mains.

Usage

Exchange the attachments only when the appliance is switched off. To turn

the appliance on, push the on/off button (3).

Travel lock

Press the on/off button (3) for 3 seconds to lock the appliance. A beep

confirms that the travel lock is activated. To unlock, press the on/off button

3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or

simply connect the appliance to the mains.

Beard Trimming / Hair Clipping

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a).

Press the release button (1c) and slide the comb to your desired length.

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.

• Do not force the appliance through the hair faster than it can be cut.

• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment, the detailed trimmer

head (2c) or the mini foil shaver (2e) for shaping sideburns, moustaches

and partial short beards.

Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the

handle of the appliance.

• Carefully guide the appliance to the hair to be trimmed so that they reach

into the cutting cage. Avoid introducing the trimmer more than 5 mm

(1/4˝) into nose or ear.

Body grooming

Remove any head and click the body groomer head (2d) onto the handle. It

is designed for shaving and trimming of hair on legs, chest and underarms.

Use it on dry skin only.

91835115_MGK7021_7020_5080_NA.indd 891835115_MGK7021_7020_5080_NA.indd 8 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 8 of 32

Cleaning and maintenance

• Switch off the appliance.

• Take off any head and attachment.

• Use the brush to clean the heads, combs and the appliance. Do not clean

the foil of the body groomer head and the foil of the mini foil shaver with

the brush as it may be damaged.

• The handle, the heads and combs can be cleaned under running water.

• The mini foil shaver head can be disassembled for proper cleaning. In

case the foil frame is pulled out, it can just be clicked into the housing

again.

• Rinse until all residues have been removed. Let all parts dry completely

before reassembling them.

• To keep the attachments working properly, oil the trimmer and the foils

with a drop of light machine oil (not included) regularly.

Battery removal

This appliance contains rechargeable batteries. Before disposing of the

appliance, disassemble the housing as shown, remove the rechargeable

batteries and recycle or dispose of properly, according to local guidelines.

Caution: Disassembling the appliance will destroy it and invalidate the

warranty.

Li-Ion

Subject to change without notice.

91835115_MGK7021_7020_5080_NA.indd 991835115_MGK7021_7020_5080_NA.indd 9 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 9 of 32

How to obtain service in the USA

Should your Braun product require service, please call

1-800-BRAUN 11 (272-8611) to be referred to the Authorized

Braun Service Center closest to you or visit

www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of

your choice or,

B. Ship the product to the Authorized Braun Service Center of

your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty

coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the

Authorized Braun Service Center closest to you or visit

www.service.braun.com.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

91835115_MGK7021_7020_5080_NA.indd 1091835115_MGK7021_7020_5080_NA.indd 10 05.04.18 08:4905.04.18 08:49

Business Use - P&G AUTHORIZED POA-00043776 Rev 001 Effective Date 2018-04-11 Printed 2019-02-27 Page 10 of 32

Autres manuels pour 5544

Table des matières

Langues :

Autres manuels Braun Rasoir électrique

Braun

Braun MGK5380 Manuel utilisateur

Braun

Braun BS 8385 Manuel utilisateur

Braun

Braun SmartControl3 4875 Manuel utilisateur

Braun

Braun 70S Manuel utilisateur

Braun

Braun Silk-epil Xelle 5370 Manuel utilisateur

Braun

Braun Pulsonic Pro-System Plus 760cc-4 Manuel utilisateur

Braun

Braun FreeControl 1735 Manuel utilisateur

Braun

Braun 5 Series Manuel utilisateur

Braun

Braun MobileShave M-90 Manuel utilisateur

Braun

Braun 720s-7 Manuel utilisateur

Braun

Braun FreeGlider 6620 Manuel utilisateur

Braun

Braun FlexXPII 5775 Manuel utilisateur

Braun

Braun Activator 8595 Manuel utilisateur

Braun

Braun BT 7050 Manuel utilisateur

Braun

Braun cruZer4 body & face 2838 Manuel utilisateur

Braun

Braun 190s-1 Manuel utilisateur

Braun

Braun Silk-expert Mini PL1014 Manuel utilisateur

Braun

Braun CRUZER3 5733 Manuel utilisateur

Braun

Braun Pro Wet&Dry 9470cc Manuel utilisateur

Braun

Braun EXACT6-memory uni Guide rapide

Braun

Braun BGK 7090 Manuel utilisateur

Braun

Braun BT7040 Manuel utilisateur

Braun

Braun 5 Series Manuel utilisateur

Braun

Braun 340 Manuel utilisateur

Manuels Rasoir électrique populaires d'autres marques

Philips

Philips MicroAction 4402LC Manuel utilisateur

Philips

Philips HQ7740 Manuel utilisateur

Philips

Philips Norelco BG2022 Bodygroom Manuel utilisateur

Norelco

Norelco Quadra 7610X Manuel utilisateur

Philips

Philips 7616X Manuel utilisateur

Philips

Philips HQ802 Manuel utilisateur

Philips

Philips HQ7363/17 Manuel utilisateur

Philips

Philips NORELCO S7371 Manuel utilisateur

Daga

Daga MT-400 Manuel

Philips

Philips RQ119x Manuel utilisateur

Remington

Remington BHT100 Manuel utilisateur

Philips

Philips Bodygroom BG2000 Manuel utilisateur

Kompernass

Kompernass KH 5537 Manuel utilisateur

Remington

Remington BHT6100 Manuel utilisateur

Philips

Philips qc5365 Manuel utilisateur

MIA

MIA Aqua Body Manuel utilisateur

Philips

Philips NORELCO AT880 Manuel utilisateur

Matheo

Matheo MLR 15 Manuel utilisateur
