Braun 190 Type 5729 Manuel utilisateur
Type 5729
190
190 was FreeControl 1775 MN KURTZ DESIGN 14.02.06
Format A6
trimmer
98576787_190_Korea Seite 11 Dienstag, 15. Januar 2008 11:22 11
2
5
4
trimmer
1
7
2
3
6
90°
90°
1
2
98576787_190_Korea Seite 2 Dienstag, 15. Januar 2008 11:22 11
3
a
d
oi
l
b
c
98576787_190_Korea Seite 3 Dienstag, 15. Januar 2008 11:22 11
4
98576787_190_Korea Seite 4 Dienstag, 15. Januar 2008 11:22 11
5
98576787_190_Korea Seite 5 Dienstag, 15. Januar 2008 11:22 11
6
98576787_190_Korea Seite 6 Dienstag, 15. Januar 2008 11:22 11
7
English
Our products are designed to meet the highest standards of quality,
functionality and design. We hope you entirely enjoy your new Braun shaver.
Warning
• Your shaver is provided with a special cord set with integrated Safety
Extra Low Voltage power supply. Do not exchange or manipulate any
part of it. Otherwise there is a risk of electric shock.
• This appliance is not intended for use by children or persons with
reduced physical or mental capabilities, unless they are given
supervision by a person responsible for their safety. In general, we
recommend that you keep the appliance out of reach of children.
Description
1 Foil protection cap
2 Shaver foil
3 Cutter block
4 Long hair trimmer
5 Charging light
6 On/off switch
7 Special cord set
Charging
The best environmental temperature for charging is between 15 °C
and 35 °C.
• Using the special cord set, connect the shaver to an electrical outlet with
the motor switched off.
• When charging for the first time, leave the shaver to charge continuously
for 4 hours. The charging light (5) shows that the shaver is being
charged. When the battery is fully charged, the charging light intermit-
tently blinks on and off. This indicates that the battery maintains its full
capacity.
• A full charge provides up to 30 minutes of cordless shaving time
depending on your beard growth.
• Once the shaver is completely charged, discharge the shaver through
normal use. Then recharge to full capacity. Subsequent charges will take
about 1 hour.
• Maximum battery capacity will only be reached after several charging/
discharging cycles.
• If the rechargeable batteries are discharged, you may also shave by
connecting the shaver to an electrical outlet via the special cord set.
98576787_190_Korea Seite 7 Dienstag, 15. Januar 2008 11:22 11
8
Shaving
Remove the foil protection cap (1). Activate the on/off switch (6). The floating
foil frame automatically adapts to your skin surface for a close, smooth
shave.
For pre-shaving after a few days of not having shaved, use the long hair
trimmer (4) to pre-cut long hairs. For a close, smooth shave, finish with the
foil.
Trimming

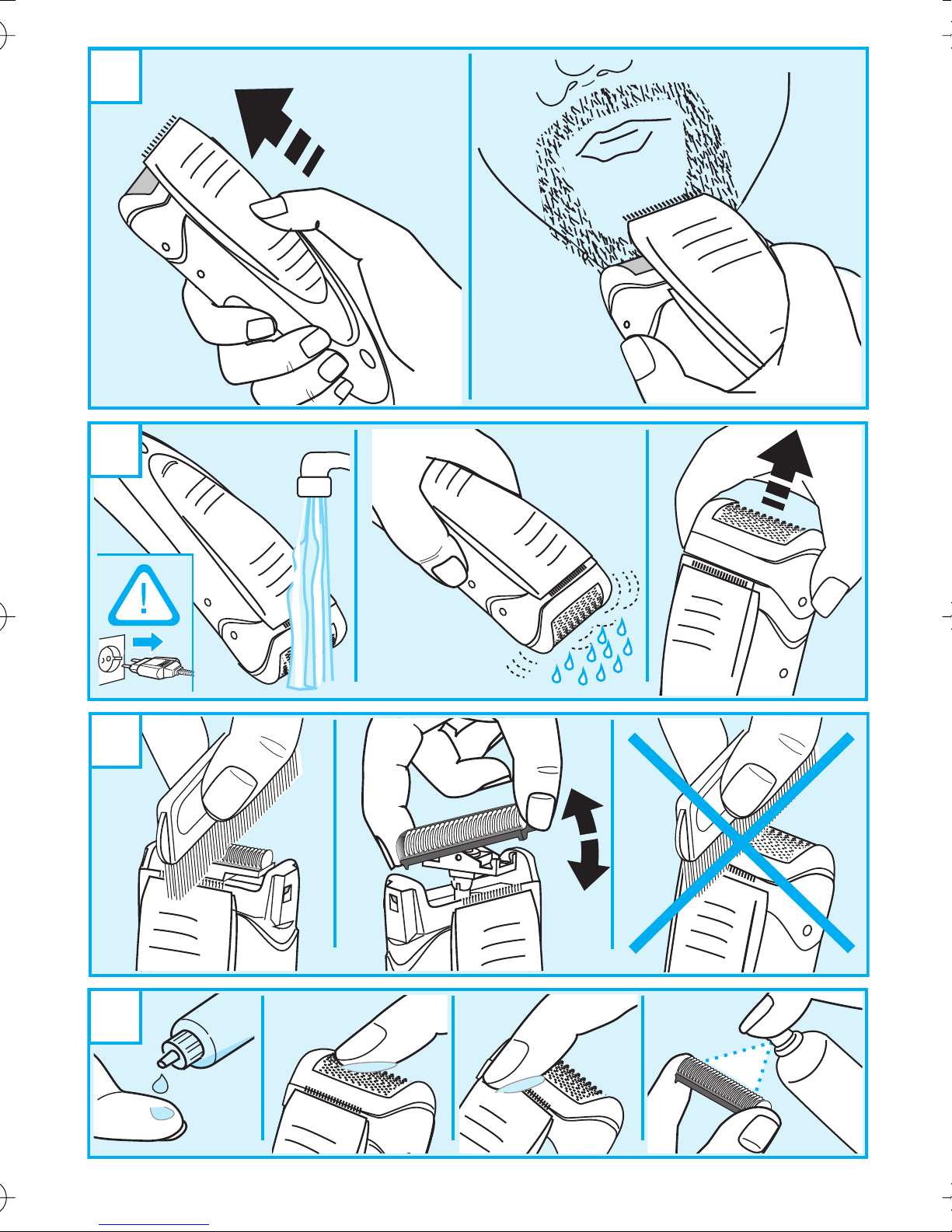

Push out the long hair trimmer (a). It allows controlled trimming of moustache
and sideburns. It evenly cuts and trims larger areas: ideal for shaping
sideburns, moustaches and partial short beards.
Frequent use of the long hair trimmer may reduce the battery capacity.
Cleaning
This appliance is suitable for cleaning under an open water tap.
Warning: Detach the hand-held part from the power supply before
cleaning it in water.
Regular cleaning ensures better shaving performance. Rinsing the shaving
head after each shave under running water is an easy and fast way to keep
it clean:
• Switch the shaver on (cordless) and rinse the shaving head under hot
running water (b). A natural based soap may also be used provided it
contains no particles or abrasive substances. Rinse off all foam and let
the shaver run for a few more seconds.
• Next, switch off the shaver, remove the shaver foil and the cutter block.
Then leave the disassembled shaving parts to dry.
Tips for the perfect shave
• We recommend that you shave before washing, as the skin tends to be
slightly swollen after washing.
• Hold the shaver at right angles (90°) to the skin. Stretch the skin and
shave against the direction of beard growth.
• To maintain 100% shaving performance, replace your foil and cutter
block at least every 18 months or when worn.
98576787_190_Korea Seite 8 Dienstag, 15. Januar 2008 11:22 11
9
Alternatively, you may clean the shaver using the brush provided (c):
• Switch off the shaver. Remove the shaver foil.
• Using the brush, clean the cutter block and the inner area of the shaver
head. However, do not clean the shaver foil with the brush as this may
damage the foil.
Keeping your shaver in top shape
About every four weeks, clean the cutter block with Braun cleaning agents.
Put a drop of light machine oil onto the long hair trimmer and the shaver foil
(d).
Replacing the shaving parts
To maintain 100% shaving performance, replace your foil and cutter block
at least every 18 months or when worn. Change both parts at the same time
for a closer shave with less skin irritation.
(Shaver foil and cutter block: 10B)
Preserving the batteries
In order to maintain the optimum capacity of the rechargeable batteries, the
shaver has to be fully discharged (by shaving) every 6 months approximately.
Then recharge the shaver to full capacity. Do not expose the shaver to
temperatures higher than 50 °C for extended periods of time.
Environmental notice
This product contains rechargeable batteries. In the interest of
protecting the environment, please do not dispose of the product in
the household waste at the end of its useful life. Disposal can take
place at a Braun Service Centre or at appropriate collection points
provided in your country.
Subject to change without notice.
This product conforms to the European Directives EMC 2004/108/EC
and Low Voltage 2006/95/EC.
For electric specifications, see printing on the special cord set.
98576787_190_Korea Seite 9 Dienstag, 15. Januar 2008 11:22 11
10
Guarantee
We grant 1 year guarantee on the product commencing on the date of
purchase. Within the guarantee period we will eliminate, free of charge, any
defects in the appliance resulting from faults in materials or workmanship,
either by repairing or replacing the complete appli-
ance as we may choose.
This guarantee extends to every country where this appliance is supplied by
Braun or its appointed distributor.
This guarantee does not cover: damage due to improper use, normal wear
and tear (e.g. shaver foil or cutter block) as well as defects that have a
negligible effect on the value or operation of the appliance. The guarantee
becomes void if repairs are undertaken by unauthorised persons and if
original Braun parts are not used.
To obtain service within the guarantee period, hand in or send the complete
appliance with your sales receipt to an authorised Braun Customer Service
Centre.
This guarantee in no way affects your rights under statutory law.
98576787/I-08
Korea/GB
