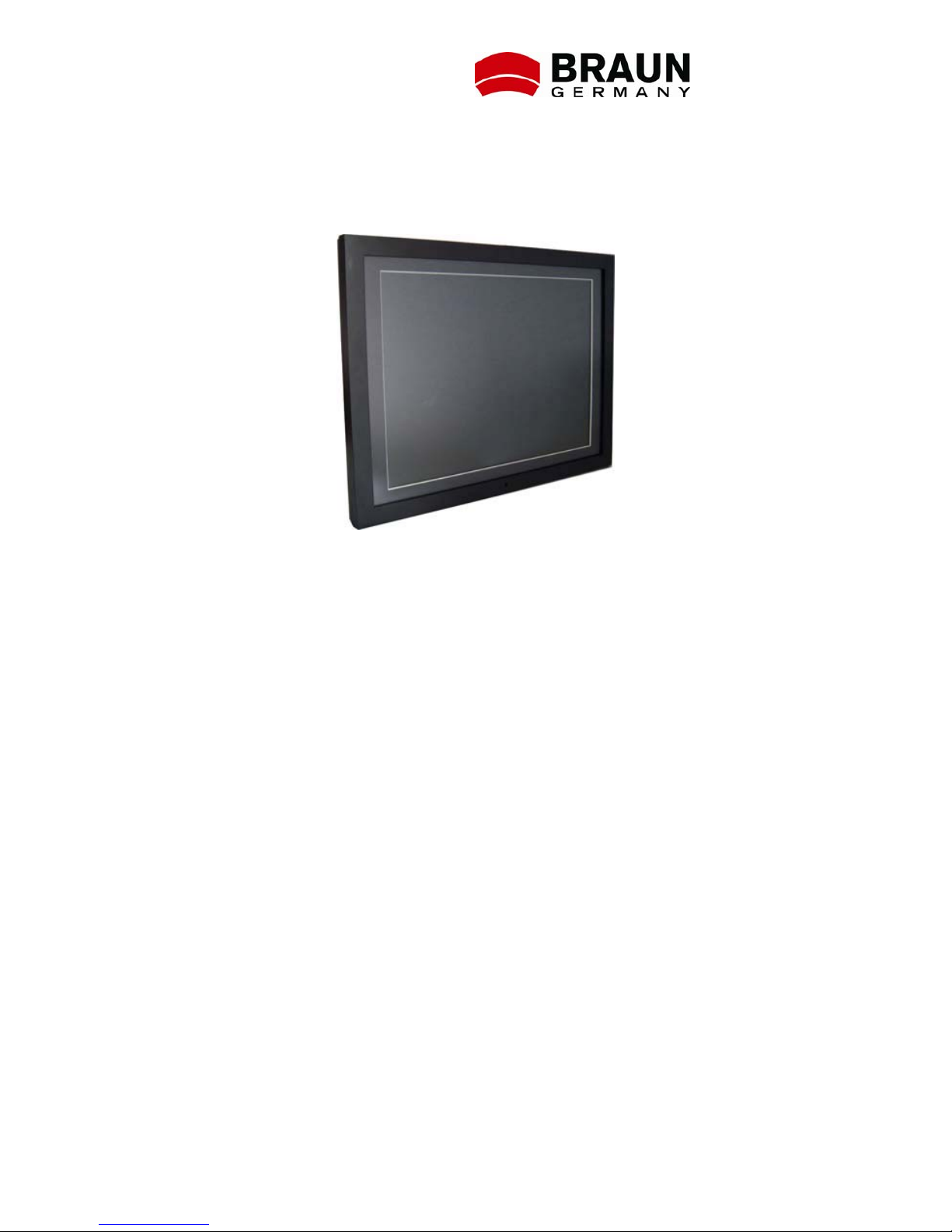

Braun DigiFrame 1550 Manuel utilisateur

15” digital photo frame

DigiFrame 1550

Operating Instructions

DigiFrame 1550 Operating Instructions 2

Contents

1 Product Introduction....................................................................3

2 Package Contents.......................................................................3

3 Features......................................................................................3

4 Specifications..............................................................................4

5 Controls and Slots.......................................................................6

6 Photo Frame Side Buttons..........................................................7

7 Setting up the DigiFrame 1550...................................................8

8 Remote Control...........................................................................9

9 Downloading Files from Computer to Memory Card ................10

10 Playing a Slideshow with Music..............................................10

11 File names ..............................................................................11

12 Folders in Your Memory Cards...............................................11

13 Displaying Photos...................................................................11

14 Recommended Memory Card Size.........................................12

15 Supported File Formats ..........................................................12

16 USB Host Function .................................................................12

17 Replacing Remote Control Battery.........................................13

18 Built-in Memory.......................................................................14

19 Adjusting the Display Screen..................................................18

For further information on the BRAUN PHOTO TECHNIK GmbH

range, please refer to www.braun-phototechnik.de.

Thank you for purchasing our DigiFrame 1550. Please read

these operating instructions carefully before using the unit and

retain them for future reference.

DigiFrame 1550 Operating Instructions 3

1 Product Introduction

As a tool for media display, DigiFrame 1550 cannot only be used

in offices and private homes, but also in department stores,

schools, banks, conference centres, museums or libraries for

commercial purposes.

2 Package Contents

Before using the DigiFrame 1550, be sure to check that the

package contains all accessories. This frame comes with the

following items:

1 x digital photo frame

1 x AC adapter/ power cord

1 x remote control

1 x operating instructions

1 x stand

3 Features

15” LCD panel XGA resolution, wide view and angle, and rich

color. Real HD display. Resolution 1024 x 768 pixel.

Photo display in slideshow or still pictures.

Different slideshow modes and slideshow intervals available for

selection.

No computer or software needed to view photos or play video

and music files.

Easy to use. Just insert memory card into the card slot of the

frame to view photos, play video files and listen to MP3 music.

Built-in 256 MB memory for you to store files in the frame.

Photos can be displayed while MP3 music is playing in the

background.

Frame can be set up on a table or mounted to a wall.

Frame comes with built-in stereo speakers.

Frame can be used in portrait or landscape format.

Frame comes with remote control to display and manage files.

Supports JPEG, MP3, MPEG1/2/4 file format.

DigiFrame 1550 Operating Instructions 4

USB host function (supports USB flash card).

Supports memory cards of the following formats:

CF (Compact Flash)

MD (Micro Drive)

MS (Memory Stick)

SD (Secure Digital)

MMC (Multi Media Card)

SM (Smart Media)

XD (XD Picture Card)

4 Specifications

Dimensions 380 mm x 295 mm x 50 mm

Display area 304 mm x 228 mm, 15’’ diagonally

Resolution 1024 x 768 pixel

Colors 16.7 M

Contrast angle 450:1

Viewing angle 65/65 (l/r), 60/50 (u/d)

Input voltage 100-240 V AC (50-60 Hz)

Low energy

mode VESA DPMS

Operating

temperature 0-50 °C

Net weight 2100 g

Media MPEG1/2/4, JPG/JPEG

Built-in memory 256 MB

Card CF/MS/SD/MMC/SM/XD/MD, USB host

Auto start mode

Auto slideshow with JPEG format.

DigiFrame 1550 Operating Instructions 5

Photo functions

1. Rotating, zooming, repeating

2. Auto slideshow

3. Slideshow with background MP3 music

4. Displaying file name, size, resolution, date

5. Interval time setup

6. Transition setup

7. Play/Stop/Pause

Music functions

1. Play/Stop/Pause

2. Volume control

3. Mute function

4. Repeat

5. Displaying file type, total time, date

Video functions

1. Play/Stop/Pause

2. Volume control

3. Mute function

4. Zooming

5. Displaying file information, time, date

Accessories

1. Remote control

2. AC adapter

3. Operating instructions

4. Stand

DigiFrame 1550 Operating Instructions 6

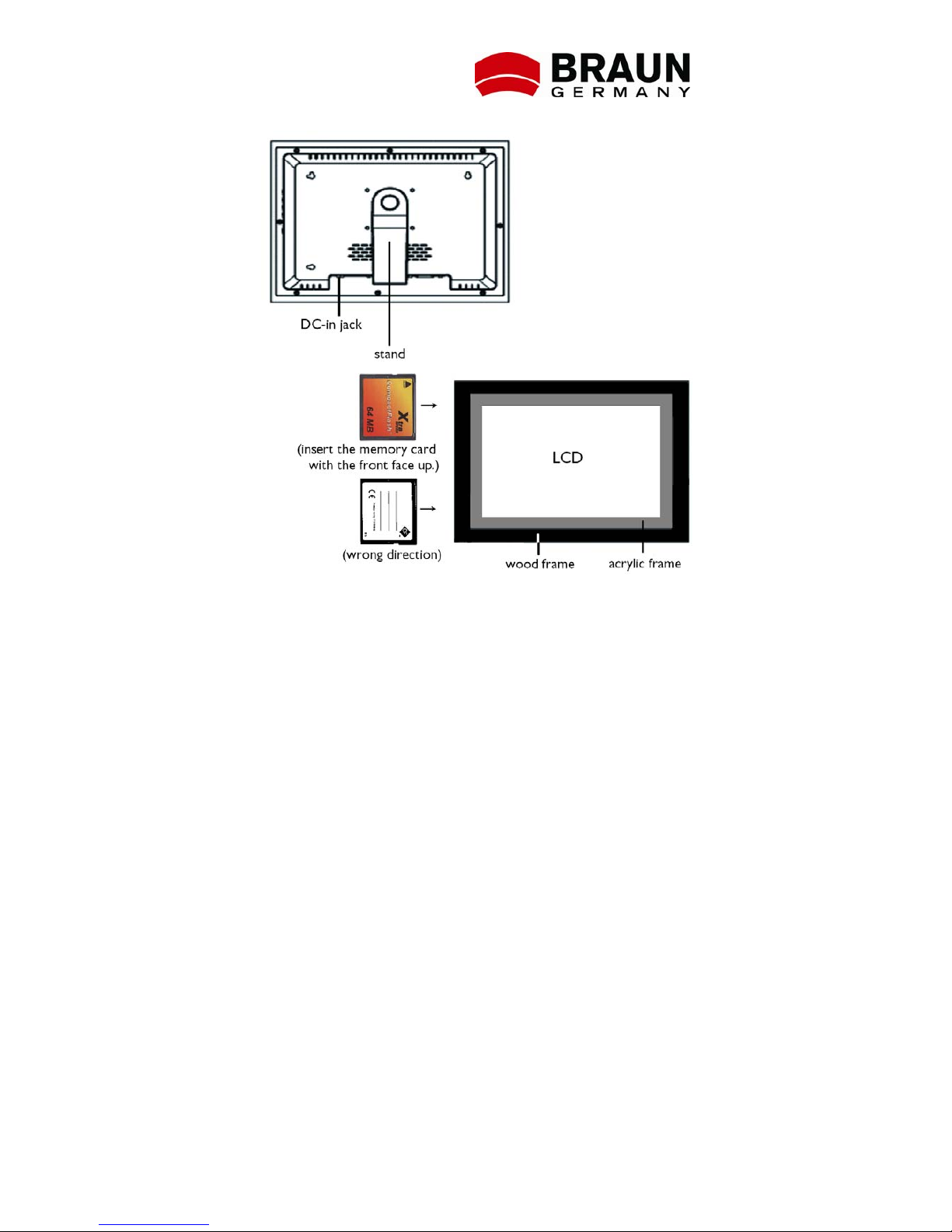

5 Controls and Slots

DigiFrame 1550 Operating Instructions 7

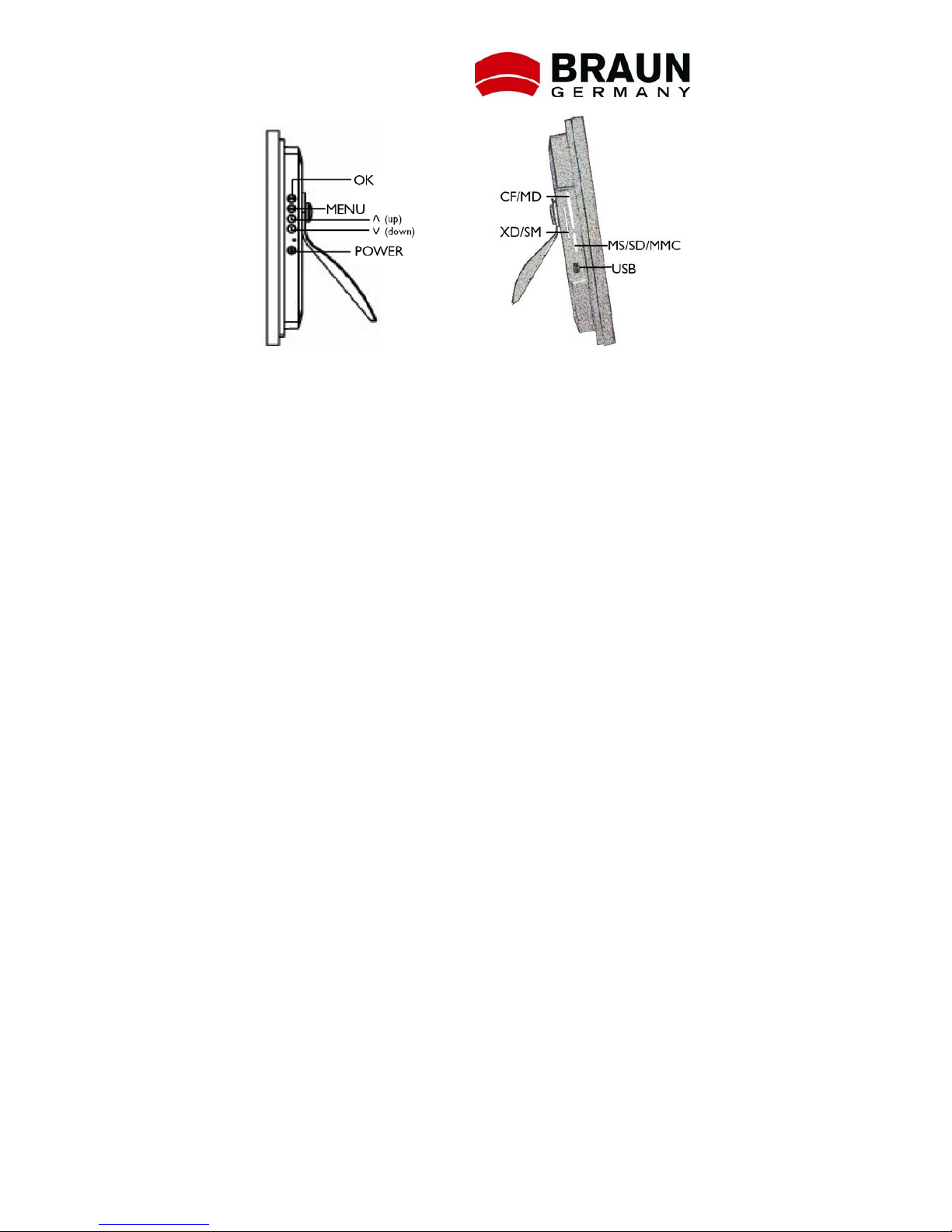

6 Photo Frame Side Buttons

OK: Confirm selection.

MENU: Show screen menu/select menu option after using up

or down arrow button.

CONTRAST: Use arrow to change contrast.

BRIGHTNESS: Use arrow to change brightness.

IMAGE SETTING: Define image setting.

COLOR SETTING: Define color setting.

OSD SETTING: Set language, define OSD position.

RESET: Reset frame to stored basic settings.

Arrows: Move up and down.

Power: Power on/off.

DigiFrame 1550 Operating Instructions 8

7 Setting up the DigiFrame 1550

Mount the stand to the frame.

Insert a memory card (you can also insert a memory card after

switching on).

Connect the frame to a power source.

To switch on the frame, press the On/Off button on the right

side of the frame.

When a memory card is inserted, the frame will start in

slideshow mode (unless files are stored in a folder).

DigiFrame 1550 Operating Instructions 9

8 Remote Control

Button Description

POWER Turn the frame on or off

SETUP Open menu for changing settings

DISPLAY Display file information of selected

file

CARD

SELECTION Choose the desired memory card

MUSIC Go to and display music files

PHOTO Go to and display photo files

MOVIE Go to and display movie files

FILE Display library (all files and folders)

ROTATE Rotate photo 90 degrees clockwise

on screen

ZOOM Zoom x 4 (photos only)

REPEAT Play file repeatedly until stopped

SLIDESHOW Start/stop photo slideshow

REW Rewind movies

FF Forward movies

PREV Go to previous file

NEXT Go to next file

+ (VOLUME) Raise volume

— (VOLUME) Lower volume

MUTE Mute volume

EFFECT Set slideshow effects

Move up when selecting on screen

SLIDE INTERVAL Set slideshow delay: 1, 3, 5,

10 sec

Move left when selecting on screen

PLAY/PAUSE Confirm selection on screen

Move right when selecting on

screen

Move down when selecting on

screen

STOP Cancel the selected file action

DigiFrame 1550 Operating Instructions 10

9 Downloading Files from Computer to Memory Card

The DigiFrame 1550 requires you to insert a memory card with

photo, music or video files on it. You can store photo, movie and

music files on the same card.

1. Download the files from your digital camera or memory card

to your computer.

If you download pictures directly from your digital camera

to your computer, connect the camera to the computer via

a USB port.

If you download the files from a memory card, insert the

memory card into a card reader which is connected to the

computer via a USB port. (On computers with a built-in

card reader, an external card reader is not required.)

2. When the files you want to view or listen to are downloaded

onto your computer, select the files of your choice to be

transferred to an empty memory card for the frame.

3. Insert an empty memory card into the card reader.

4. Copy all files of your choice to this memory card.

5. After copying, remove the memory card from the card reader

and insert it into the proper slot on the frame.

6. Now you can view photos in slideshow, listen to music, or

view videos using the remote control.

10 Playing a Slideshow with Music

First press the MUSIC button on the remote control to enter the

music database. Use the arrow buttons to select the desired

music file.

While the music is playing, press the SLIDESHOW button.

The frame now plays the slideshow while playing the MP3 file as

background music.
