Brainwavz 3M VHB Instructions de montage
FITTING GUIDE
LAPTOP & DEVICE MOUNTS
Installation Guide help@yourbrainwavz.com
In case of any problems please contact us by email:
3M™ VHB™ Tape Mounting Guide - use for smaller and lighter devices only - max weight 1.5 kg
For illustration only - your hanger may differ from one shown
1 2 3 4 5 6 7 8 9
Place the brackets and your device on a flat surface and
measure the total width (A). Now mark these measurements
on your prepared surface. (B)
Peel off the red backing paper (A) and carefully press the
two side brackets firmly into place.
Stick protective foam pads into the cut-out sections on the
hanger (A) Stick the third bracket in place to act as a back-
stop, and protect your device from sliding too far back (B).
BB
B
A
A
A
To ensure a more secure bond has been achieved, do not
use your new hanger for at least 24 hours after installation
or the hanger may fall down.
Bond strength at 20
Bond strength at 20
minutes is 50%, 24 hours is 90% and 72 hours is 100%
minutes is 50%, 24 hours is 90% and 72 hours is 100%.
Screws are highly recommended when mounting laptops and other heavy or fragile items.
When mounting onto hollow/cavity furniture we recommend using 3M™ VHB™ tape
and screws for extra security.
Before screwing the brackets into place ensure your chosen surface is solid and a
minimum of 17 mm thick.
Take care when removing 3M™ VHB™ tape from any surface as it may cause
damage.
Always use the screw caps provided - DO NOT over-tighten screws.
Safety Guidelines
LAPTOP
Screws Mounting Guide - Use this method for laptops and heavier items
For illustration only - your hanger may differ from one shown

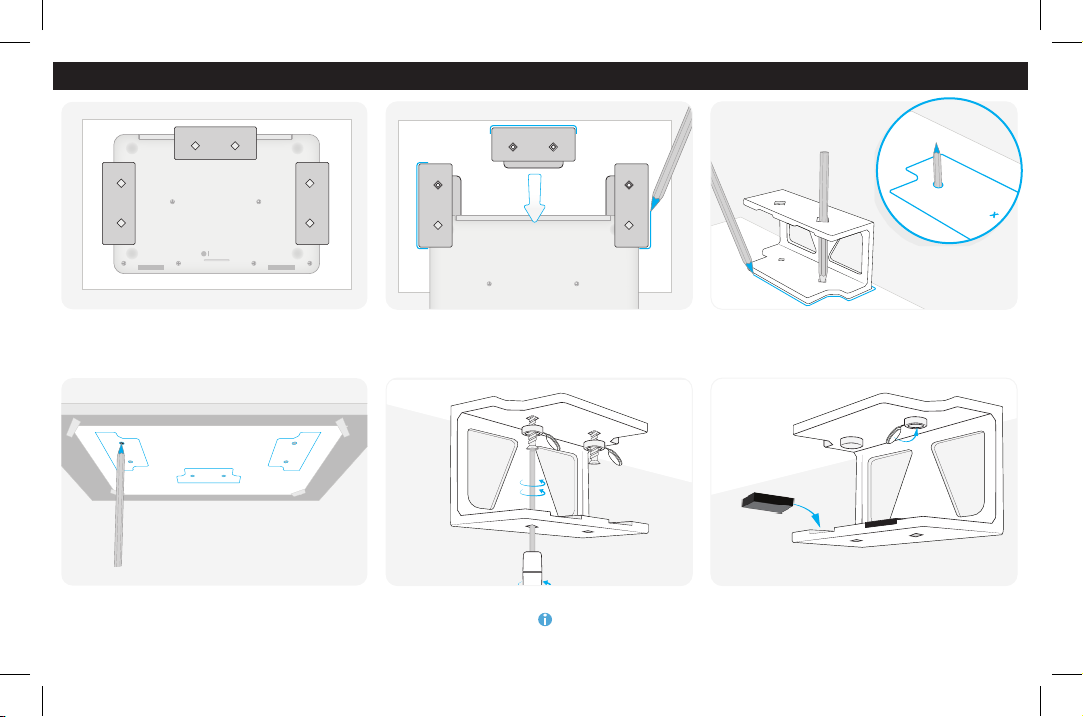

Create a mounting template by arranging the three hanger
sections (A) upside down on a large piece of paper (B),
along with your chosen device (C).
Stick the paper onto the underside of the desk /shelf (A)
and use the pencil to mark the locations of the 6 screw
holes onto the surface (B).
With a pencil draw initial lines around each of the hanger
sections, then remove the laptop / device
Screw each section into place, make sure to include the
decorative screws caps (A). For an extra strong fit, use
both screws and 3M™ VHB™ tape.
Draw around the rest of each hanger, and mark all screw
holes (A). With the sharp pencil poke holes in the paper
where you marked the location of the 6 screws (B).
Close the screw caps (A) and stick protective foam pads
into the cut-out sections on the hanger (B), hanger is now
ready for use.
34865262111A
B
B
A
B
C
A
A
A
A
A
B
A
