Brady BBP11-34L Manuel utilisateur

Thermal Transfer Printer

User Guide

BBP11-34L

Ed 08/09

BPP11 User Manual

Contents

Introduction

Product Introduction ............................................................................................... 1

Compliance ............................................................................................................ 1

Operations Overview

Unpacking and Inspection...................................................................................... 2

Printer Overview..................................................................................................... 3

Setup

Setting Up the Printer............................................................................................. 6

Open / Close the Top Cover................................................................................... 7

Loading the Ribbon ................................................................................................ 8

Loading the Media................................................................................................ 11

Diagnostic Tool..................................................................................................... 18

Install SD Memory Card ....................................................................................... 20

LED and Button Functions

LED Indicator ....................................................................................................... 21

Regular Button Function....................................................................................... 21

Power on Utilities.................................................................................................. 22

Troubleshooting........................................................................................... 27

Maintenance ................................................................................................. 29

BPP11 User Manual

iii

reproduced by any means without the prior consent of Brady Worldwide, Inc.

While every precaution has been taken in preparation of this document, Brady assumes no liability to

any party for any loss or damage caused by errors or omissions or by statements resulting from

negligence, accident, or any other cause. Brady further assumes no liability arising out of the

application or use of any product or system described, herein; nor any liability for incidental or

consequential damages arising from the use of this document. Brady disclaims all warranties of

merchantability or fitness for a particular purpose.

Brady reserves the right to make changes without further notice to any product or system herein to

improve reliability, function, or design.

Reproduction of this material, in part or whole, is strictly prohibited without the written permission of

Brady Worldwide, Inc.. For more information, contact: Brady Worldwide, Inc. Signmark® Division,

2221 W. Camden Road, Milwaukee, WI 53209.

Disclaimer

Every effort has been made to make this guide as accurate and complete as possible. Brady

Worldwide, Inc. is not responsible for inaccuracies and omissions occurring during the use of this

guide.

This manual is proprietary to Brady Worldwide, Inc. and may be revised from time to time without

notice. Brady Worldwide, Inc. disclaims any understanding to provide you with revisions, if any.

All brand or product names referenced in this manual are trademarks or registered trademarks of their

respective companies or organizations.

www.bradycorp.com

Edition 08/09

Identification Solutions Division

PO Box 2131

Milwaukee, WI 53201 U.S.A.

Phone: 1-800-537-8791 Fax: 1-800-292-2289

BPP11 User Manual

Revision History

Date Content

2008/8/6 Revise the 3.4.3 section(Loading media in peel-off mode)

2009/08 Revise to include new Brady Standard.

BPP11 User Manual

CHAPTER 1 Introduction

Product Introduction

Thank you for purchasing the BRADY BBP11-34L series bar code printer. Although the

printer is small, it delivers reliable, superior performance.

This printer provides both thermal transfer and direct thermal printing at user-selectable

speeds of 2.0 or 3.0 ips. It accepts roll feed, die-cut, and fan-fold labels for both thermal

transfer and direct thermal printing. All common bar codes formats are available. Fonts and

bar codes can be printed in 4 directions, 8 different alphanumeric bitmap fonts and built-in

true type font capability. You will enjoy high throughput for printing labels with this printer.

Compliance

CE Class B:

EN55022: 1998+A1: 2000+A2: 2003

EN55024: 1998+A1: 2001+A2: 2003 IEC 61000-4 Series

EN61000-3-2: 2006 & EN61000-3-3: 1995+A1: 2001

FCC Part 15, Class B

UL, CUL

C-Tick:

CFR 47, Part 15/CISPR 22 3

Edition: 1997, Class B

ANSI C63.4: 2003

Canadian ICES-003

TÜV-GS: EN60950: 2000

Note: Continuous printing will cause printer motor overheat. Printer will stop

printing automatically about 10~15 minutes until motor is cooled down. Do not turn

off power when printer pauses or the data transfered to printer buffer will be lost.

Note: The maximum printing ratio per dot line is 15% for this printer. To print the

full web black line, the maximum black line height is limited to 40 dots, which is

3.3 mm for 300 dpi resolution printer.

BPP11 User Manual

CHAPTER 2 Operations Overview

Unpacking and Inspection

This printer has been specially packaged to withstand damage during shipping. Please

carefully inspect the packaging and printer upon receiving the bar code printer. Retain the

packaging materials in case you need to reship the printer.

Unpacking the Printer

The following items are included in the carton:

• (1) Printer unit

• (1) Product CD, including drivers

• (1) Quick installation guide

• (1) Power cord

• (1) Auto switching power supply

• (1) USB interface cable

If any parts are missing, please contact customer Service.

BPP11 User Manual

Printer Overview

Front View

1 Ribbon access cover

2 Top cover open lever

3 Media view window

4 LED indicator

5 Feed button

6 SD card socket

* Recommended SD card specification.

SD V 1.0, V 1.1 SD V 2.0 (SDHC)

9128MB

9256MB

9512MB

91GB

94GB class 6

- Supported DOS FAT file system.

- Folders stored on the SD card should be in the 8.3 filename format.

- Approved SD card manufacturer: SanDisk, Transcend.

BPP11 User Manual

Interior View

1 Ribbon rewind hub

2 Ribbon rewind gear

3 Gap sensor (receiver)

4 Media holder

5 Media holder lock switch

6 Gap sensor (transmitter)

7 Printhead

8 Ribbon supply hub

9 Top cover support

10 Media guide adjustment knob

11 Black mark sensor

12 Platen roller

BPP11 User Manual

Rear View

1 Ethernet interface

2 USB interface

3 Parallel/LPT interface

4 Serial/COM interface

5 Power jack socket

6 Power switch

7 Fan-fold paper entrance chute

BPP11 User Manual

CHAPTER 3 Setup

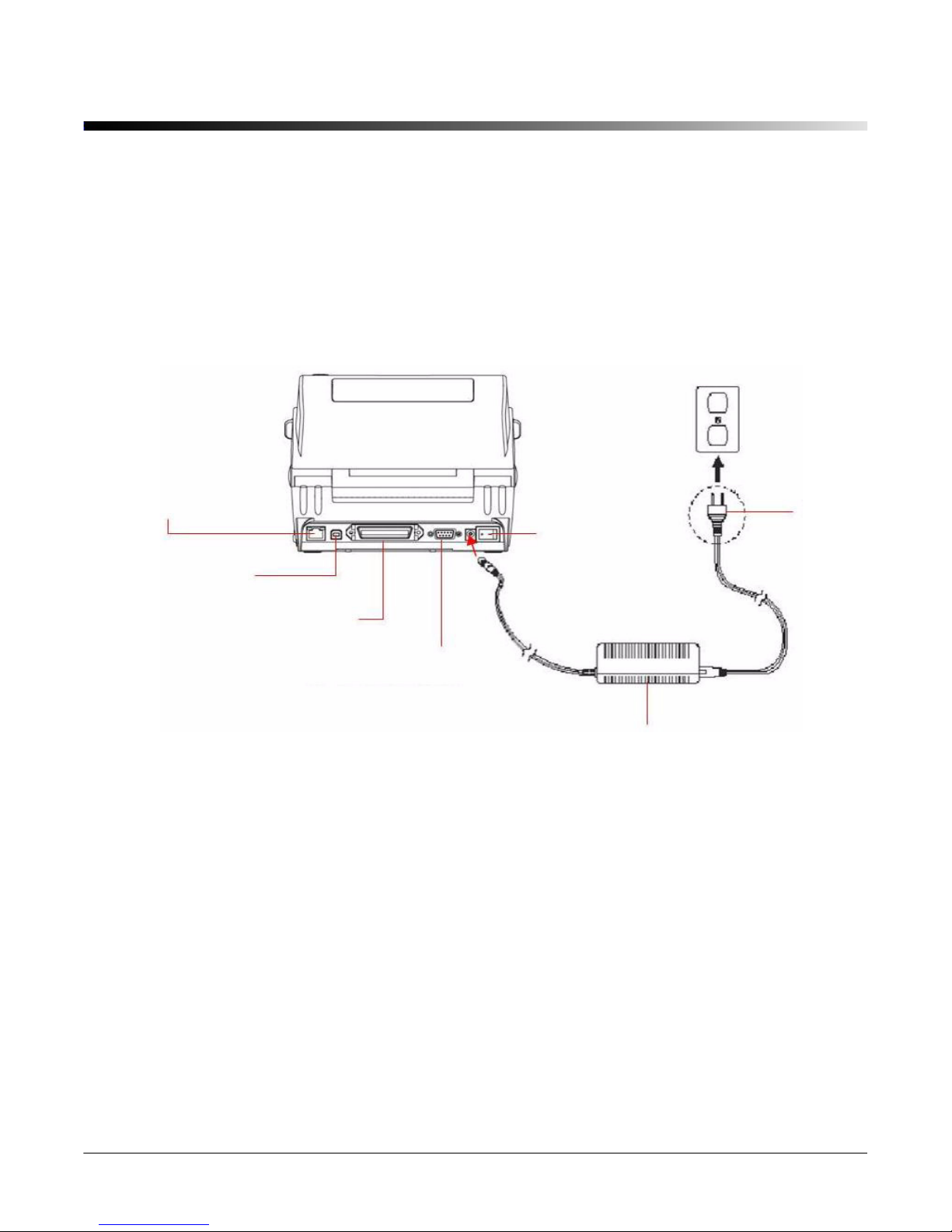

Setting Up the Printer

1. Place the printer on a flat, secure surface.

2. Make sure the power switch is off.

3. Connect the printer to the computer with the provided USB cable.

4. Plug the power cord into the AC power cord socket at the rear of the printer, and then plug

the power cord into a properly grounded power outlet.

Ethernet RJ-45

Interface

USB Interface

Parallel/LPT Interface

Serial/COM Interface

Power Supply

Plug
