Installation and Operation

Instructions for

Wall-Mounted Modulating Boiler

Model BLXH

50, 75, 100, 125, 150, 175 & 220 MBH

Combination

Boiler and Water Heater

Model BLXC 125, 150 and 175 MBH

BRADFORD WHITE CORP

TABLE OF CONTENTS

SECTION 1.

General Information

1.1 Introduction ........................................................ 1

1.2 To Open the Brute LX ......................................... 1

1.3 Rating Plate ........................................................ 1

1.4 Model Nomenclature........................................... 1

1.5 Brute LX Overview .............................................. 2

1.6 Start Up / Shut Down Instruction (Decal) ............ 3

1.7 Dimensions for all Sizes ..................................... 4

1.8 Unpacking ........................................................... 6

1.9 Condensate Trap ................................................ 6

1.10 Pressure Relief Valve (PRV) ............................... 6

1.11 Warranty ............................................................. 6

SECTION 2.

Locating the Appliance

2.1 Locating the Appliance........................................ 7

2.2 Correct Vent Distance

from Outside Wall or Roof Termination ............... 7

2.1 Wall Mount Hole Locations ................................. 8

SECTION 3.

Venting and Combustion Air

3.1 General Venting ................................................ 10

3.2 Combustion Air ................................................. 10

3.2.1 Combustion Air from Room............................... 10

3.2.2 Ducted Combustion Air ..................................... 11

3.3 Venting (Exhaust) ............................................. 11

3.3.1 About Common Venting .................................... 13

3.4 Locating Vent & Combustion Vent Terminals .... 14

3.4.1 Side Wall Vent Terminal .................................... 14

3.4.2 Side Wall Combustion Air Terminal ................... 14

3.4.3 Vertical Vent Terminal ....................................... 16

3.4.4 Vertical Combustion Air Terminal ...................... 16

3.4.5 Installations in the Commonwealth

of Massachusetts .............................................. 16

3.5 Common Vent Test ........................................... 17

SECTION 4.

Gas Supply and Piping

4.1 Gas Supply and Piping .......................................... 18

SECTION 5.

Pump Capacity

5.1 Brute LX Heating System Pump Capacity ............. 19

SECTION 6.

Water Connections

6.1 Central Heat System Piping.............................. 20

6.2 Cold Water Make-Up ........................................ 20

6.3 Freeze Protection ............................................. 20

6.4 Recognized Chemicals ..................................... 21

6.5 Domestic Hot Water Piping (DHW and BLXC) . 21

6.6 Indirect Water Heater Piping ............................. 21

6.7 Condensate Trap Installations .......................... 21

6.8 Piping Schematics ....................................... 23-28

SECTION 7.

Electrical Connections

7.1 Main Power ....................................................... 29

7.2 Pump Connections ........................................... 29

7.3 24Vac Transformer Circuit Breaker ................... 29

7.4 Central Heat - Call for Heat .............................. 29

7.5 Outdoor Air Temperature Sensor ...................... 29

7.6 Domestic Hot Water Connection ...................... 29

7.7 System Sensor

(lead lag/cascading operation only) .................. 29

7.8 External Control Connections ........................... 29

7.9 Analog Output (0-10 VDC)................................ 29

7.10 Ladder Diagram, Connections, and

Wiring Diagrams .......................................... 30-32

Brute LX

SECTION 8.

CONTROL Setup and Operation

8.1 Digital Display ................................................... 33

8.2 CONTROLLER Modes .................................... 34

8.3 User Mode ........................................................ 35

8.4 Installer Mode ................................................... 36

8.5 Service Mode .................................................... 37

8.6 Modulation Control............................................ 37

8.7 Pump Control .................................................... 37

8.8 High Limit .......................................................... 38

8.9 Stack Temperature ............................................ 38

8.10 Domestic Hot Water Temperature..................... 38

SECTION 9.

OPERATION Modes

9.1 Hydronic Heating Demand................................ 38

9.2 Hydronic Heating with Outdoor Reset .............. 38

9.3 Hydronic Heating Using External

Modulation Control............................................ 38

9.4 Warm Weather Shutdown ................................. 39

9.5 Domestic Hot Water Demand (BLXC only) ....... 39

9.6 Domestic Hot Water Priority (BLXC only) ......... 39

9.7 Cascade Auto Conguration ............................. 40

SECTION 10.

Set Up Instructions

10.1 Filling the Boiler System ................................... 41

10.2 Starting the Burner after Set Up ....................... 41

10.2.1 Burner Operation ............................................ 41

10.2.2 Boiler Setup and Adjustment .......................... 42

10.3 Shutting Down the Brute LX ............................. 42

10.4 To Restart the Brute LX .................................... 42

SECTION 11.

Maintenance

11.1 System Maintenance ....................................... 44

11.2 Appliance Maintenance and Component

Description ........................................................ 44

11.2.1 Burner ............................................................... 44

11.2.2 Appliance Control ............................................. 44

11.2.3 Ignitor Assembly ............................................... 45

11.2.4 Flame Sensor ................................................... 45

11.2.5 Blower ............................................................... 45

11.2.6 Heat Exchanger Coils ....................................... 45

11.2.7 Gas Conversion ................................................ 46

SECTION 12.

Troubleshooting

12.1 Sequence of Operation .................................... 47

12.2 Short Cycling .................................................... 47

12.3 Error Codes ...................................................... 48

SECTION 13.

Replacement Parts

13.1 Exploded Parts Illustrations ............................. 50

BRADFORD WHITE CORP

THE

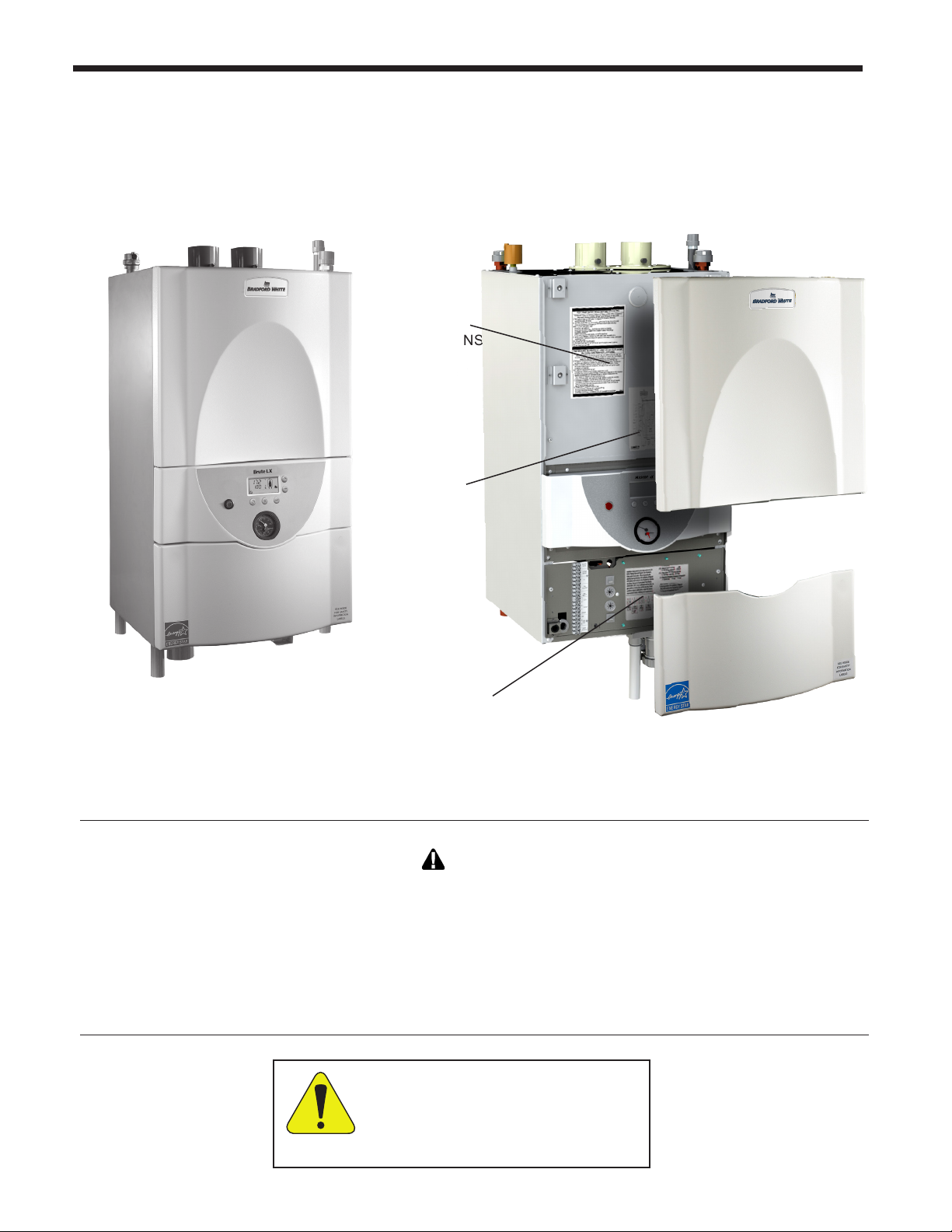

Figure 1. Opening the Brute LX.

The top and bottom panels come o󰀨 when

pulled forward. This is true for all sizes.

START-UP

INSTRUCTIONS

SECTION 1.

General Information

WARNING

The Brute LX must be installed in accordance with the procedures detailed in this manual, or the Bradford White

warranty will be voided. The installation must conform to the requirements of the local jurisdiction having authority,

and, in the United States, to the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA54. In Canada, the

installation must conform to the latest edition of CSA B149.1 Natural Gas and Propane Gas Installation Code, and/

or local codes. Where required by the authority having jurisdiction, the installation of Brute LX boilers must conform to

the Standard for Controls and Safety Devices for Automatically Fired Boilers, ANSI/ASME CSD-1. Any modications

to the boiler, its gas controls, or wiring may void the warranty. If eld conditions require modications, consult the

factory representative before initiating such modications.

WIRING

DIAGRAM

RATING PLATE

WARNING:

As required by the State of California Proposition 65.

www.P65Warnings.ca.gov.

Cancer and Reproductive Harm

Brute LX

Page 1

Brute LX

Figure 1. Opening the 100, 125, 150, 175, and 220

Figure 2. Model Nomenclature

1.1 Introduction

This manual provides information necessary for the

installation, operation, and maintenance of Bradford

White Corp Brute LX appliances. Read it carefully

before installation. All application and installation

procedures should be reviewed completely before

proceeding with the installation. Consult the Bradford

White Corp factory, or local factory representative, with

any problems or questions regarding this equipment.

Experience has shown that most operating problems are

caused by improper installation.

All installations must be made in accordance with

1) American National Standard Z223.1/NFPA54-Latest

1.3 Rating Plate

The Rating Plate is located on the metal pan behind

the lower plastic panel. Figure 1. It contains Model

Nomenclature, Manufacture Date, Model Number,

Serial Number, Output Rating, and all other information

pertaining to your Brute LX. .

1.2 To Open the Brute LX

To open the Brute LX for maintenance and servicing,

the upper and lower plastic panels are designed to 'pop'

o when they are pulled forward. See Figure 1 and

Figure 3. This will expose the top metal panel which

covers the heat exchanger, and the lower panel which

holds the low voltage connections and covers the pump

and other lower components.

To remove these panels for further access into the

Brute LX, there are two screws that hold each panel in

place. Remove the 2 screws on the upper panel and slide

the upper metal panel up and out. For the lower panel,

remove the 2 screws and hinge the lower metal panel

downward.

The center panel containing the On/O Switch, Gauges,

and User Interface is not removable.

Edition “National Fuel Gas Code” or

2) CSA B149.1 “Natural Gas and Propane Installation

Code” and with the requirement of the local utility or

other authorities having jurisdiction. Such applicable

requirements take precedence over the general

instructions contained herein.

All electrical wiring is to be done in accordance with

the local codes, or in the absence of local codes, with: 1)

The National Electrical Code ANSI/NFPA No. 70-latest

Edition, or 2) CSA STD. C22.1 “Canadian Electrical

Code - Part 1”. This appliance must be electrically

grounded in accordance with these codes.

Nomenclature

(1) Label

B = Brute

(2-3) Series Designation

LX = LX Series Heat Exchanger

(4) Usage

H = Modulating Boiler

C = Combination Boiler and Water Heater

(5) Conguration

W = Wall Hung

(6-8) Size

50 = 50,000 BTU/hr input

75 = 75,000 BTU/hr input

100 = 100,000 BTU/hr input

125 = 125,000 BTU/hr input

150 = 150,000 BTU/hr input

175 = 175,000 BTU/hr input

220 = 220,000 BTU/hr input

(9) Fuel

N = Natural Gas

P = LP Gas (propane)

(10) Altitude

A = Up to10,000 Feet: de-rate applies*

(11) Revision

1 = First version

(12) Options Code

X = Standard

  L=Lowwatercuto󰀨

(13) Pump Options

N = With Pump

1.4 Model Nomenclature

The Model Nomenclature is shown on your Rating Plate

and consists of a series of letters and numbers

( Nomenclature ) that further identies the

characteristics of your Brute LX. See Figure 2.

2 3 4 5 6 7 8 9 10 11 12 13

L X A X N

SERIES

LX - SERIES

HEAT

EXCHANGER

LABEL

BRUTE

USAGE

H - HYDRONIC

C - COMBI

UNIT

SIZES

MBTU/h

100

125

150

175

220

FUEL

N - NATURAL

P - PROPANE

CONFIG

W -WALL

ALTITUDE

A - 0-10,000 FEET

REVISION

1 - FIRST

OPTIONS

X -

STANDARD

L - LWCO

PUMP OPTIONS

N - WITH PUMP

*For high altitude applications, boiler must be

de-rated 4% per 1000 feet above 2000 feet.

Page 2

BRADFORD WHITE CORP

Figure 3. Location of Components

1.5 Brute LX, Overview

CENTRAL HEAT

IN CONNECTION

(RETURN WATER)

CENTRAL HEAT

IN CONNECTION

(RETURN WATER)

CENTRAL HEAT OUT

CONNECTION

(SUPPLY WATER)

CENTRAL HEAT OUT

CONNECTION

(SUPPLY WATER)

SHOWN WITH THE FRONT PANELS OFF,

AND A SIDE PANEL MISSING FOR VISUAL

PURPOSES.

COMBUSTION INLET

HEAT EXCHANGER

ASME TAG

AUTOMATIC

AIR VENT

LOW WATER CUT OFF

(OPTIONAL)

EXHAUST

SERVICE HATCH

GAS SUPPLY

HEAT EXCHANGER

WATER PRESSURE

SWITCH

USER

INTERFACE

TEMPERATURE /

PRESSURE GAUGE

GAS VALVE

PUMP

HIGH VOLTAGE

FIELD CONNECTION

TERMINALS

LOW VOLTAGE

FIELD CONNECTION

TERMINALS

FOLDS DOWN

TO OPEN

BLOCKED VENT

PRESSURE SWITCH

COMBUSTION

AIR FAN

( BLOWER )

ON / OFF

SWITCH

2 SCREWS

LIFT

DHW

HOT OUT

GAS SUPPLY

DHW

COLD IN

DHW FLAT PLATE

HEAT EXCHANGER

(COMBINATION BOILERS ONLY)

BOTTOM

VIEW

3-WAY VALVE

CONDENSATE

TRAP

FLOW SWITCH

(COMBI MODELS)

SERVICE

DOOR

Page 3

Brute LX

Figure 4. Start Up / Shut Down Instructions (Decal)

(3).Turn manual gas cock "off"

H23377-

qualified service technician to inspect the appliance and to replace any gas control which

C. Do not use this appliance if any part has been under water. Immediately call a

D. TO TURN OFF GAS TO APPLIANCE

(1) SET SELECTOR SWITCH TO "OFF"(0) (2) Turn off all electric power to appliance

incendie ou une explosion pourrait se produire et causer des dommages

materiels, des blessures personnelles ou meme la mort..

PAR MESURE DE PRUDECE, LISEZ CE QUI SUIT AVANT

DE FAIRE FONCTIONNER L'APPAREIL

FOR YOUR SAFETY READ BEFORE OPERATING

may result causing property damage, personal injury or loss of life.

"WARNING: If you do not follow these instuctions exectly, a fire or explosion

"MISE EN GARDE: Si vous ne suivez pas ces instructions a la lttre, un

A. This appliance does not have a pilot. It is equipped with an ignition device that

automatically lights the burner.

B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell

next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

· Do not try to light appliance.

· Do not touch any electric switch: do not use any phone in your building

· Immediately call your gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

· If you cannot reach your gas supplier, call the fire department.

has been under water

A. Cet appareil n'est pas doté d'une veilleuse. Il est équipe d'un dispositif d'allumage

qui allume automatiquement le brûleur. Ne tentez pas d'allumer le brûleur manuellement.

B. AVANT D'UTILISER, vérifiez s'il n'ya pas d'odeur de gaz prés de l'appareil. Vérifiez

s'il n'ya pas d'odeur de gaz prés du plancher, car le gaz est plus lourd que l'air et peut

se déposer sur le plancher.

QUE FAIRE EN CAS D'ODEUR DE GAZ

• N'essayez pas d'allumer n'importe quelque appareil que ce soit.

• Ne touchez pas a un commutateur electrique. N'utilisez pas le téléphone de votre résidence.

• Appelez immédiatement votre fournisseur de gaz en utilisant le téléphone de votre

voisin. Suivez les instructions de votre fournisseur de gaz.

• Si vous ne pouvez joindre votre fournisseur de gaz, appelez le service des incendies.

C. N'utilisez pas cet appareil si l'une des pièces a été plongée sous l'eau.

Communiquez immédiatement avec un technicien de service qualifie afin qu'il inspecte

l'appareil et remplace toute pièce du système de commande et toute commande de

gaz qui aurait été plongée sous l'eau.

D. FERMETURE DE L'ALIMENTATION EN GAZ

(1) Poussez le bouton a bascule vers La position OFF (0).

(2) Coupez l'alimentation électrique â l'affairée.

(3) fermez le robinet de gaz manuellement vers OFF (la poignée est horizontale

1.6 Start Up / Shut Down Instructions

(Decal)

The Start Up / Shut Down Instruction (Decal) can be found

on the metal panel behind the Top Panel. See Figure 1.

This Decal is also referred to as the Operating Instructions

Label and/or Warning Label.

Page 4

BRADFORD WHITE CORP

1.7 Dimensions, Brute LX

17"

TOP

GAS

HYDRONIC

OUTLET

HYDRONIC

OUTLET

ELIMINATION

AIR

VENT

INLET

BURNER

SERVICE

DOOR

SERVICE

DOOR

EXHAUST

VENT

HYDRONIC

INLET

HYDRONIC

INLET

CONDENSATE

TRAP

MASCOT LX BOILER

MODELS, PIPING

INSTALL LOCATION

DIM A

HYDRONIC

OUT

DIM B

HYDRONIC

OUT

DIM C

HYDRONIC

DIM D

HYDRONIC

DIM E

GAS

DIM F

GAS

DIM G

CONDENSATE

OUTLET

DIM H

CONDENSATE

OUTLET

DIM J

DHW OUT

DIM K

DHW OUT

DIM J

DHW IN

DIM L

DHW IN

DIM M

CABINENT

HEIGHT

DIM N

CABINENT

DEPTH

75,000 BTU 1" (3)15-3/4" (40)3-3/4" (9) 9-1/4" (24)8" (20)1-1/2"

(4)5-3/4" (14)15-1/2" (39) -- -- -- -- 30-1/2" (78)15-1/4"

(39)

125,000 BTU 1" (3)15-1/2" (39)1-1/4" (3)12-3/4"

(33)11" (28)1-1/4"

(3)9-1/2" (24) 14-3/4" (37) 2-3/4" (7) 12-3/4"

(33)

2-3/4"

(7)2" (5) 30-1/2" (78) 18" (46)

175,000 BTU 1-1/2" (4)15-1/4" (39)1-3/4" (4)13" (33)11-1/4"

(28)

2-3/4"

(7)-- -- 2-3/4" (7)12-3/4"

(33)

2-3/4"

(7)1-3/4" (5)35-1/2" (90) 18" (46)

BOTTOM

SIDE

FRONT

FLAT PLATE

HEAT

EXCHANGER

(ON COMBI

MODELS)

DHW

OUTLET

DHW

INLET

Note: The basic location of the Condensate

Trap on the wall units will vary between

model sizes.

Exhaust Vent and Air Inlet Collars t

standard 2" PVC piping.

Gas and Hydronic ttings at both the top

and the bottom of the unit.

Page 5

Brute LX

Dimension

Model A B C D E F G H J*K L M N O

50, 75 MBH

1" (3) 15-3/4" (40) 3-3/4" (9) 9-1/4" (24) 8" (20) 1-1/2" (4) 5-3/4" (14) 15-1/2" (39) -- -- -- 30-1/2" (78) 15-1/4"

(39)

4-5/8" (12)

100 MBH

1" (3) 15-1/2" (39) 1-1/4" (3) 12-3/4" (33) 11" (28) 1-1/4" (3) 9-1/2" (24) 14-3/4" (37) -- -- -- 30-1/2" (78) 18" (46) 4-5/8" (12)

125 MBH

1" (3) 15-1/2" (39) 1-1/4" (3) 12-3/4" (33) 11" (28) 1-1/4" (3) 9-1/2" (24) 14-3/4" (37) 2-3/4" (7) 12-3/4" (33) 2" (5) 30-1/2" (78) 18" (46) 4-5/8" (12)

150, 175 MBH

1-1/2" (4) 15-1/4" (39) 1-3/4" (4) 13" (33) 11-1/4" (28) 2-3/4" (7) 5-1/4" (14) 2" (5) 2-3/4" (7) 12-3/4" (33) 1-3/4" (5) 35-1/2" (90) 18" (46) 8-7/8" (23)

220 MBH

1-1/2" (4) 15-1/4" (39) 1-3/4" (4) 13" (33) 11-1/4" (28) 2-3/4" (7) 5-1/4" (14) 2" (5) -- -- -- 38-1/2" (90) 18" (46) 8-7/8" (23)

Dimension

Model A B C D E F G H J*K L M N O

50, 75 MBH 1" (3) 15-3/4" (40) 3-3/4" (9) 9-1/4" (24) 8" (20) 1-1/2" (4) 5-3/4" (14) 15-1/2" (39)

-- -- -- 30-1/2" (78) 15-1/4"

(39)

4-5/8" (12)

100 MBH 1" (3) 15-1/2" (39) 1-1/4" (3) 12-3/4" (33) 11" (28) 1-1/4" (3) 9-1/2" (24) 14-3/4" (37)

-- -- -- 30-1/2" (78) 18" (46) 4-5/8" (12)

125 MBH 1" (3) 15-1/2" (39) 1-1/4" (3) 12-3/4" (33) 11" (28) 1-1/4" (3) 9-1/2" (24) 14-3/4" (37)

2-3/4" (7) 12-3/4" (33) 2" (5) 30-1/2" (78) 18" (46) 4-5/8" (12)

150, 175 MBH 1-1/2" (4) 15-1/4" (39) 1-3/4" (4) 13" (33) 11-1/4" (28) 2-3/4" (7) 5-1/4" (14) 2" (5)

2-3/4" (7) 12-3/4" (33) 1-3/4" (5) 35-1/2" (90) 18" (46) 8-7/8" (23)

220 MBH 1-1/2" (4) 15-1/4" (39) 1-3/4" (4) 13" (33) 11-1/4" (28) 2-3/4" (7) 5-1/4" (14) 2" (5)

-- -- -- 38-1/2" (90) 18" (46) 8-7/8" (23)

Dimension

Model A B C D E F G H J*K L M N O

50, 75 MBH 1" (3) 15-3/4" (40) 3-3/4" (9) 9-1/4" (24) 8" (20) 1-1/2" (4) 5-3/4" (14) 15-1/2" (39)

-- -- -- 30-1/2" (78) 15-1/4"

(39)

4-5/8" (12)

100 MBH 1" (3) 15-1/2" (39) 1-1/4" (3) 12-3/4" (33) 11" (28) 1-1/4" (3) 9-1/2" (24) 14-3/4" (37)

-- -- -- 30-1/2" (78) 18" (46) 4-5/8" (12)

125 MBH 1" (3) 15-1/2" (39) 1-1/4" (3) 12-3/4" (33) 11" (28) 1-1/4" (3) 9-1/2" (24) 14-3/4" (37)

2-3/4" (7) 12-3/4" (33) 2" (5) 30-1/2" (78) 18" (46) 4-5/8" (12)

150, 175 MBH 1-1/2" (4) 15-1/4" (39) 1-3/4" (4) 13" (33) 11-1/4" (28) 2-3/4" (7) 5-1/4" (14) 2" (5)

2-3/4" (7) 12-3/4" (33) 1-3/4" (5) 35-1/2" (90) 18" (46) 8-7/8" (23)

220 MBH 1-1/2" (4) 15-1/4" (39) 1-3/4" (4) 13" (33) 11-1/4" (28) 2-3/4" (7) 5-1/4" (14) 2" (5)

-- -- -- 38-1/2" (90) 18" (46) 8-7/8" (23)

*- Jdimension applies for both the DHW OUTLET and DHW INLET

inches (cm's)

APPLIANCE SUGGESTED SERVICE ACCESS CLEARANCE

SURFACE INCHES CM

Left Side 615

Right Side 615

Top 12 30

Closet, Front 615

Front 24 61

Bottom 24 61

Vent 13

CertiedbyCSAforzeroclearanceto

combustible materials on all sides.

APPLIANCE SUGGESTED SERVICE ACCESS CLEARANCE

SURFACE INCHES CM

Left Side 615

Right Side 615

Top 12 30

Closet, Front 615

Front 24 61

Back 820

Vent 13

CertiedbyCSAforzeroclearanceto

combustible materials on all sides.

Clearances

Wall Floor

Sizing Data WALL

Sizing Data FLOOR STANDING

Sizing Data,

Piping

Input Output DHW AFUE Gas Water DHW Shipping

Model Output @ Conn. Size Conn. Size Conn. Size Weight

BTU/h kW BTU/h kW 75°F Rise inches inches inches lbs kg

MLX 50 50,000 14.6 47,500 13.2 - 95% 1/2” NPT 3/4” NPT - 88 40

MLX 75 75,000 21.9 71,250 20.8 - 95% 1/2” NPT 3/4” NPT - 97 44

MLX 100 100,000 29.3 95,000 27.8 - 95% 1/2” NPT 3/4” NPT - 112 51

MLX 125 125,000 36.6 118,750 34.8 3.1 gpm 95% 1/2” NPT 3/4” NPT 1/2” NPT 126 57

MLX 150 150,000 43.9 142,500 41.8 3.7 gpm 95% 1/2” NPT 1“ NPT 1/2” NPT 140 64

MLX 175 175,000 51.6 166,250 48.7 4.3 gpm 95% 1/2” NPT 1“ NPT 1/2” NPT 153 69

MLX 220 220,000 64.4 209,000 61.2 - 95% 1/2” NPT 1“ NPT - 161 73

Input Output DHW AFUE Gas Water DHW Shipping

Model Output @ Conn. Size Conn. Size Conn. Size Weight

BTU/h kW BTU/h kW 75°F Rise inches inches inches lbs kg

MLX 50 50,000 14.6 47,500 13.2 - 95% 1/2” NPT 3/4” NPT - 144 65

MLX 75 75,000 21.9 71,250 20.8 - 95% 1/2” NPT 3/4” NPT - 151 68

MLX 100 100,000 29.3 95,000 27.8 - 95% 1/2” NPT 3/4” NPT - 166 75

MLX 125 125,000 36.6 118,750 34.8 3.1 gpm 95% 1/2” NPT 3/4” NPT 1/2” NPT 178 81

MLX 150 150,000 43.9 142,500 41.8 3.7 gpm 95% 1/2” NPT 1“ NPT 1/2” NPT 184 83

MLX 175 175,000 51.6 166,250 48.7 4.3 gpm 95% 1/2” NPT 1“ NPT 1/2” NPT 192 87

MLX 220 220,000 64.4 209,000 61.2 - 95% 1/2” NPT 1“ NPT - 201 91

NOTES:

1. For other boiler ratings:

Boiler Horsepower: HP = Output Radiation Surface: EDR sq. ft. = Output

33,475 150

NOTES:

1. For other boiler ratings:

Boiler Horsepower: HP = Output Radiation Surface: EDR sq. ft. = Output

33,475 150

50 thru 125

150 - 220

Cond. Hydronic DHW 2nd Gas Hydronic DHW 2nd

Outlet Return Inlet Return Supply Supply Outlet Supply

3/4" 3/4" 1/2" 3/4" 1/2" 3/4" 1/2" 3/4"

PVC copper NPT copper NPT NPT NPT copper

3/4" 1" 1/2" 3/4" 1/2" 1" 1/2" 3/4"

PVC NPT NPT copper NPT NPT NPT copper

Shipping

Weight

lbs kg

- -

133 60

148 67

163 74

- -

Shipping

Weight

lbs kg

- -

188 85

194 88

202 92

- -

CombiBoiler

Boiler Combination

Page 6

BRADFORD WHITE CORP

Some accessory items may be shipped in separate

packages. Verify receipt of all packages listed on the

packing slip. Inspect everything for damage immediately

upon delivery, and advise the carrier of any shortages

or damage. Any such claims must be led with the

carrier. The carrier, not the shipper, is responsible

for shortages and damage to the shipment whether

visible or concealed.

1.11 Warranty

The Brute LX is covered by a limited warranty. The

owner should complete the warranty registration online

by going to www.BradfordWhite.com. and clicking

onto the 'Warranty' pull-down to nd the new product

warranty registration form.

All warranty claims must be made to an authorized

Bradford White Corp representative. Claims must

include the serial number and model (this information

can be found on the rating plate), installation date, and

name of the installer. Shipping costs are not included in

the warranty coverage.

1.8 Unpacking and the Installation Kit

All Brute LX's are shipped in a single box with an

Installation Kit. See Figure 5. Unpack the unit

and check that all components shown are included

with your unit. The Installation Kit contains the

following items.

1. Flow Restrictor

2. Outdoor Sensor

3. Ball Valve

4. Exhaust Terminal Assembly

5. Air intake terminal Assembly

6. Condensate Trap Assembly (1)

7. Wall Mount Bracket

8. Safety Wall Brackets (2)

9. Washer, Copper

10. Pipe, PRV

11. Pressure Relief Valve (PRV), 30 psi

12. Washer, Sealing (not shown)

1.9 The Condensate Trap

The Brute LX is a high eciency condensating unit. It

requires that the included condensate trap be installed

along with a proper drain.

We recommend that the condensate trap for the wall

mounted Brute LX be installed before mounting it to the

wall. For instructions on how to do this, see Figure 12,

Figure 13 and Figure 14 starting on page 21 in Section 6

of this manual.

____________________________________________

NOTE: It is easier to install the Condensate Trap to the

Wall Mounted Brute LX before it is mounted to the wall.

____________________________________________

1.10 The Pressure Relief Valve (PRV)

The Pressure Relief Valve on the wall mounted unit must

be installed as the rst piping component.

See Section 6.9 starting on page 23 'Piping Schematics'

123

Condensate Trap

150 - 220 MBH

Condensate Trap

100 - 125 MBH

Condensate Trap 50

- 75 MBH

Figure 5. Contents of Installation Kit

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bradford White Chaudière

Bradford White

Bradford White Copper Brute ll BWCH Manuel utilisateur

Bradford White

Bradford White Brute Elite BNTH Manuel utilisateur

Bradford White

Bradford White Laars NEOTHERM NTH Series Manuel du propriétaire

Bradford White

Bradford White OmniTech BONH1250 Manuel utilisateur

Bradford White

Bradford White Brute MagnaTech HTD Manuel utilisateur

Bradford White

Bradford White Brute BNTH Manuel utilisateur

Bradford White

Bradford White Brute BNTH Manuel utilisateur

Bradford White

Bradford White Brute XTR Series Manuel utilisateur

Bradford White

Bradford White Brute Mini BJVS Manuel d'utilisation

Bradford White

Bradford White FTCW199 Manuel utilisateur

Bradford White

Bradford White Brute Deluxe BMT2H0200 Manuel du propriétaire

Bradford White

Bradford White BRUTE DELUXE BMT2H Manuel utilisateur

Bradford White

Bradford White LAARS OmniTherm ONH1250 Manuel utilisateur

Bradford White

Bradford White Brute BNTH Series Manuel du propriétaire

Bradford White

Bradford White LAARS NEOTHERM LC NTH1200 Manuel utilisateur

Bradford White

Bradford White Laars MASCOT FT MFTCW140 Manuel utilisateur

Bradford White

Bradford White Laars Pennant PNCH Series Manuel utilisateur

Bradford White

Bradford White Brute BNTH Manuel utilisateur

Bradford White

Bradford White Brute LX BLXCW-125 Manuel utilisateur

Bradford White

Bradford White BRHHH Manuel utilisateur

Bradford White

Bradford White BNTH1000 Manuel utilisateur

Bradford White

Bradford White Copper Brute II Manuel utilisateur

Bradford White

Bradford White brute elite 125 BLMH Manuel utilisateur

Bradford White

Bradford White Brute MagnaTech BMGH1600 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
