Bowflex SelectTech 2080 Manuel utilisateur

Important Safety Instructions

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Before using this equipment, obey the following warnings:

• Read and understand the complete Assembly instructions. Keep the manual for future reference.

• Read and understand all warnings on this machine. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada,

contact Customer Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.

• Keep bystanders and children away from the product you are assembling at all times.

• Make sure assembly is done in an appropriate work space away from foot trafc and exposure to bystanders.

• Some components of the equipment can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that involve heavy

lifting or awkward movements on your own.

• This machine is for home use only. Do not place or use the machine in a commercial or institutional setting. This includes gyms, corporations, work places, clubs, tness centers

and any public or private entity that has a machine for use by its members, customers, employees or afliates.

• Do not assemble or operate this machine outdoors or in moist or wet locations.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury.

• Do not try to change the design or functionality of this equipment. This could compromise the safety of this equipment and will void the warranty.

• If replacement parts are necessary, use only genuine replacement parts and hardware supplied by Nautilus. Failure to use genuine replacement parts can cause a risk to users,

keep the equipment from operating correctly and void the warranty.

• Do not use until the equipment has been fully assembled and inspected for correct performance in accordance with the Owner’s Manual for your SelectTech™Barbell with Curl

Bar.

• Read and understand the complete Owner’s Manual supplied for your SelectTech™ Barbell with Curl Bar before rst use. Keep the Owner’s and Assembly Manuals for future

reference.

ASSEMBLY MANUAL

SelectTech™2080 Stand with Media Rack

™

If purchased in US/Canada:

WARNING

WARNING indicates a hazardous

situation which, if not avoided, could

result in death or serious injury.

DANGER

DANGER indicates a hazardous

situation which, if not avoided, will

result in death or serious injury.

CAUTION

CAUTION indicates a hazardous

situation which, if not avoided, could

result in minor or moderate injury.

NOTICE

NOTICE is used to address practices

not related to personal injury.

Do not operate this machine until you read and understand the complete Owner’s Manual provided online

here: http://www.bowex.com/manuals

In the event that you do not have a computer or on-line access and require a hard copy of the Manual, please contact Nautilus at (800) 605-3369 and we will provide

one for you. In either case, before rst use please read and understand the Owner’s Manual.

If purchased outside US/Canada:

WARNING

WARNING indicates a hazardous

situation which, if not avoided, could

result in death or serious injury.

DANGER

DANGER indicates a hazardous

situation which, if not avoided, will

result in death or serious injury.

CAUTION

CAUTION indicates a hazardous

situation which, if not avoided, could

result in minor or moderate injury.

NOTICE

NOTICE is used to address practices

not related to personal injury.

Do not operate this machine until you read and understand the complete Owner’s Manual provided online

here: www.nautilusinternational.com or www.nautilus.cn

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase __________________________

If purchased in US/Canada: To register your product warranty, go to: www.bowex.com/register or call 1 (800) 605–3369.

If purchased outside US/Canada: To register your product warranty, contact your local distributor.

For warranty and service of products purchased outside US/Canada, please contact your local distributor. To nd your local international distributor, go to:

www.nautilusinternational.com.

• Not intended for use by persons with medical conditions where those conditions may impact the safe operation of the Dumbbells or pose a risk of injury to the user.

• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to children.

• Not intended for use by anyone under 14 years of age.

• Consult a physician before starting an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor

before using the machine again.

• Before you start your workout, make sure that your surroundings are free from possible interference and third parties. Your workout free space should be 0.6 m (24“) more than

the maximum reach of the exercise in all directions.

• Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.

• Never attempt to exercise with more weight than you are physically able to handle.

• For safety, it is recommended that you exercise with a training partner or spotter.

• Children should be supervised to ensure that they do not play with the appliance.

• SAVE THESE INSTRUCTIONS

Safety Warning Labels and Serial Number

Specifications

Serial number

WARNING!

• This product is for Home use only.

• Not intended for use by anyone under 14 years of age.

• Consult a physician prior to using any exercise equipment.

• Keep children and pets away from this machine at all times.

• Use Caution when you use this equipment or serious injury can occur.

• Prior to use, read and understand the Owner’s Manual, including all Warnings.

• Inspect product before use. Do not use if any parts are in need of repair.

• Replace any “Caution” “Warning” or “Danger” label that is illegible, damaged,

or removed.

Record serial number in the Serial Number eld at the beginning of this manual.

Assembly Weight of Stand: 11.7 kg (25.8 lbs.)

(Label is available in English, French Canadian and Chinese only.)

Product specication

DO NOT dispose of this product as refuse. This

product is to be recycled. For proper disposal of this

product, please follow the prescribed methods at an

approved waste center.

+ 0.6 m (24”)

150.5 cm (59.3”)

60.5 cm (23.8”)

81.5 cm (32.1”)

[area of maximum reach

of the exercise]

Assembly / Owner’s Manual

Hardware / Tools / Assembly

Item Qty Description

A4 Socket Head Cap Screw, M8x50

B4Flat Washer, M8 Regular

C4Spring Lock Washer, M8

D 6 Button Head Cap Screw, M5 x12

E 6 Flat Washer, M5 Narrow

Tools

Included

3mm

6mm

BCD

Assembly

Note: This procedure provides instructions for assembly and installation of the Stand for a Barbell with Curl Bar set that is already assembled. Instructions for assembly of the Stand and

the Barbell with Curlbar together are provided separately in this manual.

Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that

involve heavy lifting or awkward movements on your own.

Step 1.

Note: A right (“ R ”) and left (“ L ”) decal has been applied to some parts to assist with assembly.

Item Qty Description

1 2 Stabilizer

2 1 Upright Assembly, Right

3 1 Upright Assembly, Left

4 4 Leveler Foot

5 4 Endcap

5 X4

4 X4

6mm

Assembly / Owner’s Manual

Step 2.

Note: Set the hardware safely aside for reassembly.

Discard the base plates (a).

Use proper safety precautions and lifting

techniques. Bend your knees and elbows, keep

your back straight and pull up equally with both

arms. Straighten your legs to lift.

Item Qty Description

6 2 Gusset

7 1 Media Rack

Step 3.

Note: Attach the Uprights to the Base with the hardware that

was removed in Step 2.

6mm

3mm

6mm

Assembly / Owner’s Manual

Step 4. Final Inspection

Inspect your equipment to ensure that all fasteners are tight and components are properly assembled.

Be sure to record the serial number in the eld provided at the front of this manual.

Put the Weight Plates on the Base. Put the Barbell and Curl Bar on the Base and the

bar hanger brackets on the Stand.

Do not use until the equipment has been fully assembled and

inspected for correct performance in accordance with the Owner’s

Manual for your SelectTech™Barbell with Curl Bar. Fully tighten the

hardware before you put the barbell/curlbar into the installed barbell

base on the stand.

Item Description Qty

8Base Tube, Front 1

9Base Tube, Rear 1

10 Base End Shrouds 2

11 Barbell Handle Assembly 1

12 Curlbar Handle Assembly 1

13 Adapter Plates 4

14 5-lb (2.27 kg) Weight Plates 12

11 12

Parts — Barbell with Curlbar set (separate box)

Assembly — Stand with the Barbell with Curl Bar set

Assembly / Owner’s Manual

Step 1.

Note: Hardware for this step is on the 2080 Barbell with Curl Bar hardware card, not the 2080 Stand hardware card. Be sure to attach the Uprights to the bottom of the tubes so that

the Bowex™label (8a) will be right side up after assembly. Hand tighten all screws, then fully tighten.

6mm

Assembly —

Note: This procedure provides instructions for assembly of the Stand and the Barbell with Curl Bar together.

Item Description Qty

A Socket Head Cap Screw M8 X 25 16

B Flat Washer M8 8

C Spring Lock Washer M8 8

DFlat Head Socket Cap Screw M5 X 16 16

Included

3 mm

6 mm

Tools

Hardware — Barbell with Curlbar set

Hardware / Tools / Assembly

Item Qty Description

2 1 Upright Assembly, Right

3 1 Upright Assembly, Left

8 1 Base Tube, Front

9 1 Base Tube, Rear

BC D

Assembly / Owner’s Manual

Step 2.

Note: Hardware for this step is on the 2080 Stand hardware card. Fully tighten the hardware. Turn the Base assembly right side up and adjust the Leveler Feet so that the assembly

is level and stable.

6mm

4 X4

5 X4

3mm

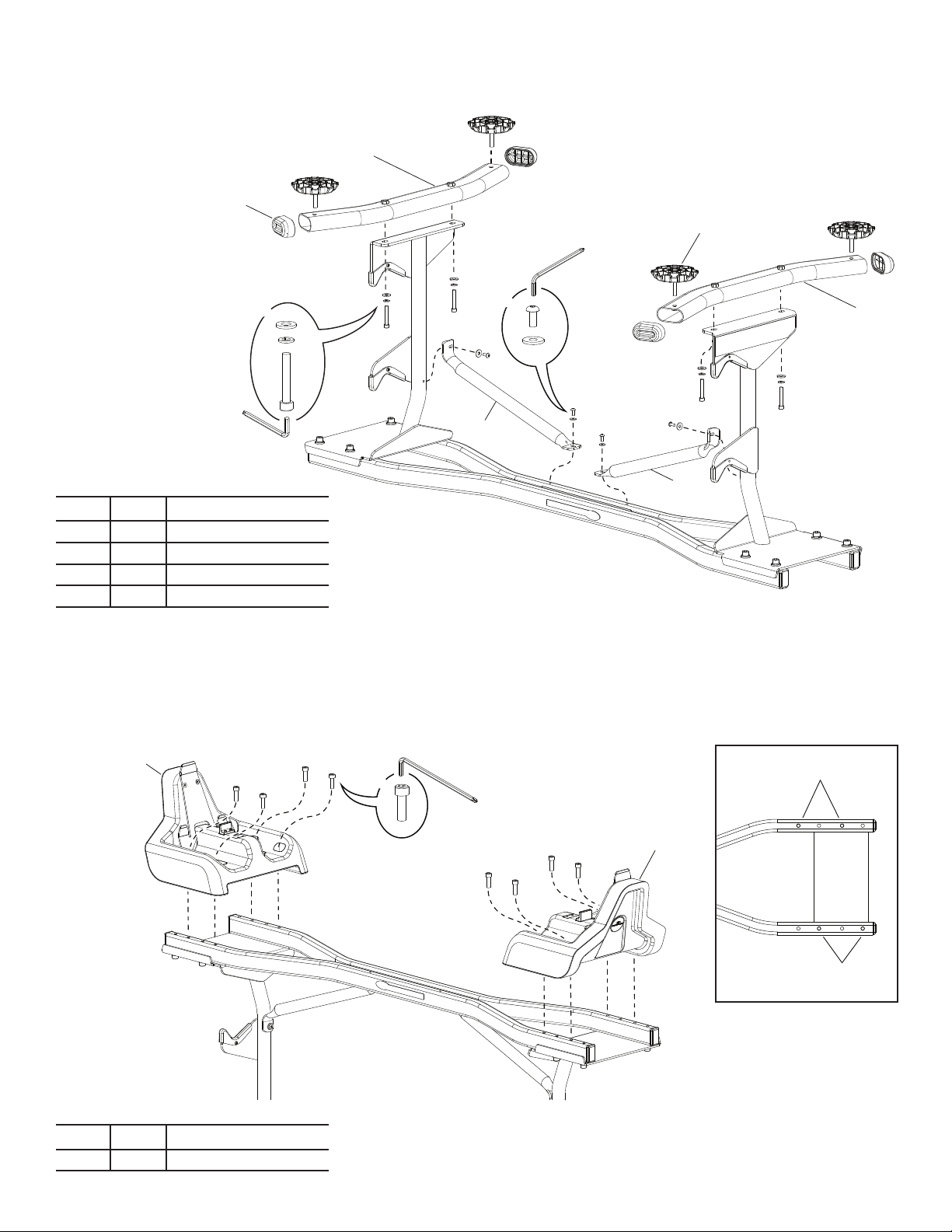

Step 3.

Note: Hardware for this step is on the 2080 Barbell with Curl Bar hardware card, not the 2080 Stand hardware card. Do not fully tighten screws. Shrouds should still slide.

NOTICE: Use the inner set of screw holes in the Base Tubes to t the 80-lb barbell conguration. If the Barbell will have the 40-lb Weight Upgrade (the 120-lb conguration), use the

outer set of screw holes in the Base Tubes.

6mm

Inner

Outer

Item Qty Description

1 2 Stabilizer

4 4 Leveler Foot

5 4 Endcap

6 2 Gusset

Item Qty Description

10 2 Base End Shrouds

Assembly / Owner’s Manual

Step 5. Put Weight Plates and Barbell Assembly in the Base, and Adjust Base End Shrouds

In order to avoid possible serious injury, when placing the Weight Plates in the Base Assembly, be careful to avoid ngers or hands being caught or pinched.

NOTICE: Be sure that the Weight Plates are fully seated in the Base. Ensure there are no large gaps between Weight Plates, and all weight plate tabs are locked together properly.

Make sure the locking tab at the top of the Base End Shroud is seated in the selection lip at the top of the back Weight Plate.

Push the shrouds inward. Tighten the inner screws. To tighten the outer screws, it may be necessary to remove the Barbell and Weight Plates. This adjustment is important

for proper function and easier re-racking. If the barbell is difcult to re-rack after assembly, it may be necessary to repeat this process.

6mm

14 X6

Selection lip

(Stand not shown)

Step 4.

Note: Hardware for this step is on the 2080 Barbell with Curl Bar hardware card, not the 2080 Stand hardware card. Ensure the Adapter Plates are oriented correctly. The screws

must enter the countersink holes on the back of the plates.

D X8

Item Qty Description

11 1Barbell Handle Assembly

12 1 Curlbar Handle Assembly

13 4 Adapter Plates

Item Qty Description

14 12 Weight Plates

Locking tab

Assembly / Owner’s Manual

Step 6.

Note: Fully tighten the hardware.

3mm

Step 7. Final Inspection

Inspect your equipment to ensure that all fasteners are tight and components are properly assembled.

Be sure to record the serial number in the eld provided at the front of this manual.

Put the Weight Plates on the Base. Put the Barbell and Curl Bar on the Base and the bar hanger brackets on the Stand.

Do not use until the equipment has been fully assembled and inspected for correct performance in accordance with the Owner’s Manual for your SelectTech™

Barbell with Curl Bar. Fully tighten the hardware before you put the barbell/curl bar into the installed barbell base on the stand.

Item Qty Description

7 1 Media Rack

Assembly / Owner’s Manual

Maintenance

Equipment must be examined for damage and repairs before each use. The owner is responsible to perform routine testing of the locking mechanisms. Worn or

damaged components must be replaced immediately or the equipment removed from service until the repair is made. Only manufacturer supplied components can

be used to maintain and repair the equipment.

If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer Service for replacement

labels. If purchased outside US/Canada, contact your local distributor for them.

Daily/Before Each Use: Examine equipment. Make sure it looks in good condition and operates smoothly. If you nd damage, DO NOT USE. Contact your local distributor, or

Customer Service if purchased within the United States or Canada, for repair information.

Daily/After Each Use: Clean equipment with a clean, dry cloth. Do not use cleansers containing enzymes.

Weekly: Clean equipment fully with a clean cloth and ammonia-based cleaner. Touch up any scratches with touch-up paint to prevent rust, if necessary.

Monthly: Examine the frame for signs of cracking or permanent bending. Do not use the equipment if you see this. If purchased in US/Canada, contact Customer Service for repair

information. If purchased outside US/Canada, contact your local distributor.

If you have any questions on the correct use or maintenance of this equipment, contact Customer Service if purchased within the United States or Canada, or your local distributor if

purchased outside US/Canada. Only Nautilus-trained or Nautilus-authorized personnel should make extensions, readjustments, modifications, or repairs.

Assembly / Owner’s Manual
