OWNER’S MANUAL

The

Discovery 1100 is

an easy to use detector.

The most difficult aspects of

metal detecting have been automated.

However, if you are new to the hobby,

we strongly recommend that you:

1) Adjust the Sensitivity to a low setting

in the event of false signals. Always begin

use at a reduced sensitivity level; increase to full

sensitivity after you have become familiar with the

detector.

2) Do not use indoors. This detector is for outdoor use only. Many

household appliances emit electromagnetic energy, which can

interfere with the detector. If conducting an indoor demonstration,

turn the sensitivity down and keep the searchcoil away from

appliances such as computers, televisions and microwave ovens.

If your detector beeps erratically, turn off appliances and lights

(especially those with dimmer switches).

Also keep the searchcoil away from objects containing metal, such

as floors and walls.

3) Read this manual. Most importantly, review the Quick-Start Demo

(p.7) and Basic Operation (pp. 9-12).

4) Use 9-volt ALKALINE batteries only. Do not use Heavy Duty

Batteries.

TABLE OF CONTENTS

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Quick-Start Demo . . . . . . . . . . . . . . . . . . . . . .7-8

Basic Operation

Powering Up . . . . . . . . . . . . . . . . . . . . . . .9

The Display . . . . . . . . . . . . . . . . . . . . . .9-10

Mode Control (discrimination) . . . . . . . . .11

Discrimination Settings . . . . . . . . . . . . . .12

Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Audio Target Identification . . . . . . . . . . . . . . .13

Sensitivity Adjustment . . . . . . . . . . . . . . . . . . .14

In The Field Techniques . . . . . . . . . . . . . . .15-17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .18

Treasure Hunter’s Code of Ethics . . . . . . . . . . .19

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Accessories . . . . . . . . . . . . . . . . . . . . .Back Cover

TERMINOLOGY

The following terms are used throughout the manual, and are standard

terminology among detectorists.

ELIMINATION

Reference to a metal being "eliminated" means that the detector will

not emit a tone, nor light up an indicator, when a specified object

passes through the coil’s detection field.

DISCRIMINATION

When the detector emits different tones for different types of metals,

and when the detector "eliminates" certain metals, we refer to this

as the detector "discriminating" among different types of metals.

Discrimination is an important feature of professional metal

detectors. Discrimination allows the user to ignore trash and

otherwise undesirable objects.

RELICA relic is an object of interest by reason of its age or its association

with the past. Many relics are made of iron, but can also be made

of bronze or precious metals.

IRON Iron is a common, low-grade metal that is an undesirable target in

certain metal detecting applications. Examples of undesirable iron

objects are old cans, pipes, bolts, and nails.

Sometimes, the desired target is made of iron. Property markers,

for instance, contain iron. Valuable relics can also be composed of

iron; cannon balls, old armaments, and parts of old structures and

vehicles can also be composed of iron.

FERROUS

Metals which are made of, or contain, iron.

PINPOINTING

Pinpointing is the process of finding the exact location of a buried

object. Long-buried metals can appear exactly like the surrounding

soil, and can therefore be very hard to isolate from the soil.

PULL-TABS

Discarded pull-tabs from beverage containers are the most

bothersome trash items for treasure hunters. They come in many

different shapes and sizes. Most pull-tabs can be eliminated with

the Mode Control, but some other valuable objects can have a

magnetic signature similar to pull-tabs, and will also be eliminated

when discriminating out pull-tabs.

GROUND BALANCE

Ground Balancing is the ability of the detector to ignore, or "see

through," the earth’s naturally occurring minerals, and only sound

a tone when a metal object is detected.

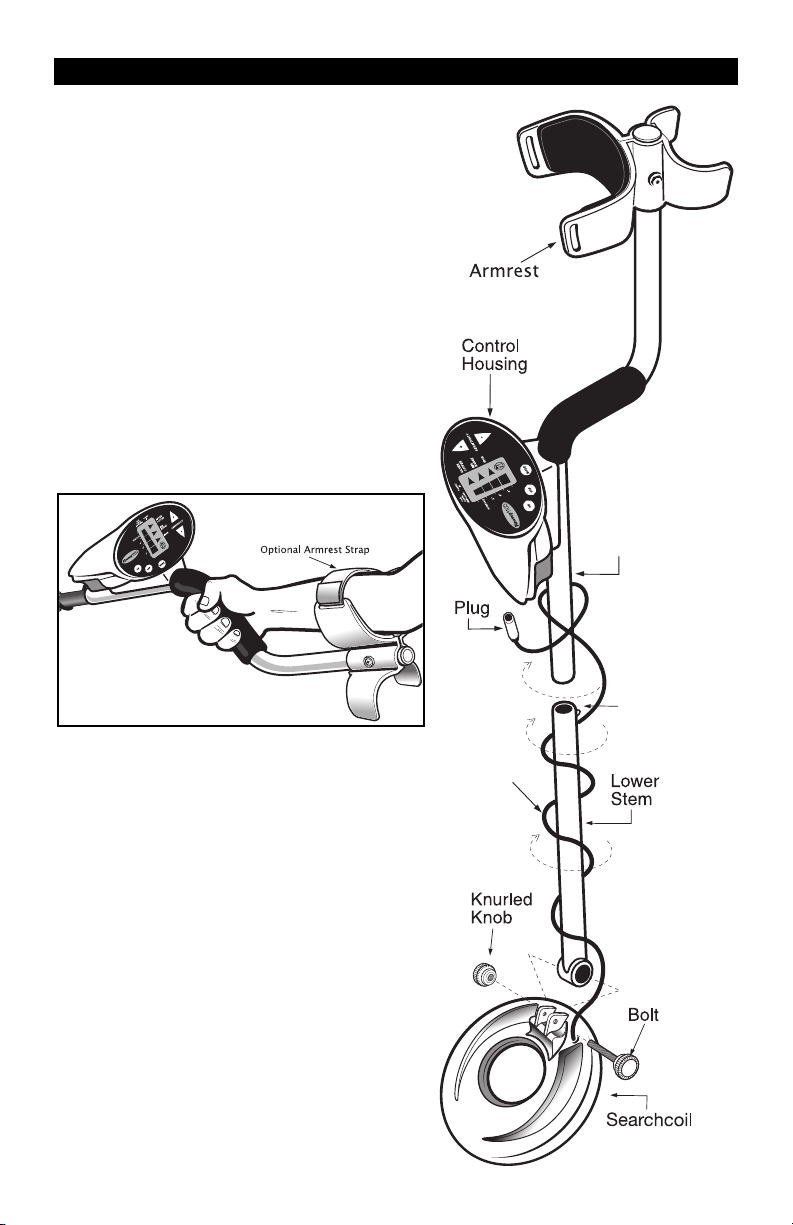

ASSEMBLY

Assembly is easy and requires no tools.

●

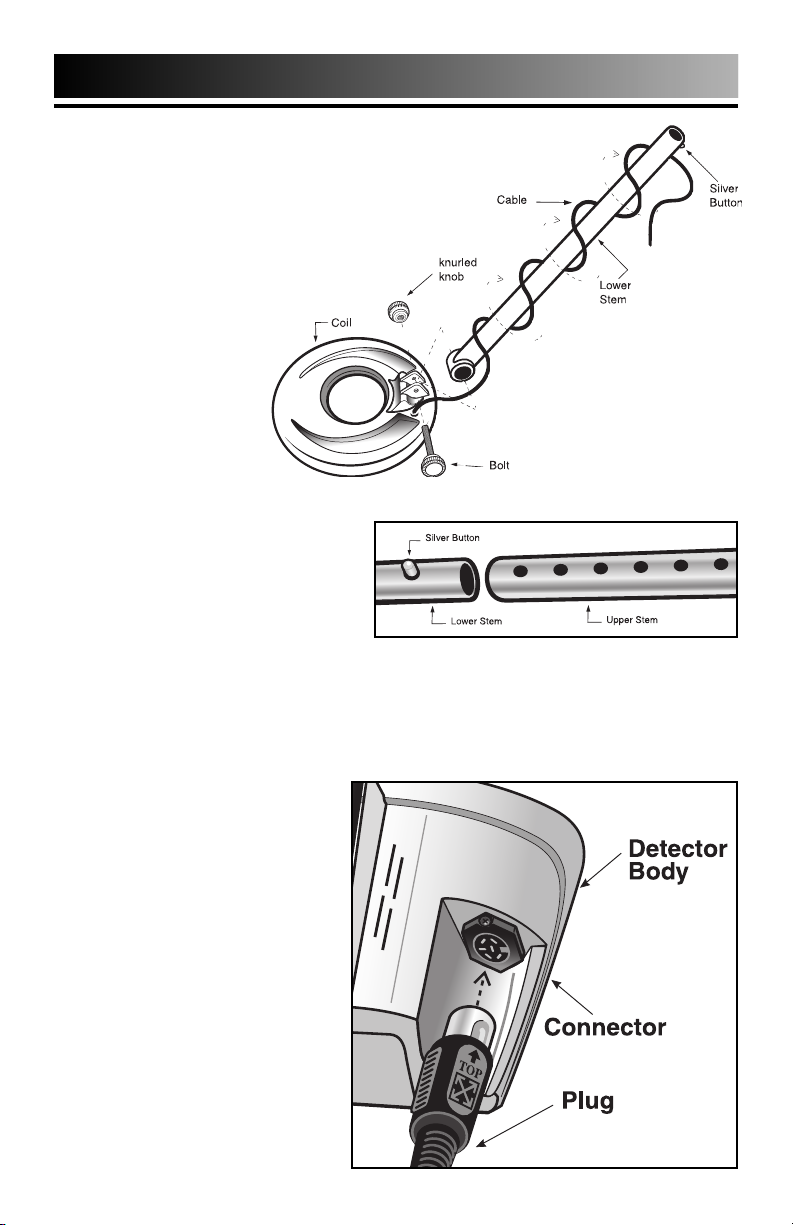

1Position the lower stem (the straight

tube) with the silver button toward the

back.

Using the bolt and knurled knob,

attach the searchcoil to the

plastic extension

protruding from the

lower stem.

●

2Press the button

on the upper end

of the lower stem,

and slide the lower

stem into the upper

stem.

Adjust the stem to a length

that lets you maintain a

comfortable upright

posture, with your arm relaxed at your side, and the

searchcoil parallel to the ground in front of you.

●

3Wind the cable securely around the stem.

●

4Insert the plug into the

matching connector on

the right underside of the

detector body. Be sure

that the key-way and

pins line up correctly.

Caution: Do not force the

plug in. Excess

force will cause

damage.

To disconnect the

cable, pull on the

plug.

Do not pull

on the cable.

ASSEMBLY

S-Rod

Silver

Button

Searchcoil

Cable

Adjusting the Armrest

Most people will find the standard

position of the armrest very comfortable.

Very large forearms and short forearms

(particularly children’s arms), can be

accommodated by moving the armrest

forward.

The armrest may be moved forward or

backwards by removing the single

screw and nut, and then repositioning

the 2-piece armrest. Users with shorter

arms may find the armrest more

comfortable in the forward position. In

order to move the armrest backwards,

the plastic plug must be removed from

the aluminum tube.

Armrest Strap

(optional accessory)

The strap is available for purchase as a

separate accessory. Some users prefer

to use the strap when swing the detector

vigorously, in order to hold the detector

secure against the arm.

The detector can also be used without

the strap, with no compromise to

detector balance and stability under most

conditions.

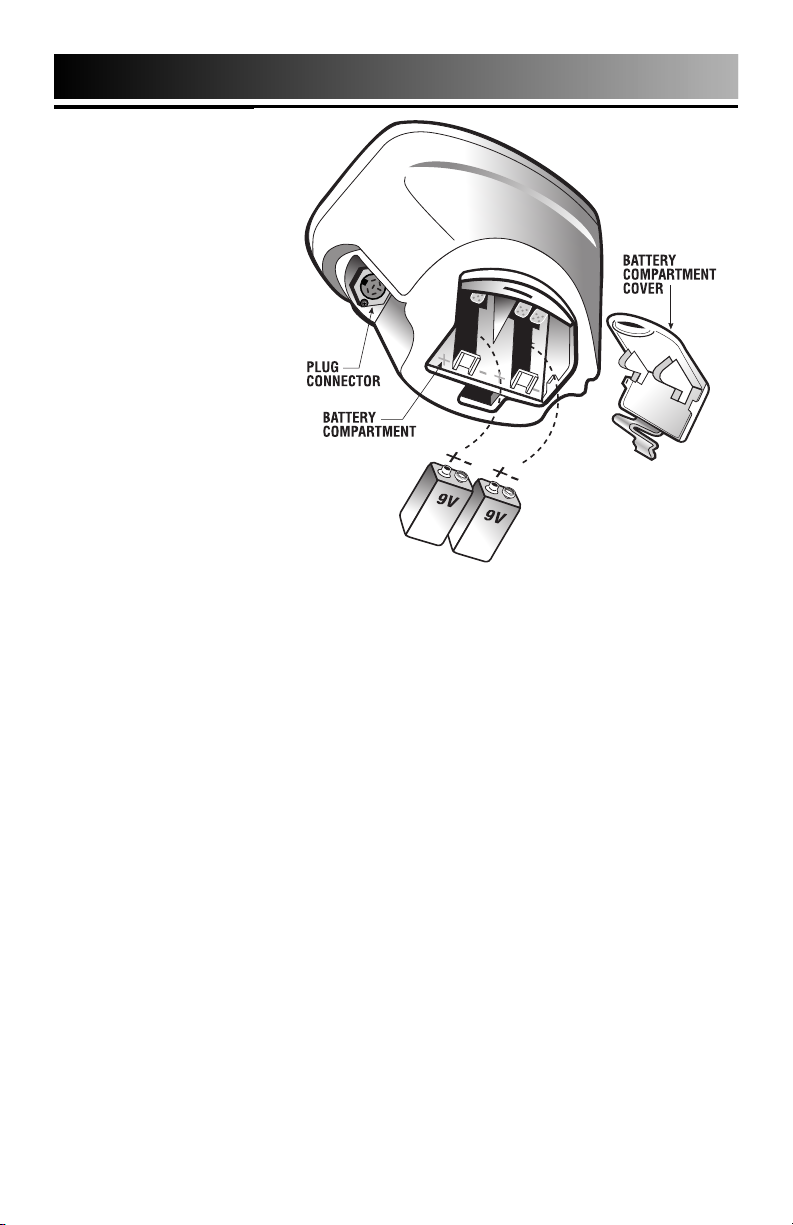

Use ALKALINE

batteries only.

To install the

batteries:

●

1Remove the

battery cover by

disengaging the

clip at the back.

●

2Align the polarity

of the batteries

correctly, with

the positive "+"

toward the coil

plug connection,

as indicated by

the + and –

indicators on the

housing.

●

3Insert (2) 9-Volt ALKALINE batteries, with the contacts pointed inward,

and press down on the back of the batteries to snap them into place.

Some brands of batteries will require moderate force to clear the

retaining tabs.

●

4Replace the battery door.

The Low Battery Indicator will come on and stay on if the batteries need

to be replaced.

Most metal detector problems are due to improperly installed batteries,

or the use of non-alkaline or discharged batteries. If the detector does

not turn on, please check the batteries.

DO NOT MIX OLD AND NEW BATTERIES

BATTERIES

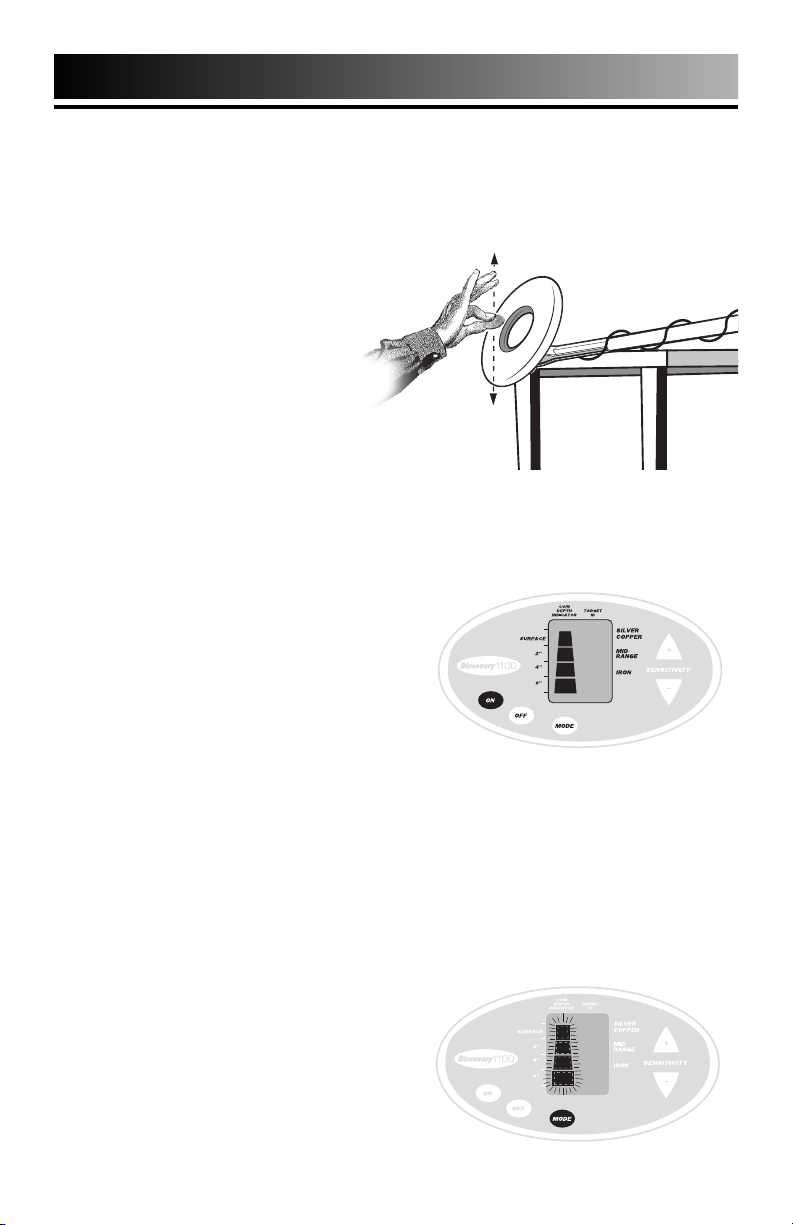

QUICK-START DEMONSTRATION

I. Supplies Needed

• A Nail • A Quarter

•A Pull-Tab from a beverage can • A Zinc Penny (dated after 1982)

II. Position the Detector

a. Place the detector on a

table, with the searchcoil

hanging over the edge.

(or better, have a friend

hold the detector, with

the coil off the ground)

b. Keep the searchcoil away

from walls, floors, and

metal objects.

c. Remove watches, rings and other jewelry or metal objects from

hands and wrists.

d. Turn off appliances or lights that cause electromagnetic interference.

e. Pivot searchcoil back toward the

detector body.

III. Power Up

Press the ON touchpad.

The detector will beep twice and

the full sensitivity setting will be

indicated on the left of the display.

IV. Wave each Object over the Searchcoil

a. Notice a different tone for each object.

Low Tone: Nail

Medium Tone: Pull-tab & Zinc Penny

High Tone: Quarter

b. Motion is required. Objects must be in motion over the searchcoil

to be detected.

V. Press the MODE touchpad(*)

The detector will beep twice and

the sensitivity setting will flash

on the left side of the display.

Quick-Start Demo continued on next page

VI. Press the MODE touchpad again.(*)

a. A flashing indicator will point toward IRON.

b. The flashing indicator tells us that Iron has

been eliminated from detection.

VII. Wave the Nail over the Searchcoil

a. The Nail will not be detected.

b. The Nail has been "Discriminated Out."

VIII. Wave the Quarter, Penny, and Pull-Tab

over the Searchcoil

These non-ferrous objects will be detected with their own

distinctive tones.

IX. Press the MODE touchpad again.(*)

a. The detector will beep twice and the sensitivity setting will flash on

the left side of the display.

b. Notice the flashing arrow pointing toward Iron.

The flashing arrow indicates that this target category is currently

"Discriminated Out."

X. Press the MODE touchpad again.(*)

The flashing arrow will now point

toward MID-RANGE.

XI. Wave all objects over the Searchcoil

The Pull-Tab and Zinc Penny will not

be detected.

The other objects will be detected

with their own distinctive tones.

XII. Toggle modes by pressing the MODE

touchpad again.(*)

a. Press once to see the current discrimination status of the detector

(Mid-Range Eliminated).

b. Then press again to toggle to the third discrimination setting.

i. Iron is eliminated.

ii. Mid-Range Metals are eliminated.

iii. Only high-tone metals like silver and copper will be detected.

(*)Note: The mode status will flash for 10 seconds. After 10 seconds,

mode status will time-out and stop flashing.

QUICK-START DEMONSTRATION

BASIC OPERATION

POWERING UP

Press the ON touchpad.

All display indicators will illuminate momentarily.

The 4-segment pyramid-shaped Sensitivity Indicator will illuminate on

the left side of the display. The 4-segment pyramid indicates that the

detector is at full sensitivity.

When an object is detected, the object will be identified by a tone, a

display indicator, and a depth indication.

A two-minute “warm-up” is required before the detector reaches full

sensitivity.

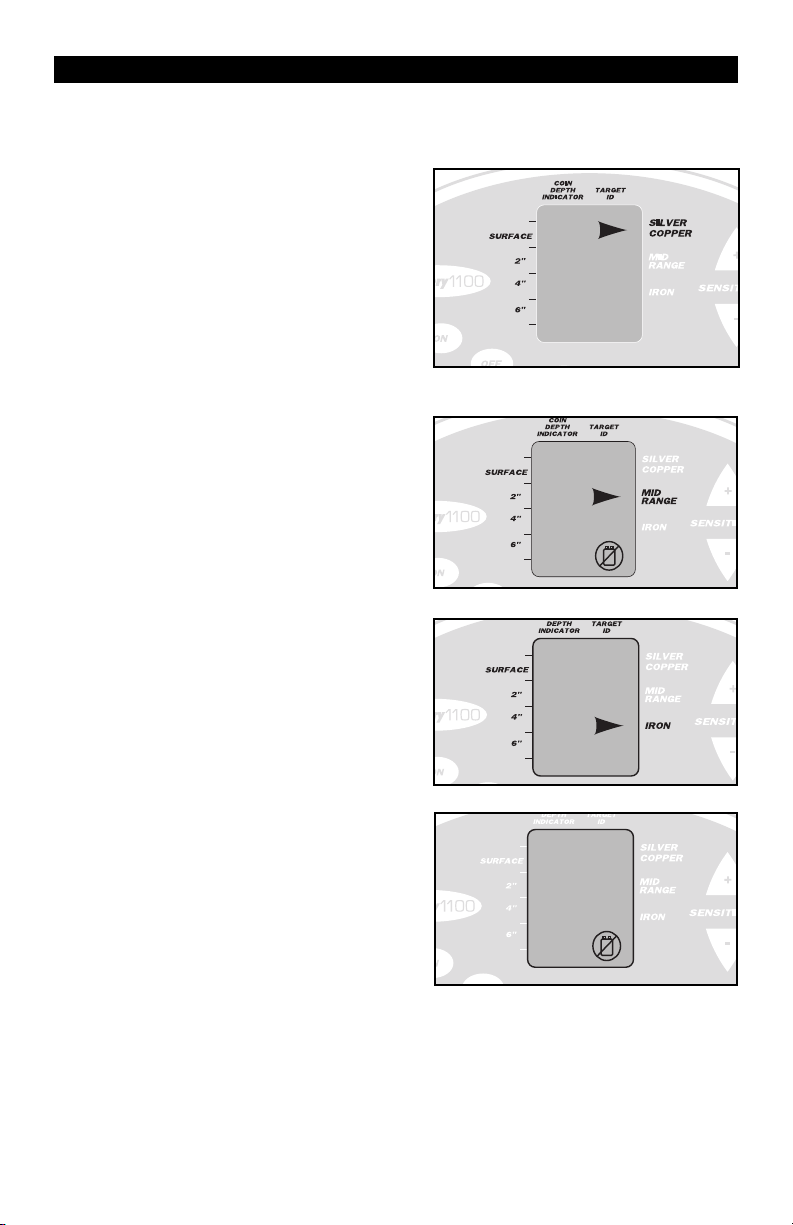

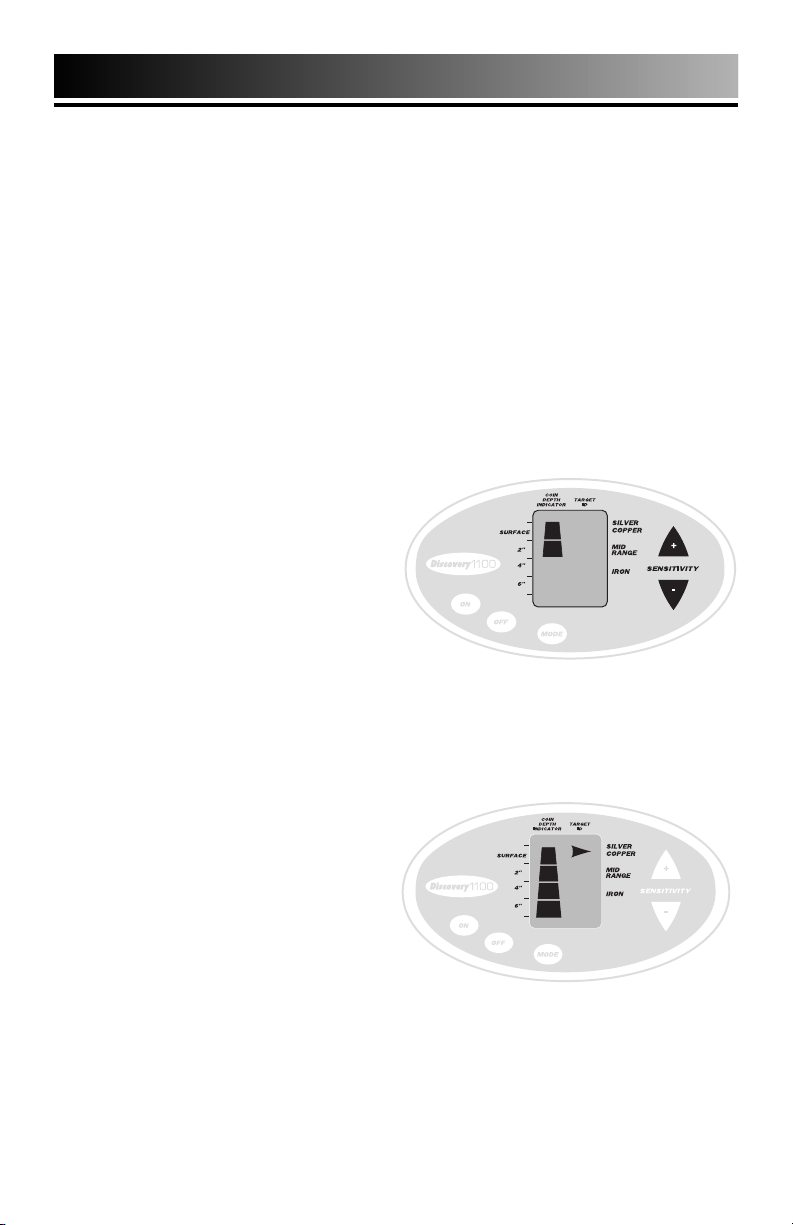

UNDERSTANDING THE DISPLAY

The LEFT SIDE of the display has a dual purpose:

●

1SENSITIVITY LEVEL

Upon power-up, and after

pressing either the up- or

down-sensitivity pads, the

pyramid-shaped display

indicates the detector’s

sensitivity level.

The sensitivity level can be

changed using the up- and down-pads.

At maximum sensitivity, the unit can detect a coin-sized metal object

buried about 6" beneath the surface; larger objects can be detected

much deeper.

●

2DEPTH INDICATION

After detecting an object, the

pyramid-shaped display

indicates the approximate depth

of buried, coin-sized objects.

Objects at or near the surface

will illuminate the single

segment at the top of the

scale.

More deeply buried objects will illuminate more segments, indicating

depths of 2, 4, or 6 inches, as identified to the left of the display.

The depth indicator is not accurate for large, or irregularly shaped, objects.

However, the scale will provide relative depth indications for larger objects; a

given object will induce deeper readings the farther it is from the searchcoil.

BASIC OPERATION

The RIGHT SIDE of the display classifies objects into three categories.

Silver/Copper: ------------------------------------------

Objects composed of silver and

cooper will illuminate this arrow.

Buried and heavily oxidized metal

objects, such as old tin cans, can

also fall into this category. Larger

aluminum objects, like beverage

cans, will sometimes fall into this

category.

Mid-Range: ------------------------------------------------

Mid-range objects cover a large

variety of metals.

Among them are: pull-tabs from

beverage containers, nickels,

medium-sized gold objects, some

types of aluminum, and zinc.

Iron: -------------------------------------------------------------

All ferrous objects, and some

smaller aluminum objects, fall into

the iron category. Small gold

objects can also fall into this range.

The BOTTOM RIGHT SIDE of the

display will illuminate a Low Battery

Indicator symbol if the batteries are

discharged. The indicator illuminates,

and remains illuminated, when the

9-volt batteries have discharged to a

level of 7.35 volts.

Reading the Display IN THE FIELD

With the detector in use in the field, the display will indicate both the DEPTH

and the TARGET IDENTIFICATION of each object detected. After a target is

detected, these indicators will remain illuminated with this information until

the next target has been detected. If uncertain about the target’s

identification, try sweeping the coil at a faster speed. A more rapid sweep

over a target will generally provide a more accurate target identification.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bounty Hunter Détecteur de métaux

Bounty Hunter

Bounty Hunter DISCOVERY 2200 Manuel utilisateur

Bounty Hunter

Bounty Hunter HandyMan Manuel utilisateur

Bounty Hunter

Bounty Hunter Quick Draw Manuel utilisateur

Bounty Hunter

Bounty Hunter Challenger Manuel utilisateur

Bounty Hunter

Bounty Hunter DISCOVERY 3300 Manuel utilisateur

Bounty Hunter

Bounty Hunter titanium Camo Manuel utilisateur

Bounty Hunter

Bounty Hunter Tracker IV Manuel utilisateur

Bounty Hunter

Bounty Hunter Treasure detector Manuel utilisateur

Bounty Hunter

Bounty Hunter Prospector Manuel utilisateur

Bounty Hunter

Bounty Hunter Pilot Manuel utilisateur

Bounty Hunter

Bounty Hunter Camo-LS Manuel utilisateur

Bounty Hunter

Bounty Hunter Tracker I Manuel utilisateur

Bounty Hunter

Bounty Hunter TimeRanger Manuel utilisateur

Bounty Hunter

Bounty Hunter Lone star Pro Manuel utilisateur

Bounty Hunter

Bounty Hunter PIONEER 202 Manuel utilisateur

Bounty Hunter

Bounty Hunter Land Star Manuel utilisateur

Bounty Hunter

Bounty Hunter Tracker IV Manuel utilisateur

Bounty Hunter

Bounty Hunter Ultra Mag Sharp Shooter Manuel utilisateur

Bounty Hunter

Bounty Hunter PIONEER 202 Manuel utilisateur

Bounty Hunter

Bounty Hunter Tracker II Manuel utilisateur

Bounty Hunter

Bounty Hunter Lone Star Manuel utilisateur

Bounty Hunter

Bounty Hunter Quick Praw II Manuel utilisateur

Bounty Hunter

Bounty Hunter Sharp Shooter II Manuel utilisateur

Bounty Hunter

Bounty Hunter Fortune Hunter Manuel utilisateur

Manuels Détecteur de métaux populaires d'autres marques

Garrett

Garrett MAGNASCANNER CS 5000 Manuel utilisateur

Valex

Valex 1800200 Manuel utilisateur

Gauss

Gauss MIL MD Manuel utilisateur

Velleman

Velleman CS130 Manuel utilisateur

Sears

Sears 321.596370 Manuel utilisateur

Eriez

Eriez X8 Manuel utilisateur

Steinberg Systems

Steinberg Systems SBS-MD-22 Manuel utilisateur

Zircon

Zircon MetalliScanner m60c Manuel utilisateur

nalanda

nalanda MD027 Manuel utilisateur

REV Ritter

REV Ritter CB-7005 Manuel utilisateur

Minelab

Minelab F1A4 Manuel utilisateur

Fisher Research Labs

Fisher Research Labs F70 Manuel utilisateur

Steinberg Systems

Steinberg Systems SBS-MD-12 Manuel utilisateur

GOLDEN MASK

GOLDEN MASK 5 Manuel utilisateur

Grizzly

Grizzly YM 203 Manuel utilisateur

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Manuel utilisateur

Treasure Cove

Treasure Cove Vibra-Probe 560 Manuel utilisateur

Accurate Locators

Accurate Locators XL16 IMAGER Manuel utilisateur
