BOSSCO CLIMA 3T Manuel utilisateur

Instruction Manual

Clima 3T

EN 1004-2 en

Mobile Aluminium Tower

1450/850 Clima

3T - Through the Trapdoor Method

BoSS Clima 3T Instruction Manual

1bossaccesstowers.com

Contents

1Safety First

1.1 Introduction 2

1.2 Tower Designation 3

1.3 Maintenance - Storage - Transport 3

2Building the Tower

2.1 Pre-Assembly Checks 4

2.2 Component Diagram 6

2.3 Quantity Schedule 8

2.4 Stabilisers 11

2.5 Assembly 12

2.5.1 Assembly General: Steps to 14

2.5.2 Assembly For 1450 Towers: Steps to 15

2.5.3 Assembly For 850 Towers: Steps to 18

2.6 Dismantling 21

3 Using the Tower

3.1 Safety Checklist 22

3.2 Pre-Use Checklist 22

3.3 Use 23

3.4 Movement Of TheAssembled Prefabricated Tower Scaffold 24

1 3

4 8

4 9

2BoSS Clima 3T Instruction Manual

1 Safety First

1.1 Introduction

Please read this instruction manual carefully.

This instruction manual shall be available at the location of use of

this mobile access tower. Instruction manuals are also available to

download at www.bossaccesstowers.com.

This product shall only be used in accordance with this manual without any

modiﬁcation.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY LEAD TO

DEATH OR SERIOUS INJURY.

Mobile access towers must always be used in accordance with the national

regulations. If any aspect of these instructions conﬂicts with local regulations please

contact Werner UK Sales & Distribution Ltd. for advice.

Please note that diagrams are for illustrative purposes only.

User training courses are available, but must not be used as a substitute for

familiarity with this manual.

BoSS mobile aluminium towers are light-weight scaffold towers used throughout

the building and construction industry for both indoor and outdoor access solutions

where a stable and secure platform is required. Ideal for maintenance and

installation work or short-term access, the highly versatile towers provide a strong

working platform for a variety of heights.

Veriﬁcation and assessment documentation is held by Werner UK Sales &

Distribution Ltd.

Compliances The BoSS Clima 3T mobile tower system has been designed,

tested, approved and certiﬁed to EN 1004-1:2020.

This instruction manual is in compliance with EN 1004-2-en.

3bossaccesstowers.com

1 Safety First

1.2 Tower Designation

EN 1004 3 8/12 XXXD H2

Design Code

Load Class (2 = 153kg/m2UDL, 3 = 204kg/m2UDL*)

Max. Platform Height Outdoors (m)

Max. Platform Height Indoors (m)

Access Method

A = Stairway, B = Stair ladder, C = Inclined Ladder, D = Vertical Ladder

Clear Height Class (H1 = 1.85m, H2 = 1.90m)

*UDL = Uniformly distributed load

1.3 Maintenance - Storage – Transport

•The BoSS mobile tower system is robust and requires little maintenance.

•All components and their parts should be regularly inspected to identify

damage, particularly to joints.

•Refer to the BoSS Inspection Guidance for detailed inspection and

maintenance advice, the guidance is available to download at:

www.bossaccesstowers.com.

•Threads, hinges, and brace latches may be lubricated with light oil. Ensure oil

does not contaminate climbing or walking surfaces.

•Safety labels should be kept legible. Replacement labels are available from

Werner UK Sales & Distribution Ltd.

•Surfaces should be kept reasonably free of dried paint, plaster etc.

•Use of solvents on wooden platform surfaces and plastic components should

be avoided.

•Components should be stored in clean, dry conditions with due care to prevent

damage.

•During transportation ensure components are not damaged by excessive

strapping forces.

4BoSS Clima 3T Instruction Manual

2 Building The Tower

2.1 Pre-Assembly Checks

•Check overhead that the area into which the structure is to be erected contains

no obstructions, particularly electrical or radio radiation hazards. The structure is

conductive.

•Ensure the ground on which the mobile access tower is to be erected is capable

of supporting the tower in use.

•Check the surface is level within the 210mm range of the adjustable legs.

•Only components speciﬁed in this manual shall be used with BoSS towers.

Check all required components are onsite and in a suitable working condition.

•Damaged components shall not be used and must

be put beyond use and disposed of according to local

regulations.

•Adjustable legs should only be used for levelling purposes and never to gain

extra height.

•Ensure distance from the ground to ﬁrst climbing rung is less than 400mm.

•Only climb the tower from the inside using the access

method provided.

•This tower provides a work platform. It must not be

used to access other structures.

•Tower scaffolds are not designed to be lifted or suspended.

•Ensure the safe working load on the structure is not exceeded.

•Tools and materials should be lifted using a reliable lifting material (e.g. a strong

rope) employing a reliable knot (e.g. clove hitch) to ensure safe fastening and

always lift within the footprint of the prefabricated tower scaffold (i.e. within the

area bounded by the stabilisers).

5bossaccesstowers.com

•Check this manual is available and its contents familiar to all those involved.

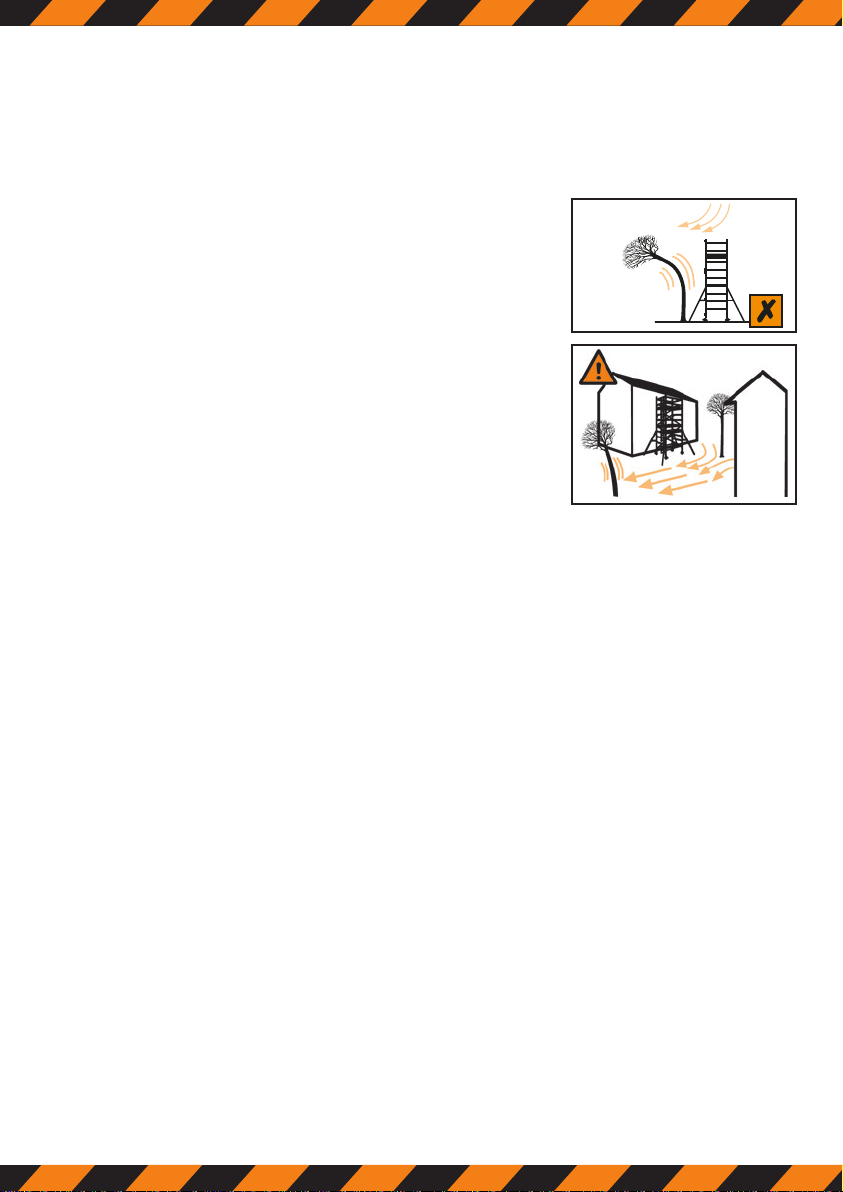

•If assembling outdoors; check the forecast windspeed.

○The assembled tower is certiﬁed to wind forces

equating to 27mph, but handling components under

those conditions would be hazardous.

○Also consider the wind funnelling effect of nearby

buildings.

•Towers greater than 8.2m platform height are for indoor use only.

•This structure is designed to be self-supporting under the loading condition

requirements of EN 1004-1:2020 and does not require tying in. Consideration

should be given to potential wind conditions if the tower is left unattended.

2 Building The Tower

27mph

12m/sec

6BoSS Clima 3T Instruction Manual

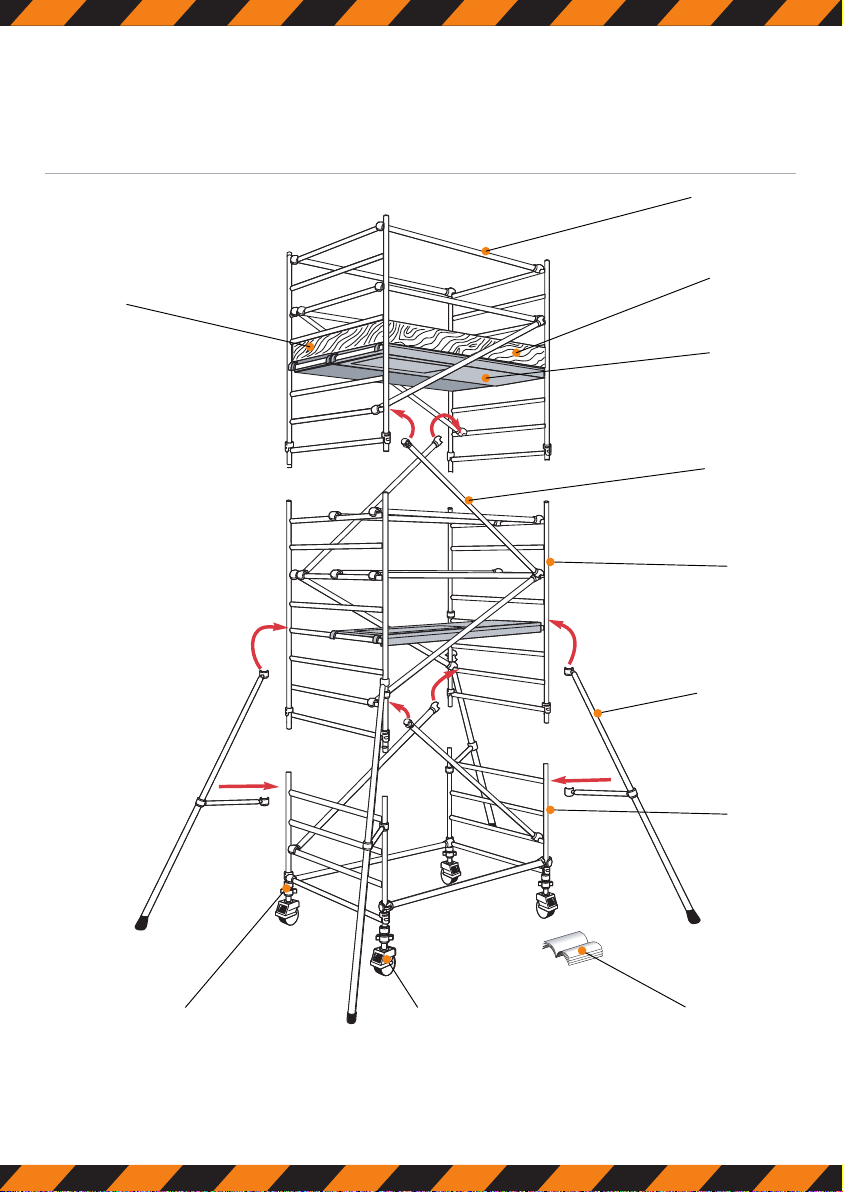

2.2 Component Diagram

2 Building The Tower

Instruction

Manual

Horizontal

Brace

Clima

Frame

8 Rung

Platform

(Fixed and

Trapdoor

Platforms)

End Toe

Board

Stabiliser

Adjustable Leg Castor

Diagonal

Brace

Side Toe

Board

Clima

Frame

4 Rung

7bossaccesstowers.com

2 Building The Tower

Component Weights

Component

Code Name Weight (kgs)

32842300 Castor 150mm 3.3

33551300 Adjustable Leg 1.1

39251300 Clima Frame 850 4 Rung 4.3

39451300 Clima Frame 850 6 Rung 6.0

39351300 Clima Frame 850 8 Rung 7.7

39151300 Clima Frame 1450 4 Rung 5.9

39751300 Clima Frame 1450 6 Rung 8.3

39651300 Clima Frame 1450 8 Rung 10.8

30151100 Fixed Platform 1.8m 11.8

30251100 Fixed Platform 2.5m 16.0

30451100 Trapdoor Platform 1.8m 12.7

30551100 Trapdoor Platform 2.5m 16.3

31251300 Horizontal Brace 1.8m (Red) 2.0

34851300 Horizontal Brace 2.5m (Red) 2.4

31351300 Diagonal Brace 2.1m (Blue) 2.1

31451300 Diagonal Brace 2.7m (Blue) 2.5

30450900 Side Toe Board 1.8m 3.2

30550900 Side Toe Board 2.5m 4.4

30250900 End Toe Board 0.85m 1.0

30350900 End Toe Board 1.45m 2.1

30150900 Toe Board Holder 0.3

31751300 SP7 Fixed Stabiliser 3.8

31851300 SP10 Telescopic Stabiliser 8.8

31951300 SP15 Telescopic Stabiliser 12.8

8BoSS Clima 3T Instruction Manual

2 Building The Tower

2.3 Quantity Schedule

BoSS 1450 Clima to EN 1004: Available in 2 lengths - 1.8m and 2.5m

Internal or External Use Internal Use

Component

Code Component

Working

Height (m) 3.2 3.7 4.2 4.7 5.2 5.7 6.2 6.7 7.2 7.7 8.2 8.7 9.2 9.7 10.2 10.7 11.2 11.7 12.2 12.7 13.2 13.7 14.2

Platform

Height (m) 1.2 1.7 2.2 2.7 3.2 3.7 4.2 4.7 5.2 5.7 6.2 6.7 7.2 7.7 8.2 8.7 9.2 9.7 10.2 10.7 11.2 11.7 12.2

32842300 Castor 150mm 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

33551300 Adjustable Leg 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

39151300 Clima Frame 1450 4 Rung - 2 2 - - 2 2 - - 2 2 - - 2 2 - - 2 2 - - 2 2

39751300 Clima Frame 1450 6 Rung - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 -

39651300 Clima Frame 1450 8 Rung 2 - 2 2 4 2 4 4 6 4 6 6 8 6 8 8 10 8 10 10 12 10 12

30151100/

30251100

Fixed Platform 1.8m /

2.5m 1 1 1 2 1 1 1 2 1 1 1 2 1 1 1 2 1 1 1 2 1 1 1

30451100/

30551100

Trapdoor Platform 1.8m

/ 2.5m 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6

31251300/

34851300

Horizontal Brace 1.8m /

2.5m (Red) 6 6 6 10 10 10 10 14 14 14 14 18 18 18 18 22 22 22 22 26 26 26 26

31351300/

31451300

Diagonal Brace 2.1m /

2.7m (Blue) 2 4 4 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24

30450900/

30550900

Side Toe Board 1.8m /

2.5m 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

30350900 End Toe Board 1.45m 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

30150900 Toe Board Holder 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

31751300 SP7 Fixed Stabiliser 4 4 4 4 4 4 4 4 - - - - - - - - - - - - - - -

31851300 SP10 Telescopic Stabiliser - - - - - - - - 4 4 4 4 4 - - 4 4 4 4 4 4 4 4

31951300 SP15 Telescopic Stabiliser - - - - - - - - - - - - - 4 4 - - - - - - - -

Tower Total Self-weight 1.8m (kgs) 107 119 124 154 160 171 177 206 232 244 249 278 284 313 318 330 336 348 353 383 389 401 406

Tower Total Self-weight 2.5m (kgs) 120 132 137 173 178 190 195 230 256 268 273 308 313 325 348 383 371 383 388 424 429 441 446

Max. Exerted Leg Load 1.8m (kgs) 66 74 82 90 98 106 114 122 133 145 157 168 180 187 195 196 208 220 232 244 256 268 280

Max. Exerted Leg Load 2.5m (kgs) 104 113 122 131 140 149 158 167 179 192 205 217 230 232 235 235 251 266 281 297 313 329 344
