Boss Audio Systems BV9998B Manuel utilisateur

12.2011

BV9998B

SRC REL

AUX

ANGLE

MIC

BV9998B

REL

AUX

MIC

SRC

IR-SW

Accessory

Accessory Quantity

User Manual 1PC

Wire

USB Cable

Keys 2PCS

1PC

Remote controller

Warranty card

1PC

2PCS

Setup need password

DVD Parental control function：The default set

for DVD is #8 adult, which means all grades of

DVD can be read without entering password.To

change the default grade,you need to follow the

below procedure: Press SETUP button on the

remote, display will show the system set up menu

and the submenu,select password and enter

0000, you will be able to choose the DVD

grade as default.

SETUP NEED PASSWORD

Setup need password

During actual operation, when you enter TV setup,

system setup, radio area and touch calibration, you

need to enter the password "888888".

DVD Parental control function：The default set

for DVD is #8 adult, which means all grades of

DVD can be read without entering password.To

change the default grade,you need to follow the

below procedure: Press SETUP button on the

remote, display will show the system set up menu

and the submenu,select password and enter

0000, you will be able to choose the DVD

grade as default.

Wiring Diagram 25

Accessory

SETUP NEED PASSWORD 27

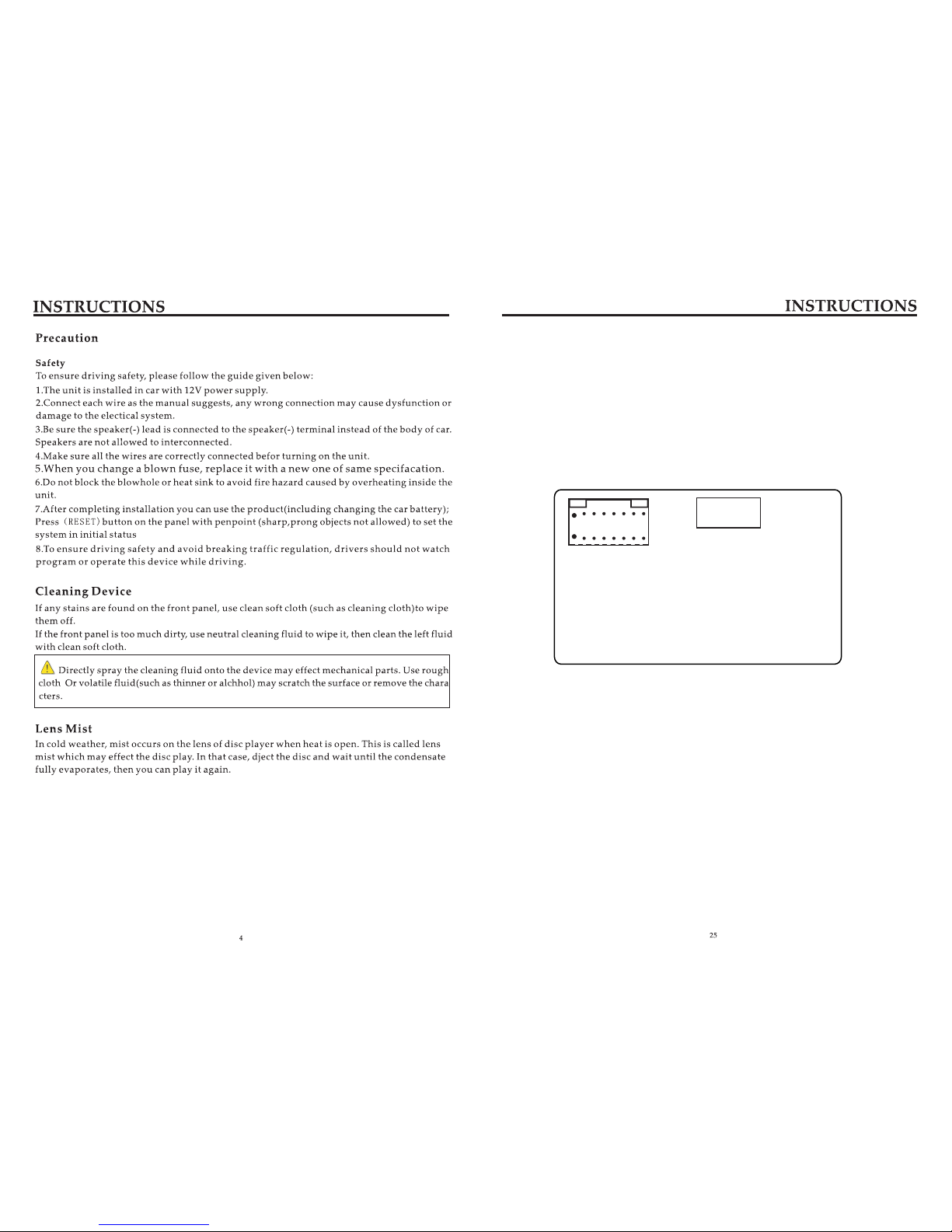

Wiring Diagram

This player is equipped with ISO standard connector, please follow below instruction:

● Yellow – 12 V Constant

● Black – Ground wire

● Blue - Power Antenna / Remote Amp Turn On

● Orange – Back-Up Camera Trigger (+)

● White/White black - Left front speaker (+-)

● Purple/Purple black - Right rear speaker (+/-)

● Green/Green black - Left rear speaker (+/-)

● Red - ACC ON (+12V) ● Grey/Grey black - Right front speaker (+/-)

A Jack

11 12

4 B Jack:

Dark grey with white tip:Audio output (front left)

Dark grey with red tip:Audio output (front right)

Light grey with white tip:Audio output ( left rear)

Light grey with red tip:Audio output (right rear)

Grey with yellow tip:Video output

Black with White tip: AUX input (left)

Black with red tip: AUX input (right)

Black with yellow tip: Video input

Orange with yellow tip: rearview input

Brown with brown tip: Subwoofer output

Black with black tip 1 : Radio antenna

(White, black, brown): SWC

Blue with white tip: Dual audio output (left)

Blue with red tip: Dual audio output (right)

1.Black ground

2.Red key switch power

3.Brake detecting

4.Blue power antenna control

5.Purple RR+

6.Grey FR+

7.White FL+

8.Green RL+

9.Yellow BATT

10.NC

11.Orange reverse rear view control

12.NC

13.Purple/black RR-

14.Grey/black FR-

15.White/black FL-

16.Green/black RL-

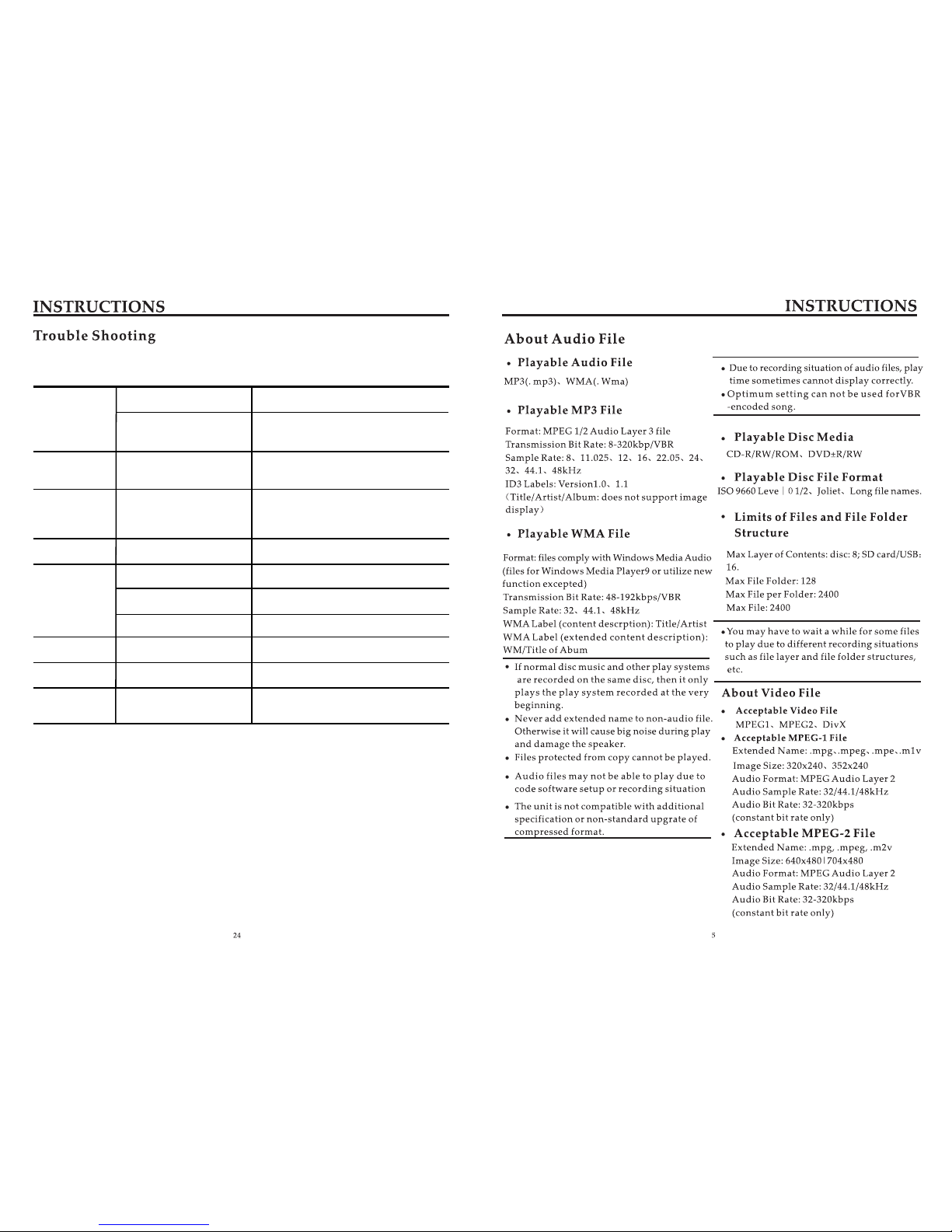

PROBLEM CAUSE SOLUTION

After ignition switch

off ,setting

information all lose

Reset information and save

Change battery or fuse

Cannot power on

Change fuse same as the old one

Some factors cause MPU

wrong operation

Press RES button on the panel by

penpoint, then, power on

Poor performance

of radio station

Connot load disk There is a disk inside Remove disc before inserting another one

Weak signal Move the car to another place, then research

Cannot play disc

Disc is scratched Change new disc

Put wrong side of disc into

the unit Insert in the disk with sign side up

Clean lens by lens clean disc

Lens is dirty

Cannot switch

language/subtitle There is only one language/

subtitle in disc

If disc is not with multi-language/subtitle,

it cannot switch language/subtitle

No image Other factors cause MPU

wrong operation Press [RES] button on the panel by

penpoint, then, power on

Cannot watch

image during

driving

It’s not allowed to watch image

during driving

Park the car in a safe place, put the car stall

in “ P ” postion, pull up the hand brake,

parking brake wire must be grounded

Check fuse

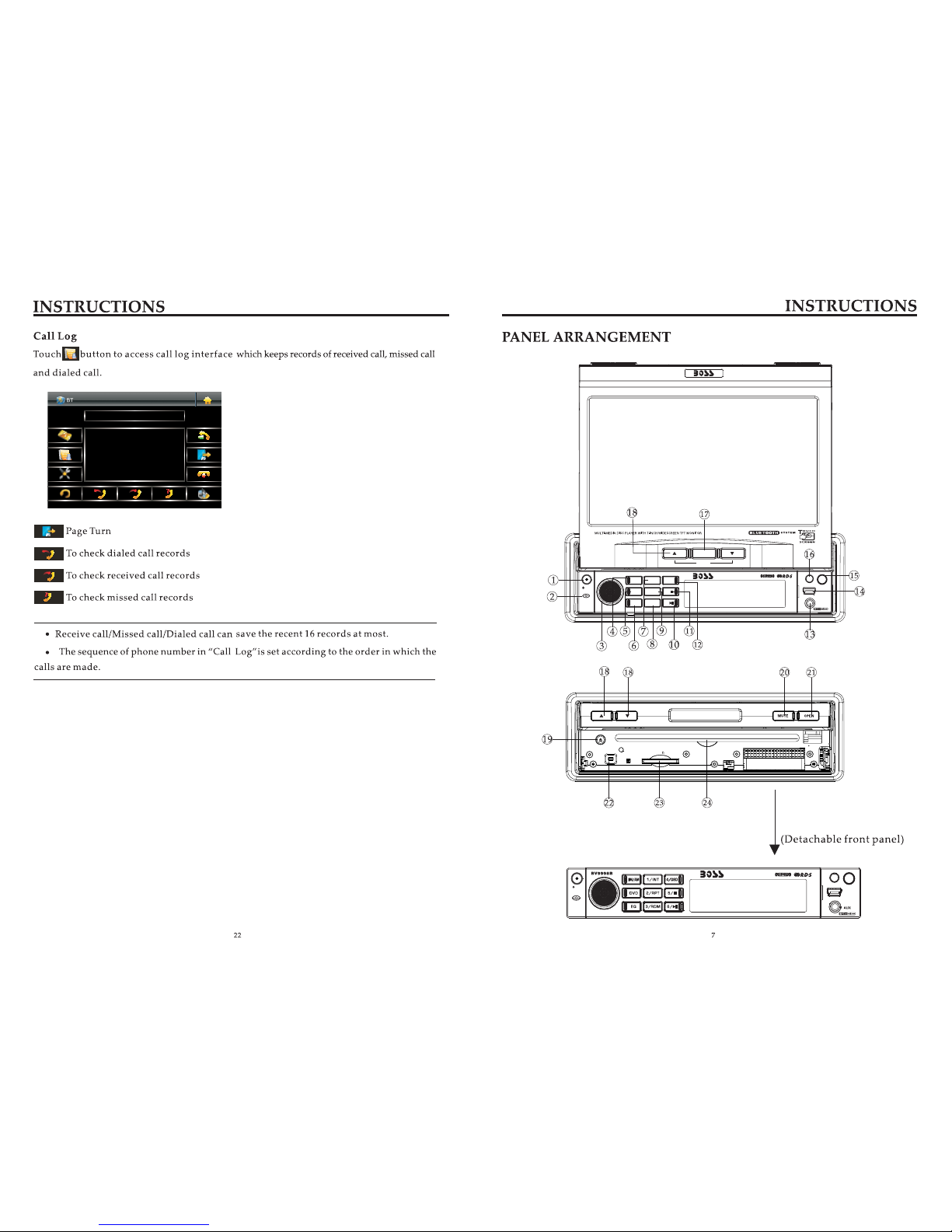

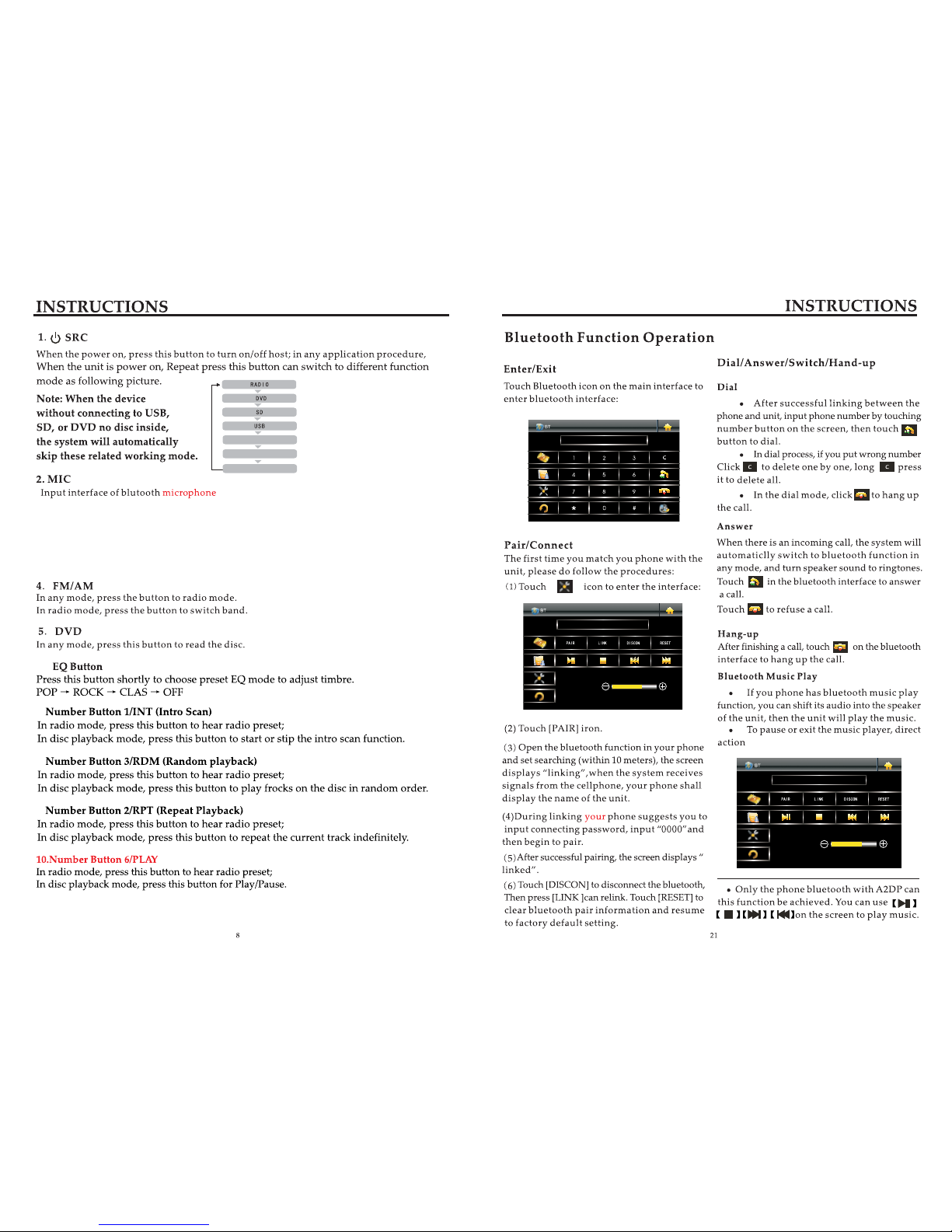

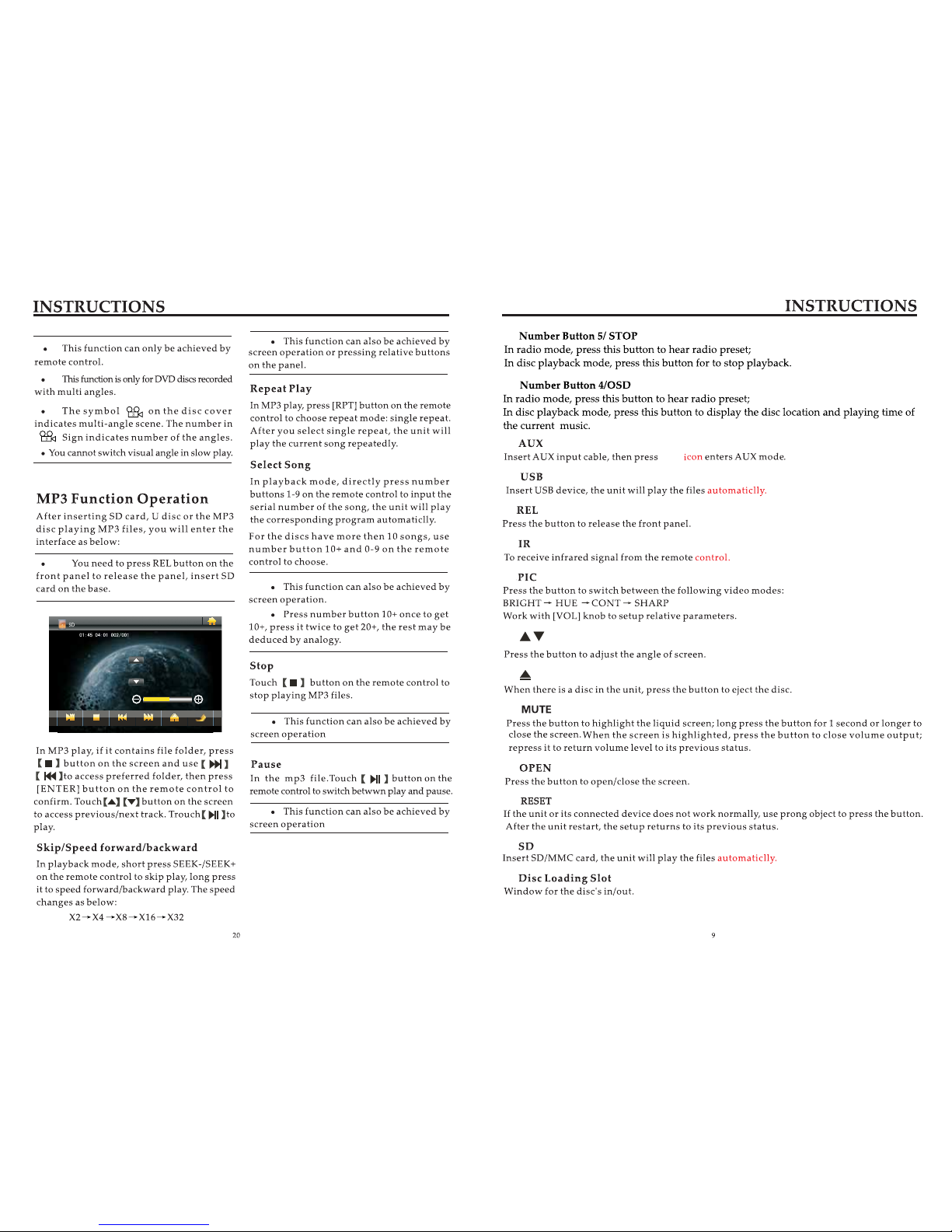

RESET SD

AUX

PIC

1/INT

2/RPT

3/RDM

4/ OSD

FM /AM

DVD

BV9998B

ANGLE

SRC

MIC

IR REL

REL

MIC

SRC

3. Sound effect setup

Repeatedly short press the button to select:

Bas→Tre→Bal→Fad→Bright→Hue→Cont→Sharp→Vol

You can make setup as you like, once a certain function is selected, work with the encoder

knob to adjust.

AUX 1

AUX 2

Bluetooth

14.

16.

17.

18.

19.

21.

23.

24.

15.

22.

20.

11.

12.

AUX

13.

AUX

MONO LEFT MONO RIGHT MIX MONO STERERO

IR- SW

4. SOURCE/IR-SW

Short press the button to switch the mode.

Long press the button to switch between

foreground/background remote control.

Only works when the background mode

is on.

5.EQ/

Press the button to select different sound effect

mode.

When the unit supports Bluetooth, press the

button to answer the call.
