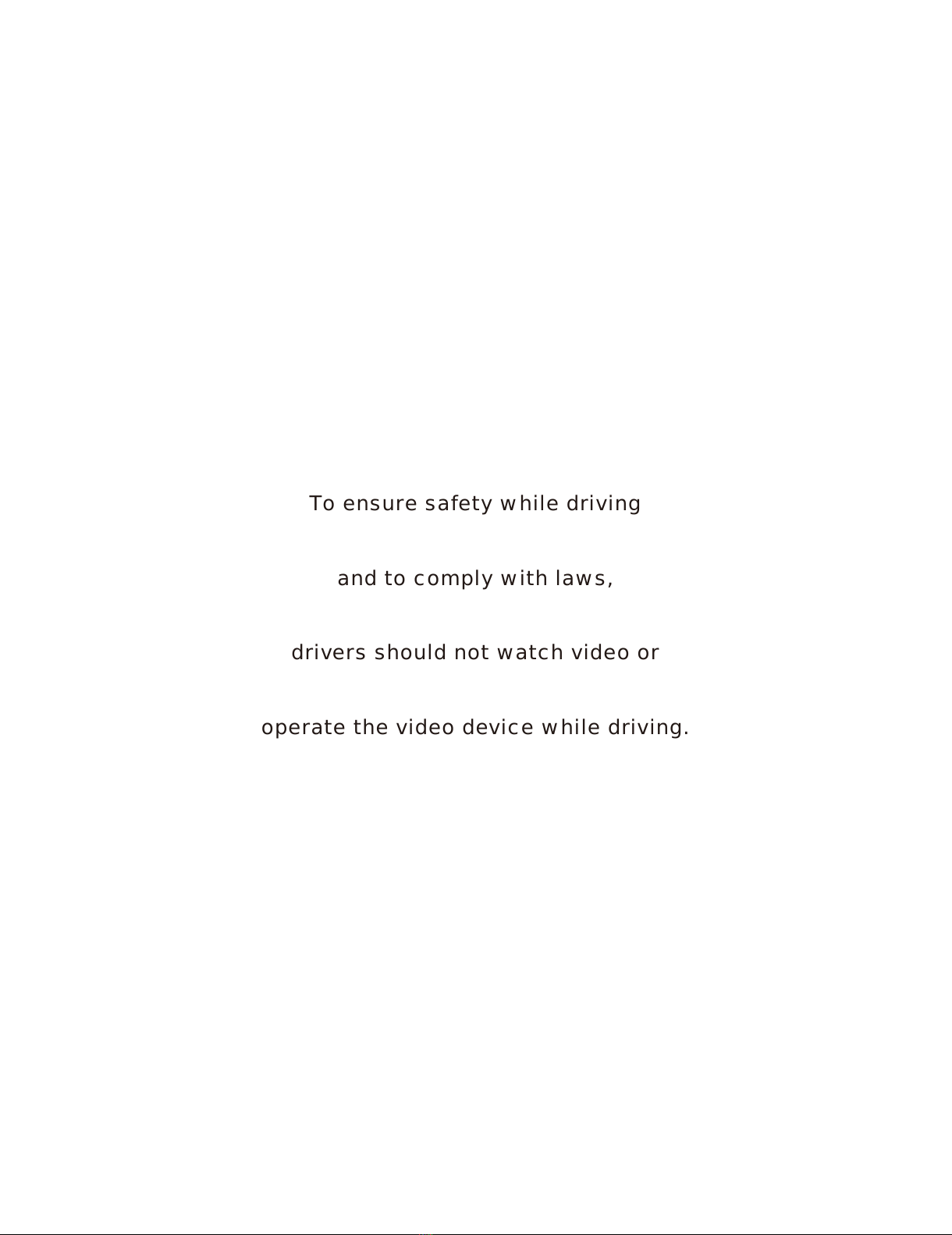

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

All manuals and user guides at all-guides.com

Unit Installation

25

26

Wires Connection Description

Congratulations on your purchase of a Boss Audio Systems

Multimedia Receiver.

It has been designed, engineered and manufactured to bring you

the highest level of performance and quality, and will offer you

years of entertainment pleasure.

R

All manuals and user guides at all-guides.com

178*100*169.5mm

BV9364B

, Rear USB

All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

Remote Control External MIC

Power Cable

Back installation

bracket

All manuals and user guides at all-guides.com

all-guides.com

All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

UNIT INSTALLATION

Bracket

1.Put the 2 brackets to the left and right side of the unit;

2.Use screws to fix the brackets to the unit.

3. Once the screws are attached, the brackets can be adjusted

forward or aft depending on the installation requirements.

Bracket

Screw

All manuals and user guides at all-guides.com

WIRES CONNECTION DESCRIPTION

The Description of the Input/Output Interface of the Rear Cabinet

+

B

WHITEKEYA(SWC)

BROWNKEYB (SWC)

B

BLACK Rear USB Plug

BLACK MIC -----> BT MIC

LACKKEYGROUND(SWC)

YELLOW(B )12V

REDACC(+12V)

BLUEANTCONT

BLACK

BRAKE



GROUND

C onnec tor A

WHITELEFTFRONT(+)

WHITEBLACKLEFTFRONT(-)

GREENLEFTREAR(+)

GREENBLACKLEFTREAR(-)

GREYRIGHTFRONT(+)

GREYBLACKRIGHTFRONT(-)

VIOLETRIGHTREAR(+)

VIOLETBLACKRIGHTREAR(-)

LT.GREEN

VIOLET/WHT(+)REV.SIGNAL

B

A

ANTENNA

VIDEO

OUT REAR

CAMERA

INPUT

FRONTPRE-AMP

OUTPUT

REAR PRE-AMP

OUTPUT A/V INPUT

SUBWOOFER

OUTPUT
