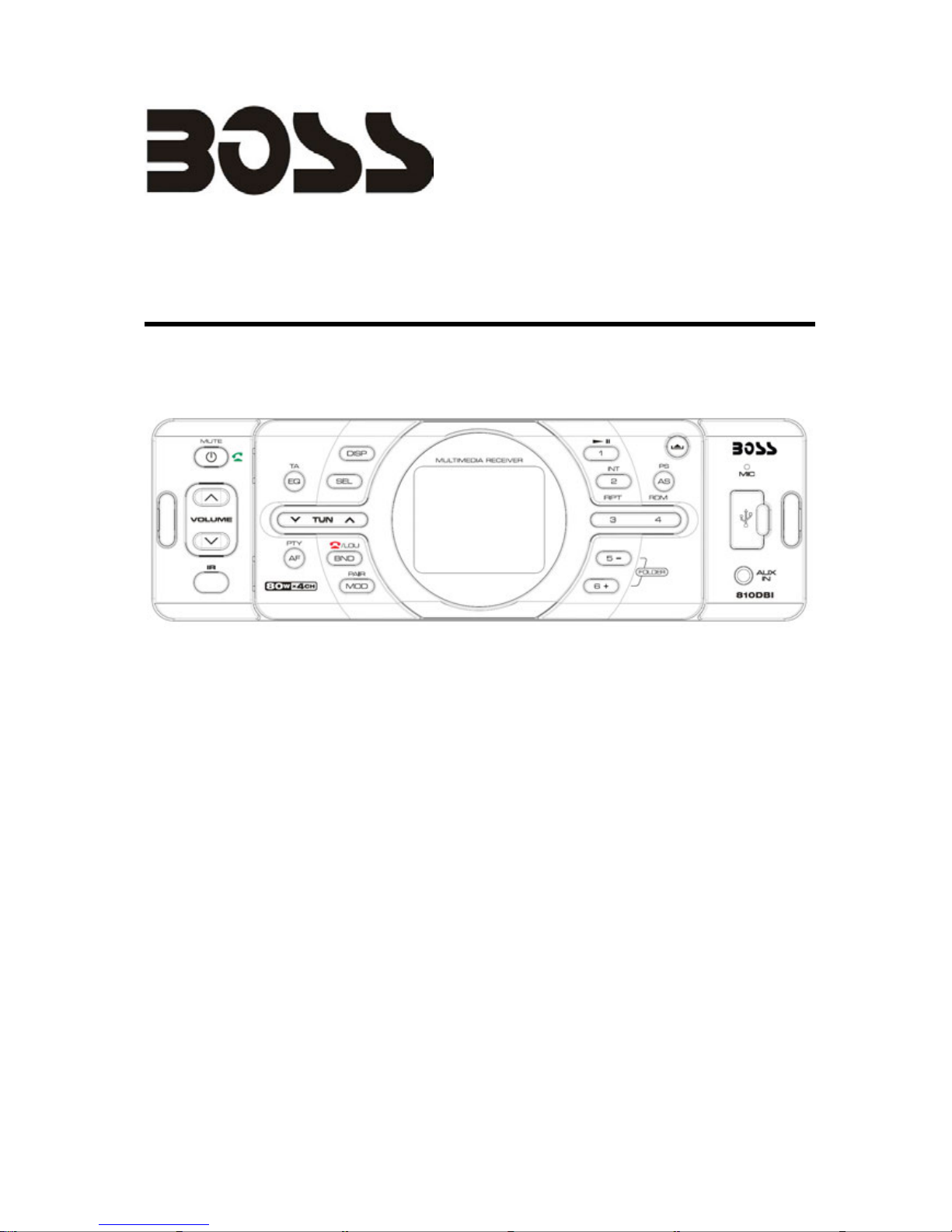

OWNER’S MANUAL

Mobile Audio System

yPLL Synthesizer Stereo Radio

yAutomatic Memory Storing

yDetachable Control Panel

yRBDS Operation

yBluetooth Hands-free function & A2DP (Advanced Audio

Distribution Profile) Stereo Audio Transmission

yAuxiliary Input Function

yUSB Interface

yMemory Card Interface

yWorking for iPhone

yRemote Control

INSTALLATION

Notes:

yChoose the mounting location where

the unit will not interfere with the normal

driving function of the driver.

yBefore finally installing the unit, connect

the wiring temporarily and make sure it

is all connected up properly and the

unit and the system work properly.

yUse only the parts included with the

unit to ensure proper installation. The

use of unauthorized parts can cause

malfunctions.

yConsult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

yInstall the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop, like

an emergency stop.

yIf installation angel exceeds 30° from

horizontal, the unit might not give its

optimum performance.

yAvoid installing the unit where it would

be subject to high temperature, such as

from direct sunlight, or hot air, from the

heater, or where it would be subject to

dust, dirt or excessive vibration.

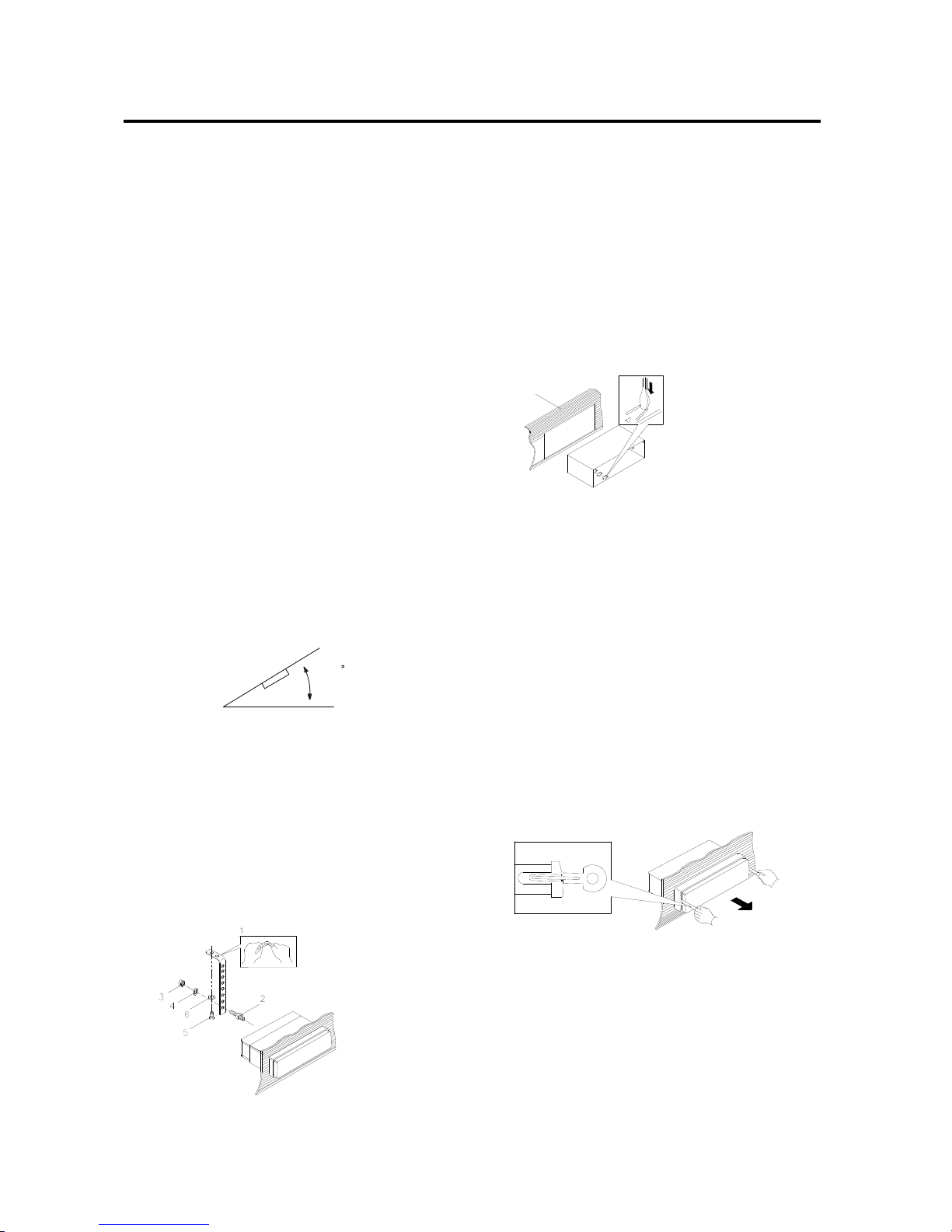

DIN FRONT-MOUNT (Method A)

Installing the unit

(1) Metal Strap

Be sure to use the strap to secure the

back of the unit of the place. The strap

can be bent by hand to the desired

angle.

(2) Mounting Bolt

(3) Hex Nut

(4) Spring Washer

(5) Tapping Screw

(6) Plain Washer

(a) Dashboard

(b) Holder

After inserting the holder into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

Removing the unit

Insert both of the supplied keys into the

slots at the middle left and right sides of the

unit, then pull the unit out of the dashboard.

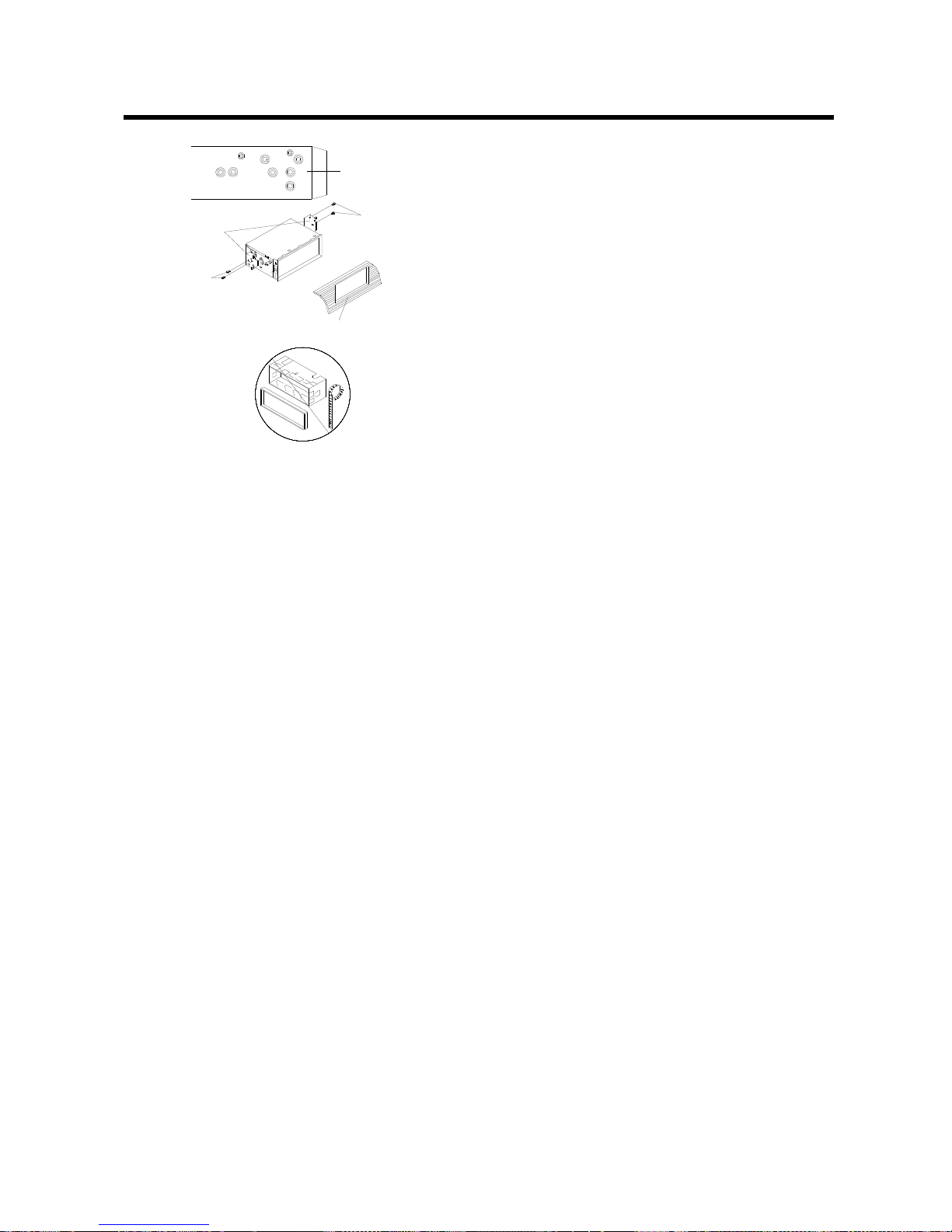

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota), N

(Nissan) located on both sides of the unit to

fasten the unit to the factory radio mounting

brackets supplied with your vehicle.

INSTALLATION

To fasten the unit to the factory radio

mounting brackets.

Align the screw holes on the bracket with

the screw holes on the unit, and then

tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the

metal strap are not used for method B

installation.

Factory Radio

Mounting Bracket

Dashboard or Console

Side View showing

Screw Holes marked

T, N or S

Screw

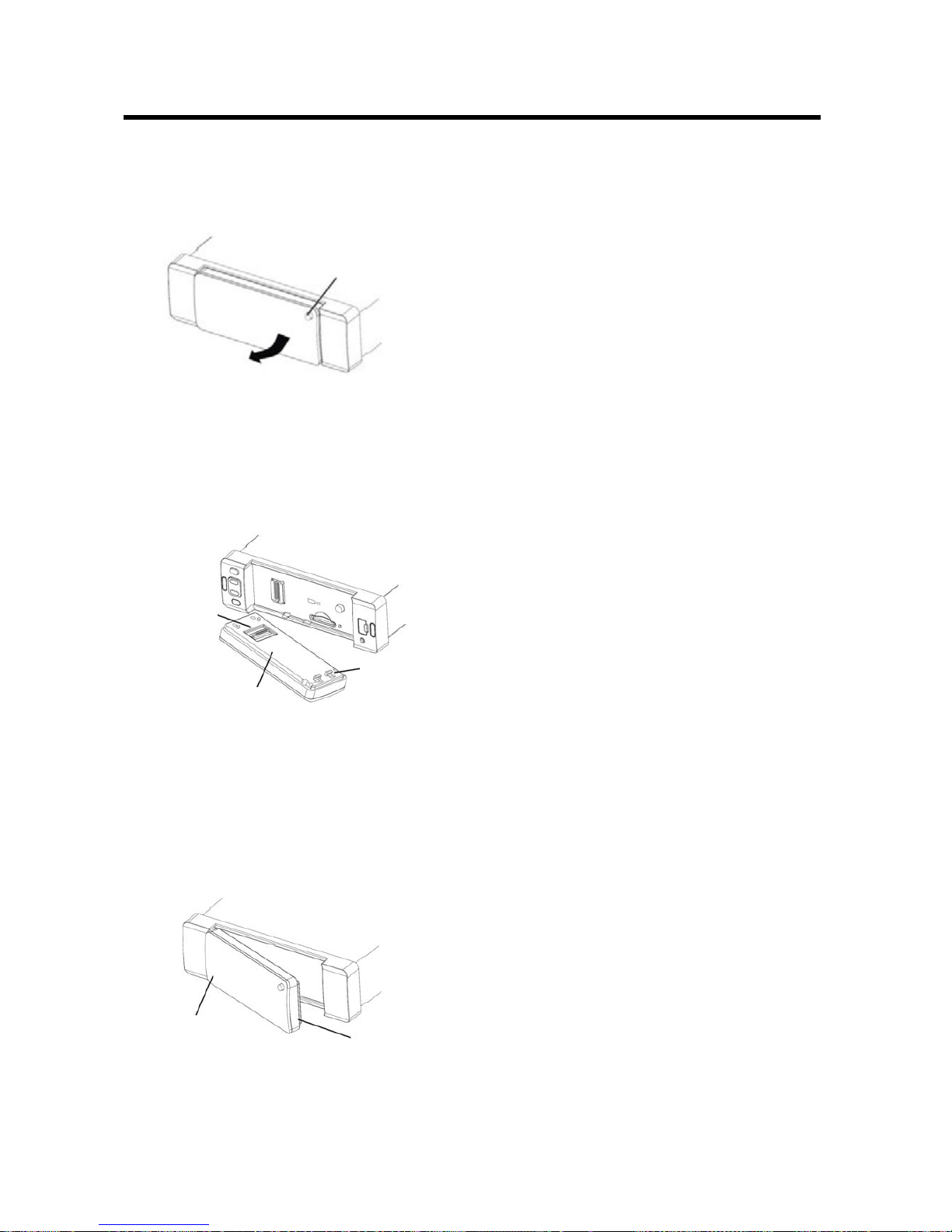

Detach the Control panel

1. Press the Release button, the front

panel will be folded down.

2. To remove the front panel, lift it up at

a little angle from horizontal position,

then first pull out the right side and

then pull out the left side.

To Install the Control Panel

To install the front panel, first insert the left

side into proper position insert the right

side into place.

Precautions when handling

1. Do not drop the control panel.

2. Do not put pressure on the display or

control buttons when detaching or

re-installing the control panel.

3. Do not touch the contacts on the

control panel or on the main unit body.

It may result in poor electrical contact.

4. If any dirt or foreign substances

adhered on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the control panel to high

temperatures or direct sunlight in

anywhere.

6. Keep away any volatile agents (e.g.

benzene, thinner, or insecticides) from

touching the surface of the control

panel

7. Do not attempt to disassemble the

control panel.

Release button

The right side

The left side

Front panel

The left side The right side

USING THE DETACHABLE CONTROL PANEL

WIRING CONNECTION

Connector A

1. N.C

2. N.C

3. N.C

4. MEMORY +12V (YELLOW)

5. AUTO ANTENNA OUTPUT (BLUE)

6. N.C

7. +12V (TO IGNITION KEY) (RED)

8. GROUND (BLACK)

Connector B

1. REAR RIGHT SPEAKER (+) (VIOLET)

2. REAR RIGHT SPEAKER (-) (VIOLET/BLACK)

3. FRONT RIGHT SPEAKER (+) (GRAY)

4. FRONT RIGHT SPEAKER (-) (GRAY/BLACK)

5. FRONT LEFT SPEAKER (+) (WHITE)

6. FRONT LEFT SPEAKER (-) (WHITE/BLACK)

7. REAR LEFT SPEAKER (+) (GREEN)

8. REAR LEFT SPEAKER (-) (GREEN/BLACK)

OPERATION

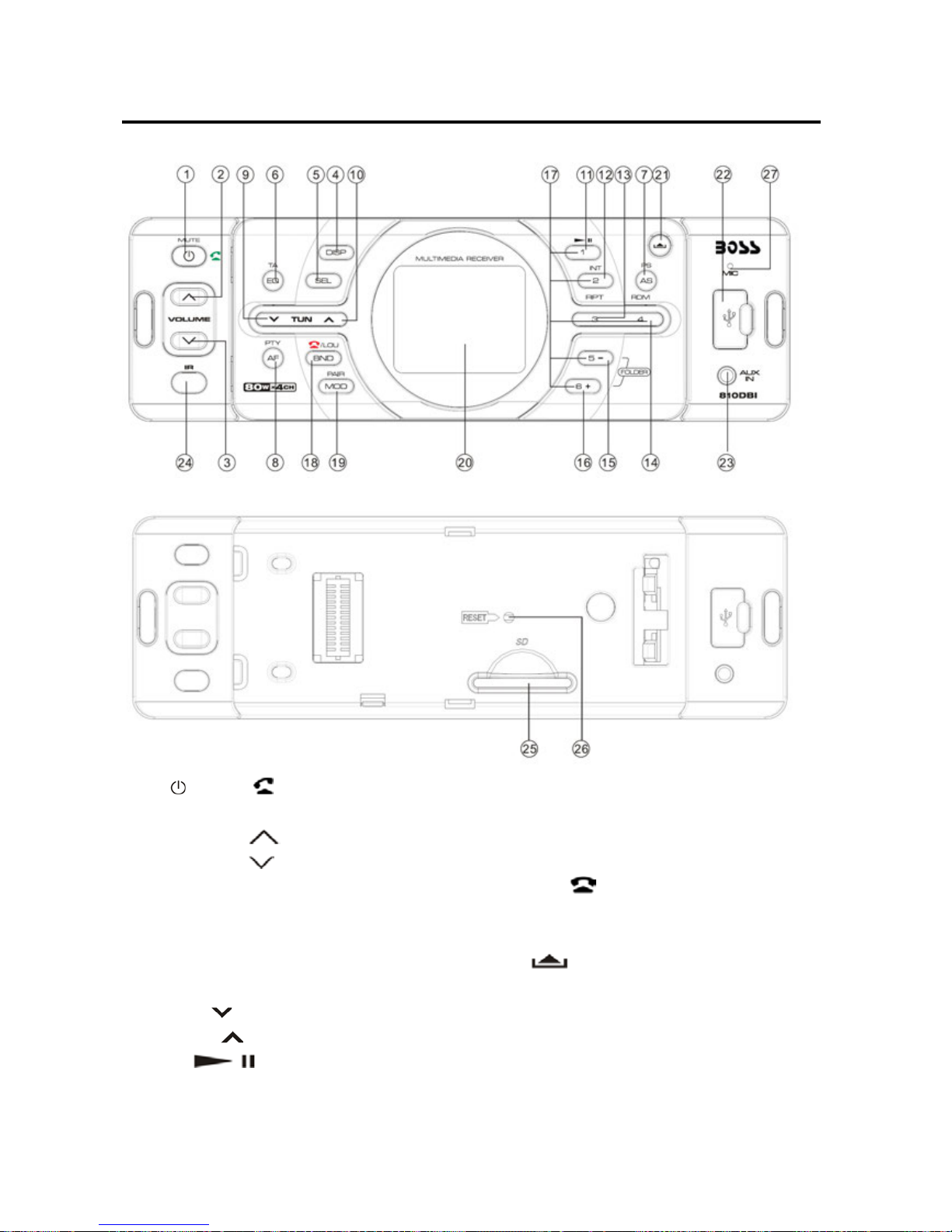

LOCATION OF KEYS

When pressing the release button (1) to remove the detachable control panel:

1. /MUTE/ (power/mute/

pick up phone) button

2. VOLUME button

3. VOLUME button

4. DISP button

5. SEL button

6. EQ/TA button

7. AS/PS button

8. PTY/AF button

9. TUN button

10. TUN button

11. 1 button

12. 2 INT button

13. 3 RPT button

14. 4 RDM button

15. 5 FOLDER- button

16. 6 FOLDER + button

17. 1-6 preset buttons

18. BND/ /LOU button

19. MOD/PAIR button

20. Liquid crystal display

21. (

release) button

22. USB interface

23. AUX IN jack

24. Remote sensor

25. Memory card interface

26. RESET button

27. MIC (Microphone)

OPERATION

BASIC OPERATION

SWITCHING ON/OFF THE UNIT

When connections completed, press

button (1) to switch on the unit. When

system is on, press and hold button (1)

to turn off the unit.

CONTROL PANEL RELEASE

Press button (21) to detach the

removable control panel.

SOUND ADJUSTMENT

Press the SEL button (5) shortly to select

the desired adjustment mode. The

adjustment mode will change in the

following order:

VOL BAS TRB BAL FAD

(Volume) (Bass) (Treble) (Balance) (Fader)

By using the volume /buttons

(2&3), it is possible to adjust the desired

sound quality.

SYSTEM SETTING

Press and hold the SEL button (5) on the

front panel to enter system setting mode.

Then shortly press the SEL button (5) to

select the item you want to change and use

the volume /buttons (2&3) to

change the corresponding setting.

1) BEEP ON/OFF

Use the volume /buttons (2&3)

to set Beep sound ON or OFF.

2) AREA EUR/USA

In radio mode, use the volume

/buttons (2&3) to set the

different area frequency spacing.

3) HOUR 12H/24H

Use the volume /buttons (2&3)

to set 12Hours or 24Hours format

4) DIM HI/MID/LOW

In this menu, use the volume /

buttons (2&3) to change the brightness

of the backlight among High, Middle and

Low.

5) PCLK ON/OFF

Use the volume /buttons (2&3)

to set clock on or off when power off,

when set PCLK ON, clock will appear

with backlight on when power off.

6) TV OFF/ON

Use the volume /buttons (2&3)

to set TV on or off.

How to set it please refer to the <iPhone

Operation> below.

7) TA SEEK/ALARM

Use the volume /buttons

(2&3) to set TA SEEK or TA ALARM.

Traffic announcements

TA SEEK: With activated TA

function the unit searches for a

station with traffic announcements.

TA ALARM: No automatic station

search. The unit sounds a beep

tone if no traffic information is

received and NO TP/TA is

displayed. SEEK PI is displayed if

the selected station does not

transmit an RBDS signal.

LOUDNESS

Press BND/LOUD button (18) for several

seconds to reinforce the bass output and

“LD ON” will appear. Press it for several

seconds again to release this function.

SET THE CLOCK

Shortly press the DISP button (4) until the

clock is shown on the display. Then hold

the DISP button (4) until the clock flashes.

Then press TUN (10) button to adjust

the minutes and press TUN button (9)

to adjust the hours.

DISPLAY INFORMATION

Press DISP button (4) to operate as the

conversion of each display mode.

EQUALIZATION

Press EQ button (6) shortly to turn on

equalization function and to select desired

audio mode. There are five kinds of mode

as below:

→FLAT→CLAS→POP M→ROCK M→EQ OFF

OPERATION

MUTE

In USB/SD/Radio/Aux-in mode, press

button (1) shortly to mute down the sound

instantly. Press it again to resume the

sound.

When in iPhone tray mode, shortly

pressing button (1) can set TV ON

mode or TV OFF mode when playing

iPhone video program. And it is no function

when playing music.

LIQUID CRYSTAL DISPLAY

Exhibit current frequency and activated

functions on the display (20).

AUXILIARY INPUT

The unit can be connected to a portable

audio player through the auxiliary input jack

AUX IN (23) on the front panel. After

finishing the connection, you can press

MOD button (19) on the front panel to

switch the mode to AUX mode.

REMOTE SENSOR

Point the remote control handset to the

remote sensor (24). Press the function

keys on the handset to control the system.

RESET FUNCTION

Reset button (26) must be activated with

either a ballpoint pen or thin metal object.

The reset button is to be activated for the

following reasons:

- Initial installation of the unit when all

wiring is completed.

- All the function buttons do not operate.

- Error symbol on the display.

Note: if press reset button (26), the unit

can’t work yet, please use a cotton swab

soaked in isopropyl alcohol to clean the

socket on the front panel.

POWER-DOWN MEMORY FUNCTION

The unit has the power-down memory

function; some data will never lose even

when power's off. You can press the

numerical button 1(11) and MOD button

(19) together to clear the power-down

memory function.

RADIO OPERATION

SWITCHING TO RADIO MODE

Press MOD button (19) shortly to select

radio mode, the radio mode appears in the

display together with the memory band and

frequency.

SELECTING THE FREQUENCY BAND

At radio mode, press BND button (18)

shortly to select the desired band.

The reception band will change in the

following order:

1 FM2 FM3 AM1 AM2

SELECTING STATION

Press TUN button (10) or TUN

button (9) shortly to activate automatic

seek function. Press for several seconds

until “MANUAL” appears on the display,

the manual tuning mode is selected. If both

buttons have not been pressed for several

seconds, they will return to seek tuning

mode and “AUTO” appears on the display.

AUTOMATIC MEMORY STORING &

PROGRAM SCANNING

- Automatic memory storing

Press AS/PS button (7) for several

seconds, the radio searches from the

current frequency and checks the signal

strength until one cycle search is

finished. And then 6 strongest stations

are stored into the corresponding

preset number button.

- Program scanning

Press AS/PS button (7) shortly to scan

preset station. When the field strength

level is more than the threshold level of

stop level, the radio is holding at that

preset number for several seconds with

release mute, then searches again.

OPERATION

STATION STORING

Press any one of the preset buttons (17) (1

to 6) to select a station, which had been

stored in the memory. Press this button for

several seconds to store the current station

into the number button.

RBDS OPERATION

- Select PTY Program

Press PTY/AF button (8) once to

select the PTY group. Then press

the volume /buttons (2&3)

to select the PTY program and press

TUN (10) or (9) to search.

When PTY ON, press PTY/AF

button (8) again to cancel the PTY

function.

- Listening to Traffic Announcement

Press and hold EQ/TA button (6), the

unit will search Traffic Announcement

automatically. Press and hold EQ/TA

button (6) again will exit TA mode.

Note：When selecting AREA EUR in

system setting, AF button is used to switch

on or off RDS function.

USB PLAY OPERATION

There is an USB interface (22) on the front

panel of the unit. You can connect an USB

driver through this interface.

When you connect an USB driver through

the interface, the unit will search the

MP3/WMA files and start to play it

automatically. In other mode, you can also

press MOD button (19) to select USB

mode.

When playing the MP3/WMA files in the

device, the operation is the same with the

MP3 operation described above.

SELECTING TRACKS

Press TUN button (9) or button (10)

to move to the previous track or the following

track. Track number shows on display.

Hold TUN button (9)

or button (10)

to fast reverse or fast forward. The play

starts from when you release the button.

PAUSING PLAYING

Press button (11) to pause play.

Press it again to resume play.

SELECTING FOLDER UP/DOWN

Press FOLDER- button (15) or FOLDER+

button (16) to select folder downward or

upward. If the MP3/WMA files do not

contain any folder, there is no function of

pressing FOLDER- button (15) or

FOLDER+ button (16).

PREVIEWING TRACKS

Press INT button (12) to play first several

seconds of each track. Press again to stop

intro and listen to track.

Press and hold INT button (12) to play first

several seconds of each track in the

current folder and “INT” will flash on the

display. Press it again to exit this mode.

REPEATING TRACKS

Press RPT button (13) to continuously

repeat the same track. Press it again to

stop repeat.

Press and hold RPT button (13) to repeat

all tracks in the current folder and “RPT”

will flash on the display. Press it again to

exit this mode.

PLAYING TRACKS IN RANDOM

Press RDM button (14) to play all tracks on

the USB in random order. Press again to

cancel the function.

Press and hold RDM button (14) to play all

tracks in the current folder in random order

and “RDM” will flash on the display. Press it

again to exit this mode.

SELECTING TRACKS BY AS/PS

BUTTON

AS/PS button (7) is assigned as Digital

Audio Mode selection button operation.

When pressed, it is activated as selecting

each mode of Digital Audio.

Autres manuels pour 810DBI

Table des matières

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems BV9979B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 758DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1470UW Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9982I Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9158B Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 775DI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 870DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems CD-3030R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9650 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9759BD Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 870DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 765DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7943 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8974B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9152 Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems BV7280 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 630CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1200 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9968BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MP3-3160R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9964B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7320 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7975 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
