This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is

easy and convenient to use while driving.

Tips; Here are some tips to show you how easy it is to use this touch sense panel:

Tips

Using a very light touch on the radio panel will activate that feature. You will not need to

"PRESS" hard on the panel to make this radio change features.

The power button along with some of the buttons that have dual functions, will need to be

"TOUCHED" from 2 to 3 seconds to make the change.

The best area to "TOUCH" on the panel to make it activate is the illuminated or lighted area. For

example, just touch for 2 to 3 seconds the illuminated power symbol and the unit will turn on or

off.

1. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all

connected up properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if

there is a sudden stop, like an emergency stop.

If installation angle exceeds 30°from horizontal, the unit might not give its optimum

performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct

sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive

vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,

refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

3. Screw

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4x12mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure

the back of the unit in place. The strap can

be bent by hand to the desired angle.

7. Plain washer

182

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw

holes of the bracket and the screw

holes of the main unit become

aligned (are fitted) and tighten the

screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method

B installation.

a. Frame

b. Insert fingers into the groove in the

front of frame and pull out to remove

the frame. (When re-attaching the

frame, point the side with a groove

down wards and attach it.)

c. Insert the levers supplied with the

unit into the grooves at both sides of

the unit as shown in figure until they

click. Pulling the levers makes it

possible to remove the unit from the

dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

2. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with

point B on the main unit touching point A on the

D.C.P. (As shown on the diagram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not

to drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To

prevent damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

Socket

RESETTING THE UNIT:

After releasing the front panel, use a pencil or any non-metalic object to press & hold the

reset button for five seconds to reset the unit.

Reset

3. WIRING DIAGRAM (20 PIN + ISO PLUG)

FUSE

L-CH

(See Figure 2)

R-CH

L-CH

R-CH

ISO

CONNECTOR

20-PIN

AUDIO/POWER

HARNESS

(See Figure 1)

PIN(B8) GREEN/BLACK

PIN(B1) VIOLET

PIN(B4) GREY/BLACK

PIN(B2) VIOLET/BLACK

PIN(B3) GREY

PIN(A4) YELLOW

PIN(A7) RED

PIN(A5) BLUE

PIN(A8) BLACK

PIN(B7) GREEN

PIN(B6) WHITE/BLACK

PIN(B5) WHITE

ISO CONNECTOR 4PIN+8PIN

FEMALE WITH MALE TERMINAL

1 2

3 4

5 6

Figure 2

CONNECTOR B

CONNECTOR A

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

SUB WOOFER

RCA-TO-RCA CABLES

(not supplied)

WHITE

BLUE

Subwoofer Amp

AMP

RCA-TO-RCA CABLES

(not supplied)

GREY

REAR LINE OUT

BLACK

FRONT LINE OUT

WHITE

RED

WHITE

RED

RIGHT REAR SPEAKER (-)

B2 VIOLET/BLACK

GREEN/BLACK

GREY/BLACK

WHITE/BLACK

GREEN

GREY

WHITE

B8 LEFT REAR SPEAKER (-)

RIGHT FRONT SPEAKER (-)

LEFT FRONT SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (+)

ISO CONNECTOR WIRING CHART

WIRE COLOR

RED

YELLOW

BLACK

VIOLET

FUNCTION/LABEL

POWER ANTENNA/REMOTE TURN ON

RIGHT REAR SPEAKER (+)

IGNITION(ACC)

GROUND

BLUE

CONSTANT 12 VOLTS

FUNCTION/LABEL

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER (-)

RIGHT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (-)

RIGHT REAR PRE-AMP LINE OUT

REAR PRE-AMP LINE OUT COMMON

RIGHT FRONT SPEAKER (-)

LEFT REAR PRE-AMP LINE OUT

FRONT PRE-AMP LINE OUT COMMON

RIGHT FRONT PRE-AMP LINE OUT

LEFT FRONT PRE-AMP LINE OUT

18 RED

17 WHITE

16 BLACK

15 YELLOW

20 WHITE

19 BLACK

14 BLUE

CHASSIS GROUND

1 GREY/BLACK

7 GREEN/BLACK

4 VIOLET/BLACK

12 WHITE/BLACK

8 RED

6 GREEN

2 GREY

3 VIOLET

11 WHITE

10 RED

9 BLACK

IGNITION(ACC)

WIRE COLOR

POWER ANTENNA/REMOTE TURN ON

CONSTANT 12 VOLTS

4. CONTROL PANEL FUNCTION

OPERATIONS:

Mute Power

Panel release button

Audio

Menu Enter

Mode

Encod er Volume

Band Fi le/Fo lde r

Sub- W AF

PTY

Copy

ix-Bass

PS AS ID3

iPod

informati on

iPod

Memory 1

Memory 2

Memory 3

Memory 4

Memory 5

Memory 6

Pause

/Play

Pause

/Play

Intro Folder

Intro

Repeat Folder

Repeat

Repeat Album

Repeat

Random

Fol der

Rando m

Shuffle

Album

Shuffle

Folder

Down

Folder

Display

Seek Up

Track/File

Fast

Forward

Tune Up

Seek

Down

Tune

Down

Track/File

Down

Fast

Backwa rd

USB Cover / Socket

File

Erase

iPod

KEY

SYSTEM TUNER MP3/WMA BLUETOOTH

Short

Press

Long

Press

Short

Press

Long

Press

Short

Press

Long

Press

Short

Press

Long

Press

Short

Press

Long

Press

Phone

Answer Dial

Call

Transfer

Clear

File Up Fast

Forward

Fast

Backwa rd

File Down

Dial

22 System

3.5mm AUX In jack

822

21 20

119

10 92

12 14 15 16 17

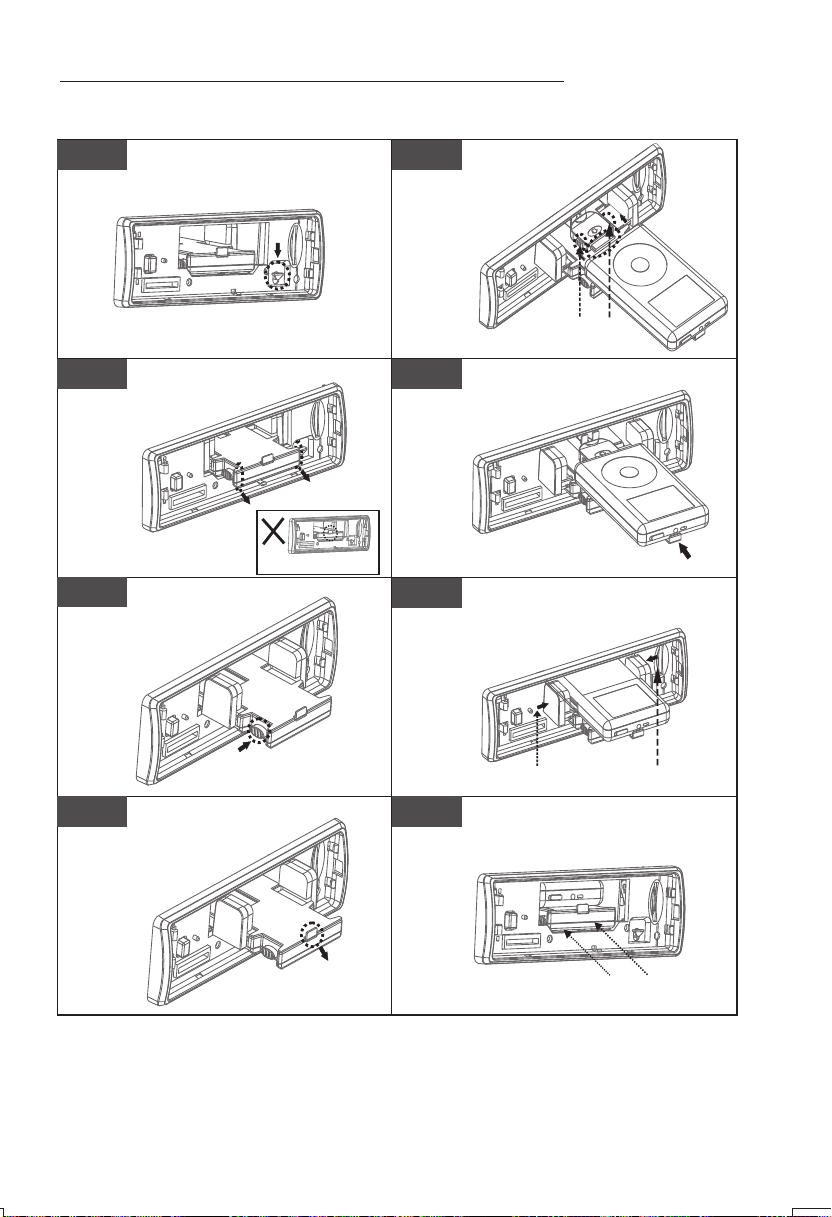

INSTALLING iPod INTO THE BUILT-IN iPod DOCKING

5. iPod OPERATION

Always follow the below steps to install the iPod into the docking station. Incorrect or improper

installation may cause permanent damage to the docking or the iPod unit.

Press down

Never pull out this stick unless

docking is completely release out.

Step 1

Step 2

Step 3

Step 4

Press down the button as indicated

below to unlock the iPod docking.

Pull out

Pull out the iPod docking

as shown below.

Pull out this stick

Pull out the iPod connector

as indicated below.

Once the stick is

Push inwards

Push the stick & the connected iPod

inwards until it stops.

Push the docking back

into the Cabinent

Push the iPod docking inwards into

the unit’s cabinent until a click sound

is heard.

Press toward this

lock switch

completely pulled out,

user should see the

iPod connector,

and user can

connect

the iPod

to the

connector

as shown in this step.

Press on these buttons

on both sides as

Press down this button

indicated below to unlock

the iPod holder.

Step 5

Step 6

Step 7

Step 8

Press towards the iPod unit to hold the

Press the iPod holder on both sides

to hold the iPod firmly in place.

iPod unit firmly in place

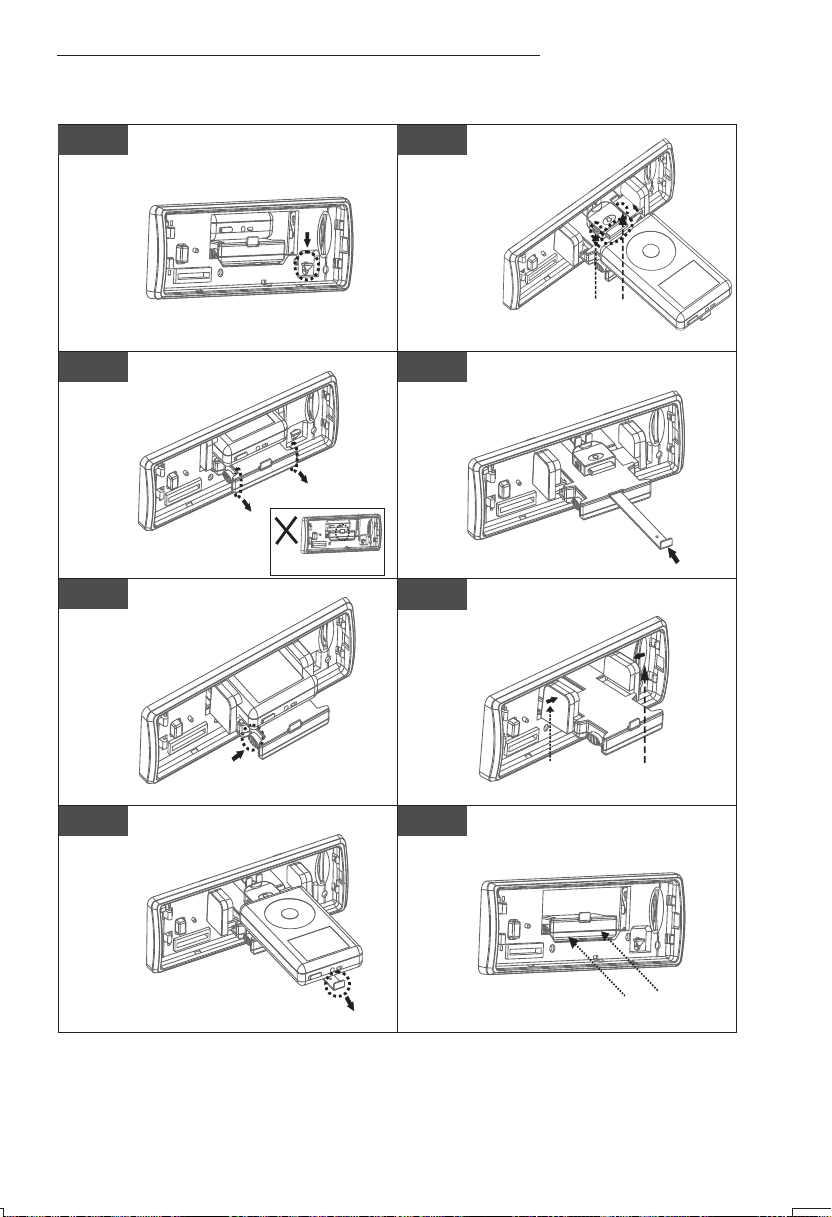

REMOVE iPod FROM THE BUILT-IN iPod DOCKING

To take out the iPod from the docking station, user can first detach the front panel, and repeat step

1 to step 8 to take out the iPod & return the iPod docking inside the unit’s cabinent.

Step 4

Step 3

Step 2 Step 6

Step 7

Step 8

Press down this button

Push the docking back

to Cabinent

Never pull out this stick unless

docking is release out.

Step 1 Step 5

Press down

Press the button as indicated below

to unlock the iPod docking.

Pull out

Pull out the iPod docking

as shown below.

Press on these buttons

on both sides as

indicated below to unlock

the iPod holder.

Pull out this stick

Pull out the iPod connected

as indicated below

by pulling out the stick.

Press toward this

lock switch

connected iPod is completely

out, user should push on

the locking buttons

on the both sides

of the iPod

connector to

release the

iPod as

indicated in the

picture, and remove the iPod unit.

Once the stick with the

Push inwards

Once the iPod unit is remove,

push the stick backward

into the iPod docking

station until it stops.

Push on the iPod holders on both

sides until they stop.

Push the iPod docking inwards into

the unit’s cabinent until a click sound

is heard.

Press towards the iPod unit to hold the

iPod unit firmly in place

This unit is equipped with iPod Ready function which allow end user to have direct control of the

iPod on the front panel control button and display iPod song information on the unit's LCD display.

Please read below for more details operation.

iPod Compatibility Chart

This unit is support following iPod version

iPod 1G Not Supported

iPod 2G Not Supported

iPod 3G Supported

iPod Mini Supported

iPod 4G Supported

iPod Photo Supported

iPod Nano Supported

iPod 5G(Video) Supported

iPod Touch Supported

iPhone Not Supported

iPod Classic All version

This unit is NOT ABLE to playback any VIDEO FILE OR VIDEO ALBUM which contained in the iPod

Video.

Turning iPod Power On and Off

The iPod power turns on automatically as soon as it is connected to the 30 Pin Connector and as

long as the vehicle's ignition is turned ON. The iPod power can be turned OFF by removing the

iPod from the 30 Pin Connector or if the vehicle's ignition is turned OFF. Under this condition the

iPod will go into pause mode and goes into sleep mode about 2 minutes later.

While the iPod is connected, the power cannot be turned on or off from the iPod itself.

“ ” to disconnect will be shown in the iPod's display while it is connected to the unit .

Tips

iPod Battery Charging

While connected to the unit, the iPod will automatically start re-charging as long as the vehicle's

ignition key is turn to ACC or ON.

Switch to iPod Mode

When the Head unit is power on and iPod is connected to the 30 pin connector, press the mode

button to change to iPod mode and the unit will display for a while then starts

the music files contained in the iPod and the playback will automatically start.

Press Mode button repeatedly to change to other modes or switch back to iPod mode.

OK to disconnect

Audio Video File

iPod information Display on the Head Unit LCD

This unit can display the Song, Artist, Album name and Elapsed time on the LCD display, these

information can be displayed by pressing the AS/PS button repeatedly while a iPod Song file is

playing.

Searching a Desire Song

Under iPod playback mode, press BAND to enter into the iPod Searching Mode. Pressing BAND

button repeatedly to accesses the different searching methods as below :

iPod FULL CONTROL / OPERATION

Table des matières

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems MR1360UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 630U Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7260B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 4100 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BVI9994 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8728B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 638BA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 624B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE 455BRGB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9993 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9964B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9348B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7945B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BVCP9800W Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 758DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR2180UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7330 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 0791489111942 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9372BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9560B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 630UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 616UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 728CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Guide de l'utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
