Boss Audio Systems 722CA Manuel utilisateur

10 R - 02 1397

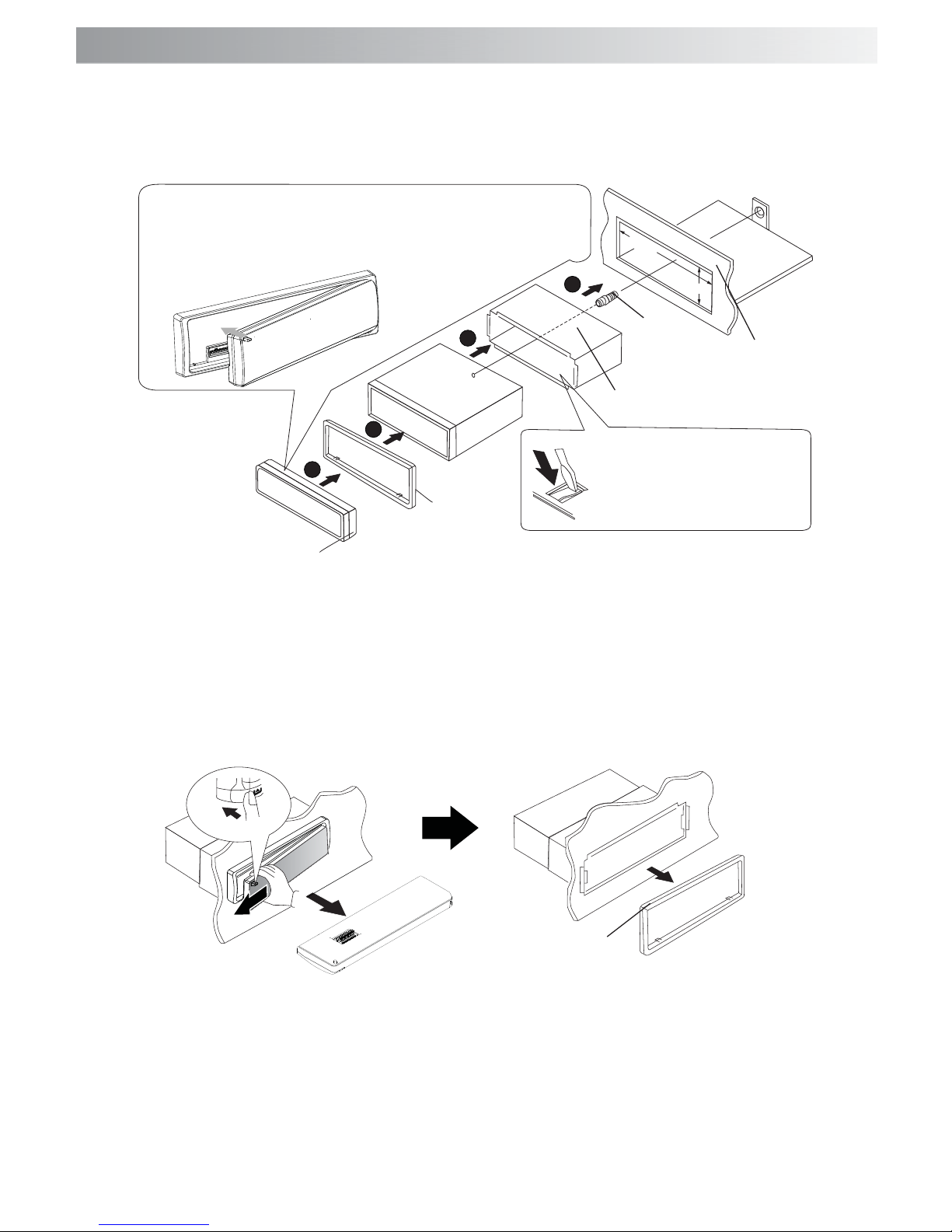

The following illustration shows a typical installation. If you have any questions or require information

regarding installation kits, consult your customer car audio dealer or a company suppling kits.

If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Remove the unit

Trim Plate

182mm

53mm

Screw

Dashboard

Sleeve

Bend the appropriate　

tabs to hold the sleeve　

firmly in place.

Trim

Plate

Control

Panel

To attach the front panel back to the unit chassis,

please insert the right side of the panel in the chassis

until it is correctly engaged. Press the left side of the

panel until the mechanism locks it into place.

1. Press the Panel Release button.

2.　Push the left side of the panel rightward

3. Pull the panel towards you to disengage it from the chassis.

Release

1. INSTALLATION

CONNECTOR

ISO

L-CH

WHITE

RED

R-CH

AUX IN

YELLOW

REAR LINE OUT R-CH

REAR LINE OUT L-CH

SUB-W OUT

(Not Supplied)

RCA-TO-RCA CABLE

REAR

FUSE

AMP

SUB

WOOFER

BLACK

FRONT LINE OUT

R-CH L-CH

RED

WHITE

RCA-TO-RCA CABLE

(not supplied)

AMP

ANTENNA

JACK

ISO CONNECTOR WIRING CHART

YELLOW

WIRE COLOR

VIOLET/BLACK

GREY/BLACK

GREEN/BLACK

WHITE/BLACK

VIOLET

WHITE

GREY

GREEN

BLACK

RED

BLUE

LEFT FRONT SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

RIGHT REAR SPEAKER (+)

RIGHT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (-)

RIGHT REAR SPEAKER (-)

FUNCTION/LABEL

CONNECT TO SYSTEM CONTROL

TERMINAL OF THE POWER AMP OR

AUTO ANTENNA RELAYCONTROL

TERMINAL(max 150mA 12VDC)

BATTERY(+)

IGNITION(ACC)

GROUND

5 7

FIGURE 2

2. CONNECTING THE SYSTEM

No. Item

BAND

AUDIO

(Power)

MUTE

(Release)

VOLUME KNOB

Decriptions

Press this button to turn the Mute On/Off.

Press this button to change between BAND FM1,

FM2,FM3,or AM1(MW1) or AM2 (MW2).

Press this button to open the control panel.

Press this button is access into the Audio Menu

mode: VOL->BAS->TRB->BAL->FAD.

Press this button access into the System Menu.

Press this button or any other button on the front

panel (except Release/Eject) to turn the unit on.

Press this button again to turn the unit off.

Rotate the encoder volume to increase　and

decrease the volume.

(Audio Menu)

(System Menu)

Press SOURCE button to select a different mode of

playback mode: Radio, CD play, and Aux In．　

SOURCE

Under Disc media playback mode, press and hold

momentarily to fast forward/backward.

Under tuner mode, press this button to enter into

the Auto Seek mode, press and hold this button

to enter into the Manual Seek mode.

TUNE UP

/DOWN

FAST FORWARD

/BACKWARD

8EQ

ESC

Press this button to select the preset Equalizer setting:

FLAT -> POP -> ROCK->CLASSIC-> EQ OFF

3. THE MAJOR FUNCTION OF THIS UNIT

910

12 13

14 15 16

Press this button to quick return previous menu or

mode.

Press this button to turn On / Off the iX-BASS

booster function.

Under Tuner mode, press this button briefly to

display the Clock time.

Press this button to eject the Disc.

Press this button to automatically select six

strongest stations and store them in current band.

Under Tuner mode, short press the Numeric

buttons　to recall the preset stations. Hold press

the Numberic　buttons to store the listening station.

Under Disc media playback mode,press the

Numeric buttons to　perform　the　below operation：

PRESET

NUMERIC

BUTTONS

Press and hold this button to turn On / Off the

Subwoofer function.

SUBW

XBS

INFO

EJECT

No.

Short

press

56123

Pause/Play Intro Repeat

Random

(Subwoofer)

(Auto Store)

Press MENU button to access into the System Menu. User can select the below functions:

AREA (Tuner Frequency Spacing)

TIME SET (CLK)

BEEP ON/OFF (Beep Tone)

LOC ON/OFF (Local/Distance Select)

This option allows the selection of the frequency spacing appropriate for your area. “AREA U.S.A” is the

default setting. Rotate the Encoder Volume Konb to select the EUROPE, U.S.A, OIRT (Russia), LATIN,

ASIA (Asia Pacific) or MID-EAST(Middle East) options.

The beep tone feature allows the selection of an audible beep tone to be heard each time a button is

pressed on the face of the radio. "Beep On" is the default display. Rotate Encoder Volume Konb to select

the “Beep Off” option.

The time on the clock is set to “12:00” by default, Rotate the encoder volume knob to adjust the minutes

and hours.Press MENU button to select the hour or minutes.

This feature is used to designate the strength of the signals at which the radio will stop during automatic

tuning. "LOC OFF" is the default, allowing the radio to stop at a broader range of signals. To set the unit to

select only strong local stations during automatic tuning, rotate the Encoder Volume Knob until "LOC ON"

appears in the display.

4. ADJUST SYSTEM MENU SETTING

Ground

Left Track

Right Track

Connect the external signal to AUX in jack located atthe front of

the panel, then press Mode button to select Aux mode. Press

Mode Button again to cancel Aux Mode and return to previous

mode.

You can reset the unit to its default setting.

The RESET button is located on the main unit (as shown on the diagram). To press it vertically with a

ballpoint pen or metal object will activate it.

The reset button is to be activated for the following

reasons:

1. Initial installation of the unit when all wiring is

completed.

2. All the function buttons do not operate.

3. Error symbol on the display.

CONNECT THE AUX-IN

RESET THE UNIT

5. EXTERNAL CONNECTION AND MEDIA PLAYER

No. Button Item Decriptions

MUTE Press this button to turn the mute On/Off.

POWER

ON/OFF

When the unit is power on, press this

turn Off the unit. Once the unit power off, press

this button to turn On the unit.

button to

Press this button to increase / decrease

volume.

the

VOLUME

KNOB

SOURCE

Press this button to select different

playback mode: RADIO,CD PLAY, TUNER,

AUX IN.

source

AUDIO

ESC

Press this button to enter into the

Menu mode.

Audio

Press this button to quick return previous

menu or mode.

SYSTEM

AUTO

STORE

Press this button to enter into the System

Menu mode.

Press this button to automatically select six

strongest stations and store them in current band.

6. THE FUNCTIONS OF REMOTE CONTROL

TUNE UP

/ DOWN

FILE UP

/ DOWN

FAST FORWARD

/BACKWARD

Underthetunermode,pressthis

into the Auto seek mode, press and hold this

buttontoenterintotheManualSeekmode.

buttontoenter

Under Disc/USB/SD media playback mode,

press and hold momentarily to fast forward /

backward.

Under Disc / USB / SD media playback mode,

press these buttons to skip to the next or

previous song / file.

Under Tuner mode, short press the Numeric

buttons　to recall the preset stations. Hold press

the Numberic　buttons to store the listening station.

Under Disc/USB/SD media playback mode,

press the Numeric buttons to　perform　the　

below operation：

PRESET

NUMERIC

BUTTONS

BAND

XBS

BROWSE

Press this button to change between BAND

FM1,FM2,FM3, or AM1(MW1) or AM2 (Mw2).

Press this button to turn On/Off the iX-BASS

booster function.

Under the Disc/USB/SD media playback

mode, short press this button is access into

the Music Folder/File searching mode.

Rotate the encoder knob to navigate thru

Folder and File list. Once the desire file

appearing on the LCD. Press ‘MENU’ button

to confirm and start file play.

Under Tuner mode, press this button briefly to

display the Clock time.

Under Disc / USB / SD media playback mode,

press this button repeatedly to display ID3

information: Track number and play time ->

folder ->file ->title ->artist ->album ->clock.

Press and hold this button to turn On / Off the

Subwoofer function.

SUBW

INFO

(Subwoofer)

No.

Short

press

56123

Pause/Play Intro

Folder

Intro

Repeat

Folder

Repeat

Random

Folder

Random

Folder Down Folder UP

Long

press

Before going through the check list, check wiring connection. If any of the problems persist after check

list has been made, consult your nearest service dealer.

No power or no sound

Noise in broadcasts

Car engine is not on. Turn the car engine on.

Signals are too weak. Select other stations with stronger signals.

Cable is not correctly connected. Check connections.

Check the connection of the car antenna.

Fuse is burnt. Replace fuse.

Change broadcast from Stereo to mono.

Volume is in minimum. Adjust volume to a desired level.

If the above solutions cannot help, press the RESET button.

Ensure that the track played is of a compatible format.

The CD Skips tracks

Ensure that the CD is not damaged or dirty.

Ensure that random mode is deactivated.

Preset stations lost

Battery cable is not correctly connected. Connect the battery cable

to the terminal that is always live.

Cannot play disc

Ensure tha the disc label is inserted with the printed side facing up.

Wipe the disc with fibre cleaning cloth from the centre to the edge

in a straight line.

This disc may be defective. Play another disc.

Ensure that the CD is a finalised CD/CD-R/CD-RW.

Ensure that the CD is not encoded with copyright protection techn-

ologies.

7. TROUBLE SHOOTING

Autres manuels pour 722CA

Table des matières

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems BV7948B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9348B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems CD-4500R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV760B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9152 Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 814CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 735UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9979B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8974B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MP3-3195R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1520UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9564BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MRC10 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1400S Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8963 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9351B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 748UAI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7943 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV3550 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7325B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9362BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1525UI Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
