-1-

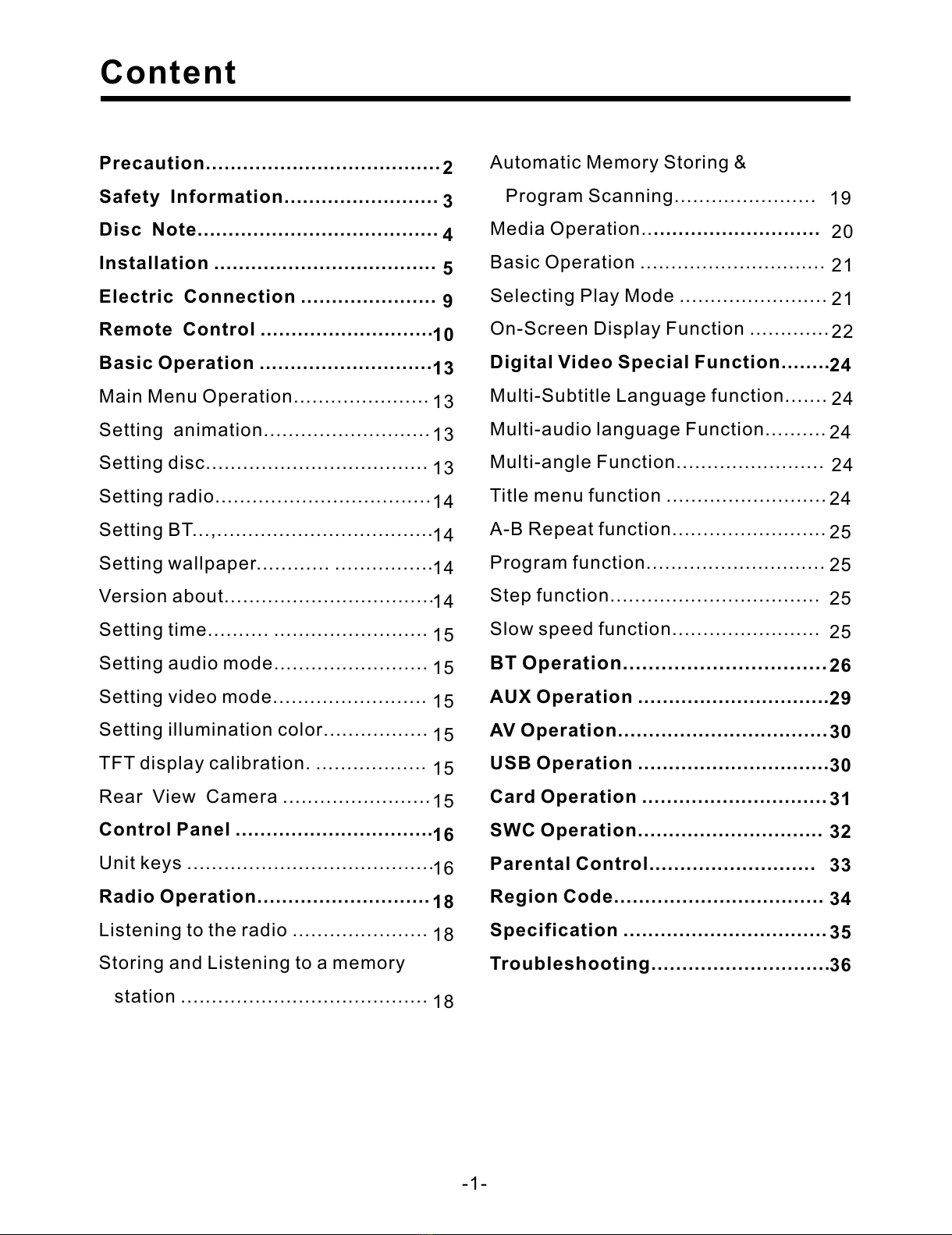

Content

Precaution......................................

Safety Information.........................

Disc Note.......................................

Installation ....................................

Electric Connection ......................

Remote Control ............................

Basic Operation ............................

Main Menu Operation......................

Setting animation...........................

Setting disc....................................

Setting radio...................................

Setting BT...,...................................

Setting wallpaper............ ................

Version about..................................

Setting time.......... .........................

Setting audio mode.........................

Setting video mode.........................

Setting illumination color.................

TFT display calibration. ..................

Rear View Camera ........................

Control Panel ................................

Unit keys ........................................

Radio Operation............................

Listening to the radio ......................

Storing and Listening to a memory

station ........................................

Automatic Memory Storing &

Program Scanning.......................

Media Operation.............................

Basic Operation ..............................

Selecting Play Mode ........................

On-Screen Display Function .............

Digital Video Special Function........

Multi-Subtitle Language function.......

Multi-audio language Function..........

Multi-angle Function........................

Title menu function ..........................

A-B Repeat function.........................

Program function.............................

Step function..................................

Slow speed function........................

BT Operation................................

AUX Operation ...............................

AV Operation..................................

USB Operation ...............................

Card Operation ..............................

SWC Operation..............................

Parental Control...........................

Region Code..................................

Specification .................................

Troubleshooting.............................

All manuals and user guides at all-guides.com

-2-

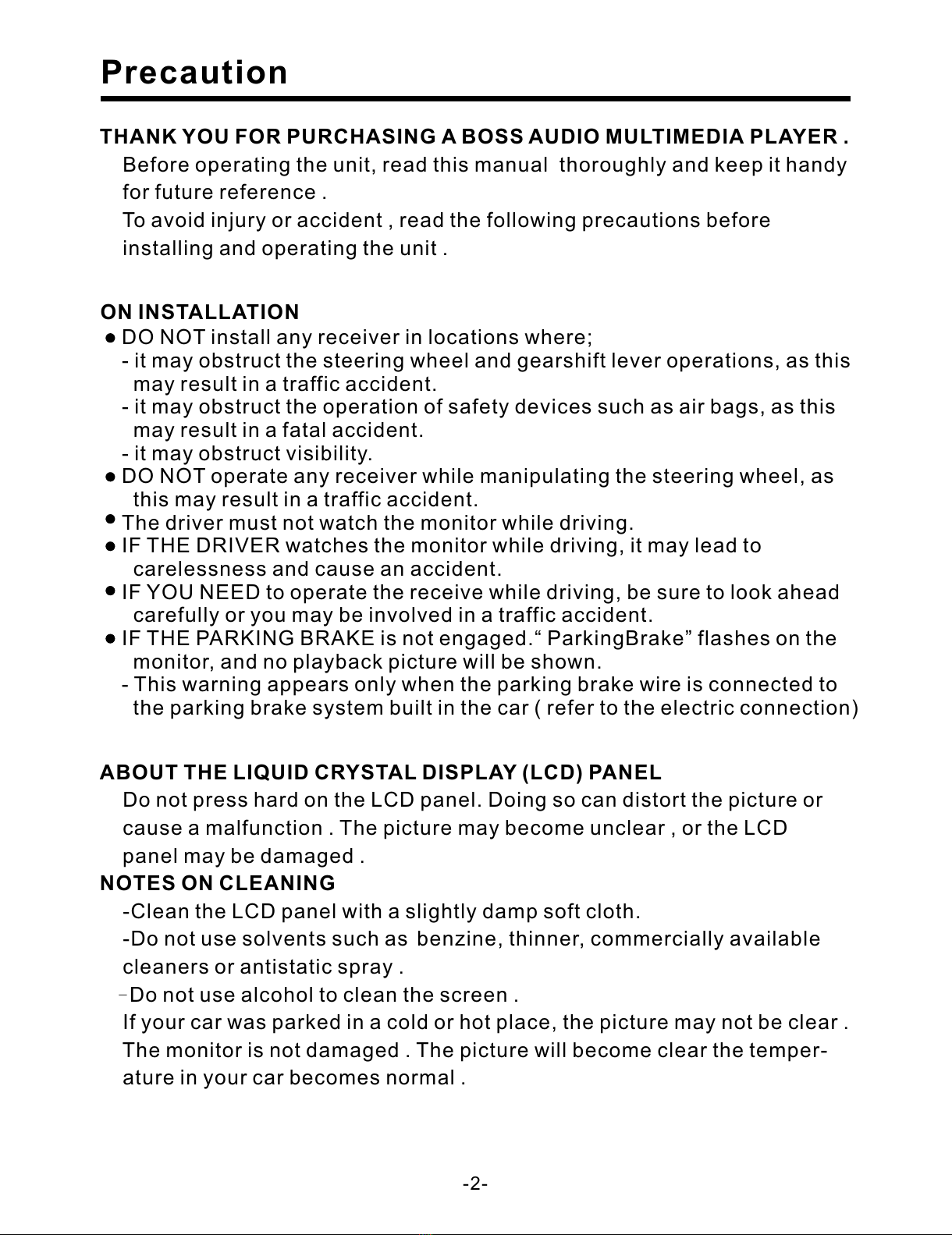

Precaution

THANK YOU FOR PURCHASING PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy

for future reference .

To avoid injury or accident , read the following precautions before

installing and operating the unit .

A BOSS AUDIO MULTIMEDIA

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

- Do not use alcohol to clean the screen .

If your car was parked in a cold or hot place, the picture may not be clear .

The monitor is not damaged . The picture will become clear the temper-

ature in your car becomes normal .

Do not press hard on the LCD panel. Doing so can distort the picture or

cause a malfunction . The picture may become unclear , or the LCD

panel may be damaged .

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this

may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this

may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving.

IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ON INSTALLATION

All manuals and user guides at all-guides.com

-3-

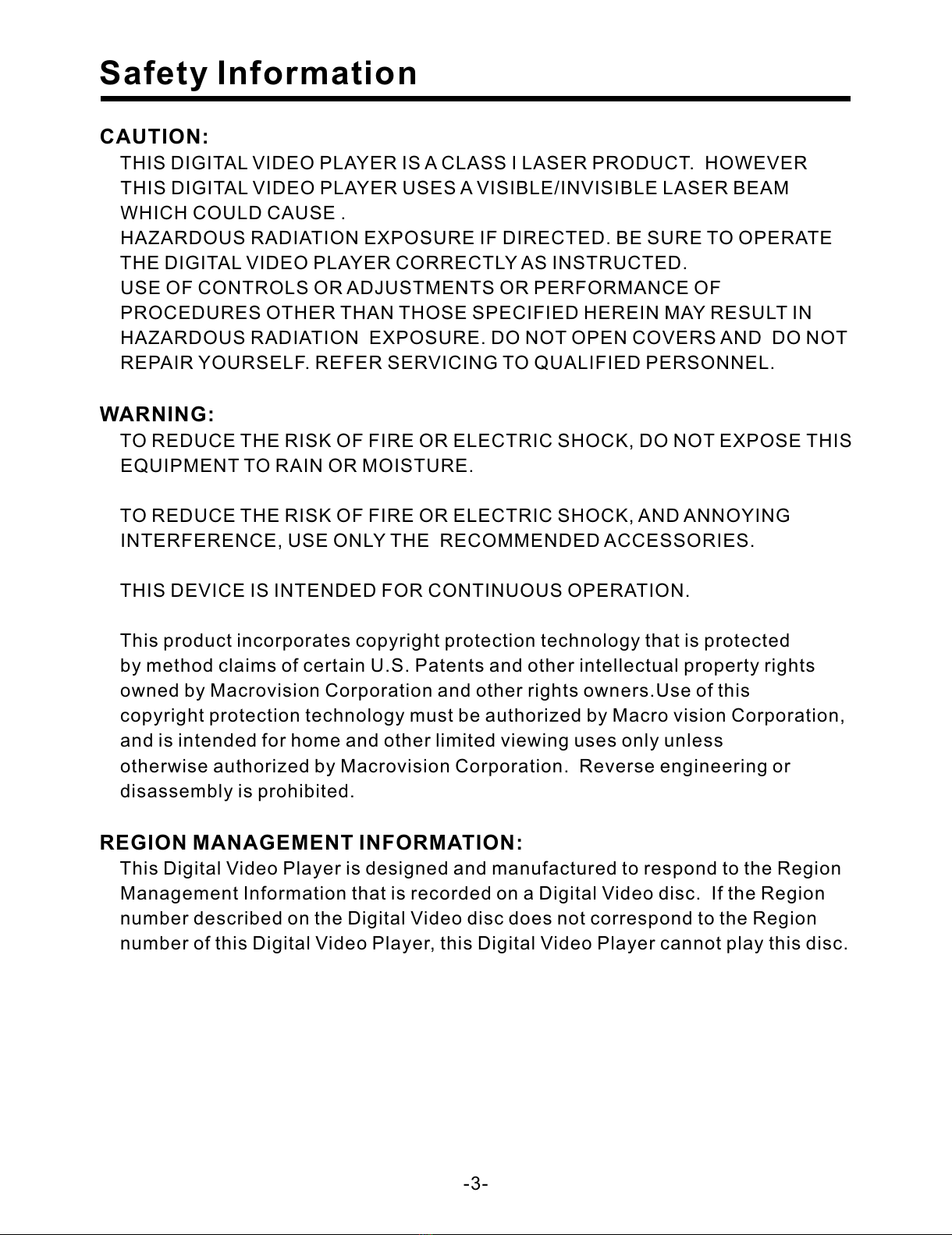

Safety Information

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER

THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region

Management Information that is recorded on a Digital Video disc. If the Region

number described on the Digital Video disc does not correspond to the Region

number of this Digital Video Player, this Digital Video Player cannot play this disc.

All manuals and user guides at all-guides.com

-4-

Disc Note

Preparing New Discs with Rough

Spots

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc. Therefore,

remove the rough edges in advance

by using a ball point pen or pencil as

shown on the right. To remove the

rough edges, press the si de o f t h e pen

or pencil against the inside and outside

edges of the disc.

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Label side

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played

with this player

Digital Video-RAM

CDV

CDG

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Disc formats supported by this

player

Digital

Video

VCD

MP3

Audio and Video

Disc size 12 cm

Audio and Video

Disc size 12 cm

Audio

Disc size 12 cm

Audio

Disc size 12 cm

All manuals and user guides at all-guides.com

Installation

-5-

NOTES:

1. Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure

it is all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use

of unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or

other modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

. Avoid installing the unit where it would be subject to high temperature, such

as from direct sunlight, or from hot air, from the heater, or where it would be

subject to dust, dirt or excessive vibration.

7. If installation angle exceeds 30 from horizontal, the unit might not give its

optimum performance.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN

Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded

screw holes at the sides of the unit chassis). For details, refer to the following

illustrated installation methods.

Removing the unit

1. Press the REL button to release the front panel .

2. Remove the control panel .

All manuals and user guides at all-guides.com

all-guides.com

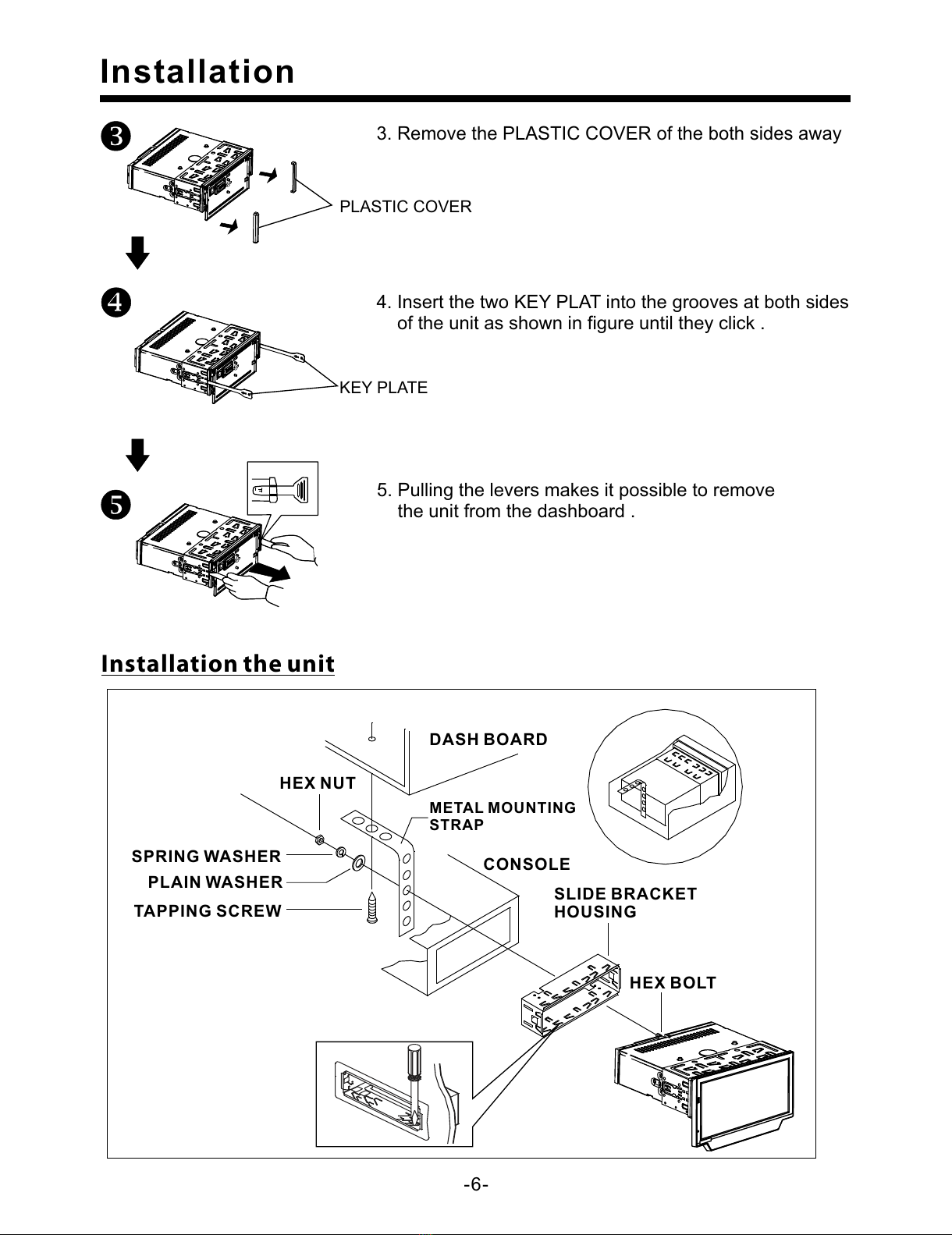

Installation

-6-

Installation the unit

3. Remove the PLASTIC COVER of the both sides away

4. Insert the two KEY PLAT into the grooves at both sides

of the unit as shown in figure until they click .

PLASTIC COVER

KEY PLATE

5. Pulling the levers makes it possible to remove

the unit from the dashboard .

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

All manuals and user guides at all-guides.com

-7-

Installation

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the

connectors on the back of the control panel and on the panel holder.

2). Pull-off the front panel and keep the front panel into the case .

Detaching Control Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the “REL” release button and the left hand side of front panel will release.

Attaching Control Panel

1). First insert the right hand side of the front panel into the hollow of the unit .

(NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

PROTECTIVE CASE

Hollow Bulge

RELEASE BUTTON

All manuals and user guides at all-guides.com

Installation

-8-

Caution:

Do not insert your finger behind the control panel.

When you want to change the viewing angle of the operating unit to play,

you can touch the section on touch screen (or press the button

on the ) repeatedly to select the desired angle as follows:

ANGLE 1 - ANGLE 2 - ANGLE 3 - ANGLE 4 - ANGLE 1 .

remote

CHANGING THE CONTROL PANEL ANGLE

ANGLE 1 ANGLE 2

ANGLE 3ANGLE 4

All manuals and user guides at all-guides.com

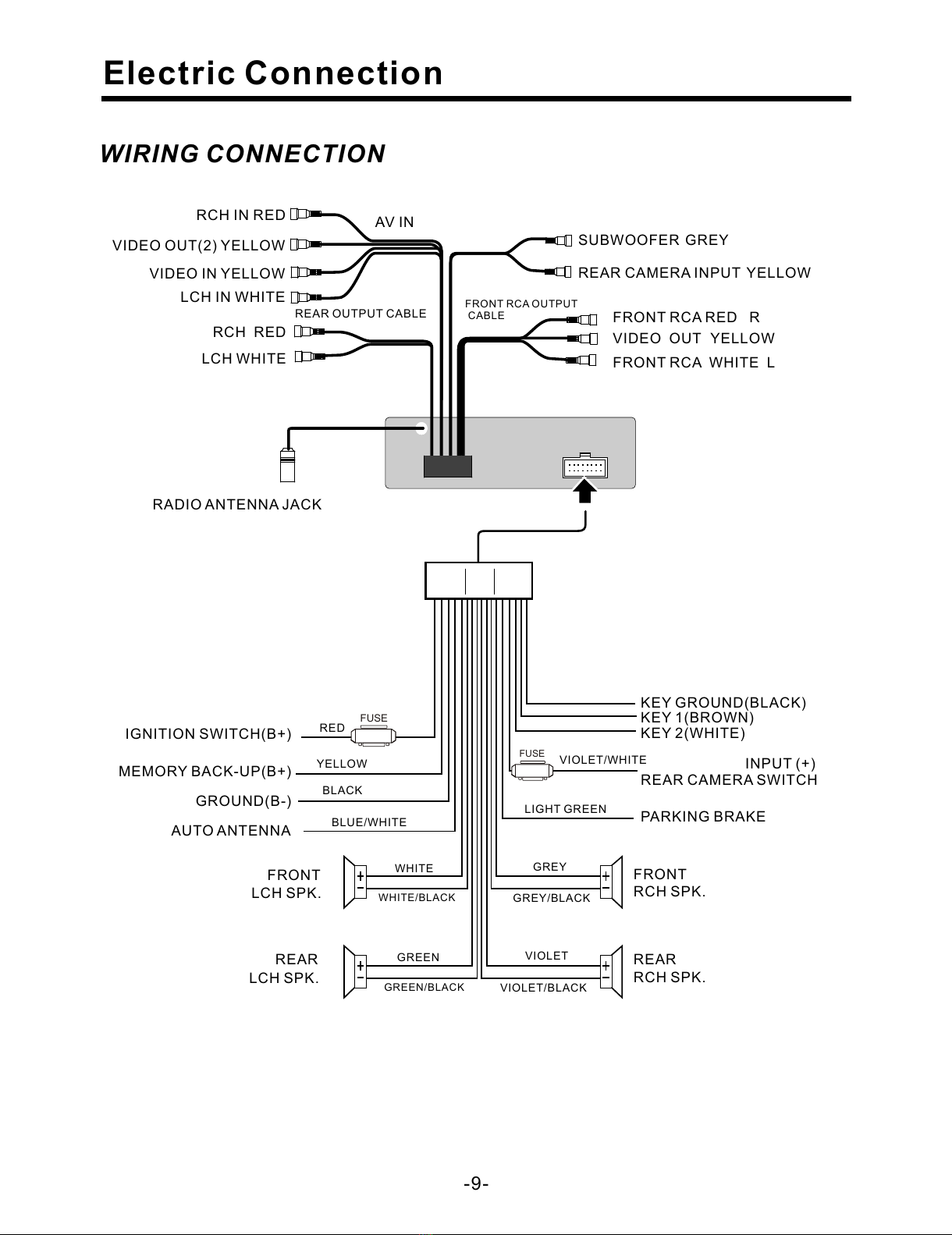

Electric Connection

-9-

WIRING CONNECTION

INPUT (+)

REAR CAMERA SWITCH

PARKING BRAKE

GREY

GREY/BLACK

FRONT

RCH SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

LCH SPK.

AUTO ANTENNA BLUE/WHITE

GROUND(B-)

MEMORY BACK-UP(B+)

IGNITION SWITCH(B+) RED

YELLOW

BLACK

REAR

RCH SPK.

FRONT

LCH SPK.

LIGHT GREEN

FUSE

KEY GROUND(BLACK)

KEY 1(BROWN)

KEY 2(WHITE)

VIOLET/WHITE

SUBWOOFER GREY

RCH RED

LCH WHITE

REAR OUTPUT CABLE

FRONT RCA WHITE L

FRONT RCA RED R

VIDEO OUT YELLOW

FRONT RCA OUTPUT

CABLE

REAR CAMERA INPUT YELLOW

RADIO ANTENNA JACK

RCH IN RED

LCH IN WHITE

VIDEO OUT(2) YELLOW

VIDEO IN YELLOW

AV IN

All manuals and user guides at all-guides.com

Autres manuels pour BV8974B

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems BVCP9800W Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7265B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9360B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV2550UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV760B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 615UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems CDC-3000A Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 612UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 637UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 618UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV90BA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 622UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 625UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 740UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 648BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 560BRGB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9362BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7945B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 650UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 820UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 725CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8728B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 639UA Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
