Bosch GLI 10 V-LI Manuel utilisateur
Bedienungsanleitung
Operating instructions
Instructions d’emploi
Instrucciones de servicio
Manual de instruções
Istruzioni d’uso
Gebruiksaanwijzing
Betjeningsvejledning
Bruksanvisning
Brukerveiledningen
Käyttöohje
Οδηγία χειρισμού
Kullanım kılavuzu
Instrukcja obsługi
Návod k obsluze
Návod na používanie
Használati utasítás
Руководство по
эксплуатации
Інструкція з експлуатації
Instrucţiuni de folosire
Ръководство за експлоатация
Uputstvo za opsluživanje
Navodilo za uporabo
Upute za uporabu
Kasutusjuhend
Lietošanas pamācība
Naudojimo instrukcija
GLI 10,8 V-LI
Professional
OBJ_BUCH-234-003.book Page 1 Wednesday, August 29, 2007 8:34 AM
1 609 929 K23 • 29.8.073
10,8 V
2 607 336 014
AL 1130 CV
(10,8 V)
2 607 225 134 (EU)
2 607 225 136 (UK)
2 607 225 138 (AUS)
OBJ_BUCH-234-003.book Page 3 Wednesday, August 29, 2007 8:34 AM
1 609 929 K23 • 29.8.074
GLI 10,8 V-LI
Professional
3
1
4
2
5
2
6
4
OBJ_BUCH-234-003.book Page 4 Wednesday, August 29, 2007 8:34 AM
1 609 929 K23 • 29.8.07
5
B
A
6
5
7
1
OBJ_BUCH-234-003.book Page 5 Wednesday, August 29, 2007 8:34 AM
14 | English 1 609 929 K23 • 29.8.07
Safety Rules
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.

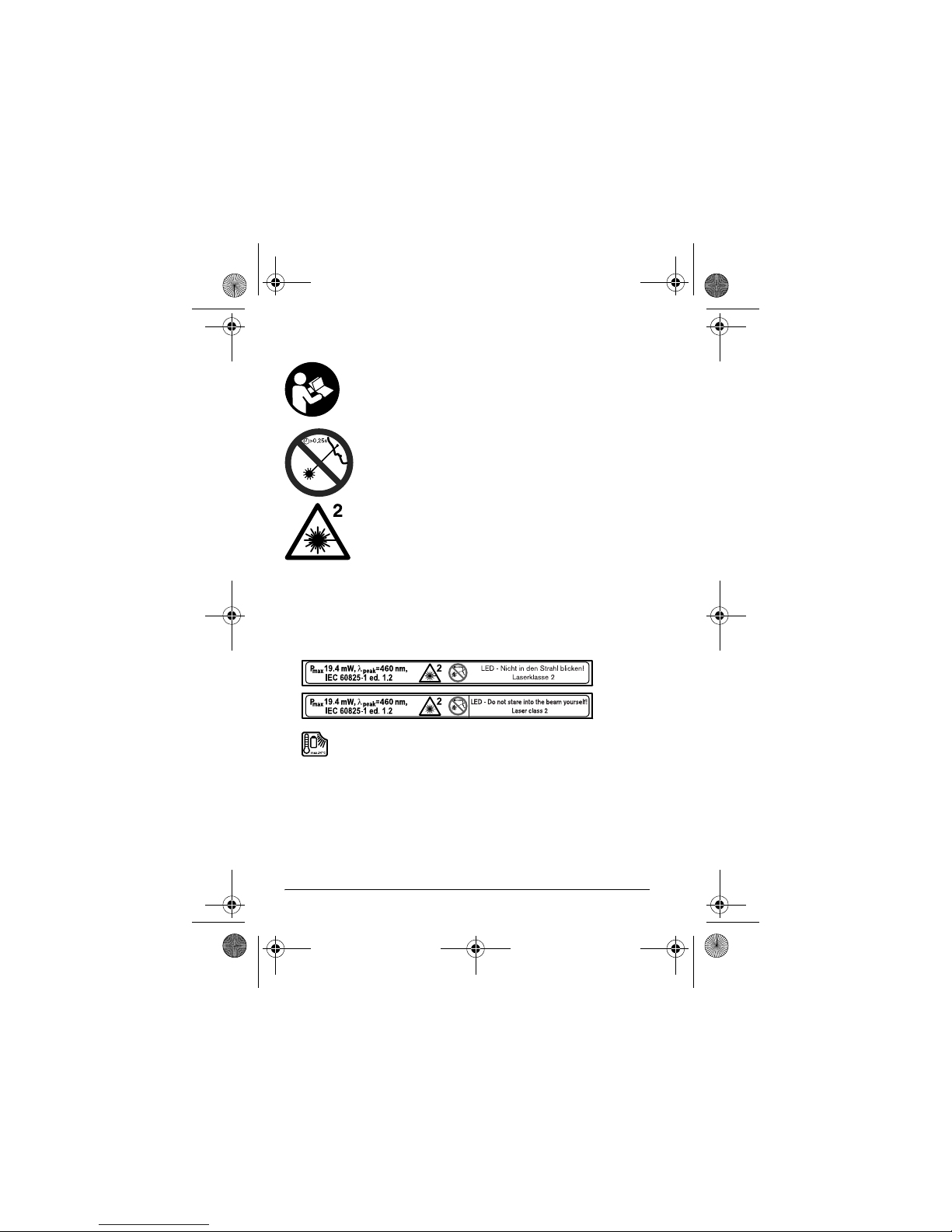

Do not direct the light beam at persons or animals
and do not stare into the light beam yourself (not
even from a distance).
This cordless worklight produces laser class 2 light
radiation according to IEC 60825-1 ed. 1.2. This can
lead to other persons being unintentionally blinded.
fThis cordless worklight is delivered with a warning label in Eng-
lish language (marked with the number 2 in the representation
of the cordless worklight on the graphic page). Attach the sup-
plied sticker in your national language over the right side of the
warning label.
Protect the battery against heat, e. g., also against con-
tinuous sun irradiation and fire. There is danger of explosion.
fDo not open the battery. Danger of short-circuiting.
fWhen battery pack is not in use, keep it away from other metal
objects like paper clips, coins, keys, nails, screws, or other small
metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
fIn case of damage and improper use of the battery, vapours
may be emitted. Provide for fresh air and seek medical help in
case of complaints. The vapours can irritate the respiratory system.
OBJ_BUCH-234-003.book Page 14 Wednesday, August 29, 2007 8:34 AM
English | 15
1 609 929 K23 • 29.8.07
fRecharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk
of fire when used with another battery pack.
fWhen the battery is defective, liquid can escape and come into
contact with adjacent components. Check any parts concerned.
Clean such parts or replace them, if required.
fDo not work with the cordless worklight in hazardous areas.
fDo not allow children to use the cordless worklight. It is intended
for professional use. Children can unintentionally blind themselves or
other persons.
Functional Description
While reading the operating instructions, unfold the graphics page of the
cordless working light and leave it open.
Intended Use
The cordless worklight is intended for hand-guided illumination with regard
to space within dry areas.
Product Features
The numbering of the product features refers to the illustration of the cord-
less worklight on the graphics page.
1Lamp head
2Warning label
3On/Off switch
4Soft grip
5Battery*
6Battery unlocking button
7Belt clip
*The accessories illustrated or described are not included as standard deliv-
ery.
OBJ_BUCH-234-003.book Page 15 Wednesday, August 29, 2007 8:34 AM
16 | English 1 609 929 K23 • 29.8.07
Technical Data
Assembly
Battery Charging (Accessory) (see figure A)
fUse only the battery chargers listed on the accessories page.
Only these battery chargers are matched to the lithium ion battery of
your cordless worklight.
Note: The battery is supplied partially charged. To ensure full capacity of
the battery, completely charge the battery in the battery charger before
using your power tool for the first time.
The lithium ion battery can be charged at any time without reducing its serv-
ice life. Interrupting the charging procedure does not damage the battery.
The lithium ion battery is protected against deep discharging by the “Elec-
tronic Cell Protection (ECP)”. When the battery is empty, the cordless
worklight is switched off by means of a protective circuit.
Do not continue to press the On/Off switch after
the cordless worklight has been automatically
switched off. The battery can be damaged.
Cordless Worklight GLI 10,8 V-LI
Professional
Article number 3 601 D37 U..
Rated voltage V= 10.8
Lighting duration, approx. min 450
Laser class 2
Wavelength λPEAK nm 460
Output power, max. mW 19.4
Operating temperature °C – 10 ... +40
Storage temperature °C – 15 ... +50
Weight according to
EPTA-Procedure 01/2003 kg 0.3
Please observe the article number on the type plate of your cordless worklight. The
trade names of the individual cordless worklights may vary.
W
ARN
I
N
G
OBJ_BUCH-234-003.book Page 16 Wednesday, August 29, 2007 8:34 AM
English | 17
1 609 929 K23 • 29.8.07
To remove the battery 5, press the battery unlocking buttons 6and pull the
battery out of the cordless worklight toward the rear. Do not exert any
force.
The battery is equipped with a NTC temperature control which allows
charging only within a temperature range of between 0 °C and 45 °C. A
long battery service life is achieved in this manner.
Observe the notes for disposal.
Operation
Starting Operation
Inserting the Battery
fUse only original Bosch lithium ion batteries with the voltage
listed on the nameplate of your cordless worklight. Using other
batteries can lead to injuries and pose a fire hazard.
Insert the charged battery 5into the handle until it can be felt to engage
and faces flush against the handle.
Switching On and Off
fThe cordless worklight produces a light beam that emerges
from the lamp head 1.
To start the cordless worklight, press the On/Off switch 3.
To switch off the cordless worklight, press the On/Off switch 3again.
Protection Against Deep Discharging
The lithium ion battery is protected against deep discharging by the “Elec-
tronic Cell Protection (ECP)”. When the battery is empty, the cordless
worklight is switched off by means of a protective circuit.
OBJ_BUCH-234-003.book Page 17 Wednesday, August 29, 2007 8:34 AM
18 | English 1 609 929 K23 • 29.8.07
Working Advice
Soft Grip
The gripping surface 4(soft grip) reduces the danger of slipping and
thereby improves the grip on the cordless worklight and the handling.
Belt Clip (see figure B)
With the belt clip 7, the cordless worklight, as an example, can be hooked
to a belt. The user has both hands free and the cordless worklight is always
at hand.
Maintenance and Service
Maintenance and Cleaning
When the battery is no longer operative, please refer to an authorised after-
sales service agent for Bosch power tools.
The cordless worklight is maintenance-free and and contains no compo-
nents that must be replaced or maintained.
To avoid damage, clean the plastic lens of the cordless worklight only with
a dry, soft cloth. Do not use cleaning agents or solvent.
If the cordless worklight should fail despite the care taken in manufacturing
and testing procedures, repair should be carried out by an authorized after-
sales service agent for Bosch power tools.
In all correspondence and spare parts orders, please always include the
10-digit article number given on the nameplate of the cordless worklight.
After-sales service and customer assistance
Our after-sales service responds to your questions concerning mainte-
nance and repair of your product as well as spare parts. Exploded views
and information on spare parts can also be found under:
www.bosch-pt.com
Our customer consultants answer your questions concerning best buy,
application and adjustment of products and accessories.
OBJ_BUCH-234-003.book Page 18 Wednesday, August 29, 2007 8:34 AM
English | 19
1 609 929 K23 • 29.8.07
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: SPT-Technical[email protected]ch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: + 61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
OBJ_BUCH-234-003.book Page 19 Wednesday, August 29, 2007 8:34 AM
