CONDENSING GAS WATER HEATER

Owner’s Guide

*SBA8230 T*

Robert Bosch (Australia) Pty. Ltd.

Thank you for purchasing this Bosch Condensing Gas Water Heater.

Before using, please:

Read this manual completely for operation instructions.

Confirm warranty and proof of purchase.

Keep this manual where it can be found whenever necessary.

This appliance must be installed in accordance with the manufacturer's installation instructions, AS

5601, NZ 5261, AS3500.4.2 and all Local Water, Building and Gas fitting regulations.

Bosch reserves the right to discontinue, or change at any time, the designs and/or specifications of

its products without notice.

-Do not store or use petrol or other flammable vapours and liquids in the

vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier.

If the information in this manual is not followed exactly, a fire or explosion

may result causing property damage, personal injury, or death.

WARNING

- To be installed and serviced only by an authorised person

- This appliance is not suitable for use as a pool heater

Model BC3200RA

BC3200RA5

Operating Instructions

* Note : This appliance requires a minimum flow rate to operate of 2.5 litres/min., water fixtures with a

flow rate of 7.5 litres/min. or higher are recommended.

For optimum performance we reommend installation of Bosch optional temperature controllers.

[Check Water Supply Quality]

If the water supply is hard, acidic or otherwise impure, treat the water with approved

methods in order to ensure full warranty coverage.

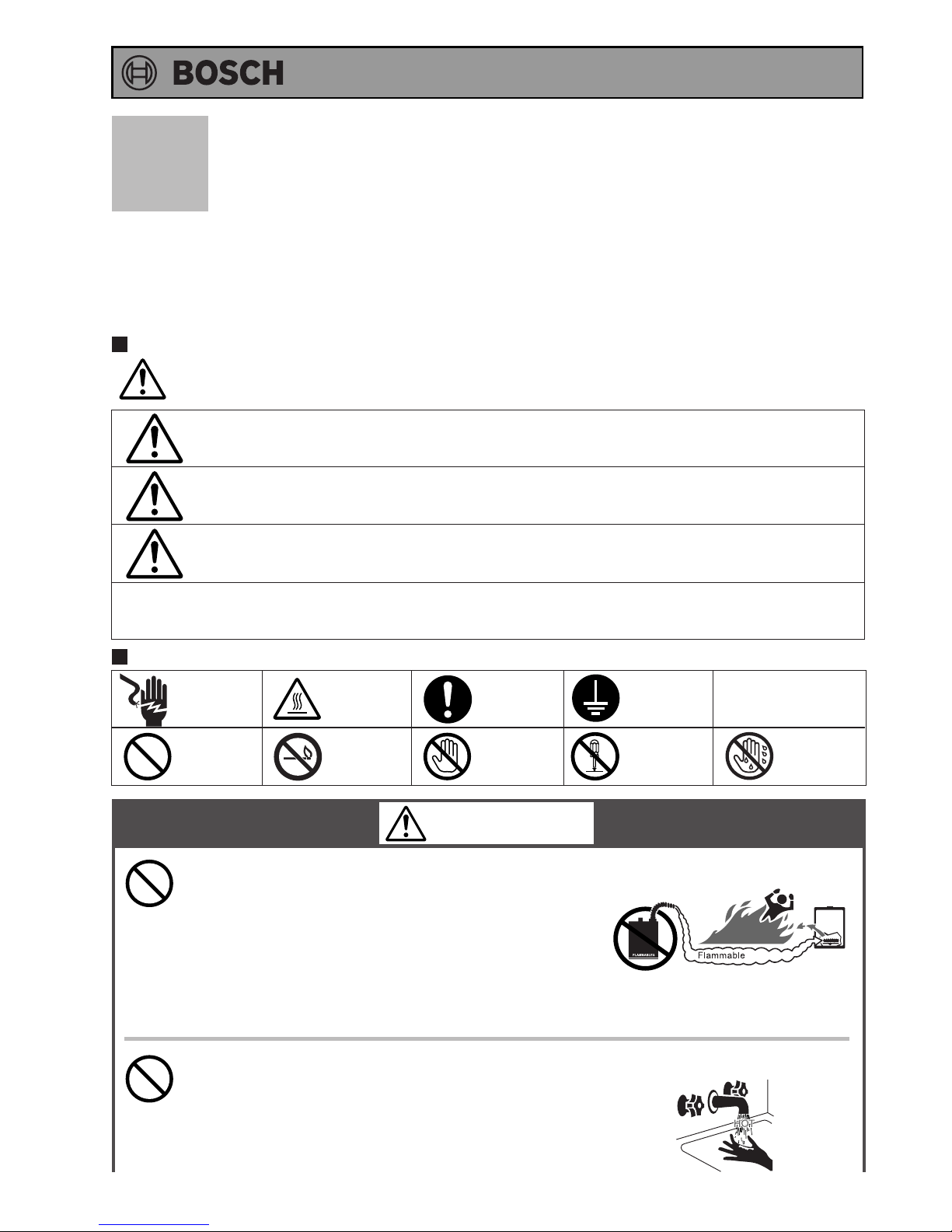

Operating Instructions

Prohibited Don’t

touch.

Don’t

disassemble

the equipment.

Don’t touch

with a wet

hand.

No flame.

High

Temperature.

To prevent damage to property and injury to the user, the icons shown below will be used to warn of

varying levels of danger.

Every indication is critical to the safe operation of the water heater and must be understood and observed.

Potential dangers from accidents during installation and use are divided into the following four

categories. Closely observe these warnings; they are critical to your safety.

Other icons

DANGER

WARNING

CAUTION

DANGER indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

CAUTION used without the safety alert symbol indicates a potentially

hazardous situation which, if not avoided, may result in property damage.

CAUTION

Be sure

to do. Earth

Electric

Shock.

DANGER

Icons warning of risk level

Important Safety Information

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Vapours from flammable liquids will explode and catch fire causing death or severe burns.

Do not use or store flammable products such as petrol, solvents or

adhesives in the same room or area near the water heater.

Prohibited

Keep flammable products:

1. Far away from the water

heater.

2. In approved containers.

3. Tightly closed.

4. Out of children’s reach.

Vapours:

1. Cannot be seen.

2. Vapours are heavier than air.

3. Go a long way on the floor.

4. Can be carried from other rooms

to the main burner by air currents.

Vapours

Hot Water Heater temperatures over 50 °C can cause severe burns instantly or

death from scalding.

Children, disabled and elderly are at the highest risk of being scalded.

Feel water temperature before bathing or showering.

Temperature limiting valves are available, ask licensed installer.

Prohibited

(Continued)

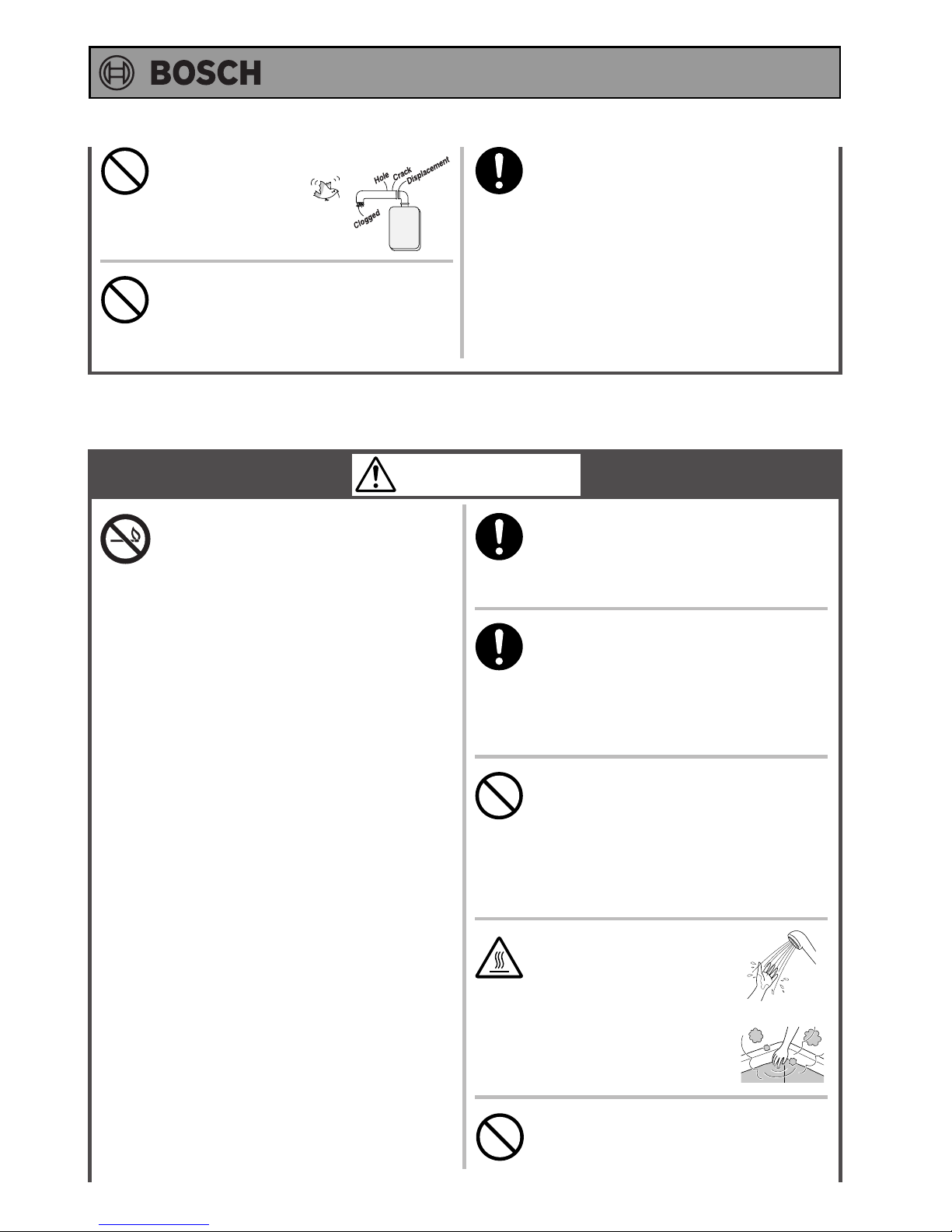

Operating Instructions

No flame.

(Continued)

Do not use the water heater

if the exhaust pipe

is displaced,

has holes, is clogged

or is corroded.

Prohibited

WARNING

Be sure

to do.

When a gas leak is noticed:

1. Stop use immediately

2. Close the gas valve

3. [When installing indoors]

Open windows and doors

If you detect abnormal combustion

or abnormal odors, or during an

earthquake, tornado or fire:

1. Turn off the hot water supply

Turn off the power to the water heater

Turn off gas and water supply valve.

4. Call the nearest Bosch agent

Be sure

to do.

Do not allow anyone to change the water

temperature while hot water is being used.

To prevent scalding, do not change the wa-

ter temperature to a higher setting.

Prohibited

Explosion Hazard ;

If the temperature and pressure relief

valve is dripping or leaking, have a

qualified service technician replace it.

Do not plug or remove the valve.

Failure to follow these instructions can result in

fire or explosion, and personal injury or death.

Prohibited

After the water heater has been out of use

for a long time or after replacing the neu-

tralizer with a new unit, make sure that

you fill the neutralizer unit with water.

This is to prevent dangerous exhaust

gases from entering the building.

(Refer to page 28 for further instructions.)

Be sure

to do.

(Continued)

Check the temperature

of the running hot water

before entering the

shower.

Check the temperature

before stepping into

the bath tub.

High

Temperature.

A. This water heater does not have a

pilot. It is equipped with an

ignition device that automatically

lights the burner. Do not try to

light the burner by hand.

B. WHAT TO DO IF YOU SMELL

GAS.

• Do not try to light any

appliance.

• Do not touch any electrical

switch; do not use any phone

in your building.

• Immediately call your gas

supplier from a neighbor’s

phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas

supplier, call the fire

department.

C. Use only your hand to turn the

gas valve knob. Never use tools.

If the knob will not turn by hand,

don’t try to repair it. Call a

qualified service technician.

Force or attempted repair may

result in a fire or explosion.

D. Do not use this water heater if

any part has been under water.

lmmediately call a qualified

service technician to inspect the

water heater and to replace any

damaged parts.

Do not use combustible chemicals such

as oil, gasoline, benzene etc. in the near

the heater or the exhaust vent terminal.

Prohibited

Operating Instructions

Important Safety Information

(Continued)

air supply

vent

[When installing indoors]

Check the air supply

vent for dust or

obstructions.

Be sure

to do.

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Be sure

to do.

Be sure

to do.

(Continued)

Do not place the exhaust vent terminal

in an indoor environment by means of

adding walls and ceiling (Do not en-

close using corrugated sheets, etc.)

Carbon monoxide poisoning or fire may

occur as a result.

Exhaust vent

terminal

Unit

Prohibited

Do not place combustibles such as

laundry, newspapers, oils etc. near

the heater or the exhaust vent

terminal. Exhaust vent terminal

(indoor installation)

Prohibited

Carbon Monoxide Poisoning Hazard. Do

not install this water heater in a mobile

home, recreation vehicle or on a boat.

Prohibited

Unit

Do not store or use petrol or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

Prohibited

Do not place or use a spray can

near the water heater or the exhaust

vent terminal.

Prohibited

Leave the proper clearance between the

water heater and nearby objects (trees,

timber, boxes with flammable materials etc.).

Be sure

to do.

*Indicates suggested clearances for maintenance.

Left side:

Min. 15

Min. 5

from vent pipe*

Front:

Sug. 60

[When installing indoors]

Left side:

Min. 15

Right side:

Min. 15

Upper:

Min. 30

Front:

Sug. 60

[When installing outdoors]

Right side:

Min. 15

Be sure the gas matches

the gas on the data

plate

(inside of frontcover)

gas type label (right side

of casing).

For NG Gas

Operating Instructions

CAUTION

If this unit will be installed in a beauty

salon or other location where hair

spray or aerosols will be used, locate

the unit in a separate area that is

supplied with fresh air from outdoors.

Prohibited

Be sure to electrically ground the

unit.

Keep power cord free of dust.

Ground.

Be sure

to do.

Do not use the water heater for

other than its intended use.

Prohibited

(Continued)

Prohibited

Do not cover the water heater and

the exhaust vent terminal, store

trash or debris near it, or in any way

block the flow of fresh air to the unit.

Do not turn off the water heater

while someone is shawering.

Prohibited

Do not use a broken or modified power

cord. Do not bind, bend or stretch

power cords. Do not scratch, modify,

or subject them to impact or force.

Do not touch the exhaust vent pipe

and exhaust vent terminal during

or immediately after operation of

the water heater.

Do not install in locations where

excessive dust or debris will be

in the air.

Prohibited

Don’t

touch.

Prohibited

Be sure

to do.

Do not allow small children to play

unsupervised in the bathroom.

Do not allow small children to

bathe unsupervised.

Do not use hair spray or spray

detergent in the vicinity of the

heater.

Do not touch the power

cord with wet hands.

Prohibited

Electric

Shock.

Don’t touch

with a wet

hand.

Prohibited

Contact a qualified service

technician for any necessary

repairs, service or maintenance.

Consult the nearest Bosch agent if

the water heater location needs to

be changed.

Don’t

disassemble

the equipment.

Be sure

to do.

To prevent burns or scalding, turn

off the power button and wait until

the equipment cools before per-

forming maintenance. Do not use condensate, discharged

from the drain pipe, for drinking or

for consumption by animals.

Prohibited

Operating Instructions

Important Safety Information

CAUTION

Do not drink water that has been inside the

unit for an extended period of time. Do not

drink the first use of hot water from the

unit in the morning.

Clean the filter on the water inlet as

frequently as required by the quality of

your local water.

Keep the area around the unit clean.

If boxes, weeds, cobwebs, cockroaches etc. are in

the vicinity of the unit, damage or fire can result.

Do not install the equipment where the

exhaust will blow on walls or windows.

Problems resulting from scale formation

are not covered by the warranty.

Preventing damage from freezing ( P26)

Damage can occur from frozen water within the

device and pipes even in warm environments.

Be sure to read below for appropriate measures.

Repairs for damage caused by freezing are not

covered by the warranty.

Check ignition during use and extinction

after use.

Take necessary measures to prevent

freezing of water and leakage of gas when

leaving the unit unused for long periods of

time. ( P27)

Do not use parts other than those specified

for this equipment.

If it is snowing, check the air inlet, exhaust

gas vent and exhaust vent terminal for

blockage.

Do not disassemble the remote controller.

Do not use petrol, oil or fat detergents to

clean the remote controller.

This may cause deformation.

Do not get the remote controller wet.

Although it is water resistant, too much water can

cause damage.

Do not splash water on the remote

controller. Do not expose the remote

controller to steam.

Do not locate the remote controller near stoves or

ovens, this may cause damage or failure.

Treat hard, acidic or otherwise impure

supply water with approved methods to

ensure full warranty coverage.

Operating Instructions

Important Safety Information....................................................................... 2

Contents ........................................................................................................ 7

Overview of Condensing Continuous Flow Gas Water Heater ................. 8

General Parts

Main Unit.................................................................................................... 9

Names and Functions of Controllers

Main Remote Controller (RCM3211)....................................................... 10

Waterproof Sub Remote Controller (RCS3211) .................................... 11

Initial Operation ........................................................................................... 12

How to Use

When using RCM3211

Running Hot Water ................................................................................... 13

Setting Hot Water Temperature ............................................................... 14

Filling Up the Bath .................................................................................... 16

Clock Adjustment ..................................................................................... 17

Other Setting Options .............................................................................. 18

Confirmation Beeper On/Off .................................................................... 20

When using RCS3211

Running Hot Water ................................................................................... 21

Setting Hot Water Temperature ............................................................... 22

Confirmation Beeper On/Off .................................................................... 24

No remote controller case

Running Hot Water ................................................................................... 25

Preventing Damage from Freezing ............................................................ 26

When Unused for an Extended Period ...................................................... 27

Regular Maintenance................................................................................... 29

Troubleshooting .......................................................................................... 32

Follow-up Service ........................................................................................ 36

Specifications .............................................................................................. 37

Manufacturer’s Warranty ............................................................................ 39

Contents

Operating Instructions

Cold water

Gas

Hot water

Condensate

Combustion gas

About 200°C

Exhaust Exhaust

About 50°C

Conventional

type

Condensing

Continuous Flow

Gas Water Heater

Water is heated

using the exhaust

gas which is about

200°C

First heat exchanger

Secondary heat exchanger

Neutralizer

Combustion gas

About 200°C

Overview of Condensing Continuous Flow Gas Water Heater

This water heater is a high efficiency, fully condensing appliance. Unlike a traditional continuous flow

water heater, a condensing type captures heat from the exhaust gas and uses it to preheat the

incoming cold water as it passes through the secondary heat exchanger as illustrated below.

The condensing continuous

flow gas water heater

discharges condensate.

When heat from the exhaust gas is collected

within the secondary heat exchanger,

condensation occurs from moisture in the

exhaust gas and the resulting water is

discharged from the drain pipe (approx.

100cc/min maximum). It is not a water leak.

Do not plug or block the drain line as it must

always be allowed to freely flow.

Drain pipe

(Installation example)

Condensate

comes out

from here.

The condensing continuous flow gas

water heater tends to show white steam.

After the exhaust gas passes through the

secondary heat exchanger, it becomes low in

temperature and moisture rich which tends to

produce steam at the vent discharge terminal.

This is a normal occurrence.

During combustion, white

steam may often be seen.

This is normal.

Operating Instructions

General Parts

Main Unit

· The above illustration shows an example of installation.

The exact installation configuration may be slightly different.

Front Cover

Exhaust vent pipe

Water Drain Valve

(with Water Filter)

(Inside Water Inlet)

( P31)

Water Supply Valve

Air inlet

Gas Supply Valve

Lit during combustion.

Blinks to indicate a problem.

( P35)

Burner On Indicator

Drain Pipe

Discharges the condensate.

1010

Operating Instructions

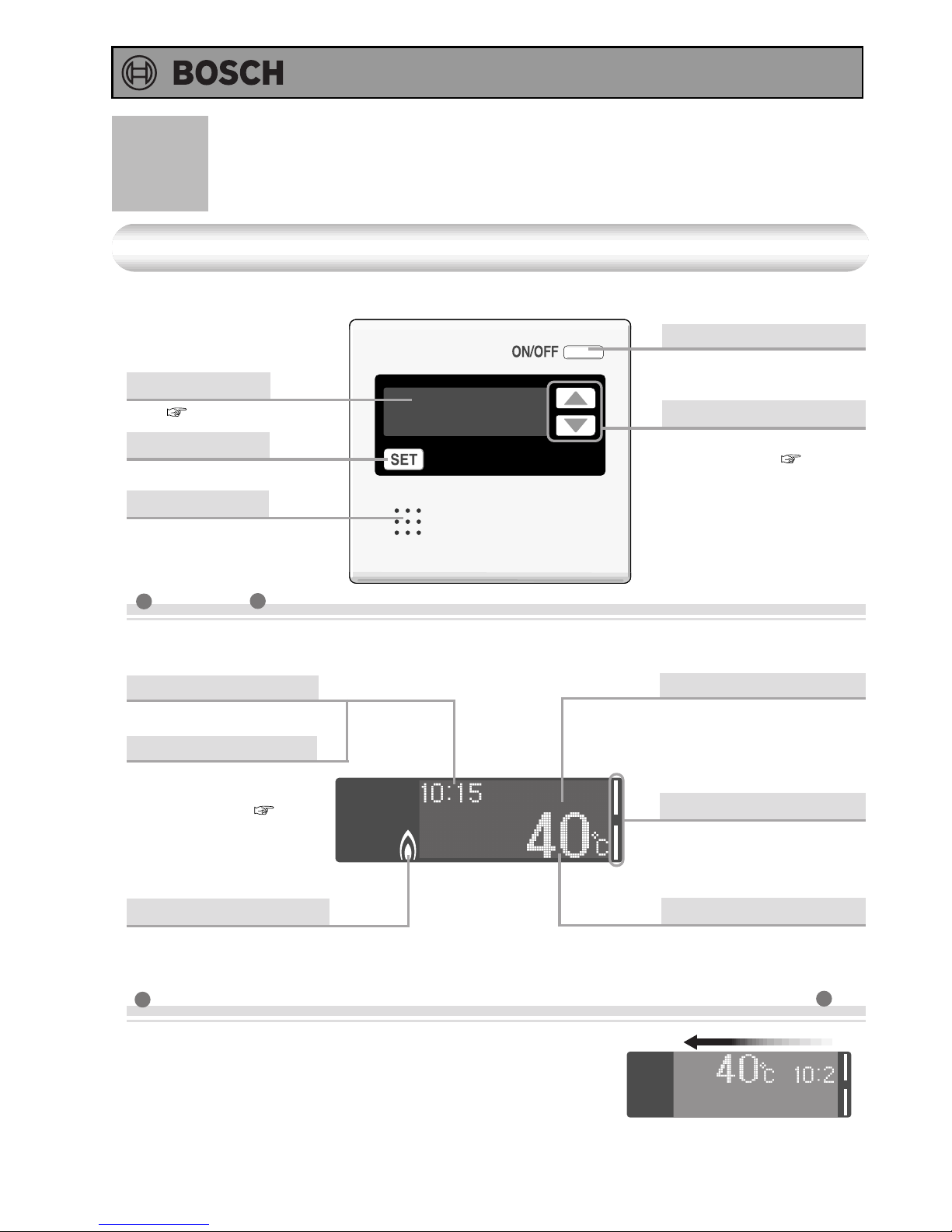

The illustration below shows the remote controller display. What is actually displayed depends

on how the water heater is set.

Time Display

When the hot water tem-

perature is set between

60~80°C, “hi-temp” blinks

for 10 seconds.

High Temperature Display

(Eg.: 40°C)

Selection switches that can

be operated are indicated

by the bar display lighting

up or blinking.

Selection Bar Display

Temperature Setting

This is displayed during

burner on.

Burner On Display

< Scroll display > to prevent the remote controller screen from burning out

(This page)

(Eg.: 10:15)

Names and Functions of Controllers

Main Remote Controller (RCM3211) <

Optional>

Error Display

Error is displayed when

malfunction occurs.

( P35)

Display

Set Button

For other settings.

Speaker

Power On/Off Button

For turning the heater on

and off.

Selection Button

•Used to adjust the

temperature. ( P14)

•Used for other settings.

•Details are memorized

upon adjustment or setting.

Display

· In order to prevent the screen burning out, about 10 minutes

after any remote control operation, the screen display begins

to scroll sideways.

· As soon as the remote controller is used again, the scrolling

stops. Current time (when the clock

is set) and hot water tempera-

ture scroll sideways.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bosch Chauffe-eau

Bosch

Bosch WR430-3K Manuel du propriétaire

Bosch

Bosch TR5000 Series Manuel utilisateur

Bosch

Bosch 520-PN-N Manuel utilisateur

Bosch

Bosch Exxcel 1400 Guide de l'utilisateur

Bosch

Bosch Tronic 1000 T Manuel utilisateur

Bosch

Bosch 13P Manuel

Bosch

Bosch Tronic Store Compact 1500 TOR Manuel utilisateur

Bosch

Bosch 125HX Manuel utilisateur

Bosch

Bosch TR2000TF Series Manuel utilisateur

Bosch

Bosch Tronic 1500 TOR Manuel utilisateur

Bosch

Bosch 940ES Manuel utilisateur

Bosch

Bosch Compress 3000 Manuel utilisateur

Bosch

Bosch TR1500TOR 5 T Manuel utilisateur

Bosch

Bosch Tronic 3000 C Pro US12 Manuel utilisateur

Bosch

Bosch 520HN Manuel de référence

Bosch

Bosch AquaStar 125FX LP Manuel utilisateur

Bosch

Bosch AQUA STAR 2400E NG Manuel utilisateur

Bosch

Bosch TR2500TO Manuel utilisateur

Bosch

Bosch TR5000R 18/21 EB Manuel utilisateur

Bosch

Bosch AquaStar GWH 2700 ES NG Manuel utilisateur

Bosch

Bosch WR 400-7.K Series Manuel utilisateur

Bosch

Bosch TR4000 Manuel utilisateur

Bosch

Bosch C 1210 ESC Manuel de référence

Bosch

Bosch AquaStar 125HX LP Manuel utilisateur

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Bradford White

Bradford White EF Series Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

Noritz

Noritz N-132M Manuel d'instructions

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur
