Bosch VDC-250 Guide de l'utilisateur

Dome Camera Menus

VDC-250 / VDC-260 / VDC-240 / VDN-240 / VDI-240

en Quick Operation Guide

Advantage Line Dome Cameras Camera menus | en 3

Bosch Security Systems Quick Operation Manual AM18-Q0627 | v1.0 | 2012.06

1 Camera menus

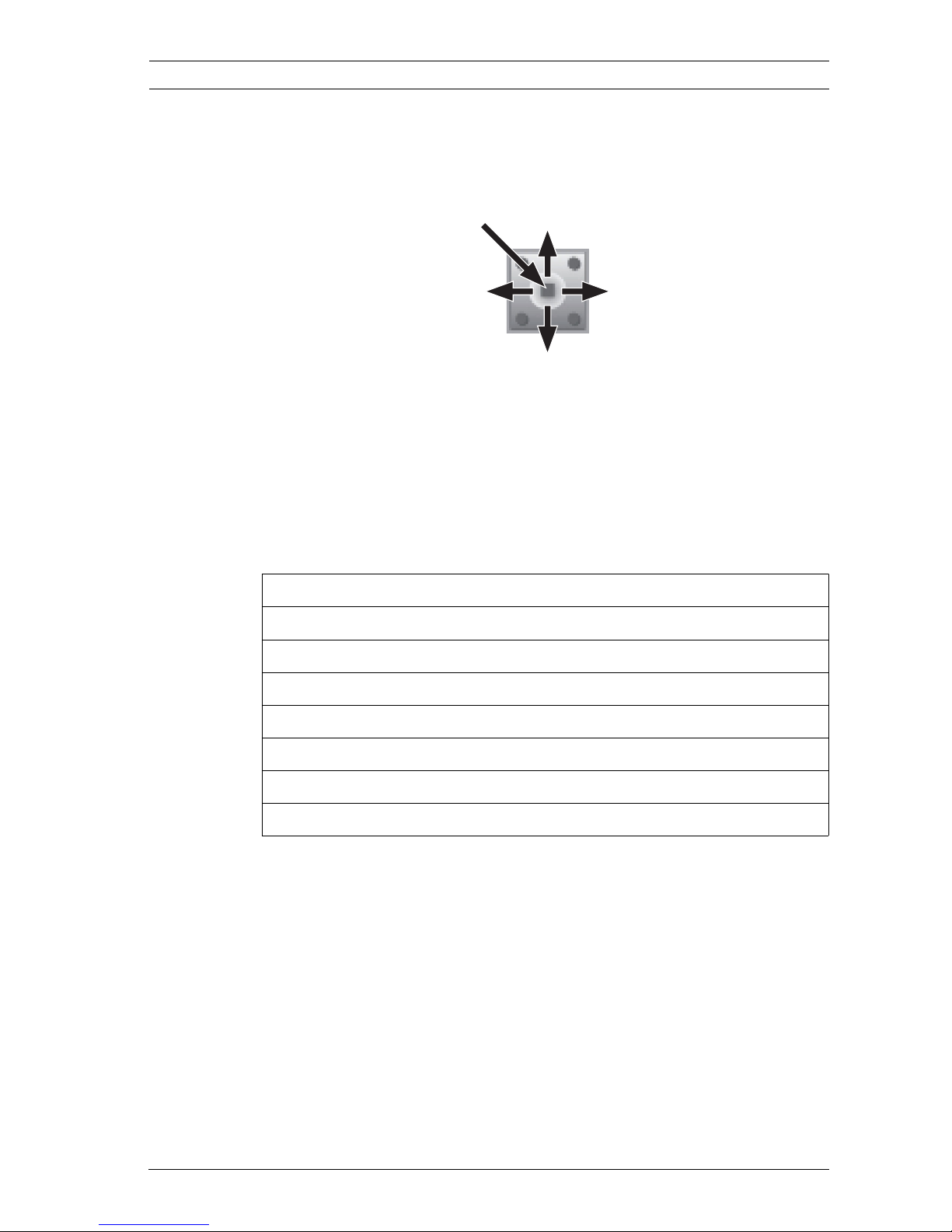

Press the center button of the control pad to access the SETUP

menu.

– Use the up and down buttons to move the cursor to a

submenu

– Use the right and left buttons to change values.

– Press the center button to select an item (or exit).

1.1 Main menu

* If menu is changed, INITIAL is hidden.

LENS

WHITE BAL

AGC

DAY/NIGHT

IMAGE ADJ

GENERAL

INITIAL*

EXIT

4en | Camera menus Advantage Line Dome Cameras

AM18-Q0627 | v1.0 | 2012.06 Quick Operation Manual Bosch Security Systems

1.1.1 Lens menu

* Flickerless mode must be off to select the shutter speed.

IR camera

LENS

ESC BRIGHTNESS 0~20

FLICKERLESS ON, OFF

DC DC LEVEL 0~20

FLICKERLESS ON, OFF

SHUTTER* 1/60 (50), 1/120

(100), 1/250, 1/500,

1/700, 1/1K1/1600,

1/2500, 1/5K, 1/7K,

1/10K, 1/30K, 1/60K,

1/120K (sec)

LENS DC DC LEVEL 0~5

SHUTTER IR mode: 1/60 (50)

Color, B/W mode:

1/60 (50), 1/120

(100), 1/250, 1/500,

1/700, 1/1K1/1600,

1/2500, 1/5K, 1/7K,

1/10K, 1/30K, 1/60K,

1/120K (sec)

Advantage Line Dome Cameras Camera menus | en 5

Bosch Security Systems Quick Operation Manual AM18-Q0627 | v1.0 | 2012.06

1.1.2 White balance menu

* Select PUSH to change the color temperature.

WHITE

BAL

ATW

MANUAL RED 0~160

BLUE 0~160

PUSH*

6en | Camera menus Advantage Line Dome Cameras

AM18-Q0627 | v1.0 | 2012.06 Quick Operation Manual Bosch Security Systems

1.1.3 AGC (Automatic Gain Control) menu

AGC ON LEVEL 0~20

OFF

Advantage Line Dome Cameras Camera menus | en 7

Bosch Security Systems Quick Operation Manual AM18-Q0627 | v1.0 | 2012.06

1.1.4 Day/night menu

*In auto mode using external IR may cause flicker.

The approximate levels for day/night switching are:

IR camera

* WIDE: controls IR LEDs based on full screen (may cause

saturation).

** SMART: controls IR LEDs based on brightess portion of

image (avoids sauration but image may be darker).

DAY/

NIGHT

COLOR

B/W BURST OFF, ON

AUTO* DELAY TIME 1-15

D/N LEVEL LOW, MIDDLE, HIGH

Low Middle High

VDC-250/260 Day to night 0.15 lx 0.3 lx 0.6 lx

Night to day 1.0 lx 1.8 lx 2.5 lx

VDC-240 Day to night 0.5 lx 1.0 lx 1.5 lx

Night to day 2.0 lx 2.5 lx 3.0 lx

VDN-240 Day to night 0.2 lx 0.5 lx 0.10 lx

Night to day 1.0 lx 1.8 lx 2.5 lx

DAY/

NIGHT

IRED MODE WIDE*, SMART**

CHANGE LEVEL LOW, MIDDLE, HIGH

COLOR

B/W BURST OFF, ON

8en | Camera menus Advantage Line Dome Cameras

AM18-Q0627 | v1.0 | 2012.06 Quick Operation Manual Bosch Security Systems

1.1.5 Image adjustment menu

* No Gamma for IR camera.


ADJ

SBLC OFF, LOW, MIDDLE, HIGH

DNR OFF, LOW, MIDDLE, HIGH

SHARP. LEVEL 0~20

MIRROR ON, OFF

MOTION AREA 1-4

DISPLAY OFF, ON

SENSITIVITY 1(most)-24 (least)

TOP 8-126

BOTTOM 8-126

LEFT 4-191

RIGHT 4-191

INITIAL OFF, ON

RETURN

PRIVACY AREA 1-4

DISPLAY OFF, ON

COLOR WHITE, YELLOW, GREEN,

BLUE, RED BLACK, GRAY

TOP 4-63

BOTTOM 5-64

LEFT 18-205

RIGHT 19-206

INITIAL

(factory

default)

OFF, ON

RETURN

COLOR

GAIN

R-Y 0-20

B-Y 0-20

GAMMA* 0.35, 0.45, 0.6, 0.75

INITIAL OFF, ON

RETURN

Advantage Line Dome Cameras Camera menus | en 9

Bosch Security Systems Quick Operation Manual AM18-Q0627 | v1.0 | 2012.06

Area selection for motion or privacy masks

Select area 1, 2, 3 or 4.

–Top: extend or reduce the upper limit of the detection

area.

–Bottom: extend or reduce the bottom limit of the detection

area.

–Left: extend or reduce the left limit of the detection area.

–Right: extend or reduce the right limit of the detection

area.

LEFT RIGHT

TOP RIGHT

BOTTOM

reduce extend

10 en | Camera menus Advantage Line Dome Cameras

AM18-Q0627 | v1.0 | 2012.06 Quick Operation Manual Bosch Security Systems

1.1.6 General menu

* up/down: character select.

** left/right: position select.

GENERAL

CAM ID 000~255

ID DISPLAY OFF, ON

CAM TITLE

OFF

ON UP/DN*, LE/RI**

LANG. ENG, CHIN

SYNC.

(24 VAC

only)

INT, L/L

L/L phase adjust

0~356

BAUD. 2400, 4800, 9600,

57600

VERSION

INITIAL

(factory

default)

OFF, ON

RETURN
