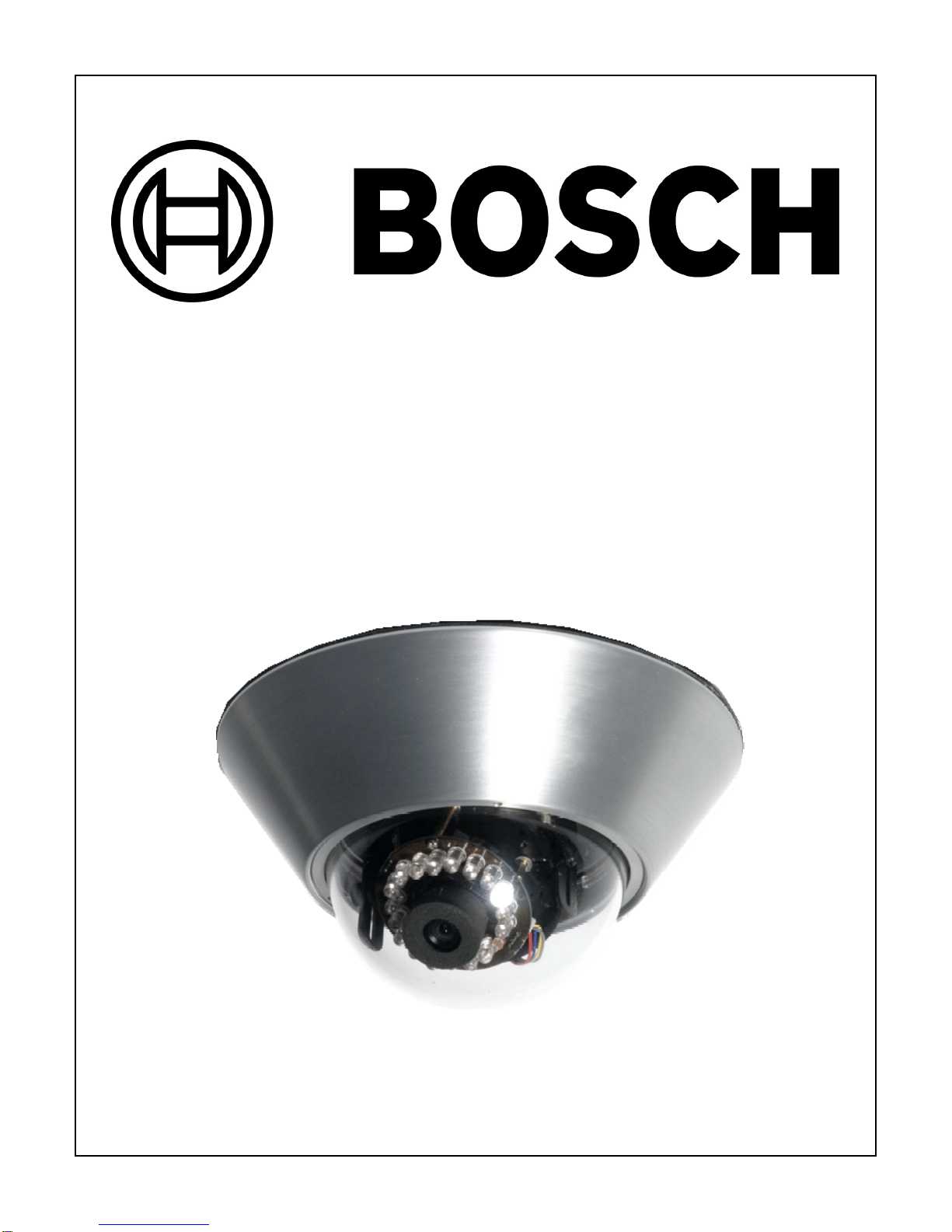

Bosch EX49N Manuel utilisateur

MAN-49N-01

EX49N

Conical No-Grip Dome Camera

INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep this instruction.

3. Heed all warnings.

4. Follow all instructions.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install

in accordance with manufacturer instructions.

7. Do not install near any heat sources where the

temperature goes above the product rating.

8. Protect the cabling from being walked on or

pinched particularly at connection points and

where they exit from the apparatus.

9. Only use accessories specified by the

manufacturer.consult an electrician for

replacement of the obsolete outlet.

10. Disconnect this apparatus during lightning

storms or when unused for long periods of

time if precautions are not taken to prevent

lightning/electrical damage to the product.

11. Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in a way, such

as internal wiring is damaged, liquid has been

spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

IMPORTANT

For best results, please read this Instruction Booklet prior to

installing the EX49N camera.

For best results in infrared image quality, when reassembling the

dome to the housing, make sure the foam donut is in tight 360

contact with the dome.

WARNING !

CSA Certified / UL Listed CLASS 2 power adaptors must be used

in order to comply with electrical safety standards.

12-24 VDC/VAC (60Hz), 10W

CSA Type 4X

CAN/CSA 60065 – 03 + Amd 1

Audio, Video and Similar Electronic Apparatus – Safety Requirements

UL Std No. 60065 - 07

Audio, Video and Similar Electronic Apparatus – Safety Requirements

This Product Has Been Certified By CSA International To

Include the Health Care Facility Requirements Of UL 2044.

This installation should be made by a qualified service person and

conform to all local codes. Bosch will not be responsible for

injuries or damages resulting from the improper installation or use

of any camera sold by Bosch, their agents, distributors or dealers.

EU Directives covered by this declaration:

72/9/EC Low Voltage Directives

89/336/EEC Electromagnetic Compatibility Directive

NOTE: This equipment has been tested and found to

comply with the limits for a digital device, pursuant to

part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. As part of its’

normal operation this device can generate radio

frequency energy and if not installed and used in

accordance with the installation manual may cause

interference to radio communications. However, there

is no guarantee that interference will not occur on a

particular installation. If the device does cause

interference to radio or television reception the user is

encouraged to try to correct the interference by one or

more of the following measures:

1) Fit Ferrite beads on all cable to and from the power

supply box, within the box walls.

2) Route the composite cable between the camera and

the power supply in steel conduit piping over the entire

run of the cable up to and including connection to a

deep conduit base fitted under the camera and a conduit

fitting adaptor in the wall of the PSU box.

3) Contact BOSCH Service Center for further advice.

INDEX – EX49N

Page

Description..................................................1

Unpacking...................................................2

Parts List.....................................................2

Items Required for Installation....................2

Initial Preparations......................................3

Guidelines...................................................3

Section 1. Dome Removal..........................4

Section 2. Input Power Connections.......... 6

Section 3. Mounting – Camera Base ..........9

Section 4. Adjustments.............................13

Section 5. Camera Re-Assembly..............18

Section 6. Troubleshooting Guide.............20

Section 7. Template – Mounting Holes.....23

Section 8. General Specifications.............24

DESCRIPTION

The EX49N “No-Grip” High Impact Dome

Night Vision Camera has been engineered for

surveillance in hostile environments. Compact

and good looking, the camera features a smooth

“no-grip” housing for protection against theft and

vandalism.

An aluminum housing, CNC-machined from a

solid billet, with an impact resistant

polycarbonate dome and locking retaining ring,

make it extremely rugged and weather-tight.

For flexibility, the CCD Camera/LED Array can

be fully rotated using a unique “Pan-Tilt-Twist”

(PTT) mounting bracket.

A voltage regulator circuit allows for 12V DC or

24V AC operation, and a range in between, also

providing protection from voltage surge,

transient spikes, and reverse voltage.

The EX49N is available in several models

designed to meet specific needs.

UNPACKING

Care should be taken when unpacking the

shipped unit. Check the parts list and confirm all

items have been located. Inspect the equipment

thoroughly to ensure nothing was damaged in

transit.

Contact BOSCH Service Center if a problem is

noted, see the rear page of this booklet for

contact numbers.

PARTS LIST (items supplied with unit)

EX49N Camera Assembly with foam gasket

Half-tint dome bubble (installed)

Clear dome bubble (spare)

Installation Instructions booklet

Plastic bag containing one hex key

Desiccant pack for moisture absorption (do

not remove)

ITEMS REQUIRED FOR INSTALLATION

(not supplied with unit)

- Philips, Robertson screwdrivers

- Silicone sealant and Teflon sealing tape

- Mounting screws, etc.

INITIAL PREPARATIONS

Determine the operating voltage at the

installation site. The camera‘s Voltage

Regulator Board accepts either +12V DC or

24V AC input.

See Section 2, Input Power Connections.

Determine the optimum location for the

camera. Section 3, Mounting-Camera Base.

All cameras have been tested prior to

shipment. After the wiring has been

reconnected, it is advisable to check the

camera’s operation before installation.

ESD protection – Cameras and circuit boards

are sensitive electronic components. It is

recommended to wear a ground strap to

ground any static charge. (Alternative: touch a

grounded metal plate for at least a minute

before proceeding with any disassembly)

GUIDELINES

The installation of the EX49N camera is explained

in Sections 1 to 5 listed below. It is important that

these steps are followed in sequence:

1. Dome Removal

2. Input Power Connections

3. Mounting – Camera Base

4. Adjustments

5. Camera Re-Assembly

1. DOME REMOVAL

The camera’s dome and its retaining ring must

be removed prior to mounting the camera or

performing any wiring disconnections and re-

connections. The set-screws in the retaining ring

are not tightened in the factory and protrude by

1/8" (3mm) in order for the ring to be rotated.

Refer to Figure 1 - 1 on page 5.

Step 1.1 - Place the camera on a flat surface.

Step 1.2 - Press firmly on the dome with one

hand and rotate the retaining ring in

a counter-clockwise direction with

the other hand. Push against the

protruding set-screws with a finger

to rotate the ring. Do not use a

screwdriver or other metal device.

Step 1.3 - Remove the dome and the retaining

ring. Set them aside.
