SOP for CCTVs in SunGuide

BOSCH AutoDome 7000 HD

This Standard Operating Procedure is to provide a standard configuration for CCTV cameras in

District 5 for consistent operation in SunGuide, VLC and IVEDDS. Standard settings to check:

Network settings, Video/Encoder settings, SNTP (time server type), IP addresses, PTZ settings,

Date and Time, RTSP port, NTCIP (port and address), and On Screen Display (ODS).

The following SOP is for the BOSCH AutoDome 7000 HD (7230) IP camera.

Log into the camera, using Internet Explorer or Chrome to access the camera’s user interface.

Type in the default IP address.

Enter the following:

Enter the user name: <service>

Enter the password: <Default>

Click “Set”.

SOP for CCTVs in SunGuide

Click on “Configuration”.

SOP for CCTVs in SunGuide

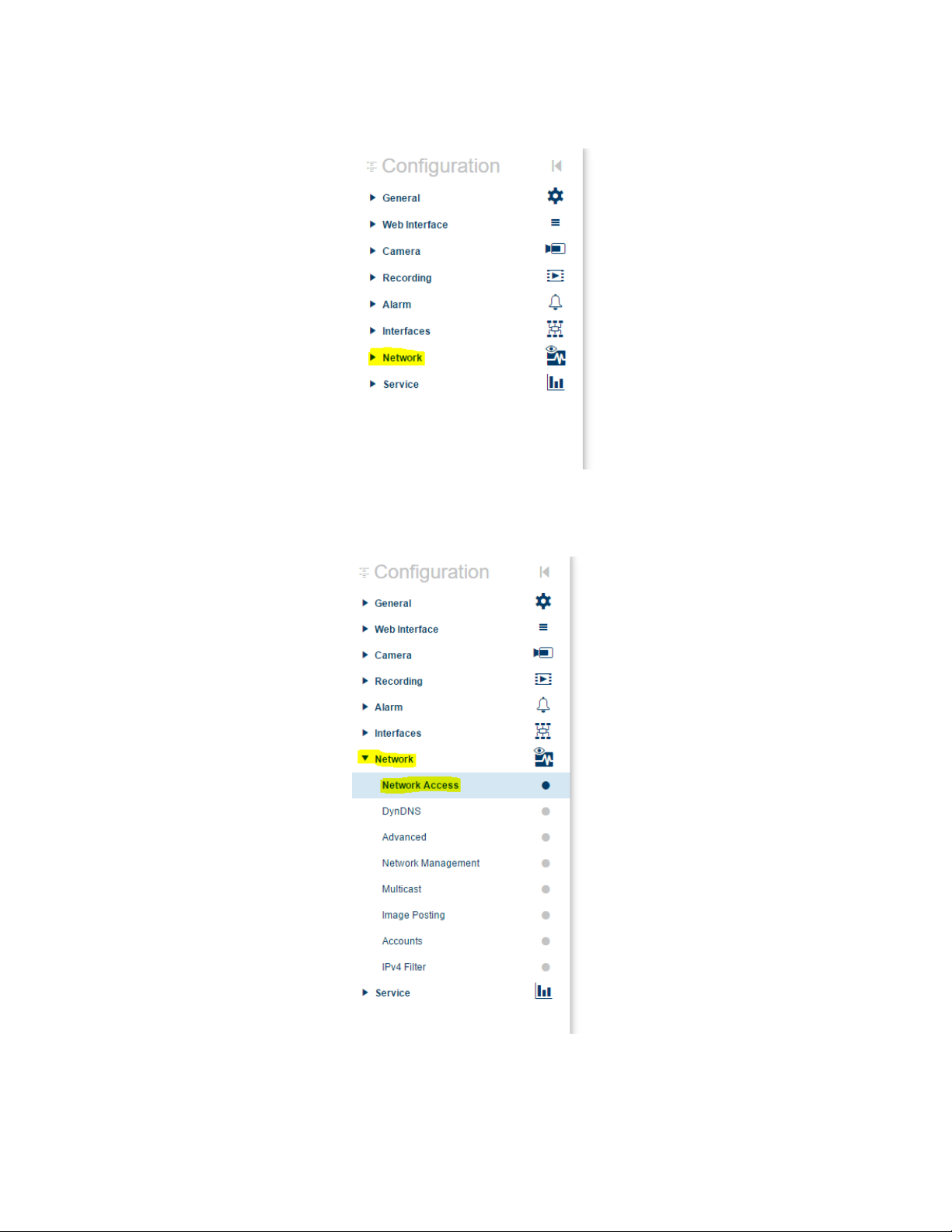

Click on “Network”.

Click on “Network Access”.

NOTE: Click Set/SAVE after every configuration setting for that window before moving to the

next menu item.

SOP for CCTVs in SunGuide

1. Network settings:

Set the following parameters for the “Network Access”.

DHCP is disabled <Off>

IP address <10.X.X.X>

Subnet mask <255.255.255.X>

Gateway <10.X.X.X>

SOP for CCTVs in SunGuide

Click “Set and Reboot”.

After Reboot, log into the camera, use Internet Explorer or Chrome to access the camera’s

user interface. Type in the assigned IP address.

Enter the following:

Enter the user name: <service>

Enter the password: <Default>

Click “OK”.

SOP for CCTVs in SunGuide

Click on “Configuration”.

Click on “Network.”

Click on “DynDNS.”

Set the following parameters for the “DynDNS” setting.

DynDNS is disabled <Off>

Click “Set”.

SOP for CCTVs in SunGuide

Click on “Network.”

Click on “Advanced.”

SOP for CCTVs in SunGuide

Set the following parameters for the “Advanced” setting.

RTSP Port: < 554 >

NTCIP Port: < 4439 >

NTCIP Address: < 1 >

Click “Set”.

SOP for CCTVs in SunGuide

Click on “Network”.

Click on “Network Management”.

Set the following parameters for the “Network Management” setting.

SNMP: < On >

UPnP: < Off >

Click “Set”.

SOP for CCTVs in SunGuide

Click on “Network.”

Click on “Multicast”

Set the following parameters for the “Multicast” setting Stream 1 and Stream 2.

Enable: < check box >

Multicast Address: < If provided 232.219.X.X >

Port: (Stream 1) < 5554 >, (Stream 2) < 5556 >

Streaming: < check box >

Multicast packet TTL: < 64 >

(NOTE: The same multicast IP is used for both stream 1 and stream2)

Click “Set”.
