AUTODOME 5000 PTZ Camera
en Installation Guide
Table of contents
1Safety 4
1.1 About this Manual 4
1.2 Conventions in this Manual 4
1.3 Legal Information 4
1.4 Important Safety Instructions 4
2Description 6
2.1 Unpacking 6
3Installing a Recessed Mount 7
3.1 Parts List 7
3.2 Installing the Recessed Mount 8
4Installing a Pipe Mount 10
4.1 Parts List 10
4.2 Installing the Pipe Mount 11
5Installing a Wall Mount 14
5.1 Parts List 14
5.2 Installing the Wall Mount 15
6Replacing the Bubble 17
6.1 Parts List 17
6.2 Installing the Replacement Bubble 18
7Technical data 20
AUTODOME 5000 PTZ Camera Table of Contents | en 3
Bosch Security Systems, Inc. Installation Guide 2013.07 | 1.3 |
Safety
About this Manual
This manual has been compiled with great care and the information it contains has been
thoroughly verified. The text was complete and correct at the time of printing. Because of the
ongoing development of products, the content of the manual may change without notice.
Bosch Security Systems accepts no liability for damage resulting directly or indirectly from
faults, incompleteness, or discrepancies between the manual and the product described.
Conventions in this Manual
In this manual, the following symbols and notations are used to draw attention to special
situations:
Danger!
This symbol indicates an imminently hazardous situation such as “Dangerous Voltage” inside
the product. If not avoided, this will result in an electrical shock, serious bodily injury, or
death.
!
Warning!
Indicates a potentially hazardous situation. If not avoided, this could result in serious bodily
injury or death.
!
Caution!
Medium Risk
Indicates a potentially hazardous situation. If not avoided, this may result in minor or
moderate injury. Alerts the user to important instructions accompanying the unit.
!
Caution!
Indicates a potentially hazardous situation. If not avoided, this may result in property damage
or risk of damage to the unit.
Notice!
This symbol indicates information or a company policy that relates directly or indirectly to the
safety of personnel or protection of property.
Legal Information
Copyright
This manual is the intellectual property of Bosch Security Systems, Inc. and is protected by
copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered
trademarks and must be treated accordingly.
Important Safety Instructions
Installation notes
– Do not place the device on an unstable mounting, tripod or similar. The device may fall to
the ground and seriously injure the user or be damaged itself.
1
1.1
1.2
1.3
1.4
4en | Safety AUTODOME 5000 PTZ Camera
2013.07 | 1.3 | Installation Guide Bosch Security Systems, Inc.
– Only use accessories that have been recommended by the manufacturer or are delivered
with the device.
– Fit the device according to the manufacturer's instructions.
– Exercise extreme caution when transporting the device on a trolley. Abrupt stopping,
extreme force effects and uneven surfaces may cause the device and the trolley to tip
over.
Spare parts
If spare parts are required, service personnel must use spare parts that are recommended by
the manufacturer or correspond to the original parts. Using the wrong spare parts may result
in fire, electric shock or other hazards.
Notice!
Installation should only be carried out by qualified customer service personnel in accordance
with the applicable electrical regulations.
Danger!
Servicing
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING INSTRUCTIONS, UNLESS YOU ARE QUALIFIED TO DO
SO.
In USA and Canada, use Class 2 power supply unit (PSU) only.
Notice!
Use of Grounded Conduit
A grounded conduit is required in order to meet the EMC Regulation Requirements.
!
Caution!
Installation
The installation should be made by qualified installation personnel and conform to the
National Electrical Code and applicable local codes.
AUTODOME 5000 PTZ Camera Safety | en 5
Bosch Security Systems, Inc. Installation Guide 2013.07 | 1.3 |
Description
This manual provides instructions for mounting a AUTODOME 5000 Series PTZ Dome to the
VEZ-A5-IC In-ceiling (Recessed) Mount. This mount allows you to recess the AUTODOME 5000
into an indoor drop-ceiling.
This manual provides instructions for mounting a AUTODOME 5000 PTZ Dome to the VEZ-A5-
PP Pipe Mount. This mount allows you to mount the AUTODOME 5000 to an indoor or to an
outdoor high ceiling.
This manual provides instructions for mounting a AUTODOME 5000 PTZ Dome to the VEZ-A5-
WL Wall Mount. This mount allows you to mount the AUTODOME 5000 to an indoor or to an
outdoor vertical wall.
This manual provides instructions to replace the bubble on a AUTODOME 5000 Series PTZ
Dome Camera using the VEZ-5BUB-TR Bubble Replacement kit.
Unpacking
This equipment should be unpacked and handled with care. If an item appears to have been
damaged in shipment, notify the shipper immediately.
Verify that all the parts listed in the Parts List below are included. If any items are missing,
notify your Bosch Security Systems Sales or Customer Service Representative.
The original packing carton is the safest container in which to transport the unit and must be
used if returning the unit for service. Save it for possible future use.
2
2.1
6en | Description AUTODOME 5000 PTZ Camera
2013.07 | 1.3 | Installation Guide Bosch Security Systems, Inc.
Installing a Recessed Mount
Use this chapter to install the indoor dome camera into an indoor ceiling space.
Parts List
Quantity Item
1 Ceiling Bracket
1 Rubber Gasket
1 Housing Frame
1 Trim Ring
3 M4x10 Phillips Screws
1 Guide Pattern
1 Installation Manual
3
3.1
AUTODOME 5000 PTZ Camera Installing a Recessed Mount | en 7
Bosch Security Systems, Inc. Installation Guide 2013.07 | 1.3 |
Installing the Recessed Mount

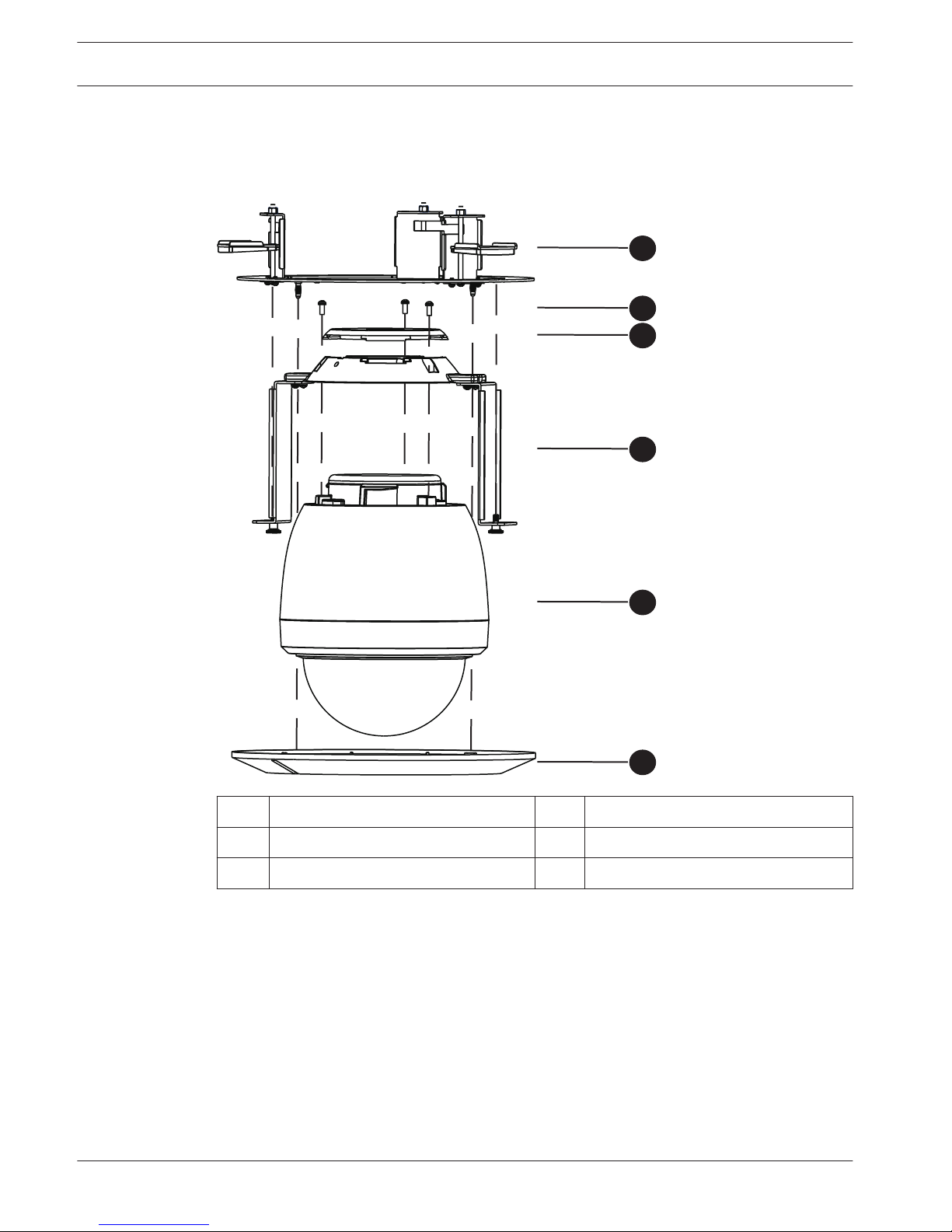

The illustration below shows the required parts for the recessed mount. Refer to the steps
that follow for instructions.
1
2
3
4
5
6
1 Ceiling Bracket 4 Housing Frame
2 M4x10 Screws (3 pieces) 5 Dome Camera
3 Rubber Gasket 6 Trim Ring
3.2
8en | Installing a Recessed Mount AUTODOME 5000 PTZ Camera
2013.07 | 1.3 | Installation Guide Bosch Security Systems, Inc.
Recessed Mount Installation Instructions
1. Find a secure location on the ceiling and apply the ceiling guide pattern the ceiling tile or
drywall. Use the pattern as a template to cut the proper circle in the ceiling.
2. Place the Ceiling Bracket (1) into the ceiling and make sure the three support wings of
the bracket are completely flush with the ceiling board.
3. Attach the Dome Camera (5) to the Housing Frame (4) by fastening the three (3) M4x10
screws.
4. Connect the Safety Tether, attached to the Ceiling Bracket (1), to the Housing Frame (4).
5. Thread all connection cables through the center hole of the Ceiling Bracket and through
the Rubber Gasket (3).
6. Connect all cables to the camera back plate.
7. Insert the Housing Frame (4) with the camera into the Ceiling Bracket (1) and securely
fasten the screws on the Housing Frame to the Ceiling Bracket.
8. Place the Trim Ring (6) over the exposed part of the camera and affix it to the Housing
Frame (4).
AUTODOME 5000 PTZ Camera Installing a Recessed Mount | en 9
Bosch Security Systems, Inc. Installation Guide 2013.07 | 1.3 |
Installing a Pipe Mount
Use this chapter to install and indoor or outdoor dome camera to a pipe.
Parts List
Quantity Item
1 Pipe Mount Base with Safety Tether
1 300 mm (11.81 in.) Pipe Extension
1 200 mm (7.87 in.) Pipe Extension
1 M38 to M38 Connection Ring
1 M38 to M33 Connection Ring
1 3/4 x 260 in. Roll Teflon Tape
1 5g Container Silicon Grease
4 M10x25L Phillips Screws and Washers
1 Rubber Gasket
1 Installation Manual
4
4.1
10 en | Installing a Pipe Mount AUTODOME 5000 PTZ Camera
2013.07 | 1.3 | Installation Guide Bosch Security Systems, Inc.
