VIP X1600 Base

EN |2 Quick Installation Guide | VIP X1600 Base

Bosch Security Systems | 2006-08 | V2.0

These instructions "Quick Installation Guide" refer to the VIP X1600 base. They show installation

of modules into a VIP X1600 base, mounting and initial operation. In the drawings the VIP X1600

module displayed in audio version stands for all versions.

Warning

You should always make yourself familiar with the required safety measures in the cor-

responding chapter of the user's manual. You will find important details on the installa-

tion and on the operation of the unit in the user's manual. These instructions "Quick

Installation Guide" only show the basic installation of a VIP X1600 base; they are no sub-

stitute for the complete user's manual.

VIP X1600 Base | Quick Installation Guide EN | 3

Bosch Security Systems | 2006-08 | V2.0

Contents of Delivery

• VIP X1600 base

• Mounting kit for installation in 48 cm (19 in.) racks

• Self-adhesive elastic bumpers

•CD-ROM

• Quick Installation Guide

EN |4 Quick Installation Guide | VIP X1600 Base

Bosch Security Systems | 2006-08 | V2.0

1. Unpack the Box

• Please check the delivery for completeness and integrity.

• Have your unit checked by Bosch Security Systems if you detect any damages!

VIP X1600 Base | Quick Installation Guide EN | 5

Bosch Security Systems | 2006-08 | V2.0

2. Prepare the Base

• Screw the two brackets for the rack mounting onto the housing, if necessary.

• For use as desktop unit stick the four bumpers to the underneath of the housing.

EN |6 Quick Installation Guide | VIP X1600 Base

Bosch Security Systems | 2006-08 | V2.0

3. Mount the Modules

• Fit the first VIP X1600 module into the rails on the right and the left of the left-most slot and

slide the module right into the VIP X1600 base carefully.

• Fit in the four screws provided and tighten them.

• Fit any additional VIP X1600 module the same way, if necessary. To do so, remove the respective

cover plate first by unscrewing the four screws in the corners.

• After removing a VIP X1600 module the unused slot must be closed by means of a cover plate to

provide a proper air ventilation.

Note: Modules are hot swappable and can be mounted while the VIP X1600 base is powered. Take

special care when doing so!

VIP X1600 Base | Quick Installation Guide EN | 7

Bosch Security Systems | 2006-08 | V2.0

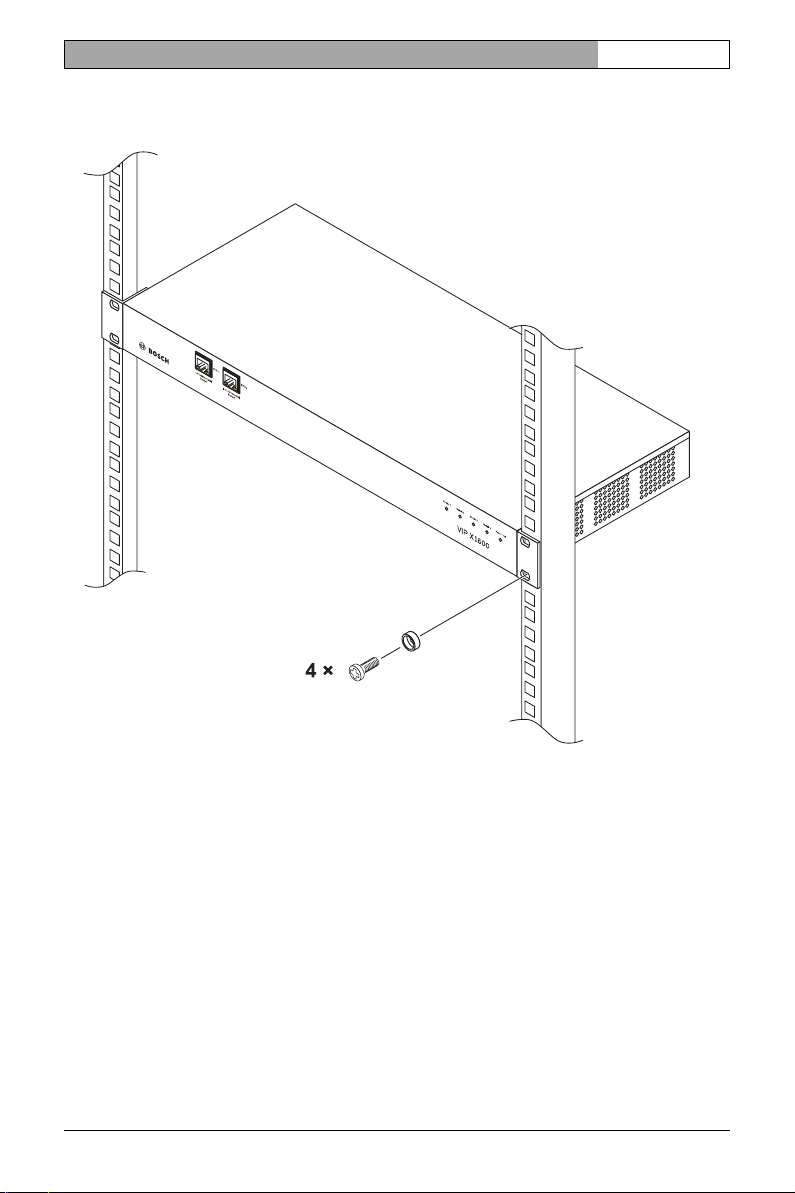

4. Rack mounting

• Place the cage nuts in the corresponding holes or spaces in the rack frame.

• Lift the VIP X1600 base into the rack frame and insert the fastening screws and plain washers.

• Tighten the screws in turn and then check the secure fitting of all screws again.

EN |8 Quick Installation Guide | VIP X1600 Base

Bosch Security Systems | 2006-08 | V2.0

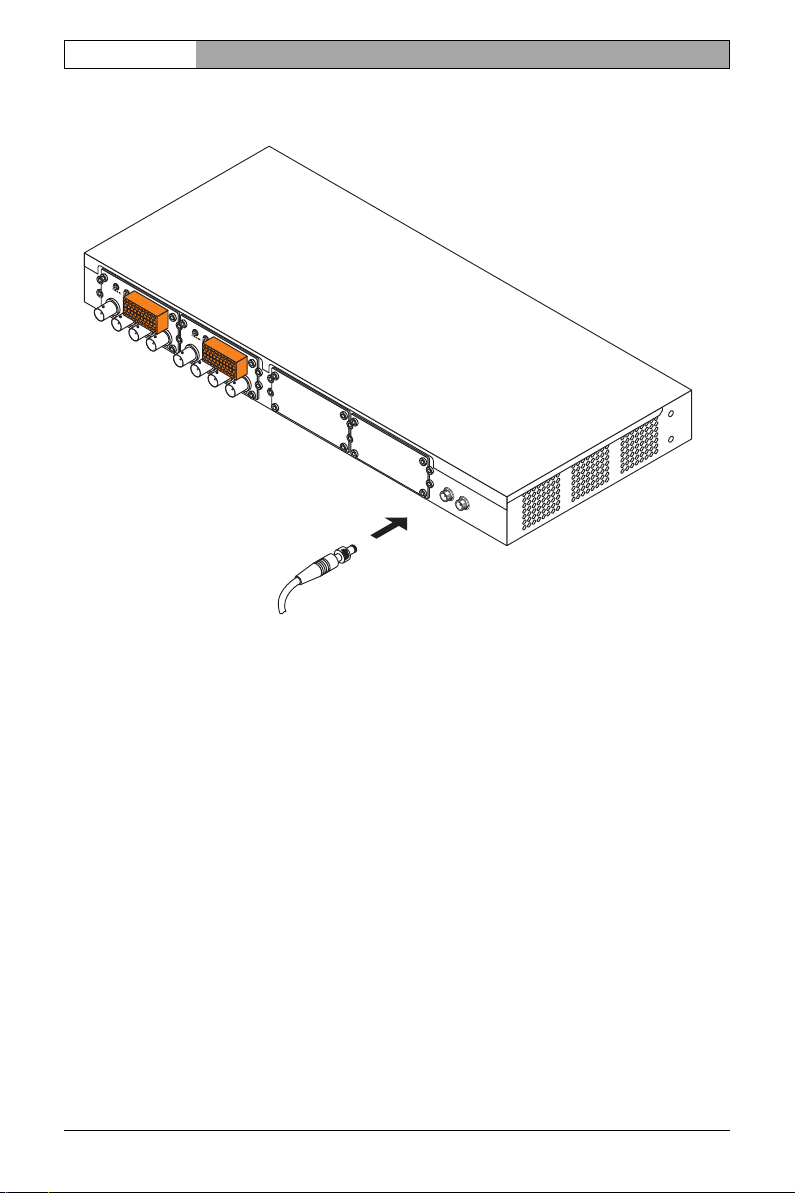

5. Power supply

• Insert the plug of the power supply unit to the INPUT 1 socket on the rear side of the VIP X1600

base and tighten the wrap ring manually.

• Connect the power supply unit to the power outlet.

• Connect a second power supply unit to the INPUT 2 socket, if necessary.

Note: Power supply units are not included in delivery. You can order power supply units in diffe-

rent variations at Bosch Security Systems.

VIP X1600 Base | Quick Installation Guide EN | 9

Bosch Security Systems | 2006-08 | V2.0

6. Connect to the Network

• Connect the VIP X1600 base to the network via the ETH 1 socket.

• If necessary, set up a redundant network connection or connect an iSCSI RAID system using the

ETH 2 socket.

EN |10 Quick Installation Guide | VIP X1600 Base

Bosch Security Systems | 2006-08 | V2.0

7. Configure the IP Address

• Install the program Configuration Manager from the CD-ROM provided. To do so start the

Setup.exe file in the …\Configuration Manager folder on the CD-ROM.

• Start the Configuration Manager when installation is completed. The network is scanned for

compatible devices automatically.

• When a VIP X1600 module is listed, click the entry and click the tab Network, located in the

right frame.

• Enter the desired IP address (e.g. 192.168.0.16) in the Unit IP address field and click the but-

ton Set at the bottom on the right. The new IP address is valid after a reboot of the unit.
