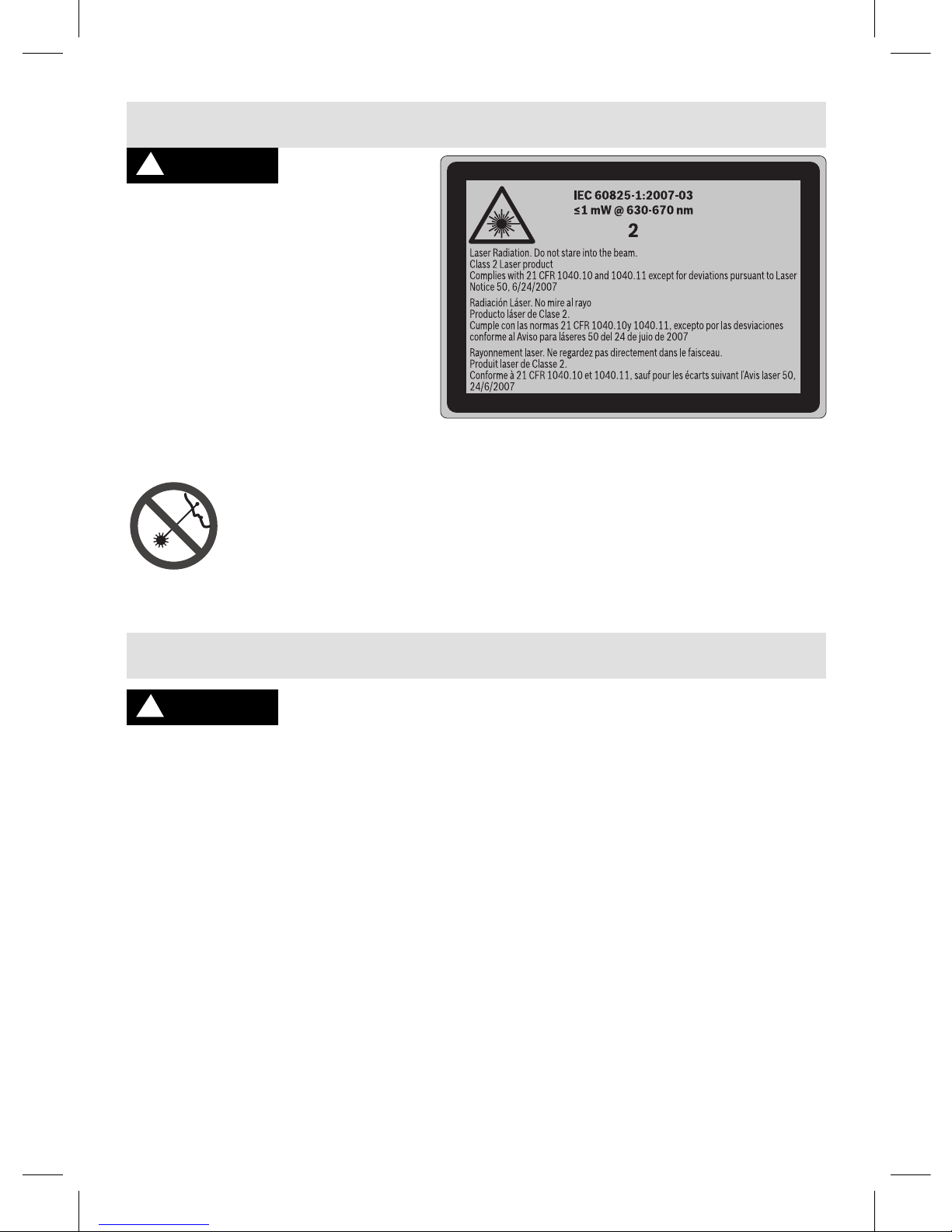

LASER RADIATION. AVOID

DIRECT EYE EXPOSURE.

DO NOT stare into the laser

light source. Never aim light

at another person or object

other than the workpiece.

Laser light can damage

your eyes.

Read all instructions.

Failure to follow all

instructions listed below may result in electric shock, fire and/or

serious injury.

Do not direct the laser beam at persons or animals

and do not stare into the laser beam yourself. This tool

produces laser class 2 laser radiation and complies with 21

CFR 1040.10 and 1040.11 except for deviations pursuant to

Laser Notice No. 50, dated June 24, 2007. This can lead to persons

being blinded.

General Safety Rules

Working

safely with

the rangefinder is possible

only when the operating

and safety information are

read completely and the

instructions contained therin

are strictly followed. Never

make warning labels on the

Rangefinder unrecognizable.

Never aim the beam at a

workpiece with a reflective

surface. Bright shiny reflective

sheet steel or similar reflective

surfaces are not recommended

for laser use. Reflective

surfaces could direct the beam

back toward the operator.

Take care to recognize the

accuracy and range of the

device. Measurement may not

be accurate if used beyond the

rated range of the device.

Use of controls or adjustments

or performance of procedures

other than those specified

herein may result in hazardous

radiation exposure.

The use of optical instruments

with this product will increase

eye hazards.

Have the rangefinder repaired

only through qualified

specialist using original spare

parts. This ensures that the

safety of the rangefinder

Safety Rules for Rangefinder

WARNING

is maintained.

Do not allow children to

use the rangefinder without

supervision. They could

unintentionally blind other persons.

Do not point the laser beam

at persons or animals and do

not look into the laser beam

yourself, not even from a large

distance.

Do not use the laser viewing

glasses as safety goggles. The

laser viewing glasses are used

for improved visualization of

the laser beam, but they do not

protect against laser radiation.

Do not use the laser viewing

glasses as sun glasses or

in traffic. The laser viewing

glasses do not afford complete

UV protection and reduce color

perception.

Be sure to read

and understand

all instructions in this manual

before using this product.

Failure to follow all instructions

may result in hazardous radiation

exposure, electric shock, fire,

and/or bodily injury.

Use of controls or adjustments

or performance of procedures

other than those specified in this

manual, may result in hazardous

radiation exposure.

The use of optical instruments

with this product will increase

eye hazard.

IMPORTANT: The following

labels are on your rangefinder

for your convenience and

safety. They indicate where

the laser light is emitted by the

level. ALWAYS BE AWARE of

their location when using the

level.

ALWAYS: Make sure that any

bystanders in the vicinity of

use are made aware of the

dangers of looking directly

into the rangefinder.

DO NOT remove or deface

any warning or caution labels.

Removing labels increases the risk

of exposure to laser radiation.

DO NOT stare directly at the

laser beam or project the laser

beam directly into the eyes of

others. Serious eye injury could

result.

DO NOT place the rangefinder

in a position that may cause

anyone to stare into the

laser beam intentionally or

unintentionally. Serous eye

injury could result.

DO NOT use any optical tools

such as, but not limited to,

telescopes or transits to view

the laser beam. Serious eye

injury could result.

ALWAYS remove the batteries

when cleaning the laser light

aperture to laser lens.

DO NOT operate the

rangefinder around children or

allow children to operate the

Safe Operating Procedures

-6-

WARNING

rangefinder. Serious eye injury

could result.

ALWAYS turn the rangefinder

“OFF” when not in use. Leaving

the rangefinder “ON” increases

the risk of someone inadvertently

staring into the laser beam.

DO NOT operate the

rangefinder in combustible

areas such as in the presence

of flammable liquids, gases or

dust.

ALWAYS position the

rangefinder securely. Damage

to the rangefinder and/or serious

injury to the user could result if the

rangefinder falls.

ALWAYS use only the

accessories that are

recommended by the

manufacturer of your

rangefinder. Use of accessories

that have been designed for use

with other rangefinders could result

in serious injury.

DO NOT leave rangefinder “on”

unattended in any operation

mode.

ALWAYS repair and servicing

must be performed by a

qualified repair facility. Repairs

performed by unqualified

personnel could result in serious

injury.

DO NOT use this rangefinder

for any purpose other than

those outlined in this manual.

This could result in serious injury.

DO NOT disassemble the

rangefinder. There are no

user serviceable parts inside.

Disassembling the laser will

void all warranties on the

product. Do not modify the

product in any way. Modifying

the rangefinder may result

in hazardous laser radiation

exposure.

Electrical Safety Procedures

-7-

Batteries can

explode or leak,

and can cause injury or fire.

To reduce this risk:

ALWAYS follow all

instructions and warnings on

the battery label and package.

DO NOT short any battery

terminals.

DO NOT charge alkaline

atteries.

DO NOT mix old and new

batteries. Replace all of them

at the same time with new

batteries of the same brand

and type.

DO NOT mix battery

chemistries.

DISPOSE of batteries per local

code.

DO NOT dispose of batteries

in fire.

KEEP batteries out of reach of

children.

REMOVE batteries if the device

will not be used for several

months.

WARNING

-8-

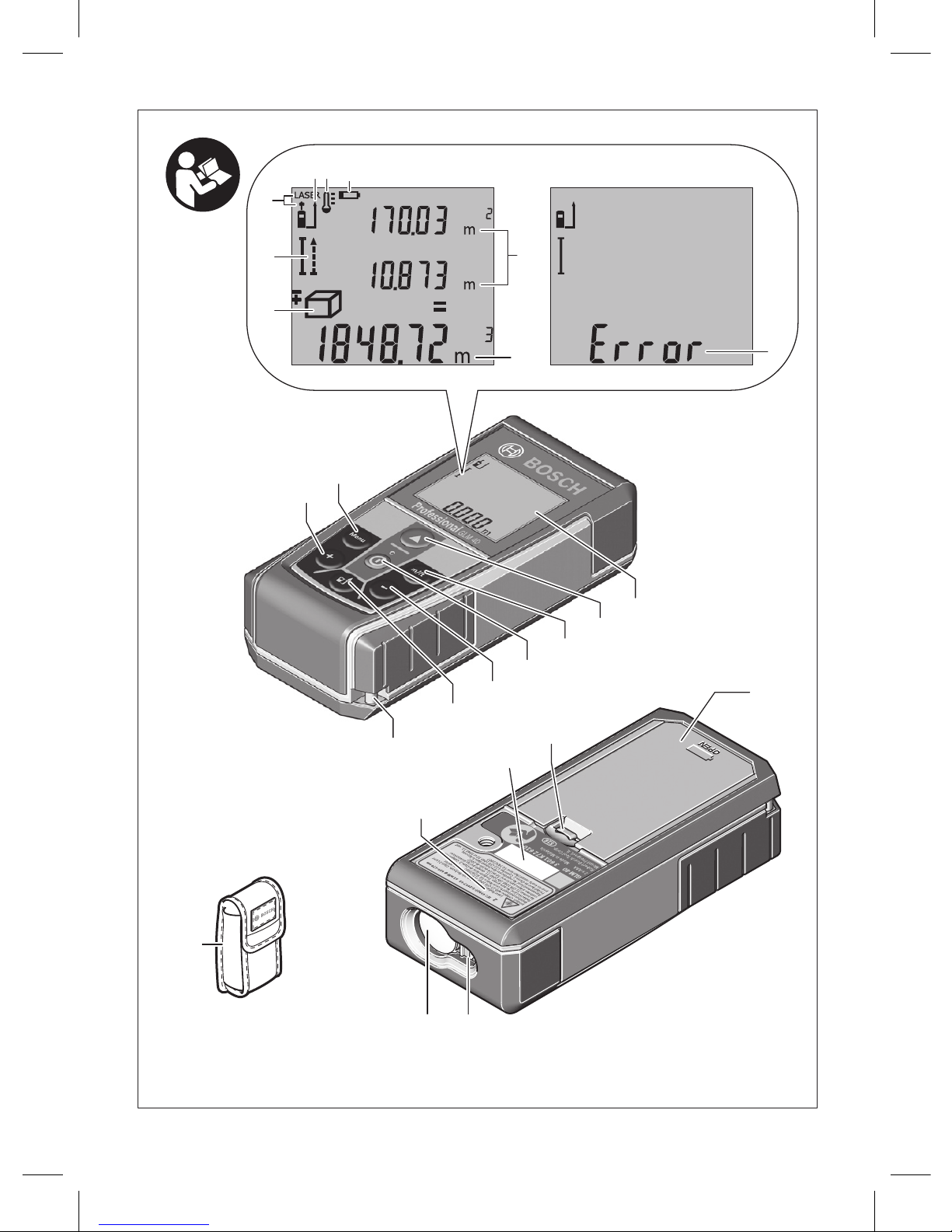

PRODUCT FEATURES

The numbering of the product

features shown refers to the

illustration of the measuring tool

on the graphic page.

1Display

2Measuring button

3Change ‘Unit of Measure’

Button

4Delete / On/Off button**

5Minus button

6Button for selection of the

reference level

7Fixture for carrying strap

8Plus button

9Menu button for length,

continuous, area/surface

and volume

10 Battery lid

11 Laser beam outlet

12 Reception lens

13 Serial number

14 Laser warning label

15 Latch of battery lid

16 Protective pouch

17 Laser viewing glasses*

(optional)

18 Laser target plate* (optional)

*The accessories illustrated or

described are not included as

standard delivery.

** Keep button pressed to call

up the extended functions.

DISPLAY ELEMENTS

aMeasured-value lines

bResult line

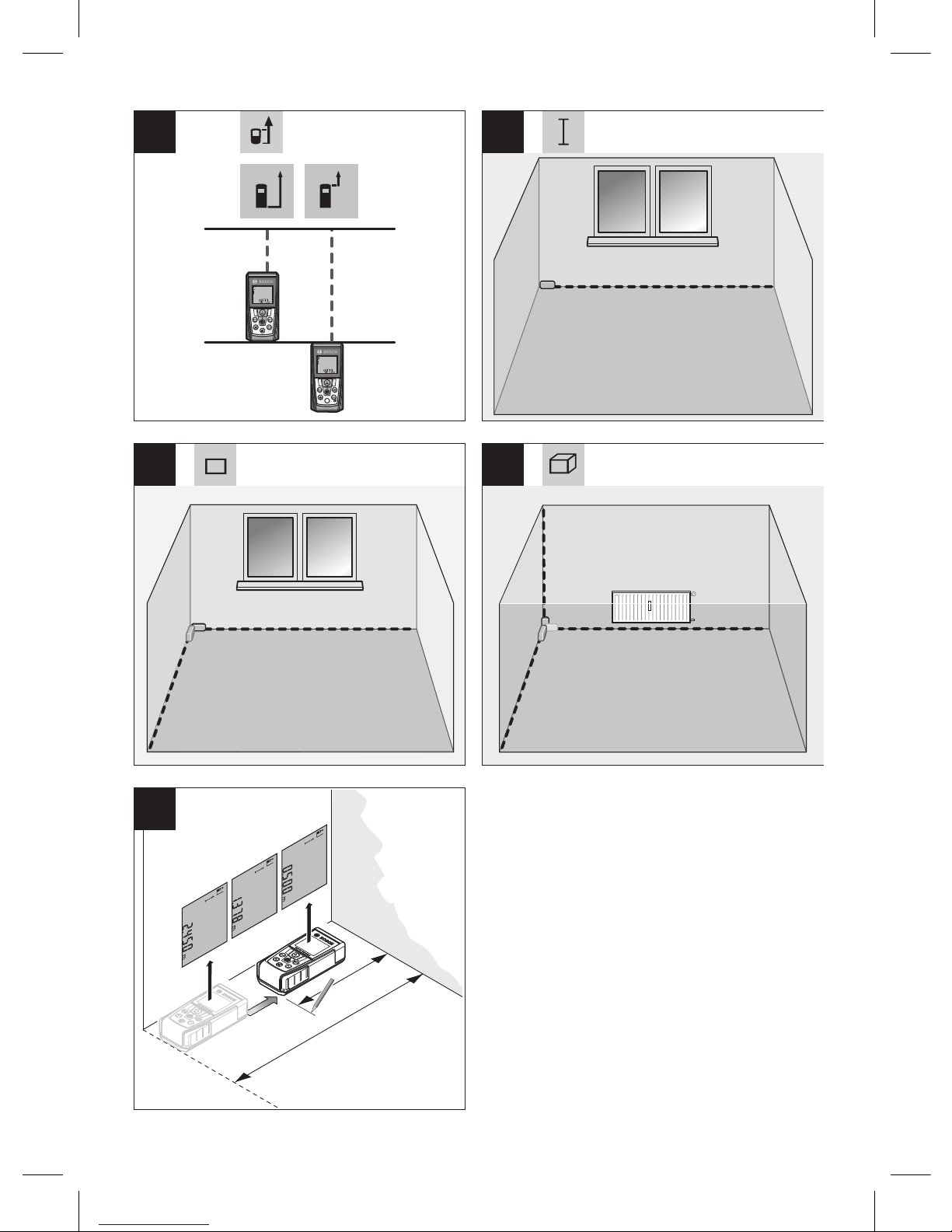

c Measuring functions

Length measurement

Continuous measurement

Area/surface measurement

Volume measurement

dLaser, switched on

eMeasurement reference level

fTemperature warning

Functional Description

INTENDED USE

The measuring tool is intended for measuring distances, lengths,

heights, clearances, and for the calculation of areas and volumes.

The measuring tool is suitable for measuring indoors.

Recycle raw materials & batteries instead of disposing of waste.

The unit, accessories, packaging & used batteries should be

sorted for environmentally friendly recycling in accordance with the

latest regulations.

Environment Protection

-9-

Digital Laser Rangefinder GLM 40

Article Number 3 601 K72 610

Measuring range 2-in—140-ft (0.05 - 42 m)A

Measuring accuracy (typically) ±1/16-in (±1.5 mm)B

Lowest indication unit 1mm

Operating temperature 14°F... 122°F (-10°C... +50°C)C

Storage temperature -4°F... 158°F (-20°C... +70°C)

Relative air humidity, max. 90%

Laser class 2

Laser type 635nm, <1mW

Laser beam diameter (at 77°/25°C) approx.

–at 33-ft (10 m) distance 0.24-in (6 mm)

–at 140-ft (42 m) distance 1.4-in (35 mm)

Automatic switch-off after approx.

–Laser 20s

–Measuring tool (without measurement) 5min

Batteries 2x1.5V (AAA)

Battery life, approximately

–Individual measurements 10,000D

–Continuous measurement 2.5hD

Weight according to EPTA-Procedure 01/2003 0.3 lbs. (0.14 kg)

Dimensions 2” x 4.4” x 1.2” (51mm x 111mm x 30mm)

Degree of protection IP54 (dust and splash water protected)

Technical Data

A) The working range increases

depending on how well the laser

light is reflected from the surface

of the target (scattered, not

reflective) and with increased

brightness of the laser point

to the ambient light intensity

(interior spaces, twilight). In

unfavorable conditions (e.g.

when measuring outdoors at

gBattery low indicator

h “ERROR” indication

-10-

intense sunlight), it may be

necessary to use the target

plate.

B) For measurements from

the rear measuring-tool edge.

In unfavorable conditions

(e.g. at intense sunlight or an

insufficiently reflecting surface),

the maximum deviation is

±10mm per 50m. In favorable

conditions, a deviation influence

of ±0.05mm/m must be taken

into account.

C) In the continuous

measurement function, the

maximum operating temperature

is +104°F.

D) Fewer measurements are

possible when using 1.2V

rechargeable batteries than with

1.5V batteries. The battery life

listed refers to measurements

without display illumination.

Please observe the article

number on the type plate of your

measuring tool. The trade names

of the individual measuring tools

may vary.

The measuring tool can be

clearly identified with the serial

number 13 on the type plate.

Preparation

INSERTING / REPLACING THE

BATTERY

Using alkali-manganese

batteries is recommended for

operation of the measuring tool.

Fewer measurements are

possible when using 1.2V

rechargeable batteries than with

1.5V batteries.

To open the battery lid 10, press

the latch 15 and remove the

battery lid. Insert the batteries.

When inserting, pay attention to

the correct polarity according to

the representation on the inside

of the battery compartment.

When the battery symbol

appears for the first time on the

display, at least 100individual

measurements are still possible.

The continuous measurement

mode is deactivated.

When the battery symbol

flashes, the batteries must be

replaced. Measurements are no

longer possible.

Always replace

all batteries

at the same time. Do not use

different brands or types of

batteries together.

Remove the batteries from

the measuring tool when not

using it for longer periods.

When storing for longer periods,

the batteries can corrode and

discharge themselves.

WARNING

Autres manuels pour GLM 40 Professional

Table des matières

Langues :

Autres manuels Bosch Niveau laser

Bosch

Bosch GLL 2-10 Professional Instructions de montage

Bosch

Bosch GRL 400 H Professional Manuel utilisateur

Bosch

Bosch GRL160DHV - Dual-Axis Self-Leveling Rotary... Instructions de montage

Bosch

Bosch GLL 3-15 Professional Manuel utilisateur

Bosch

Bosch GIM 60 Professional Instructions de montage

Bosch

Bosch GLL 3-15 X Professional Manuel utilisateur

Bosch

Bosch GLL Professional 3-80 C Manuel utilisateur

Bosch

Bosch GLL 30 Instructions de montage

Bosch

Bosch GRL 300 HV Guide rapide

Bosch

Bosch EasyLevel Manuel utilisateur

Bosch

Bosch EasySpiritLevel Manuel utilisateur

Bosch

Bosch GIM 60 L Professional Manuel utilisateur

Bosch

Bosch Professional GCL 2-50 C Manuel utilisateur

Bosch

Bosch GPL 3 Professional Manuel utilisateur

Bosch

Bosch GLL 2-10 Professional Manuel utilisateur

Bosch

Bosch GCL 25 Professional Manuel utilisateur

Bosch

Bosch 0 601 066 H70 Manuel utilisateur

Bosch

Bosch 2 Manuel utilisateur

Bosch

Bosch GLL Professional 3-80 C Manuel utilisateur

Bosch

Bosch GCL 25 Professional Manuel utilisateur

Bosch

Bosch PLL 5 Manuel utilisateur

Bosch

Bosch GLL3-330C Instructions de montage

Bosch

Bosch PLL 360 Manuel utilisateur

Bosch

Bosch GRL900-20HV Instructions de montage

Manuels Niveau laser populaires d'autres marques

Nedo

Nedo ET-5 Manuel utilisateur

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Manuel utilisateur

LaserLiner

LaserLiner X2-Laser Manuel utilisateur

Spectra

Spectra LL300N Manuel utilisateur

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Manuel utilisateur

Nedo

Nedo Crossliner 4 Manuel utilisateur

Lasertec

Lasertec FX360G Manuel utilisateur

Flex

Flex ALC 8 Manuel utilisateur

Black & Decker

Black & Decker LZR5 Manuel utilisateur

Johnson

Johnson 40-6692 Manuel utilisateur

Cocraft

Cocraft HL 20-SG Manuel utilisateur

Zircon

Zircon iLine Manuel utilisateur

HWH

HWH 310 SERIES Manuel utilisateur

Leica

Leica iCON robot 60 Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Laser SCL 2 Manuel utilisateur

LaserLiner

LaserLiner ActiveFinder XP Manuel utilisateur

DeWalt

DeWalt DW082 Manuel utilisateur

imex

imex EL20 Manuel utilisateur
