Bosch 601045639 Manuel utilisateur

1013VSR

1/2" DRILL

Model 0601045639

INDUSTRIAL

January 2000

S-B Power Tool Company Chicago IL 60646-5999

653

653/2

653/3

34 44 45 26 49

825

blue

green

red

orange 53

brown

white 57

black

white

652

828

842

847

864

810

37 13

View Technical Bulletin

1 2 610 998 101 Motor Housing 71

2 2 610 967 181 Field 22

3 2 610 998 164 Armature w/Fan AW

4 2 610 998 107 Swit h VSR 17

5 2 610 998 127 Cord 11

6 2 600 703 013 Strain Relief 11

7 2 601 035 001 Cord Clamp 89

8 2 610 998 430 Nameplate 9

9 2 610 998 418 Lable "Bos h" 9

13 2 610 351 861 Ball Bearing 60

14 1 900 905 018 Ball Bearing 61

16 2 604 337 003 Brush Holder {2} 25

19 2 610 315 386 S rew {2} 89

21 2 610 907 525 S rew 89

22 2 610 998 102 Handle Cover 74

23 2 610 998 118 Grounding Strap 10

26 2 910 615 082 S rew {3} 89

29 2 610 998 115 Baffle 24

30 3 602 391 503 Rubber Buffer {2} 66

34 2 610 998 132 Spa er 82

35 2 610 346 444 Reversing S rew LH 85

36 2 610 906 123 1/2" Keyed Chu k 91

37 2 914 411 045 S rew {2} 89

38 2 910 615 022 S rew {3} 89

40 2 610 998 138 Cable 10

41 2 610 998 117 Gasket 79

44 2 610 998 128 Retaining Ring 89

45 2 610 968 044 Ball Bearing 56

49 2 600 914 010 Needle Bearing {2} 56

51 1 600 910 018 Needle Bearing 56

52 2 910 611 405 S rew {4} 89

53 2 610 998 133 Cable 10

54 2 610 998 134 Cable 10

55 2 610 998 135 Cable 10

56 2 610 998 136 Cable 10

57 2 610 998 137 Cable 10

58 2 610 998 114 Lo k-On Lever 64

59 2 610 998 116 Spring 27

60 2 610 998 113 Reversing Lever 64

61 2 600 100 607 Shim 0.3mm 65

+ 651 2 610 304 790 Key Holder 9

652 2 610 348 635 Chu k Key 91

653 2 602 025 094 Handle Assembly 74

w/pos. 653/2, 653/3

653/2 2 915 011 007 Nut 89

653/3 1 613 480 007 Wing S rew 89

810 2 604 321 914 Brush Set 26

825 2 610 998 144 Gear Housing Assembly 72

w/pos. 49

828 2 610 998 153 Intermediate Plate Assy. 38

w/pos. 49, 51

842 2 610 907 368 Spindle w/Gear Assembly 32

847 2 610 998 147 Intermediate Gear Assy. 31

864 2 610 907 408 E entri w/Washer Assy. 34

Pos. Part Number Description {Qty.} F/C Pos. Part Number Description {Qty.} F/C

+ = Not Illustrated * = As Required F/C = Failure Code AW = Refer to AW Labor Time Chart

Service Notes:

1013VSR 1/2" DRILL

To: All Authorized and Factory Service Centers,

Field Sales and Internal Support Personnel

Re: Recall Notification for models 0 VSR (060 044 639) 03 VSR (060 047 639)

0 2VSR (060 044 739) 032VSR (060 047 739)

0 3VSR (060 045 639) 033VSR (060 048 639)

0 4VSR (060 044 739) 034VSR (060 049 639)

030VSR (060 046 639) 035VSR (060 048 739)

Please insert this bulletin into the "Technical Bulletins" section of your Bosch Parts Manual,

only after making any additions or notes to your Illustrated Parts List(s).

The above listed models were the subject of a voluntary recall issued in September of 2000. Efforts to

recover all affected tools must continue indefinately. Please do not repair or return to the customer any of

the models listed above that have manufacturing date codes R081 through R088. Upon receipt of an

affected tool, please call 877-678- 963 (toll free) for tool replacement instructions.

All questions should be directed to your Authorized Service Manager.

Product Service Department

S-B Power Tool Company Chicago IL 60646-5999

Various

Section 3 - Drills / Drivers

"Recall Notification"

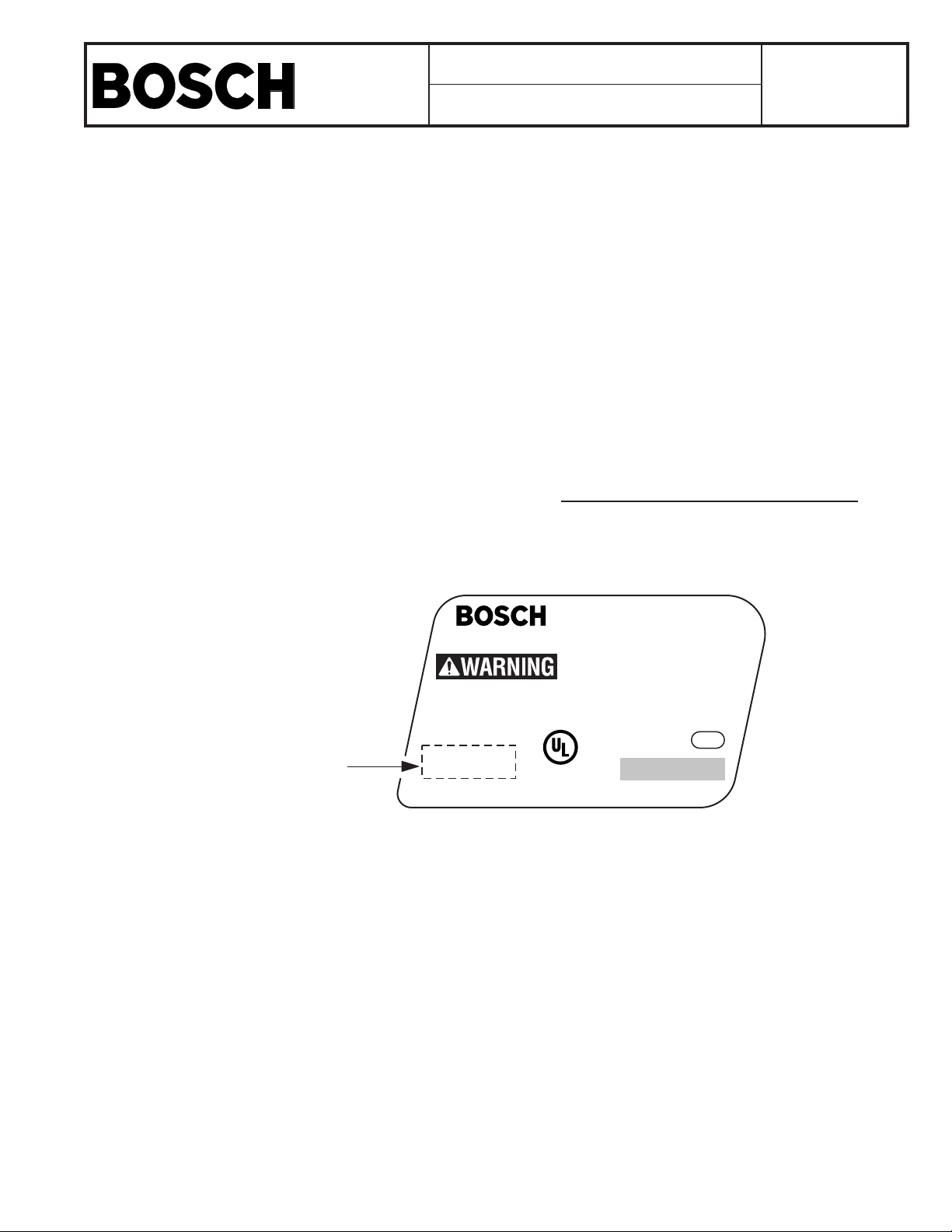

TECHNICAL

BULLETIN

July 2001 model(s) affected

To reduce the risk of injury, user

must read and understand the

instruction manual.Wear eye protection. If bit jams,tool

may twist out of control,always use side handle.Connect

to grounded outlet.

SN:

Listed 7P37

S-B POWERTOOL CO.CHICAGO, IL MADE IN USA

511

Ø13mm(1/2") 120V~ 60Hz 8,0A no0 - 550/min

0601049639

1034VSR

DRILL

Manufacturing

Date Code Location
