MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

Multi parameter Water Quality Sensor

Model:MS-301 User Manual

SHANGHAI BOQU INSTRUMENT CO.,LTD

Address:No. 118 Xiuyan Road,Pudong New Area,Shanghai,zip code:201315,China

Web:www.boquinstrument.com | Email: [email protected] | Mob:86-15000087545

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

Introduction

First of all, thanks for your trust and support by using BOQU integrated Multi parameter Water

Quality Sensor.

Before installation, please do read this manual carefully. For properly installing sensor and setting

parameters will maximize the performance and advantages of the product, to bring you a good

experience.

This instrument is a precision analytical measurement and control instrument, which should be

installed, operated and repaired by trained personnel or personnel who understand and have expertise in

this technique.

Please contact the after-sales department of BOQU Instrument, if you encounter difficulties during

installation or use.

After unpacking the box, please check the package list and the actual product you received. If there

is any missing or damaged, please contact BOQU Instrument in time.

We solemnly guarantee that:

1. If there are any quality problem occurs within one year from the date of purchase, you will be

served with product maintenance for free. Except the consumables

2. No matter where the product you buy from, the manufacturer hereby guarantees that you will be

served with lifetime technical maintenance and service.

3. Damage to the product caused by the following reasons shall not be covered by the warranty:

A. Damage caused by mistaken connection to high voltage power supply or water immersion;

B. Damage caused by unauthorized modification and misuse;

C. Incidental losses caused by improper selection of model;

D. Damage caused by the working conditions which exceeds that specified by the product;

E. All physical damage caused by improper force;

F. Failure to store and transport in accordance with the specified storage or transportation conditions

(reference to standard SJ/T10463-93); consumable materials should be purchased separately.

When this symbol appears in the manual, it refers to that it is related to safety, installation,

product function and use which should be paid special attention to.

Advancing with the times is the law of enterprise development, and the products will be upgraded in

stages. The general changes are subject to change without notice. Please refer to the actual product.

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

Table of Contents

Chapter 1 Product description ....................................................................................................................... 1

1.1 Products information ....................................................................................................................... 1

1.1.1 Integrated multi parameter water quality sensor .................................................................. 1

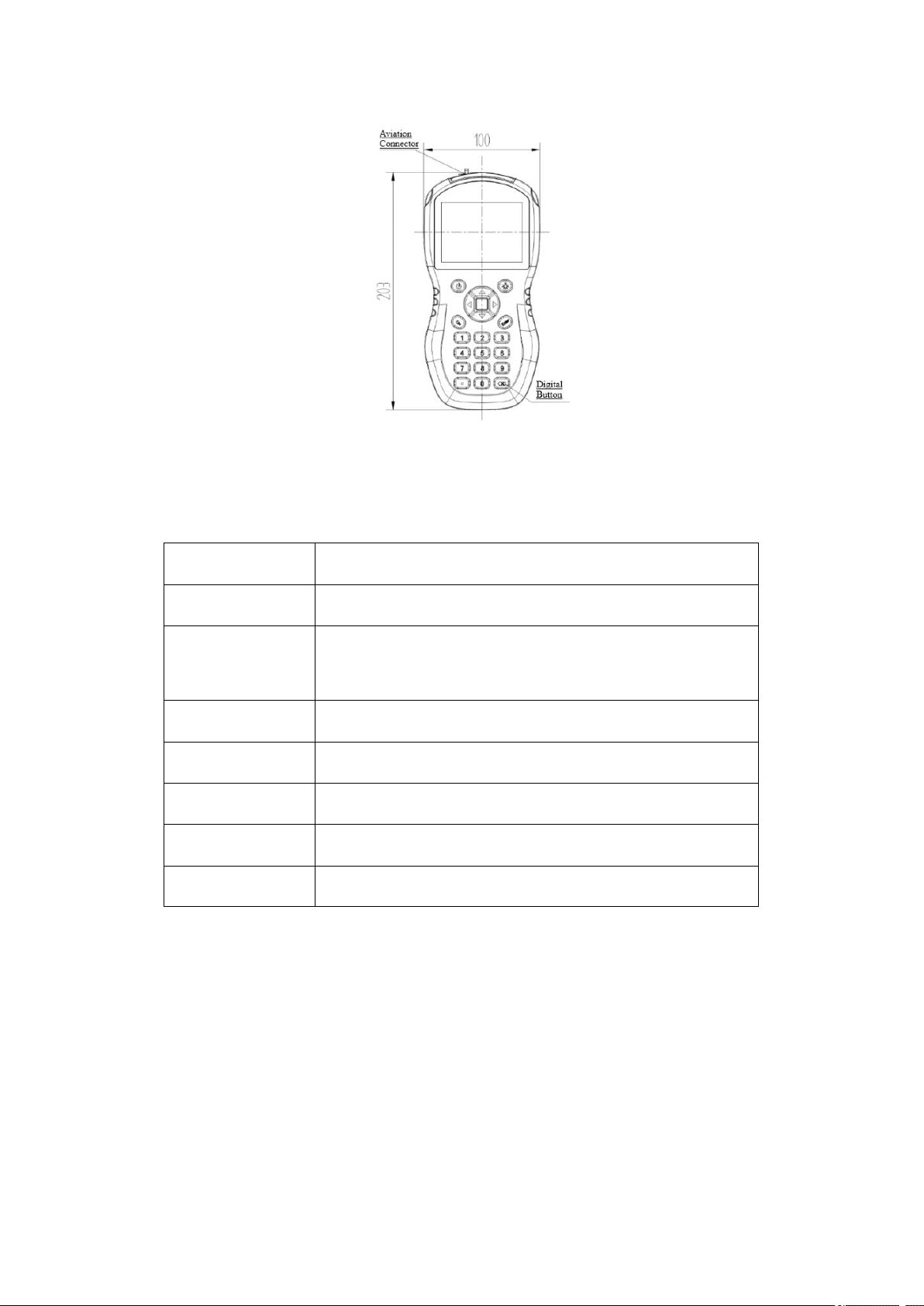

1.1.2 Hand manipulator(Optional) ................................................................................................ 1

1.2 Safety Information ...........................................................................................................................2

1.2.1 Use of dangerous information .............................................................................................. 3

1.2.2 Reminder prevention label ................................................................................................... 3

1.3 Pressure limit ...................................................................................................................................3

1.4 Temperature limit ............................................................................................................................ 4

1.5 Minimum depth requirement ...........................................................................................................4

Chapter 2 Introduction to Sensors .................................................................................................................4

2.1 Temperature Sensor ......................................................................................................................... 4

2.2 pH Sensor ........................................................................................................................................ 5

2.3 ORP Sensor ..................................................................................................................................... 6

2.4 Conductivity Sensor ........................................................................................................................ 7

2.4.1 Conductivity Sensor ............................................................................................................. 7

2.4.2 Salinity ..................................................................................................................................8

2.4.3 Total dissolved solids ........................................................................................................... 8

2.5 Dissolved Oxygen Sensor ............................................................................................................... 9

2.6 Turbidity Sensor ............................................................................................................................ 10

2.7 Depth Sensor ................................................................................................................................. 11

2.8 Chlorophyll sensor ........................................................................................................................ 12

2.9 Blue-green Algae Sensor ............................................................................................................... 13

2.10 Ammonia Nitrogen Sensor .......................................................................................................... 13

2.11 Nitrate ion sensor .........................................................................................................................14

2.12 Fluoride Ion Sensor ..................................................................................................................... 15

2.13 Chloride Ion Sensor .....................................................................................................................16

Chapter 3 Instrument Installation ................................................................................................................ 16

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

3.1 Instrument Unboxing .....................................................................................................................17

3.2 Starting the instrument .................................................................................................................. 17

3.3 Instrument connection ................................................................................................................... 17

3.3.1 Real-time online connection ...............................................................................................17

3.3.2 Portable Connection ........................................................................................................... 19

3.4 Installation Environment ............................................................................................................... 19

3.5 Installation Precautions ................................................................................................................. 19

Chapter 4 Real-time online setup and operation ......................................................................................... 20

4.1 Software installation ......................................................................................................................20

4.2 Software usage .............................................................................................................................. 20

4.2.1 Online data ......................................................................................................................... 21

4.2.2 Calibration .......................................................................................................................... 21

4.2.3 History data ........................................................................................................................ 22

4.2.4 System Settings .................................................................................................................. 23

4.2.4.1 Device settings ........................................................................................................ 23

4.2.4.2 Software Settings .....................................................................................................25

4.2.5 System Information ............................................................................................................ 25

Chapter 5 Setting and operation of hand manipulator .................................................................................26

5.1 Setting ............................................................................................................................................26

5.1.1 Setting of Bluetooth ............................................................................................................26

5.1.2 Sensor connection (choose one of two ways of connection between sensor connection and

Bluetooth connection) ................................................................................................................. 27

5.1.3 Sensor connection ...............................................................................................................27

5.1.4 Time setting ........................................................................................................................ 28

5.1.5 GPS .....................................................................................................................................29

5.2 Constant data ................................................................................................................................. 29

5.3 Historical data ................................................................................................................................29

Chapter 6 Calibration of Sensors .................................................................................................................30

6.1 Calibrate the sensor with software ................................................................................................ 30

6.1.1 Basic calibration process ....................................................................................................30

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

6.1.2 Temperature Sensor Calibration ......................................................................................... 31

6.1.3 pH Sensor Calibration ........................................................................................................ 32

6.1.4 ORP Sensor Calibration ..................................................................................................... 33

6.1.5 Conductivity Sensor Calibration ........................................................................................ 34

6.1.6 DO Dissolved Oxygen Calibration .....................................................................................36

6.1.6.1 Salinity compensation and temperature compensation ........................................... 37

6.1.7 Depth Sensor ...................................................................................................................... 37

6.1.8 Optical Sensor Calibration ................................................................................................. 38

6.1.8.1Turbidity Sensor Calibration .................................................................................... 38

6.1.8.2 Chlorophyll Sensor Calibration ...............................................................................41

6.1.8.3 Blue Green Algae Sensor ........................................................................................ 42

6.1.9 Ion Sensors Calibration ...................................................................................................... 44

6.1.9.1 Ammonia Nitrogen Sensor Calibration ................................................................... 44

6.1.9.2 Nitrate ion Sensor Calibration .................................................................................46

6.1.9.3 Fluorine Ion Sensor Calibration .............................................................................. 48

6.1.9.4 Chloride Ion Sensor Calibration ..............................................................................50

6.2 Calibrate the sensor by hand manipulator ..................................................................................... 52

6.2.1 Temperature calibration ......................................................................................................52

6.2.2 pH calibration ..................................................................................................................... 53

6.2.3 Conductivity calibration ..................................................................................................... 53

6.2.4 Dissolved oxygen calibration ............................................................................................. 54

6.2.5 Depth calibration ................................................................................................................ 54

6.2.6 Turbidity calibration ...........................................................................................................55

6.2.7 Chlorophyll calibration .......................................................................................................55

6.2.8 Blue-green algae calibration ...............................................................................................56

6.2.9 Fluoride ion calibration ...................................................................................................... 56

6.2.10 Chloride Ion Calibration ...................................................................................................57

6.2.11 Nitrate ion Calibration ...................................................................................................... 57

6.2.12 Ammonia Nitrogen Calibration ........................................................................................ 58

Chapter 7 Maintenance ................................................................................................................................58

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

7.1 Sensor maintenance .......................................................................................................................59

7.1.1 Temperature sensor maintenance ....................................................................................... 59

7.1.2 pH sensor maintenance .......................................................................................................59

7.1.3 Conductivity sensor maintenance .......................................................................................60

7.1.4 Dissolved oxygen sensor maintenance ...............................................................................60

7.1.5 Depth sensor maintenance ..................................................................................................61

7.1.6 Standard optical sensor maintenance ................................................................................. 61

7.1.7 Ion Sensor Maintenance ..................................................................................................... 61

7.2 Sensor Storage ...............................................................................................................................63

7.2.1 Short Storage ...................................................................................................................... 63

7.2.2 Long-term storage .............................................................................................................. 63

7.3 Cable maintenance ........................................................................................................................ 64

7.4 Sensor damage check .................................................................................................................... 64

7.5 Host battery replacement ...............................................................................................................64

Chapter 8 Communication Protocol ............................................................................................................ 65

Chapter 9 Problems and Solutions .............................................................................................................. 82

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

Chapter 1 Product description

1.1 Products information

1.1.1 Integrated multi parameter water quality sensor

The BOQU integrated multi parameter water quality sensor is a monitoring instrument for long-term field

use. It can select 2-7 parameters and realize simultaneous real-time online monitoring, data reading and

storage functions of temperature, depth, pH, ORP, conductance, turbidity, dissolved oxygen, chlorophyll,

blue-green algae, ammonia nitrogen, Nitrate ion, fluoride ion and chloride ion. Each sensor measures its

own parameters through a variety of electrochemical, optical or physical means of detection.

The integrated multi parameter water quality sensor can be equipped with self-cleaning system to obtain

accurate data for a long time, and with different lengths of cable to meet customer needs, easy to operate,

accurate data. It is widely used in online monitoring of water quality in different water bodies such as

rivers, lakes, reservoirs, drinking water, groundwater and seawater (optional). The external dimensions of

the integrated multi parameter water quality sensor are shown in Figure 1.

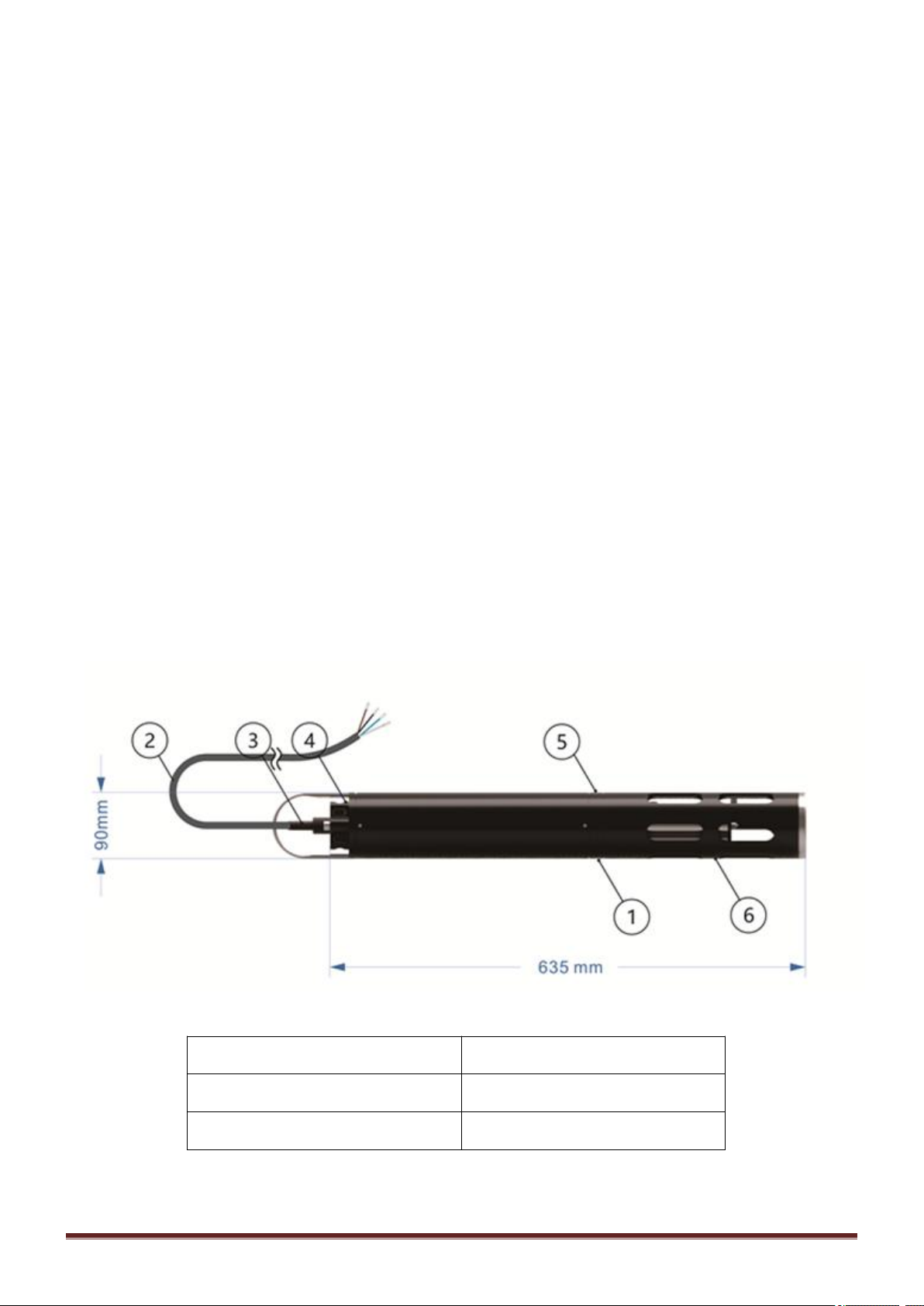

Figure 1 multi parameter water quality sensor

1-Outer shell

2-Cable

3-Waterproof joint

4-Battery cover

5-Battery cover

6-Calibration cup

The technical parameters of the integrated multi parameter water quality sensor host are shown in the

following table.:

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

Host specification

Voltage

12VDC

Power consumption

3 W

communication

MODBUS RS485

Maximum withstand pressure

Normal electrode:30 meter Ion electrode:10meter

Operating temperature

0~45 °C (not frozen)

storage temperature

0~50 °C(not frozen)

Protection level

IP68

Weight About

3 kg

Battery capacity

8 units, 8C, 3.6v lithium battery

1.1.2 Hand manipulator(Optional)

Specially designed for the customers, BOQU Instrument researches and develops a hand manipulator to

make integrated multi parameter water quality sensor complete the data reading, parameter setting, and

calibration without the using of PC, and can be fit for being held in hand easily for any situation.

The hand manipulator can constantly read and display the data of integrated multi parameter water quality

sensor on line, and can read and export the history data (only can read and export history data stored by

hand manipulator). Also, hand manipulator can complete the parameter setting and calibration for the

sensor. The inside GPS acceptor can establish a one-to-one relationship between the data group measured

each time and the geographic location information from GPS positioning system. Bluetooth function

makes the hand manipulator communicate with multi-parameter sensor directly and conveniently without

cables connection. The storage function makes history data stored by multi parameter water quality sensor

be exported and read with special setting. USB interface can realize the power supply for built-in battery

and the exporting of data. Ergonomic curve design with rubber gasket makes hand-holding operation easy

and be suitable for mastering in the humid environment. Appearance dimension diagram is showed in

Diagram two as below.

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

Figure 2 dimension diagram of hand manipulator

The technology parameters of hand manipulator have been showed as below:

Display

3.5-inch color display screen with adjustable backlight

Data Storage

Power supply

Internal battery power supply,

Battery Specification: 4 Section 3.7 V Lithium Battery

Protection Level

IP67

Operating Temp.

0~50℃(not frozen)

Storage Temp.

-15~60℃(not frozen)

Size

203*100*43mm

Weight

0.5KG

1.2 Safety Information

Please read this manual thoroughly before unpacking, setting up or operating the instrument.

Pay special attention to all hazard and warning statements. In the event of mishandling, it may cause

serious injury to the operator or damage to the equipment.

This equipment must be used and installed only in accordance with the detailed instructions in this

manual.

MS-301 Multi parameter Water Quality Sensor Web:www.boquinstrument.com

1.2.1 Use of dangerous information

For various hazards, this manual will use signal specific words (Danger, Caution, Note) that correspond to

the degree of danger.

Danger

Indicates a potentially or imminently dangerous state that, if not prevented, could be life-threatening or

cause serious injury.

caveat

Indicates a potentially dangerous state that may cause mild or moderate injury.

Important note: Information that requires special emphasis.

Tip: Information in the text that supplements the points

1.2.2 Reminder prevention label

Carefully read all the labels and identifiers attached to the instrument, otherwise it may cause personal

injury or damage to the instrument.

If the label is marked on the instrument, refer to the instrument manual for operation and/or safety information.

If the label is marked on the product, it indicates that there is a fuse or current limiting device.

If the label is marked on the product, it indicates that the device is susceptible to static electricity leakage

and protective measures should be taken to prevent damage.

If the label is marked on the product, it indicates the location of the ground wire.

1.3 Pressure limit

The maximum immersion pressure of the multi-parameter Sensor is 0.3Mpa or less. When the underwater

Sensor pressure is greater than 0.3Mpa, the sensor will be mechanically damaged and

deformed(Note: If choose ion electrode, the max. immersion pressure should be less than 0.1Mpa. )

Table des matières

Autres manuels BOQU Instrument de mesure

BOQU

BOQU BQ401 Manuel utilisateur

BOQU

BOQU PHS-1701 Manuel utilisateur

BOQU

BOQU PHS-1705 Manuel utilisateur

BOQU

BOQU pHG-2091 Manuel utilisateur

BOQU

BOQU SD Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
