Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

Table of Contents

1. Getting Started.............................................................................................................. 2

2.1 Batteries / Power Supply..................................................................................... 3

2.2 SD Card Information............................................................................................ 3

2.3 SIM Card Information...........................................................................................3

2.4 Camera Modes......................................................................................................4

2.5 Manual Image / Video Capturing....................................................................... 4

2.6 Manage Images and/or Videos.......................................................................... 4

2.7 Sending Images via MMS or GPRS.................................................................. 4

2.8 Trigger Modes....................................................................................................... 5

2.9 Laser Pointer......................................................................................................... 6

3. Camera Setup Settings & Display............................................................................. 7

3.1 Settings Interface & Display................................................................................7

3.2 Mobile Communication........................................................................................ 8

3.3 Camera Setup Software...................................................................................... 8

3.4 Mobile Applications............................................................................................ 10

3.4.1 Changing settings via Android APP............................................................. 10

3.4.2 Changing settings via SMS – Command List............................................. 13

3.5 Camera Setup Options......................................................................................15

4. Advanced Operations................................................................................................ 18

4.1 Advanced Surveillance Modes.........................................................................18

4.2 Security Mode Remote Control........................................................................ 18

4.3 Pairing the Security Remote Control...............................................................18

4.4 Entering into Security mode..............................................................................19

4.5 Wireless Security Devices................................................................................ 19

5. Detection Ranges – PIR Detection Zones............................................................. 20

6. Technical Specifications............................................................................................21

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

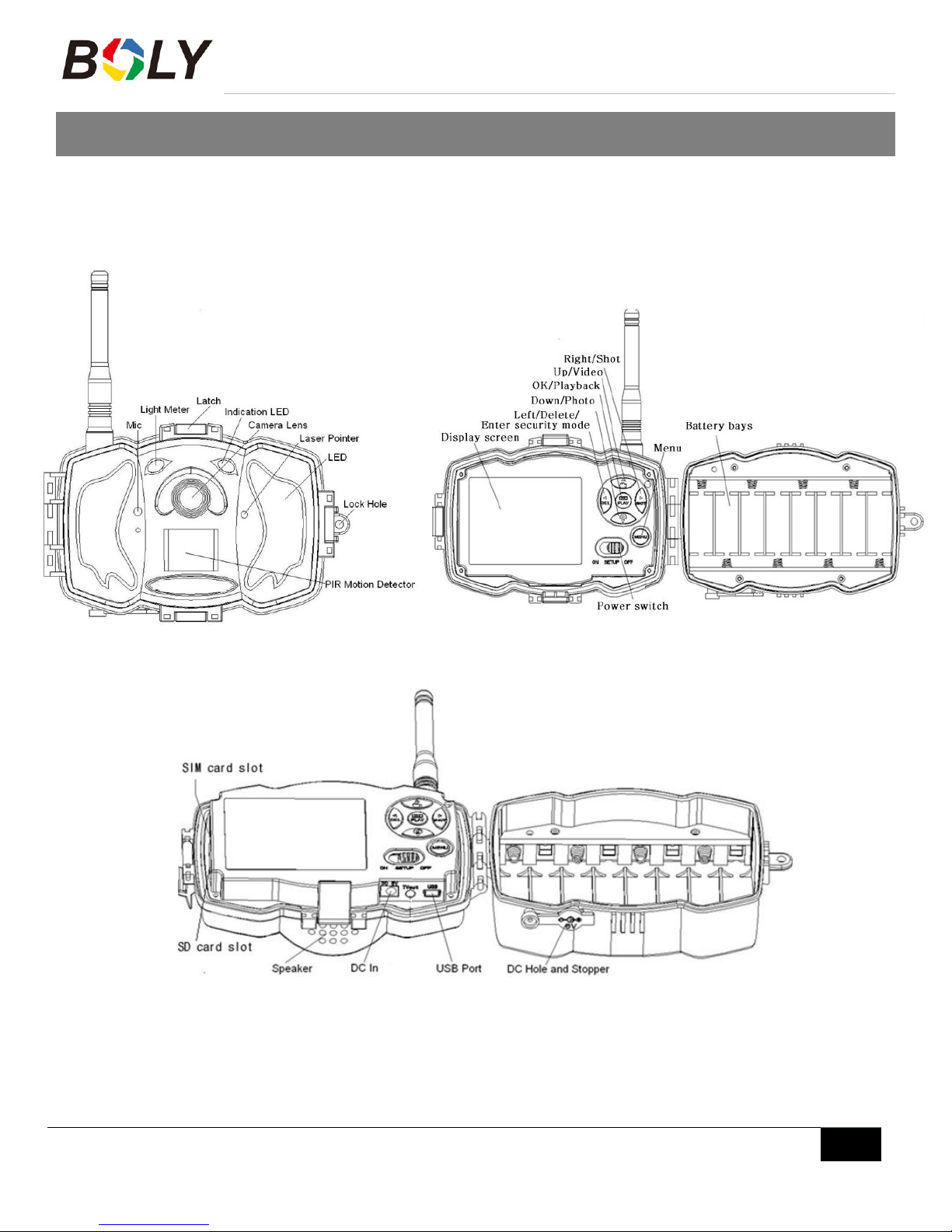

1. Getting Started

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

2.Camera Operations

2.1 Batteries / Power Supply

The camera is powered by four or eight AA batteries - High-density, high-performance alkaline, rechargeable

Alkaline or NiMH batteries are recommended. When the batteries are low, the camera will beep twice and

automatically shut down.

A DC 6-Volt, 2 Amp external power supply adapter can also be used to power the camera (not included).

2.2 SD Card Information

To take full advantage of the latest technologies, we recommend Class 10 SD cards or better, which have fast

transfer speeds and long durability for extensive shooting in the most extreme outdoor conditions. Secure

Digital High Capacity (SDHC) PRO cards work with SDHC compatible devices only. Please check that your

product is compatible with SDHC cards.

Insert the SD card into the camera before turning on the camera

This camera supports up to a 32GB capacity SD card and has no built-in internal memory. The camera

will not function without the SD card properly inserted into the camera.

Make sure the SD card is unlocked before inserting the SD card into the camera

The camera will operate normally with a locked SD card inserted, but the card will not be able to store

captured images or videos taken by the camera.

Do not remove the SD card while the camera is on

By removing the SD card while the camera is on risks damaging the internal components of the camera.

If you experience any problems with an inserted SD card

Try reformatting the SD card, utilizing the camera’s main settings option.

2.3 SIM Card Information

Insert the SIM card into the camera before turning on the camera

The camera SIM slot is sized for a standard SIM card. If you have a nano or micro size SIM card, utilizing

a SIM card adapter (included with most of our cameras) will be required to connect your camera to the

cellular network.

Note: The camera will still function without a SIM card. The SIM card is needed only for the

wireless/cellular capabilities.

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

2.4 Camera Modes

The different modes are accessed by sliding the power switch to the different positions marked on the camera:

OFF Mode

Turns the camera off. The camera will still consume a small amount of power while in OFF mode. It is

recommended to remove the batteries if the camera will not be used for a long period of time.

TEST/SETUP Mode

Customize the camera settings, or play back pictures and videos the camera has taken on the LCD

display.

ON Mode [ Hunting Mode ]

Camera will take pictures or video when motion is detected and/or at specific time intervals, according to

the programmed settings. After switching the camera to the ON position, the motion indicator LED (red)

will blink for about 10 seconds and then turn off. This preset time allows you to adjust the cameras

position if needed, before the camera becomes active.

2.5 Manual Image / Video Capturing

Place the camera in ON mode and press to manually capture photos or record video. Press again to stop

capturing video.

2.6 Manage Images and/or Videos

Place the camera in TEST/SETUP mode and press on the remote to view images or videos. The latest

image or video will be shown on the LCD screen.

To view:

Press ▲ or ▼ to view the previous or next image or video. Press OK to start a video.

To delete:

Press OK on the remote in Test/Setup Mode to access the pictures and videos. Press the MENU key to

enter into Playback mode. Press the ▲ or ▼ keys to find the Delete option. Press OK when the Del One

option is selected. Press OK again to confirm you want to delete the picture or video.

2.7 Sending Images via MMS or GPRS

Images can be sent directly to your wireless device or email, based on the Send Mode settings. Email and

wireless device information need to be set up while the camera is in TEST/SETUP Mode. Images can only be

sent when a correctly setup SIM card is recognized, installed and the wireless signal strength is adequate.

You have the options of email MMS, email GPRS, Phone MMS in the internet tab of the camera settings.

Videos will not send due to the size of video files and limitations set by the SIM card carrier.

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

To manually send a photo:

Put the camera in TEST/SETUP mode

Wait for the camera to acquire a network signal and the SIM card to be recognized

indicates the SIM card is recognized by the camera.

indicates the SIM card is not recognized by the camera or the SIM card is not working due to

connection/activation issues.

Take a manual photo by pressing the SHOT button or press OK to view the photos stored on the

camera

Find the picture you want to manually send

Press the MENU button to pull up the Send To: option that is currently set in the camera settings

Press OK again to send the picture

Send Mode settings will dictate how often you want pictures sent to you and the options “Daily Report” and

“Instant” will only be active when the camera is in the ON mode. You can find more detailed information on the

Send Mode options in the proceeding Command List section.

2.8 Trigger Modes

There are 3 different trigger modes for the camera: PIR Trigger/Sensitivity, Time Lapse, and a combined

PIR/Time Lapse mode. These modes are activated by three different menu options (PIR Trigger/Sensitivity, PIR

Interval, and Time Lapse).

PIR Trigger/Sensitivity

The camera will activate when motion is detected. If the PIR Trigger/Sensitivity option is set to OFF, the

camera will not respond to any motion within the camera’s range.

Time Lapse

The camera will activate at the set time interval regardless of motion detection. If the Time Lapse option is

set to OFF, this trigger function will be disabled.

Combined PIR/Time Lapse

For the combination of both PIR and Lapse triggering, the following settings must be set correctly:

PIR Trigger/Sensitivity must NOT be set to OFF

The Time Lapse interval must be set to a non-zero value.

The camera will capture pictures or video when motion is detected and at the preset time, regardless of

motion detection.

Additional PIR settings to note:

PIR Interval

This setting indicates how long the PIR sensor will be disabled after each camera triggering. During this

interval time, the camera will not react to any detected motion or activate at the scheduled Time Lapse

interval.

Further detailed information about the trigger modes can be found in Camera Setup Options section of the

manual.

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

2.9 Laser Pointer

The laser light pointer beam can be activated to assist in the camera’s positioning by pressing *on the remote

control.

NOTE: Do not point the laser at people – The laser can cause physical harm, if shined into eyes.

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

3. Camera Setup Settings & Display

The remote control is required for initial setup and changing any camera settings. When powering on the camera,

please allow 10-20 seconds for the camera to recognize the remote. An icon on the LCD screen will appear once the

camera has recognized the remote. The maximum detectable range for the remote is 30 feet. The remote will not

work properly without the antenna attached to the camera.

3.1 Settings Interface & Display

To update the camera settings, place the power switch to the TEST/SETUP position.

To navigate the menus, utilize the following built-in buttons:

MENU: Enter the program menu in Preview Mode

: Selecting menu options

OK / PLAY: Save parameter settings and play videos

DEL / : to delete an image or video

SHOT / : Capture a photo or record a video manually

When the camera is in TEST/SETUP Mode, the screen will activate and display the following:

indicates the SIM card is recognized by the camera.

indicates the SIM card is not recognized by the camera or the SIM card is not working due to

connection/activation issues.

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

3.2 Mobile Communication

The camera can receive and respond to commands sent via SMS, MMS, GRPS and the Apple or Android

application, as long as the camera is correctly connected to a wireless carrier.

Supported wireless carrier bands:

GSM (MHz): 850, 900, 1800, 1900

WCDMA (MHz): 850, 900, 1900, 2100

To enable the SMS functionality using the mobile application, complete the following steps:

Place the camera in Test/Setup Mode and go into the menu Setup options

Set SMS control to ON

For MMS and GPRS functionality, the following menu Setup options will need to be set:

MMS network settings (varies depending on carrier)

GPRS network settings (varies depending on carrier)

Send to Phone option (MMS or GPRS)

The settings for the network options vary between service providers. You will need to contact your SIM

service provider for specifics on these settings.

3.3 Camera Setup Software

For easier camera setup, download the camera setup application (BMC_config.zip), along with the basic

instructions from our website. （https://bolyinc.com/updates/）In summary,

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

STEP 1: Select your country and carrier.

STEP 2: Choose between default or manual settings. For first time use, we suggest using the default settings.

STEP 3: Input the phone number of the phone to receive/send the remote commands and images in the

“administrator number” field and email address in “Receive Email 1” field (This is NOT the phone number

of the inserted SIM card that resides in the camera).

STEP 4:Click “Check WAP/Internet Parameters”to check weather you have all parameters filled in.

Note: If you use an SSL Email such as Gamil as sending Email ,Please click “Advanced” button to mark

it.

STEP 5: Save the .txt file in the GSM folder of SD card after all settings are complete.

If your country or SIM card provider is not listed, select “Others”. You will need to ask the SIM card provider for

their specific MMS URL, MMS APN, Port, MMS IP, Account, Password, GPRS APN, GPRS account, GPRS

password. For email sending, your email service provider will be able to provide the send email server and port

settings.

Note: Once the SD card is inserted into the camera and the camera is turned on, this file will automatically be

uploaded to the camera and be deleted from the SD card.

Boly Trail Cameras – MG983 Series

Boly Inc. | User Manual 03/01/2017

3.4 Mobile Applications

When the camera is switched to the ON mode, you can change some of the basic camera settings through the

mobile application. There are currently apps supported by Android and Apple devices. Charges or fees may be

incurred through your cellular provider when sending text messages to the camera.

For Android, you can download the application directly from our websit（https://bolyinc.com/updates/）,

under the Downloads section.

For Apple, search BGTools in the official Apple Apps store.

3.4.1 Changing settings via Android APP

Basic settings can be changed through the Android app.

There are two user authorization levels for this feature: administrator and normal users.

Functions

User Level

Set administrator phone number

Only administrator’s password

Set administrator’s password

administrator

Set camera parameters

administrator

Set normal user

administrator

Receive emergency calling

administrator, normal user

Send SMS for on spot picture

administrator

Receive MMS when triggered

administrator, normal user

Check camera status

administrator, normal user

Get help information

administrator, normal user

Select the camera in the application that you would like to access. Setting and camera command options will be

under the COMMON tab of the application.

Camera setup via APP:

STEP 1：Open the BG Tools app,click on the icon add a new device.

STEP 2 : Select your camera model

①Input a name for you camera .②Input your SIM card number which is inserted in your camera.③Choose

your camera model number,then click “Add”。

STEP 3：Set super user number and password.For the first time use the super user password is 0518.(The Super

User number is the SIM card number which is inserted in your mobile phone).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Boly Caméra de sécurité

Boly

Boly MG883G-12mHD Manuel utilisateur

Boly

Boly ScoutGuard BG330 Manuel utilisateur

Boly

Boly SG2060 Series Manuel utilisateur

Boly

Boly SG560K Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
