EASY INSTALL

/EASY DESIGNTM

EASY INSTALL

/EASY DESIGNTM SPEAKERS

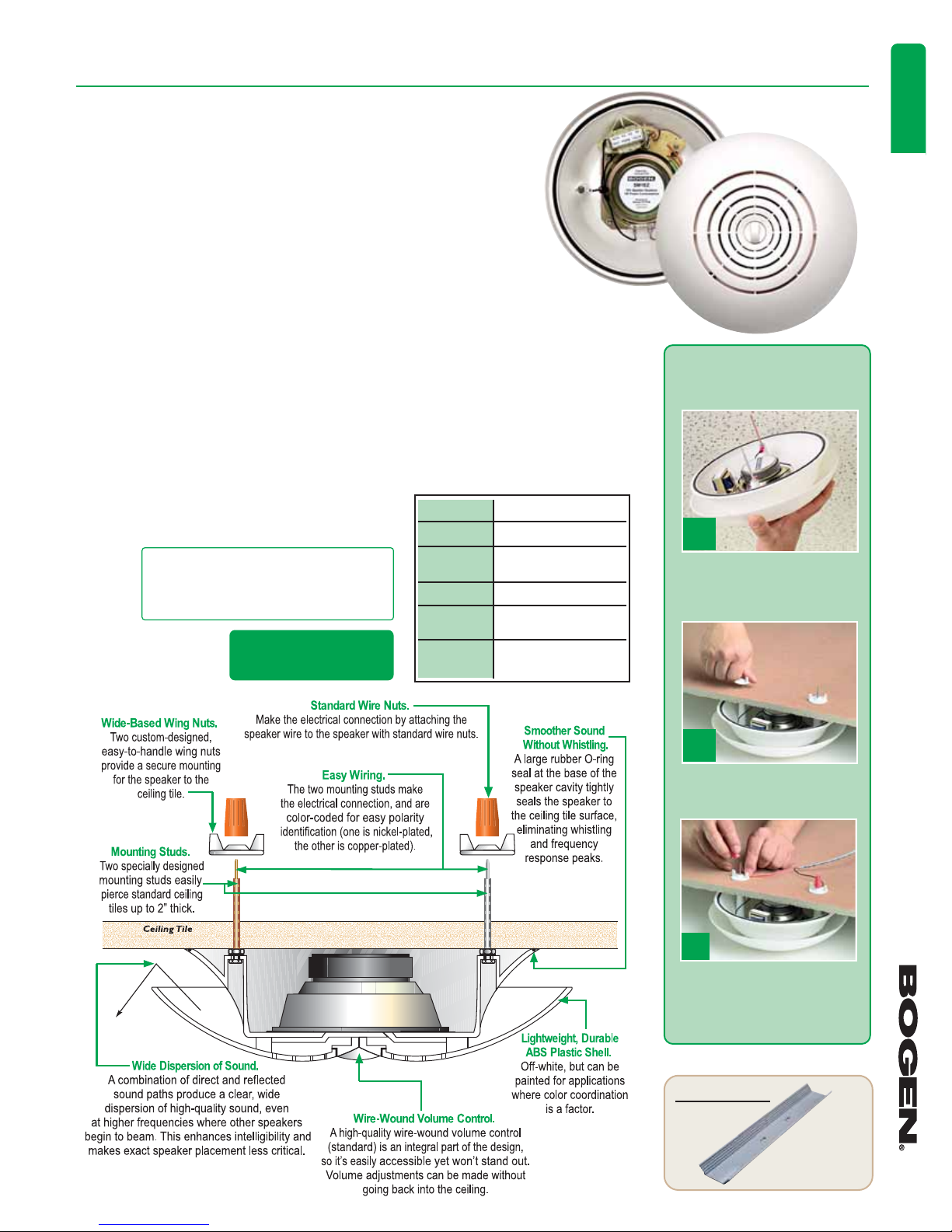

The speaker’s two specially de-

signed mounting studs easily

pierce through the ceiling tile.

Wide-based wing nuts secure the

speaker assembly to the ceiling tile.

Two standard wire nuts connect

the speaker wires to the mount-

ing studs, making the electrical

connection. That’s all it takes!

Model Variations:

•SM1EZ is a one-watt, single tap

speaker.

•SM4T is a four-watt, multi-tap

speaker with settings of 4, 2, 1,

1/2, and 1/4 watts. Settings are

rotary switch selectable (there are

no transformer wires to deal with). :03

:24

:45

INSTALLS

IN SECONDS!

Accessories

SMTB

Tile Bridge

Surface-Mount Ceiling Speakers

SM1EZ, SM4T

Easy Install Speakers drastically cut system installation time because each

speaker can be completely installed — mounted in the ceiling, secured,

and connected — in less than a minute! This versatile speaker carries voice

messages with clarity anywhere dependable communication is required.

It can be installed in any suspended ceiling with ceiling tiles… quick, easy,

and trouble-free. Compatible with both 70V and 25V systems.

Product Features:

•Installs in Seconds. Each speaker assembly is

specially designed for immediate installation

as soon as you take it out of the box… complete

installation takes less than a minute.

•No-Tool Installation.No tools needed; everything

you need is right in the box.

•Contemporary, Low-Profile Design. Looks good

in any environment.

•No Clean-Up. Installation means piercing ceiling

tiles, NOT cutting them. So, there’s virtually no

mess and no ceiling tile pieces to clean up.

Complies with NFPA National code 160b

that allows speakers to be installed

in plenums and other air handling spaces.

Complies with UL-2043.

Dimensions: 9-1/2" diameter

Depth:

3" (from tile surface)

Frequency

Response:

125 Hz – 15 kHz

Sensitivity:

90 dBspl (1 watt @ 1 meter)

Product

Weight: 2 lb. each

Shipping

Weight: 15 lb./carton (5/carton)

Technical Specifications:

For System Design for SM1EZ,

see pages 17-21;

for SM4T, see pages 64-67.

www.bogen.com

EASY DESIGNTM

Bogen’s CS1EZ is a pre-assembled ceiling speaker comprised of an 8" cone

speaker and steel ceiling grille painted with enamel. The CS1EZ includes a volume

control knob and rear-mounted screw terminal board for easier electrical

connection.

Wall Baffle Speaker

WB1EZ

The WB1EZ comes pre-assembled with an 8" cone speaker

enclosed in a simulated walnut-finished wooden enclosure

with a black grille cloth on front and a recessed volume control.

Product Features:

•1-watt, single-tap design

•Screw terminal connections for fast

installation

•Designed for 70V amplifier output

•8" cone speaker for excellent audio

quality

•Heavy-duty, wire-wound volume

control with knob

•50 Hz-12 kHz frequency response

•95 dBspl @ 4 ft. /1W input

sensitivity

•Off-white finish

Product Features:

•1-watt, single-tap design

•Screw terminal connections for

fast installation

•Designed for 70V amplifier output

•8" cone speaker for excellent

audio quality

•Recessed volume control

•Designed for easy wall-mount

installation; face has 13.5 degree

downward angle

•50 Hz -12 kHz frequency response

•95 dBspl @ 4ft./1W input sensitivit

Dimensions Shipping Weight

(6/carton)

13" dia. x 3-1/4" D 30 lb. / carton

Dimensions Shipping Weight

(4/carton)

9-1/2" W x 9-1/2" H x 5-1/4" D 23 lb. / carton

(3-1/4" D @ bottom)

Horn Loudspeakers

HS7EZ, HS15EZ, HS30EZ

Bogen’s line of Easy Design Horn Loudspeakers are made of

weatherproof all-metal construction, thereby making them ideal

for both indoor and outdoor use in industrial plants, warehouses,

schools, construction sites, and recreational areas. All models

come with swivel and tilt mounting bases for greater flexibility

in setting the angle of projection.

Product Features:

•7.5-, 15-, and 30-watt models

•Single-tap design

•HS7EZ features 12" lead wire for

electrical connections

•HS15EZ and HS30EZ feature screw

terminal connections for fast installation

•Designed for 70V amplifier outputs

•Weatherproof design

•Stepped attenuator volume control

•Tilt and swivel mounting base for

flexibility in coverage

•Textured mocha enamel

Model

Frequency Response

Sensitivity Dispersion Dimensions

HS7EZ 250 Hz - 14 kHz 105 dBspl (4 ft./7.5W) input (@1 kHz) 120° 6" dia. x 4" D

HS15EZ 275 Hz - 14 kHz 121 dBspl (4 ft./15W) input (@1 kHz) 110° 9" dia. x 9-1/4" D

HS30EZ 225 Hz - 14 kHz 125 dBspl (4 ft./30W) input (@1 kHz) 100° 11" dia. x 10-1/2" D

HS7EZ HS15EZ HS30EZ

Product Weight

2 lb.

4 lb.

6 lb.

Accessories

BC1

Beam Clamp

(for HS-EZs)

TB8

Tile Bridge

(for CS1EZ)

RE84

Ceiling

Enclosure

(for CS1EZ)

MR8

Mounting

Ring

(for CS1EZ)

TCSPT1

Terminal Cover

for Conduit

(for HS15EZ and

HS30EZ )

HSES10

Horn Speaker

Electrical Box Strap

(Pack of 10)

(for HS15EZ and

HS30EZ )

EASY DESIGNTM SPEAKERS

Ceiling Speaker

CS1EZ

See pages 17-21

for Easy Design.

See pages 17-21

for Easy Design.

See pages 17-21

for Easy Design.

SIDE

VIEW

www.bogen.com

EASY DESIGNTM

•Determine the ambient noise

level and type of environment

in which the speakers will be

installed.

•Then select the speaker(s)

best suited for the area.

Example:

•The ambient noise level in a

machine shop in an industrial

area is 90 dB. By referring to

the chart, you will find that the

HS30EZ horn loudspeaker is

best suited for this environ-

ment.

What is Easy Design?

Armed with just 3 pieces of information, you can quickly create a

bill of material for speaker paging jobs. Bogen’s Easy Design line

of products was created specifically to make the design process

easier and less time consuming for the installer.

You supply some basic pieces of information – type of application,

dimensions of the area to be covered, ambient noise level, and

ceiling height*. Then, a few simple and direct charts will imme-

diately provide you with the best type of speaker to use, the number

of speakers needed, and the amplifier power required for the job.

Each speaker in the Easy Design line is designed with a single

power tap and a volume control. Any paging system you create

using the Easy Design products will be flexible, robust, and powerful.

If noise levels increase in the future, just turn up the volume con-

trols on the speakers – the amplifier will not overload!

You get all the benefits of a 70V central-amplified system – full

power capability, high-quality sound and performance,

2-wire installation, long speaker runs, flexibility in amplifier

location, no distributed power supplies – and now, super simple

system design (we’ve eliminated the multiple power taps). Easy

Design speakers have the high quality and reliability you expect

from Bogen.

Select the correct type

of speaker for the job

(see chart below)

Find the number of

speakers needed

(see charts on pages 18-20)

Select the amplifier

for the system

(see page 21)

Select

Speaker

Type

* Not all dimensions needed for all speaker types. Refer to section 2 for specific dimensions needed for each speaker.

see chart on pages 4 & 6 see chart on page 19 see chart on page 19

SM1EZ

CS1EZ

WB1EZ HS7EZ

HS15EZ HS30EZ

*For applications over 100 dB, contact Bogen for assistance.

EASY DESIGNTM GUIDE

see chart on pages 18 & 20

For applications with mixed

noise levels, such as a location

with quiet waiting rooms,

medium noise level office

areas, and very noisy manu-

facturing, select an appropri-

ate speaker type for each

different area.

Once you have selected the

speaker type(s), the next step

is to determine how many

speakers you will need to

cover the area sufficiently.

www.bogen.com

EASY DESIGNTM

Ceiling Speakers

(CS1EZ, SM1EZ)

•Obtain the length, width, and ceiling

height of the area.

•Look up where the length and width of the

area meet on the chart.

•You will find three color-coded numbers. Use the

RED number for 8 ft. ceilings, BLUE for 10 ft. ceilings,

and GREEN for 12 ft. ceilings. The color-coded number

that corresponds to the area’s ceiling height is the

general number of speakers the installation requires.

The minimum amplifier power needed (in watts) is equal to the

total number of CS1EZ or SM1EZ speakers required in the area for

uniform coverage.

Amplifier Power (min.) = Number of CS1EZ or SM1EZ Speakers

Example:

An office area, using CS1EZ Ceiling Speakers (or SM1EZ Surface-Mount Ceiling

Speakers), is 100 feet long by 70 feet wide by 10 feet high. Crisscross the

length (100 feet) and width (70 feet) on the chart. You will find three color-

coded numbers: 27, 18, and 12. Since blue numbers are used for ceiling

heights of 10 feet, 18 is the recommended quantity of CS1EZ speakers

needed for this application. This number (18) is also the minimum

amplifier power needed (in watts) for this area.

RED for 8' Ceiling

BLUE for 10' Ceiling

GREEN for 12' Ceiling

Determine the Number

of Speakers Needed

NOW, TURN TO PAGE 21 TO SELECT AMPLIFIER.

CS1EZ SM1EZ

CS1EZ Ceiling Speaker

SM1EZ Surface-Mount Ceiling Speaker

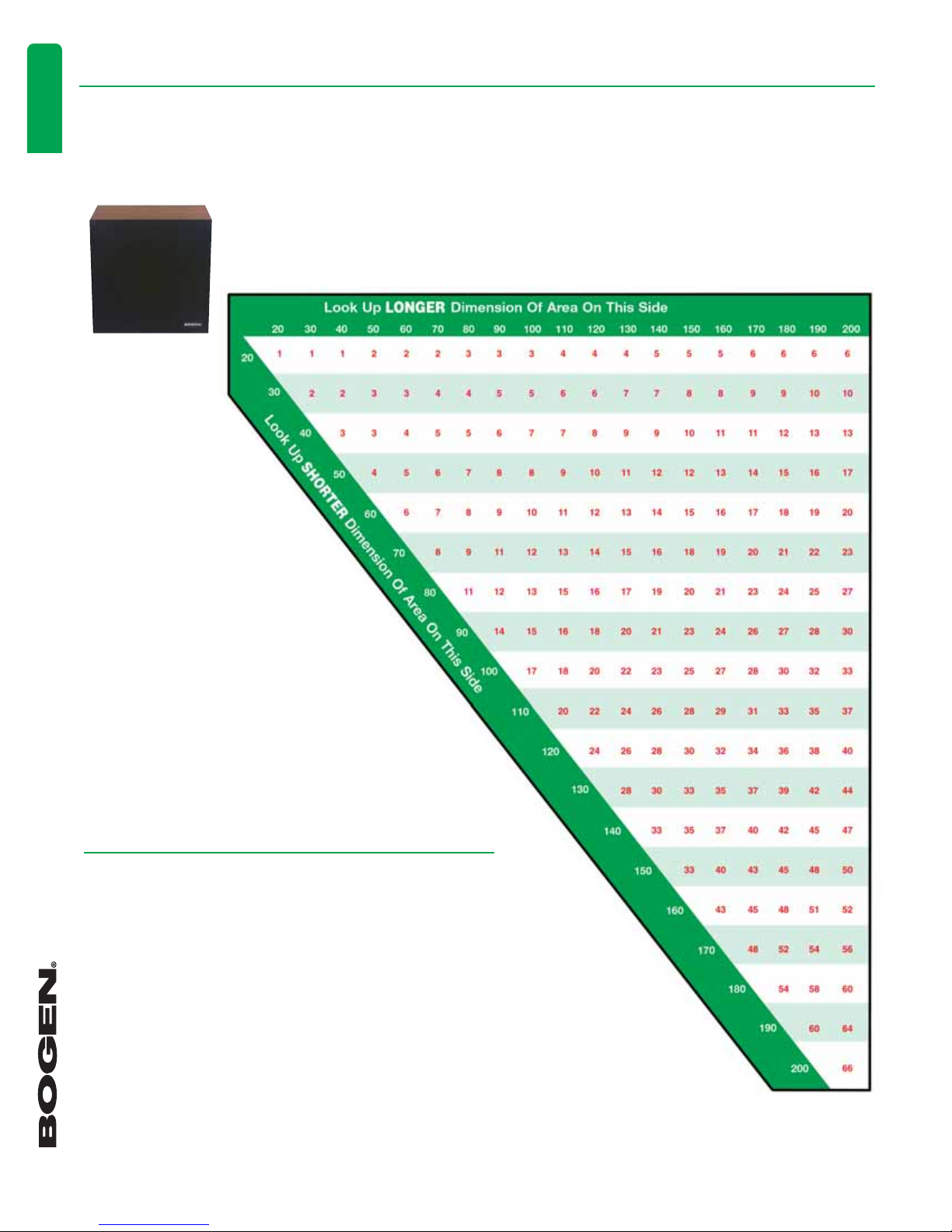

Use this chart to determine the number of CS1EZ Ceiling Speakers

and/or SM1EZ Surface-Mount Ceiling Speakers a particular installation

will require, based on the dimensions of the area and the ceiling height.

EASY DESIGNTM GUIDE (cont.)

www.bogen.com

EASY DESIGNTM

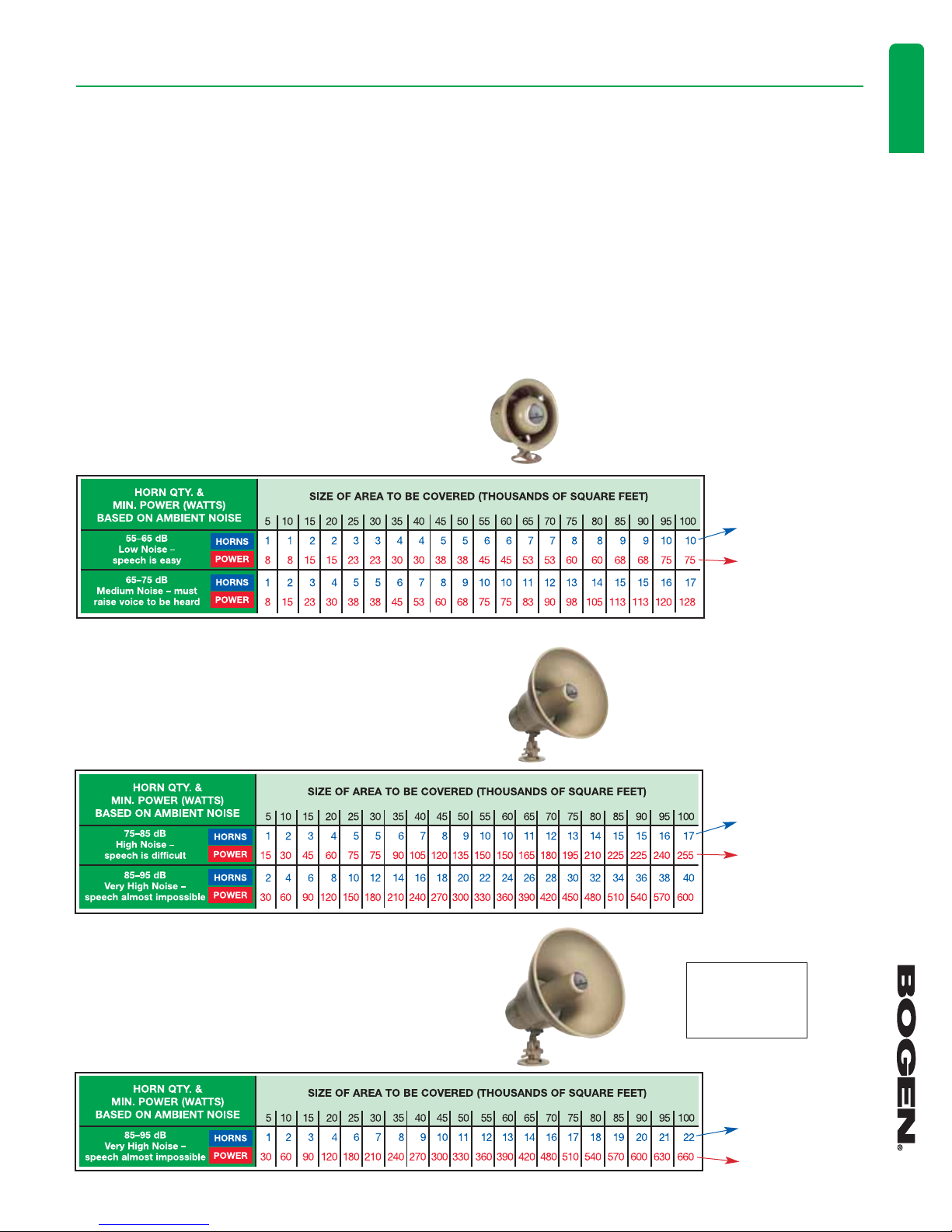

HS15EZ Horn Loudspeaker

Use this chart to determine the number of HS15EZ Horn Loudspeakers

a particular installation will require, based on the size of the area

and the ambient noise level of the environment.

HS30EZ Horn Loudspeaker

Use this chart to determine the number of HS30EZ Horn Loudspeakers

a particular installation will require, based on the size of the area

and the ambient noise level of the environment.

HS7EZ Horn Loudspeaker

Use this chart to determine the number of HS7EZ Horn Loudspeakers

a particular installation will require, based on the size of the area and

the ambient noise level of the environment.

Horn Loudspeakers (HS7EZ, HS15EZ, HS30EZ)

•Obtain the square footage of the area to be covered and its

ambient noise level.

•Where the area’s square footage intersects the area’s ambient

noise level, you will find two numbers.

The number in BLUE is the typical number of horn loudspeakers

the installation requires. Additional speakers may be needed

in areas that have obstructions, like shelving, that block sound

dispersion.

The number in RED is the minimum amplifier power needed

(in watts) for the installation.

Amplifier Power (min.) = Number in RED

The # in BLUE is the

# of speakers.

The # in RED is the minimum

amplifier power required.

The # in BLUE is

the # of speakers.

The # in RED is the minimum

amplifier power required.

The # in BLUE is

the # of speakers.

The # in RED is the minimum

amplifier power required.

For Applications

over 100 dB,

Contact Bogen

for Assistance.

NOW, TURN TO PAGE 21 TO SELECT AMPLIFIER.

Example:

A factory has 35,000 square feet of open area and an

average ambient noise level of 80 dB. Thus, it will require

HS15EZ Horn Loudspeakers. Using the chart for the

HS15EZ speaker, crisscross the square footage and the

ambient noise level. The number of horn loudspeakers

needed for an installation is shown in blue and the

minimum amplifier power for this number of speakers is

shown in red. As you can see, 6 speakers are needed for

this application and the minimum amplifier power

needed is 90 watts.

EASY DESIGNTM GUIDE (cont.)

WB1EZ Wall Baffle Speaker

Wall Baffle

Speaker

(WB1EZ)

•Obtain the length and width

of the area.

•Where the length and width of the area

crisscross on the chart, you will find the

typical number of speakers that the

installation requires.

The minimum amplifier power needed (in watts)

is equal to the total number of WB1EZ speakers

required in the area for uniform coverage.

Mixed Speaker

Type Applications

For applications with more than one type of speaker:

• Determine the number of speakers and the minimum amplifier power needed for each

type of speaker separately.

• Add together the minimum amplifier power needed for each type of speaker to obtain

the minimum amplifier power needed for the entire application.

Example:

An application requires 10 SM1EZ Surface-Mount Ceiling Speakers (minimum amplifier power needed

is 10 watts), 5 HS15EZ Horn Loudspeakers (minimum amplifier power needed is 75 watts), and 10 WB1EZ

Wall Baffle Speakers (minimum amplifier power needed is 10 watts). Add together the minimum

amplifier power needed for each type of speaker: 10 watts + 75 watts + 10 watts. The sum is 95 watts.

This is the minimum amplifier power needed (in watts) for the entire application.

Use this chart to determine the number of WB1EZ speakers a particular installation

will require, based on the dimensions of the area.

Determine the Number

of Speakers Needed (cont.)

Example:

An area’s dimensions are 150 ft. long by 110 ft. wide. Crisscross these

two dimensions on the chart and you will find that 28 WB1EZ Wall Baffle

Speakers are needed for this application. This number (28) is also the

minimum amplifier power needed (in watts) for this area.

Amplifier Power (min.) = Number of WB1EZ Speakers

NOW, GO TO PAGE 21 TO SELECT AMPLIFIER.

www.bogen.com

EASY DESIGNTM

www.bogen.com

EASY DESIGNTM

Once you determine the number of speakers and the minimum

amplifier power for the installation, you are ready to select the

system amplifier. A 70V paging amplifier is very easy to select.

•Locate amplifiers on the chart that have a wattage equal to or

higher than the minimum amplifier power of your application.

(Amplifiers with power capacities greater than this number will

not damage the speakers. The extra power available is simply

not used.)

•Determine the amplifier features needed for the application

(see the Site Survey Check List on page 72 and the Amplifier

Features Chart on page 78).

•Using the chart on page 78, find an amplifier that offers these

features. As long as the wattage of the selected amplifier is

equal to or higher than the minimum amplifier power, the

amplifier will work well for the application.

If you think the application’s system may need to expand in the future

(this is often the case with new constructions and relocating com-

panies), you may want to select an amplifier with a greater power

capacity now.

Example:

An application requiring 18 CS1EZ Ceiling Speakers requires

a minimum amplifier power of 18 watts, so an amplifier with a

power rating of 18 watts minimum is needed. Now, look at the chart

on page 78 to determine which amplifiers provide the necessary

wattage to drive the speakers as well as provide the amplifier

features that are most appropriate for the installation. Since the

minimum wattage needed is 18, the amplifier with the lowest power

usable for this installation is 20 watts (model C20). However, if the

C20 does not have the features required for the application, such

as bass and treble controls, you can select any amplifier of

greater wattage that offers the specific features. For instance, you

might select the TPU35B or C35. Both of these amplifiers have a

higher wattage than the application’s minimum amplifier power

needed and provide the desired features because they have bass

and treble controls. Either of these amplifiers will work well for

this application. Plus, there is room to expand the system on a 35W

or higher amplifier without the need to purchase an additional

amplifier in the future.

Easy Design™Is Easy!

That’s all it takes to design a robust, high-quality paging system with Bogen’s Easy Design line.

Select

An Amplifier

The Amplifier Features Chart outlines the features and power ratings of Bogen amplifiers

that can be used for a variety of application needs. For complete chart, see page 78.

POWER

Locate a power rating that is higher than the applica-

tion requires (allowing for future system expansion).

FEATURES

Find the amplifier features that the

application requires.

MODEL NUMBER

Select the amplifier model(s) best

suited for your application.

REFERENCE PAGE

Turn to the page number indicated for more

information about the product you need.

REFER TO CHART ON PAGE 78

EASY DESIGNTM GUIDE (cont.)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bogen Intervenants

Bogen

Bogen KFLDS30T Manuel utilisateur

Bogen

Bogen NEAR OPS1 Mode d’emploi

Bogen

Bogen NEAR A-Series A12 Manuel utilisateur

Bogen

Bogen FG15 Manuel utilisateur

Bogen

Bogen CSD1X2VR Manuel utilisateur

Bogen

Bogen Orbit NEAR OCS1 Mode d’emploi

Bogen

Bogen BBFM6 Manuel utilisateur

Bogen

Bogen QUANTUM VOIP series Manuel utilisateur

Bogen

Bogen ACD2X2 Manuel utilisateur

Bogen

Bogen Nyquist NQ-S1810CT-G2 Feuille d'instructions

Bogen

Bogen Quantum WBS810QIP Manuel utilisateur

Bogen

Bogen Easy Design CS1EZ Manuel utilisateur

Bogen

Bogen NQ-S1810CT-T1 Manuel utilisateur

Bogen

Bogen SCW20 Manuel utilisateur

Bogen

Bogen CSD2X2 Manuel utilisateur

Bogen

Bogen FG20B Manuel utilisateur

Bogen

Bogen VRS1 Manuel utilisateur

Bogen

Bogen ENHANCER ESYS1 Manuel utilisateur

Bogen

Bogen Quantum S810QIPPG8U Manuel utilisateur

Bogen

Bogen HFSF1 Manuel utilisateur

Bogen

Bogen MB8TSL Manuel utilisateur

Bogen

Bogen CSD2X2 Manuel utilisateur

Bogen

Bogen Nyquist NQ-S1810CT-G2 Manuel utilisateur

Bogen

Bogen HFCS1LP Mode d’emploi

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
