Bogen MSM Manuel utilisateur
MSM
Microphone Shock Mount
•Contemporary design and excellent engineering for desktop and
counter use
• Easy setup and quick plug-in design
• Superior mechanical noise and vibration handling
• Ideal fixture for boardrooms, conference rooms, pulpits, podiums, or
newsrooms
50 Spring Street, Ramsey,NJ 07446, U.S.A.
Tel: 201-934-8500; Fax: 201-934-9832, www.bogen.com
54-2065-01B
Specifications subject to change without notice.
The MSM is a plug-in shock mount microphone base for desktop and count-
er use. Its contemporarydesign is a complementing fixturefor boardrooms,
conference rooms, pulpits, podiums, or newsrooms. It is ideal for use with
gooseneck microphones and other quick-mount types using XLR (male) type
connectors. The black-finish housing is made of lightweight ABS material. It
supports the XLR (female) type connector and the thick shock-absorbing
rubber cushion.
The MSM is easily screwed onto a flat surface with a maximum thickness of
3/4" providing maximum stability and excellent noise insulation, and vibration
handling for live miking situations.
The MSM allows convenient wiring with its flush-mounted XLR (female) con-
nector.The signal appears across pin nos. 2 and 3 while the ground connec-
tion is in pin no. 1.
Description
Features
5. Drilling Template
Printed in USA. 0511
©2005 Bogen Communications, Inc.
1. Surface Preparation:
a. Make sure that the surface on which the MSM will be installed
is flat and stable.
b. Using the dimensions shown below, drill the holes for the
mounting screws.
•The thickness of the table/platform must not exceed 3/4".
Counter bore hole on bottom of table for thicker tops.
2. XLR (Female) Connector Diagram:
•Solder 2-conductor with shield microphone cable to connector.
Figureshows typical connections for balanced microphones.
Check instructions for microphone actually being used to confirm
proper connections.
Installation
3. Mounting:
a. Remove the nuts and the washers from the shock mount base.
b. Mount the base on the intended surface.
c.Tighten the screws enough to ensure stability. Over tightening will suppress shock
absorbing capability of the rubber cushion.
4. Connecting/Removing a Microphone (shown with GDU150):
•Connecting - The outside diameter of the microphone connector’s housing
should not exceed 3/4", with its length 3/4" or longer.This is to ensure its com-
plete and lock-tight connection with the flush-mounted XLR (female) connector
of the shock mount base.
•Removing - Pull out the microphone while pressing the release tab of the XLR
(female) connector of the shock mount base.
SIGNAL "+"
CONDUCTOR
SIGNAL "-" CONDUCTOR
12
3
SHIELD
Outside Dimensions
Autres manuels Bogen Support et étagère
Bogen
Bogen ORATOR WMK2 Manuel utilisateur
Bogen
Bogen RPK86 Manuel utilisateur
Bogen
Bogen RPK82 Manuel utilisateur
Bogen
Bogen ATS70GB Manuel utilisateur
Bogen
Bogen TS-70GB Manuel utilisateur
Bogen

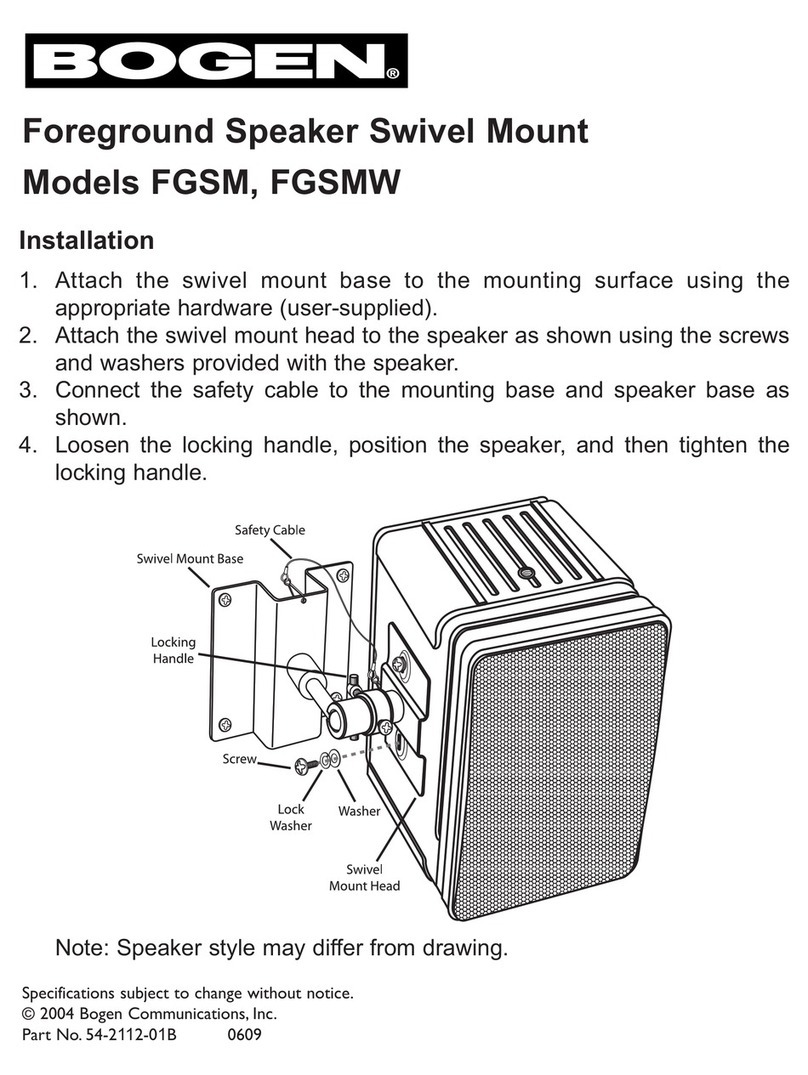

Bogen FGSM Manuel utilisateur
