Bodyworx JI2040 Manuel utilisateur
BODYWORX
BODY WORX
1
Retain this owner’s manual for future reference
Read and follow all instructions in this owner’s manual
Version A
Motorised
Model No:
JI2040
Treadmill
TABLE OF CONTENTS
OVERVIEW DRAWING 2 ASSEMBLY STEPS 6
SAFETY INSTRUCTIONS 3 CAUTION 8
GROUNDING INSTRUCTIONS 4 MAINTENANCE 10
PRE-ASSEMBLY CHECK LIST COMPUTER OPERATION INSTRUCTION 11

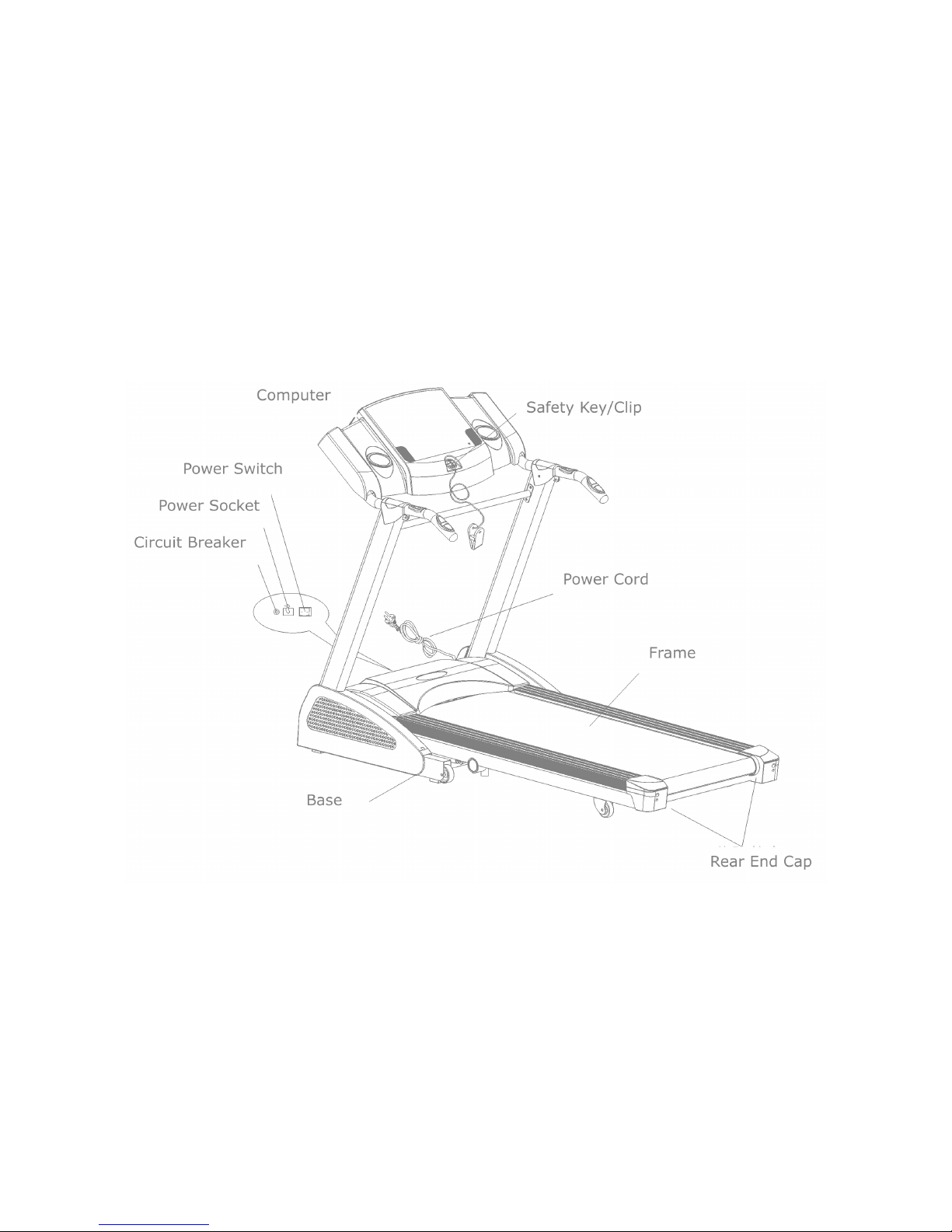

OVERVIEW DRAWING
2
IMPORTANT SAFETY INSTRUCTIONS
When using this product, basic precautions should always be followed, including the following:
Please read the instructions carefully before starting to use this product.
DANGER – To reduce the risk of electric shock:
1. Always unplug this product from the electrical outlet immediately after using and before cleaning the
treadmill.
WARNING – To reduce the risk of burns, fire, electric shock, or physical injury:
1. This product should never be left unattended while plugged in. Unplug this product from the outlet
when not in use or before putting on or taking clothing and other belongings.
2. To avoid any danger, close supervision is necessary when this product is used by children or
disabled persons; especially when this machine is operating.
3. Be sure to use this product only for its intended use as described in this manual. Do not use any
attachment no recommended by the manufacturer in order to avoid any danger or accidents.
4. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been
damaged, or dropped into water. Please return this product to the service centre or seller for
examination and repair.
. Do not carry this product by the supply cord or use the cord as a handle.
6. Keep the cord away from hot surfaces or ground.
7. Never operate this product with the air vents blocked. Keep the air vents free of any obstructions to
avoid hazards.
8. Never drop or insert any objects into any vent of the treadmill.
9. Do not use or operate outdoors.
10. Do not operate where aerosol (spray) products are being used or where oxygen is thin.
11. Before turning this product power off, turn all controls to the off position then remove the plug from
the outlet.
12. Connect this product to a properly grounded outlet only.
13. This treadmill is intended for household-use only.
14. If the power cord is damaged, be sure to ask the manufacturer or seller for replacement to avoid
accidents.
3
GROUNDING INSTRUCTIONS
This product must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of
least resistance for electric current to reduce the risk of electric shock.
This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether this product is
properly grounded. Do not modify the plug provided with this product – if it will not fit the outlet; have a proper
outlet installed by a qualified electrician.
This product is for use on a normal 220V – 240V and has a grounding plug that looks like the plug illustrated
in the figure below. Make sure that this product is connected to an outlet having the same configuration as
the plug. There is no need to use any adaptor for this product.
Figure
Grounding Met ods
4
PRE-ASSEMBLY CHECK LIST
ITEM Description Qty ITEM Description Qty
A Frame 1 a Truss Hex Screw: M8xP1.2 x60 2
B Bottle 1 b Truss Hex Screw: M8xP1.2 x2 4
C Handrail Cover 2 c L-shaped Hex Wrench +
Screwdriver mm
1
D Decoration Cover-Left 1 d Hex Wrench 6mm 1
E Decoration Cover-Right 1 e Safety Key 1
F Cup 2 f Power Cord 1
G Chest transmitter 1 g SILICON 1
H MP3 Sound Cable 1 h Truss Philips Screw: M xP0.8x18 4
iWasher 2
eTruss Philips Screw: M xP0.8x10 2
5
ASSEMBLY STEPS
Two persons are required to finish the
assembly steps.
(Caution!! Please follow exactly the
assembly steps below to avoid injury.)
1. Put up the two computer handrail tubes of
Frame (A) as shown in the drawing on the
right and tighten with Hex screw (a). Then
wedge the left and right covers (C).
PS. To avoid danger, always assemble the
treadmill with more than two persons. Do not
assembly by yourself.
2. Then put up the left and right uprights as
shown in the right drawing and tighten with
Hex screws (b).
PS. To avoid danger, always assemble the
treadmill with more than two persons. Do not
assembly by yourself.
6
3. After tightening the left and right uprights,
wedge the left and right decoration covers
(D, E) onto the frame and tighten with Philips
Screw (h).
4. Insert cup holder (F) onto the corresponding
positions as shown in the right drawing.
7
CAUTION
Note: The cylinder contains high pressure gas.
Please avoid crashing or colliding with other objects
in order to prevent dangers from occurring.
Note: If the Cylinder is hit, it might be damaged and
hinder normal usage. The treadmill may collapse
while in its folded position.
Note: This treadmill has four (4) segments of shock
absorber function and is each coloured accordingly
to different rigidity. Pull out the knob and turn it to
choose the rigidity. The rigidity is from soft to hard
according to the colour red, yellow, blue and black.
8
This treadmill has a foldable mechanism for storage.
Stop all movements (including stopping the running
belt and taking off the power cord from the power
outlet) before storage; then fold the main frame in
the same direction as shown in the right picture. Be
sure the fixing plate inserts the tube of base frame.
Alternatively, if you want to use the treadmill, step on
the fixing plate as shown in the direction of the right
drawing. When the fixing plate disjoins from the tube
of these base frame, pull down the main frame as
shown.
Subsequently, stand beside the treadmill and the
main frame will slowly lower itself to the ground
automatically.
P.S. 1. To prevent from danger, be careful if children
are around.
If you want to move the treadmill, follow these
chronological steps:
1. Fold the treadmill;
2. Hold the rear adjustment cap with your
hands;
3. Lean on the treadmill and do not move the
treadmill until the roller can be moved
smoothly.
P.S. 2. Do not move the treadmill on uneven ground
or surfaces.
P.S. 2. To avoid injury, do not stand under the frame
when it is descending.
9
MAINTENANCE
1. If the belt tends to move off the centre, stop the
treadmill. Take the L-shaped Wrench and adjust the
Hex Screw in the Rear End Cap. For example, if the
running belt is moving towards the left side, tighten
the left Hex Screw about 1/4 turn (clockwise); if the
running belt is moving towards the right side, tighten
the right Hex Screw about 1/4 turn (clockwise). Turn
on the treadmill after it has been adjusted. If you find
that the belt has not moved to the proper position,
please repeat the steps above. Don't use the
treadmill until the running belts returns to the centre
position.
(P.S.1. This procedure is very important, if the belt is
not in the centre, be sure to follow the above steps.)
(P.S.2. The position of the running belt might not stay
precisely in the centre with slightly towards the left
and right sides, and the situation varies with how
end-users use this product. There is no need to
adjust the belt if it does not rub against the parts
inside.)
2. Depending on the usage of the product please
apply SILICON on the board according to the chart
located on the next page. Use the L-shaped Wrench
to unscrew the bolt inside the Rear Roller. Then pull
the belt up and daub some SILICON to the centre of
the board. After that, adjust the belt to the centre of
the deck followed by tightening the screw to the
original set.
(P.S. When the belt is sliding, please follow the
above method to lubricate the running belt.)
10
