A807 BodyworX Deluxe Recumbent Bike

Safety Instructions

•

To ensure the best safety of the exerciser, regularly check it on

damages and worn parts.

• If you pass on this exerciser to another person or if you allow

another person to use it, make sure that that person is familiar

with the content and instructions in these instructions.

• Only one person should use the exerciser at a time.

• Before the first use and regularly make sure that all screws, bolts

and other joints are properly tightened and firmly seated.

• Before you start your work-out, remove all sharp-edged objects

around the exerciser.

• Only use the exercise for your work-out if it works flawlessly.

• Any broken, worn or defective part must immediately be

replaced and/or the exerciser must no longer be used until it has

been properly maintained and repaired.

• Parents and other supervisory persons should be aware of their

responsibility, due to situations which may arise for which the

exerciser has not been designed and which may occur due to

children’s natural play instinct and interest in experimenting.

• If you do allow children to use this exerciser, be sure to take into

consideration and assess their mental and physical condition

and development, and above all their temperament. Children

should use the exerciser only under adult supervision and be

instructed on the correct and proper use of the exerciser. The

exerciser is not a toy.

• Make sure there is sufficient free space around the exerciser

when you set it up.

• To avoid possible accidents, do not allow children to approach

the exerciser without supervision, since they may use it in a way

for which it is not intended due to their natural play instinct and

interest in experimenting.

• Please note that an improper and excessive work-out may be

harmful to your health.

• Please note that levers amd other adjustment mechanisms are

not projecting into the area of movement during the work-out.

•When setting up the exerciser, please make sure that the

exerciser is standing in a stable way and that any possible

unevenness of the floor is evened out.

•Always wear appropriate clothing and shoes which are

suitable for your work-out on the exerciser. The clothes must

be designed in a way so that they will not get caught in any

part of the exerciser during the work-out due to their form (for

example, length). Be sure to wear appropriate shoes which

are suitable for the work-out, firmly support the feet and which

are provided with a non-slip sole.

Be sure to consult a physician before you start any exercise

program. He may give you proper hints and advice with

respect to the individual intensity of stress for you

•your work-out and sensible eating habits.

• Be sure to set up the exerciser in a dry and even place and

always protect it from humidity. If you wish to protect the place

particularly against pressure points, contamination, etc.,

it is recommended to put a suitable, non-slip mat under the exercise

• The general rule is that exercisers and training devices are no

toys. Therefore, they must only be used by properly informed

or instructed persons.

•Stop your work-out immediately in case of dizziness, nausea, chest pain

or any other physical symptoms. In case of doubt, consult your physician

immediately.

•Children, disabled and hadicapped persons should use the exercise only

under supervision and in presence of another person who may give

support and useful instructions.

•Be sure that your body parts and those of other persons are never close

to any moving parts of the exerciser during its use.

•When adjusting the adjustable parts, make sure they are adjusted

properly and note the marked, maximum adjusting position, for example

of the saddle support, respectively.

•Do not work out immediately after meals!

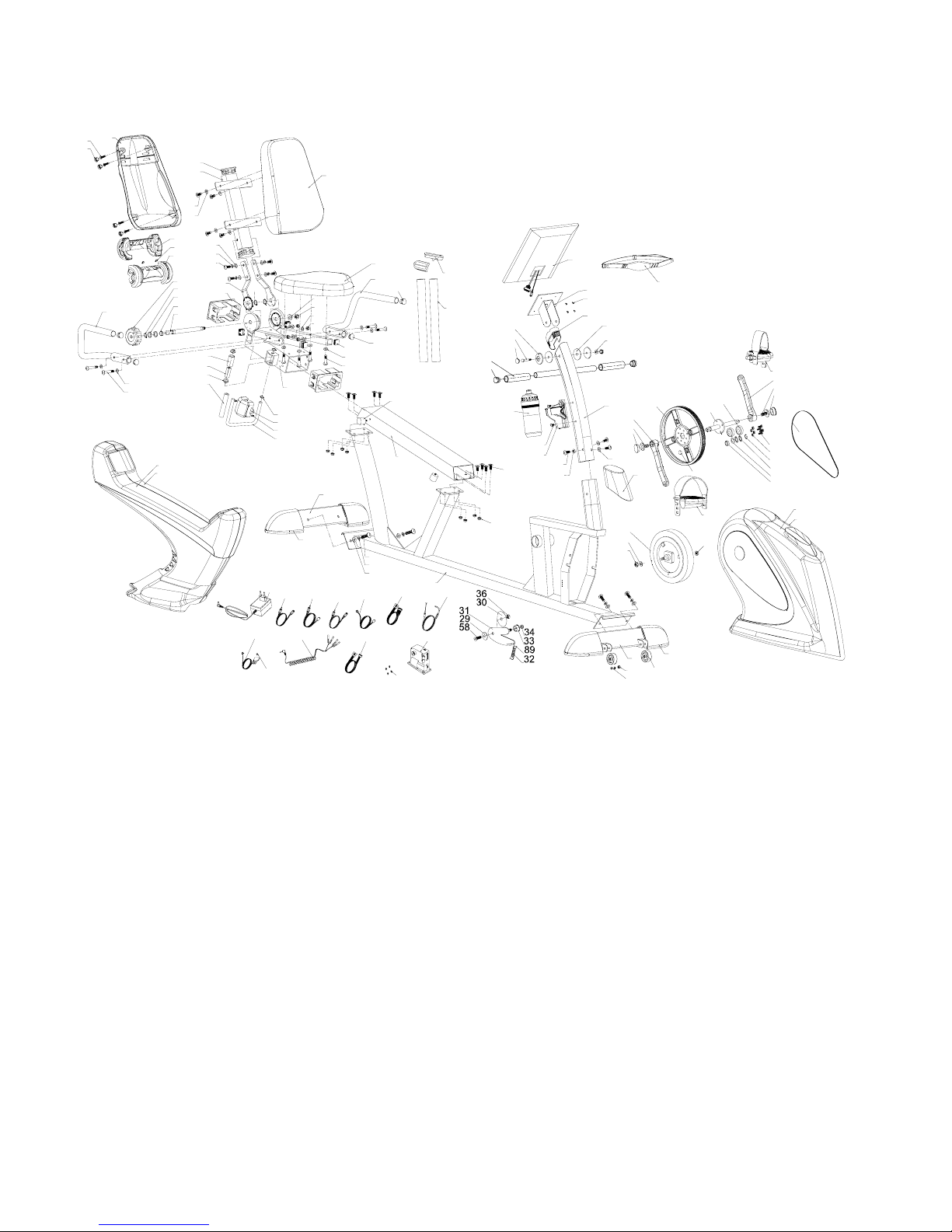

Exploded drawing:

48R

48L

16L

16R

15L

15R 24

37L

37R

12L

12R

50A

53B

46 50B 52

53A

100

93 95

102

103

101

Part list:

Part No. Description Q’ty Part No. Description Q’ty

1 Main frame 1 51 Bushing 125*75*53 2

2 Rear stabilizer 1 52 Upper computer cable 750L 1

3 Front stabilizer 1 53A Lower computer cable 650L 1

4 Triangle foot cap 4 53B Sensor cable 2020L 1

5 Handlebar post 1 54 Handle pulse cable 800L 1

6 Sliding beam 1 55 Belt wheel 1

7 Spring washer D15.4*D8.2*2T 8 56 Handle pulse 2

8 Allen bolt M8*1.25*40 4 57 Waved washer D21*D16.2*0.3T 2

9 Allen bolt M8*1.25*20L 4 58 Allen bolt M8*1.25*25L 1

10 Nylon nut M8*1.25*8T 12 59 Round magnetic 1

11 Curved washer D22*D8.5*1.5T 5 60 Computer B31232 1

12L Left chain cover (rear) 1 61 Flat washer D24*D16*1.5T 3

12R Right chain cover (rear) 1 62 Foam D23*4T*560L 2

13 Flat washer D16*D8.5*1.2T 18 63 Semicircular cap 4

14 Allen bolt M8*1.25*15L 15 64 Upper cover 1

15L Left crank 1 65 Motor 1

15R Right crank 1 66 Bolt M5*0.8*10L 4

16L/R Pedal 1 67 Bolt M5*0.8*12L 5

17 Allen bolt M8*1.25*70 4 68 Backrest supporting tube 1

18 Crank axle 1 69 Square cap 30*60*15 2

19 C-clip S-16 (1T) 3 70 Fixing plate (II) 2

20 Bolt M6*1.0*15L 4 71 Rear decoration cover 1

21 Nylon nut M6*1.0*6T 4 72 Front decoration cover 1

22 Bolt M8*1.25*25 2 73 Screw ST4*20L 2

23 Screw cap 2 74 Round cap 1

24 Bearing #99502 2 75 Club knob 1

25 Multi-groove belt 1 76 C-ring S-12 (1T) 3

26 Magnetic system 1 77 Spacer D19*D13.1*4T 1

27 Flat washer D22*D10*2T 1 78 Eccentricity axle 1

28 Anti-loose nut 3/8”-26UNF*6.5T 2 79 Flat washer D24*D13.5*2.5T 1

29 Flat washer D25*D8.5*2.0T 1 80 Bushing D29*D12.1*9T 2

30 Plastic flat washer D50*D10*1.0T 1 81 Buffer 1

31 Fixing plate for idle wheel 1 82 Stopper 1

32 Spring D3*D17*65L 1 83 Cover 1

33 Idle wheel 1 84 Bolt M5*0.8*10T 2

34 Nylon nut M10*1.5*10T 2 85 Foam D10*100L*3T 1

35 Spacer D22*D16*6.4T 1 86 Nylon nut M5*0.8*5T 2

36 Nylon nut M8*1.25*8T 1 87 Foam D23*4T*150L 2

37L Left chain cover (front) 1 88 Seat post 1

37R Right chain cover (front) 1 89 Plastic cap 2

38 Backrest 1 90 Bolt M5*0.8*15L 2

39 Adaptor 1 91 Bottle holder 1

40 Bottle 1 92 Tension cable 520L 1

41 Adjustable pole 1 93 Oval cap 1

42 Seat 1 94 Computer bracket 1

43 Round wheel 2 95 Plastic flat washer

D50*D10*1.0T 2

44 Screw M5*0.8*35 2 96 Bolt M8*1.25*60L 1

45 Square cap 25*25*13L 4 97 Side cover 2

46 Upper handle pulse cable 750L 1 98 Nylon nut M8*1.25*8T 1

47 Lower handle pulse cable 1900L 1 99 Axle cover 2

48L Left handlebar 1 100 Backrest cover 1

48R Right handlebar 1 101 Screw M6*1.0*20L 4

49 Buffer 2 102 Chest belt 1

50A Middle handle pulse cable 900L 1 103 Round cap 4

50B Electric cable 900L 1

Assembly drawing:

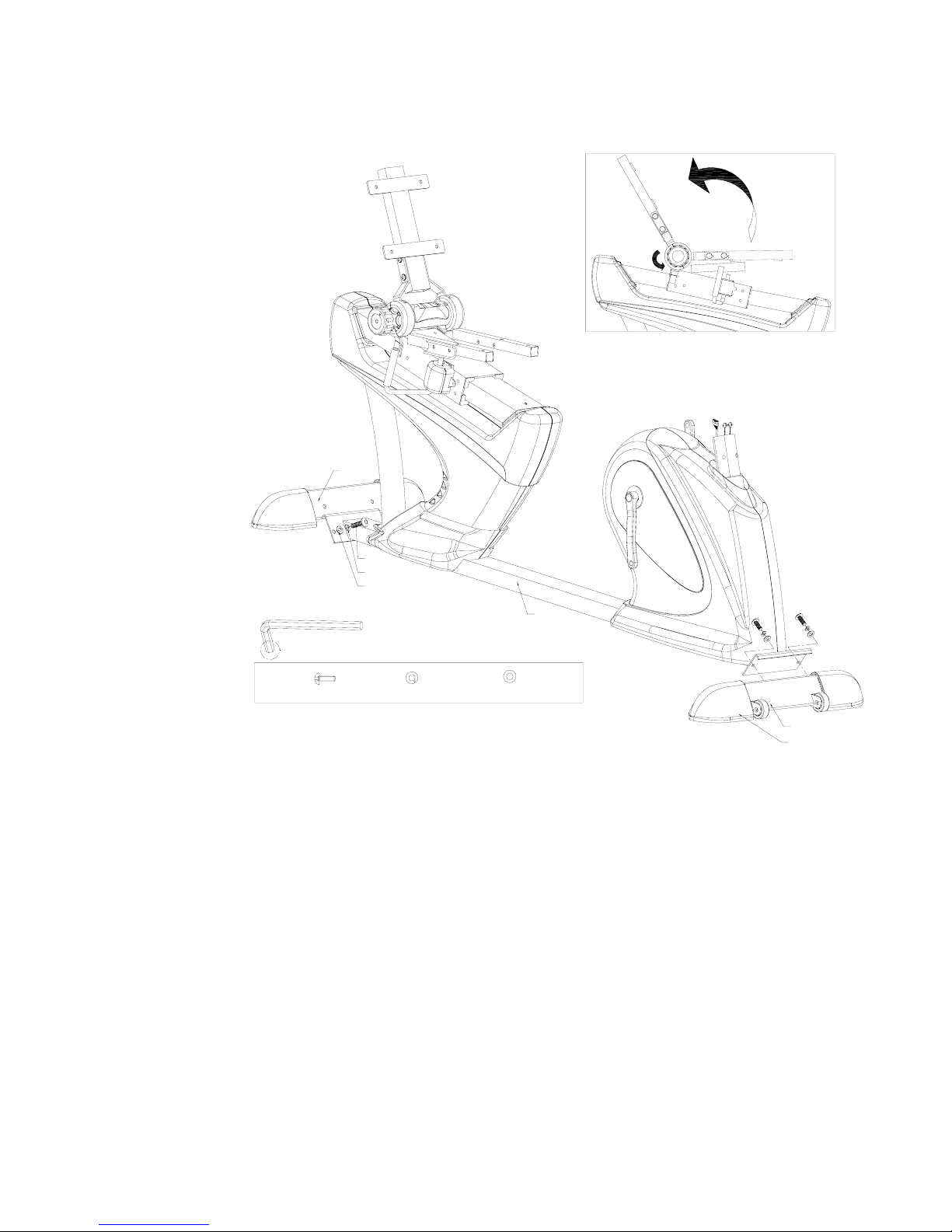

Step 1

FIG.1

M8*20L D15.4*D8.2*2T

(x4) D16*D8.5*1.2T

(A)

1) Assemble the Front stabilizer (3) and Rear stabilizer (2) onto the main frame (1) by the

spring washer (7), the Allen bolt (9) and the flat washer (13).

2) The backrest could be folded by turning the club knob (75) shown as fig. A.

Step 2

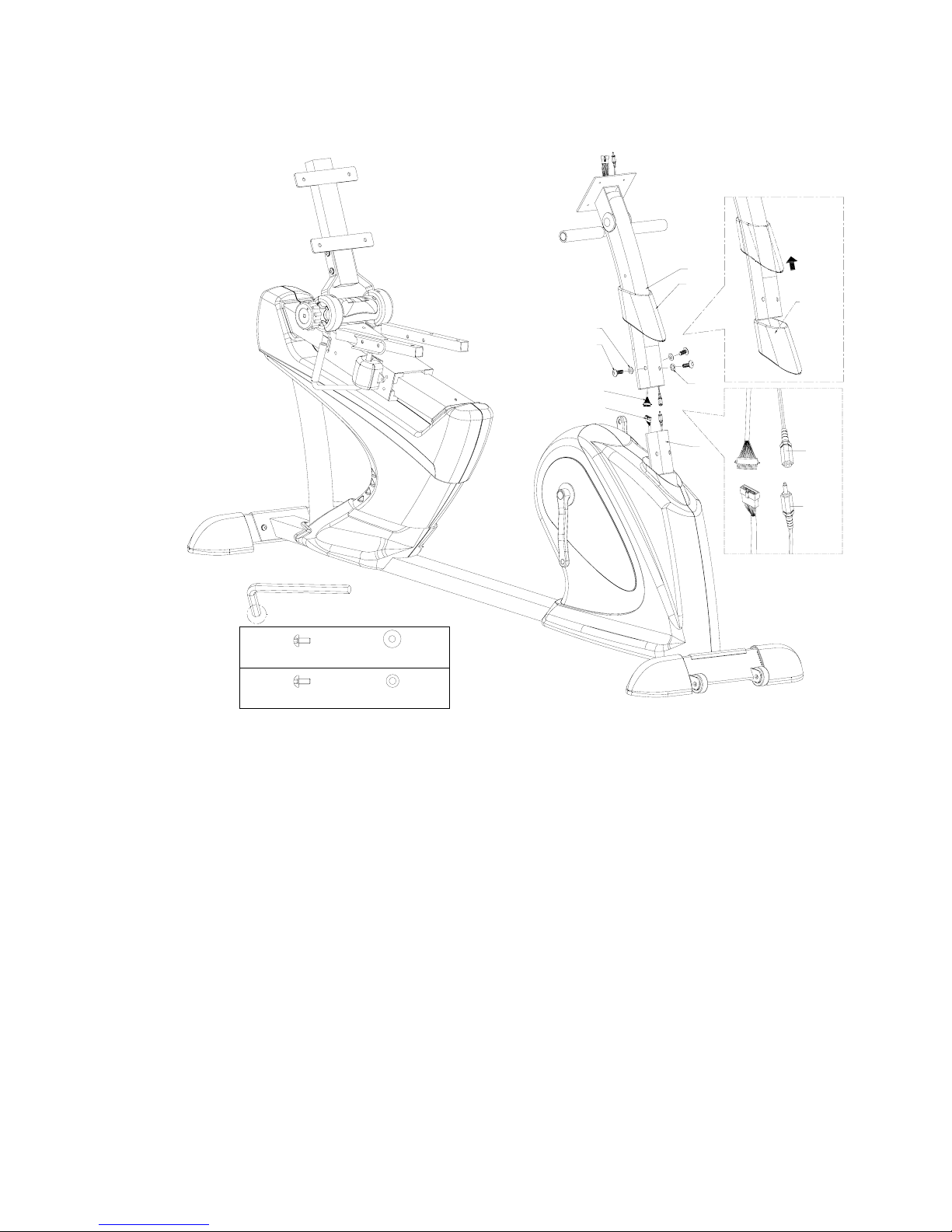

FIG.2

D22*D8.5*1.5T

M8*15L

D16*D8.5*1.2T

(x1)

M8*15L

(x2)

53A

50A

(A)

(B)

1) Assemble the upper cover (64) to the handlebar post (5) shown as fig. A.

2) Connect the upper handle pulse cable (46) with the middle handle pulse cable (50A) shown as

fig. B. And connect the upper computer cable (52) with the lower computer cable (53A).

3) Assemble the handlebar post (5) to the main frame (1) by the curved washer (11), the flat

washer (13) and the Allen bolt (14).

Step 3

FIG.3

(x4) M5*0.8*10L

16R

15R

15L

16L

66 46

(A)

1) Assemble the upper handlebar pulse cable (46) and the upper computer cable (52) to the

computer (60) shown as fig. A.

2) Assemble the computer (60) to the handlebar post (5) by the bolt (66).

3) Assemble the left pedal (16L) to the left crank (15L), and assemble the right pedal (16R) to

the right crank (15R).

4) Assemble the adaptor (39) and turn on the computer (60).

Step 4

FIG.4 M8*8TM8*70L D22*D8.5*1.5T D16*D8.5*1.2T

48R

48L

(x4)

13 11

10 17

1) Assemble the handlebar (48L & 48R) to the main frame (1) by the nylon nut (10), the curved

washer (11), the flat washer (13) and the Allen bolt (17).

2) Connect the plug of the handle pulse cable (54) with the socket of the lower handle pulse

cable (47).

Step 5

FIG.5 D16*D8.5*1.2T

M8*20L

M8*40L

(x4)

bD16*D8.5*1.2T

890

1) Assemble the seat (42) on the seat post by the flat washer (13) and the Allen bolt (8).

2) Assemble the backrest (38) to the backrest support tube by the Allen bolt (9) and the flat

washer (13).

3) Assemble the bottle holder (91) to the handlebar post by the bolt (90). Assemble the bottle (40)

to the bottle holder (91).
