Owner’s Manual
Model No: AM900
Magnetic Spin Bike
BODY WORX
BODY WORX
AM900 - INSTRUCTIONS FOR USE
1) The model AM900 is designed to be used as a “spin” cycle in fitness studios and
health clubs. It has a fixed wheel driven flywheel and should only be used under
professional supervision.
2) Installation - it is important that the AM900 is correctly assembled and we recommend
that installation and assembly be carried out by suitably qualified personnel.
3) Handlebar and seat adjustment. It is important that the handlebar and seat are set at
the correct height for your body. Ask your instructor for assistance. Adjusting the
handlebar stem and seat post height - Make sure it is securely tightened and that
there is no lateral or vertical movement of the handlebar stem and seat post. Undo
the Quick Release lever which is located in front of head tube. Slide the handlebar
stem up or down to the required height and then retightened.
The handlebar / stem position can also be adjusted forwards or backwards. Undo the
Quick Release lever located on below the slider. Slide the handlebar / stem assembly
forwards or backwards until you reach the required position. Then securely retighten
the Quick Release lever.
Adjusting the seat height - refer to above mention.
NOTE: There is a safety line engraved on the handlebar stem and seat post. On
no account should the handlebar stem and seat post ever be raised
above this line.
4) Pedals and toe straps - your feet should be securely positioned in the toe clips during
the exercise. Put your foot as far forward as you can into the toe-clip and then pull the
strap tight.
5) Resistance system - AM900 biek is with durable belt direct drive transmission system,
to adjust the exercise resistance on the completed spinning bike, please refer to gear
cable assembly.
6) The AM900 should operate on a level surface with no lateral movement. There are
height adjuster caps located on either side underneath the rear foot. Turn these caps
clockwise or anti-clockwise until the bike is totally stable on the ground.
7) Maintenance - like any other mechanical cycling device, the AM900 should be
regularly maintained. Ask your supplier for a detailed maintenance programme.
AM900 - Assembly Diagrams
AM900 - Assembly
Step 1 (Front Foot)
Attach the front foot (6) to the frame using the bolt (3), washer (4) and nut (5).
Step 2 (Rear Foot)
Attach the front foot (2) to the frame using the bolt (3), washer (4) and nut (5).
STEP 1 STEP 2
Step 3 (Pedals)
Attach the front foot (7R / 7L) into the crank arms (62R / 62L), each pedal is marked with the
letter R (right) or R (right) to denote the side of the bike they are on. NOTE: The right hand
crank is on the same side as the belt cover (69). Be careful to align the threads correctly to
avoid any damage. A little grease on the thread should help the pedals to screw in easily and
correctly, tighten using a 15mm spanner, both pedals threads should tighten towards the front
of the bike.
STEP 3
Step 4 (Handlebar & Stem)
Attach handlebar (11) onto handle bar stem (14), assembly down plate (25), washer (12a) bolt
(26) and lock lever (12), slide the handlebar (11) until reach your required position. Using lock
lever for tightening. And then put the handlebar-stem set onto front tube, adjust to your ideal
position., and then using lock lever (18) to tighten. NOTE: Do not arise above safety line.
STEP 4
Step 5 (Saddle & Seat Post)
Insert seat post (15) into frame’s seat tube, assembly saddle (17) on saddle top slider (16).
Adjust slider using lock lever (12) for forwards or backwards and then tighten until reach the
proper position. Using lock lever (18) adjust seat post (15) and tighten in proper position.
NOTE: Do not arise above safety line.
STEP 5
Step 6.7. (Bottle Cage)
Attach screw (10) into bottle cage (9) on front fork in required position using a 4mm allen key
STEP 6 STEP 7

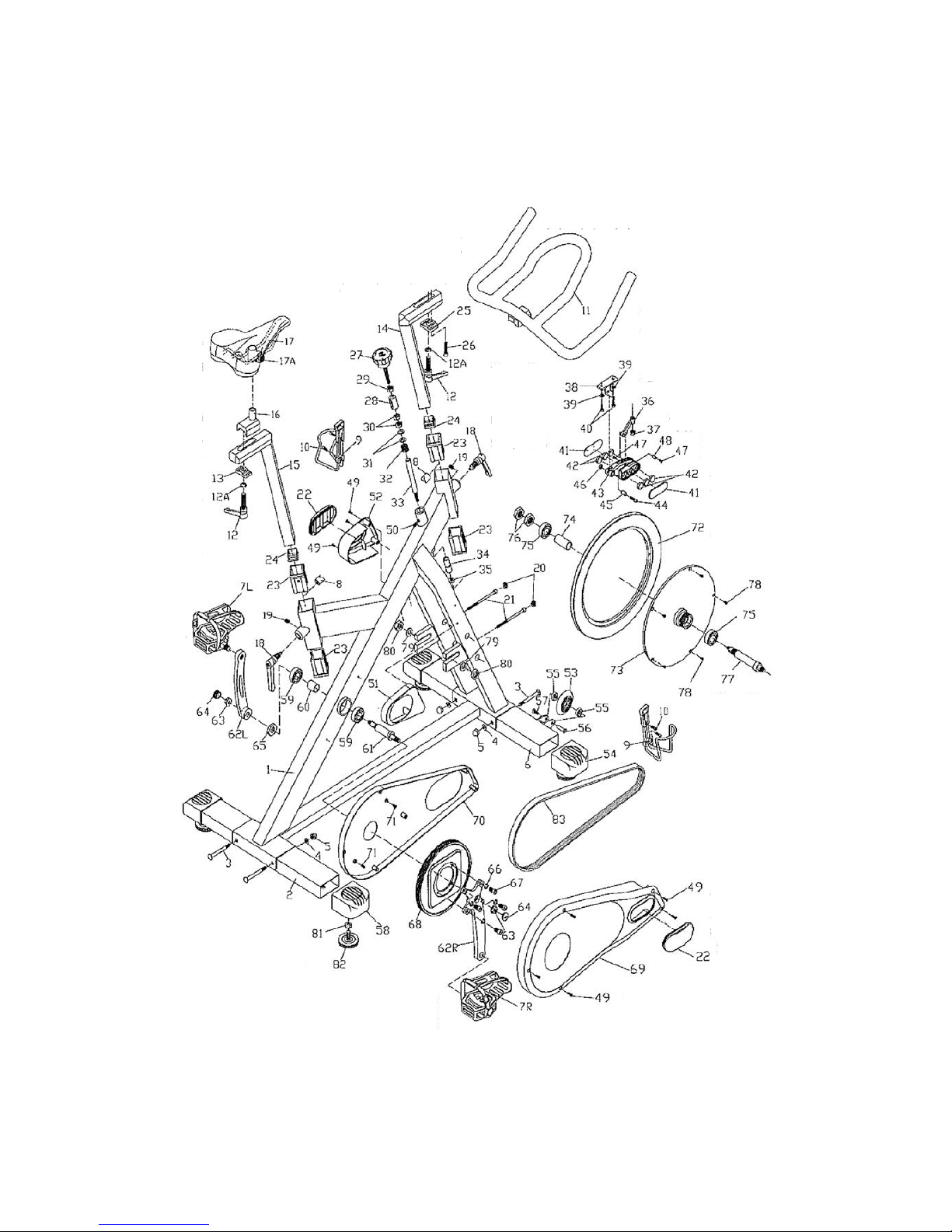

AM900 Diagrams
PARTS NO
DESCRIPTION
QTY
PARTS NO
DESCRIPTION
QTY
1
Main Frame
1
43
Plastic Brake Bass
1
2
Rear Ground Tube
1
44
Bolt M8 x P1.25 x 20L
1
3
Ground Tube Fixed Bolt
4
45
Sleeve 8mm x 11mm x 12L
1
4
Washer
4
46
Nut M8 x P1.25
1
5
Nut
4
47
Screw M5 x P0.8 x 6L
2
6
Front Ground Tube
1
48
Sleeve 8mm x 15L
1
7 R/L
Pedal
1
49
Screw M5 x P0.8 x 15L
8
8
V Block
2
50
Screw M8 x P1.25 x 8L
1
9
Bottle Cage
2
51
Left Inner Cover
1
10
Bottle Cages Fixed Screw
4
52
Left Out Cover
1
11
Handle Bar
1
53
PU Moving Wheel
2
12
Handle Bar and Seats Lock Lever
2
54
Front Ground Tubes End Cap
2
12A
Spring Washer
2
55
Bearing 608ZZ
4
13
Bottom Plate For Saddle Slider
1
56
Nut 8 x 30L W/M6 x P.10
2
14
Stem
1
57
Nut M6 x P1.0 x 12L
2
15
Seat Post
1
58
Rear Ground Tubes End Cap
2
16
Saddles Slider
1
59
BB Axles Bearing SKF 6004ZZ
2
17
Saddle
1
60
Sleeve 24OD x 2.1ID x 27L
1
17A
Saddle Clamp
1
61
BB Axle 25mm x 20mm x 128L
1
18
Lock Lever For Stem and Seat
2
62L
Left Crank 175L
1
19
Set Screw - M6xP1.0x8L
2
62R
Right Crank 175L
1
20
Plastic Seal Cover
2
63
Flange Nut
2
21
Axles Adjust Screw - M6xP1.0x95L
2
64
Dusty Cover
2
22
POP Cover
2
65
Lock Nut M20 x P1.0
1
23
Plastic Sleeve
4
66
Spring Washer
4
24
Stem & Seat Post End Cap
2
67
Bolt M10 x P1.5 x 15L
4
25
Bottom Plate for Handle Bar
1
68
Pulley 265mm x 5PK x 21T
1
26
Safety Bolt
1
69
Right Out Cover
1
27
Adjust Knob
1
70
Right Inner Cover
1
28
Moving Part 20 ODx34L
1
71
Screw M5 x P0.8 x 10L
2
29
Lock Nut 3/8" x 16T x 6T
1
72
Out Alloy Ring of Fly Wheel
1
30
Nut
2
73
Inner Cast Iron Fly Wheel
1
31
Washer - 18mm x 8.5mm x 1.5T
2
74
Sleeve For BB Axle
1
32
Spring - 18mm x 2mm D x 65L x 9
1
75
Bearing for Fly Wheel SKF 6004ZZ
2
33
Study 12.7mm x 160L
1
76
Nut M17 x P1.0 x 8t
2
34
Nylon Plug
1
77
Fly Wheels Axle
1
35
Nut
1
78
Screw M5 x P0.8 x 6L
5
36
Brake Set Adjuster
1
79
Nut M12 x P1.25
2
37
Nut M8 x P1.25
1
80
Washer 27mm x 13mm x 3t
2
38
Brake Set Fix Bracket
1
81
Nut 3/8" x 16t x 6T
2
39
Washer
2
82
Rear Ground Stabilise Adjuster
2
40
Screw M6 x P1.0 x 15L
2
83
Belt 5PK
1
41
Magnetic Side Cover
2
42
Magnetic
6
M900 Parts List
BODY WORX
BODY WORX
