BLU Model: Grand Max

Grand Max

Handset Disassembly & Assembly Manual

All manuals and user guides at all-guides.com

BLU Model: Grand Max

Handset Disassembly

1. Disassemble upper and lower decoration pieces.

2. Unscrew the screws pointed by red arrows with a T5 screw driver

All manuals and user guides at all-guides.com

BLU Model: Grand Max

3. Take apart the back cover, and lower metal decoration piece.

4. Take out battery, unscrew red arrow pointed screw, BOX mounting screws and camera supporting screws.

All manuals and user guides at all-guides.com

BLU Model: Grand Max

5. Disassemble BOX and camera supporting rack

6. Disassemble TP-FPC connector, coaxial cable PCBA connector, side key FPC connector, and LCD connector

7. Disassemble sub-board

All manuals and user guides at all-guides.com

BLU Model: Grand Max

8. Disassemble LCD-fpc connector, take out PCBA

9. Disassemble front camera, rear camera

9. Disassemble receiver

All manuals and user guides at all-guides.com

BLU Model: Grand Max

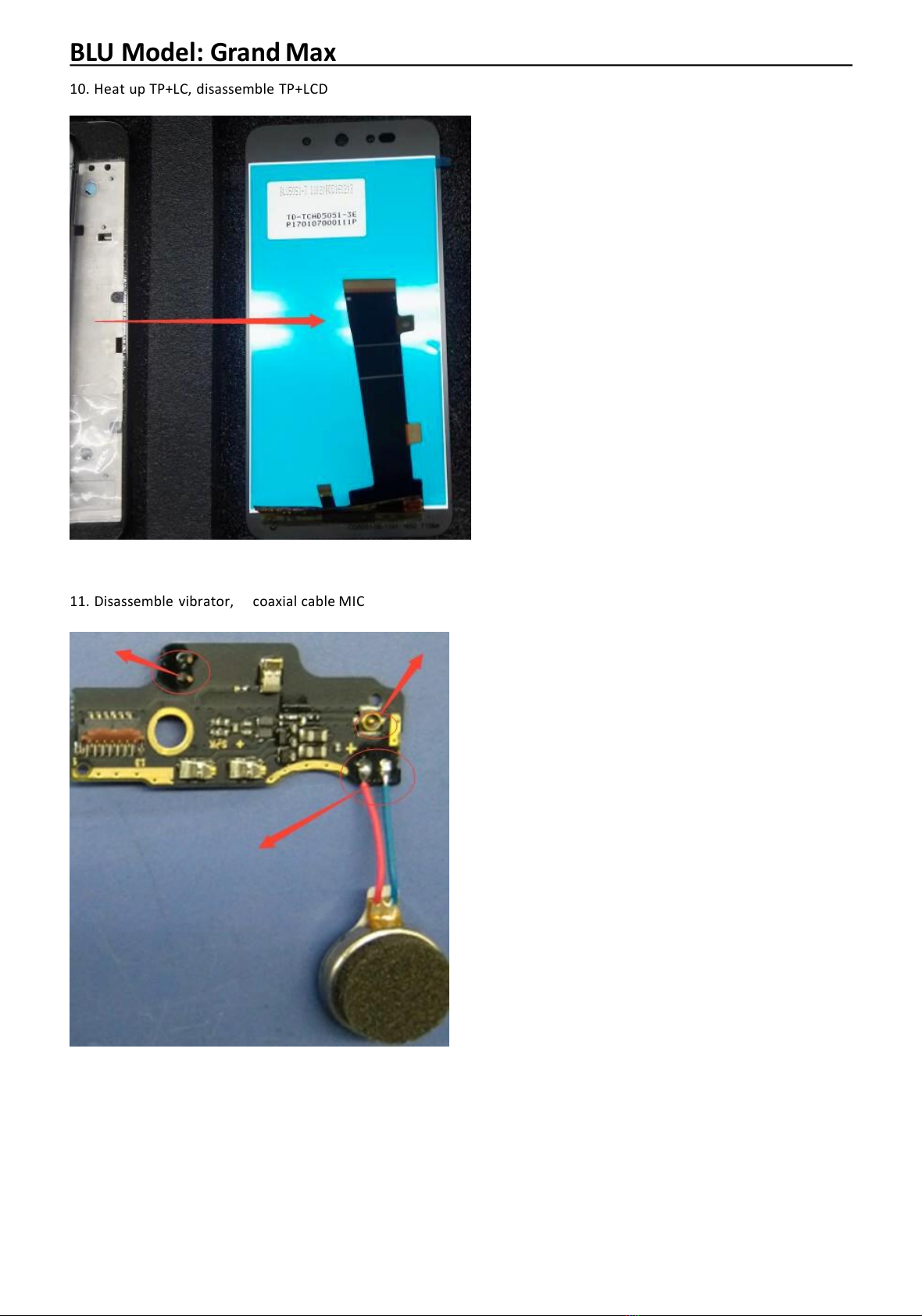

10. Heat up TP+LC, disassemble TP+LCD

11. Disassemble vibrator, coaxial cable MIC

All manuals and user guides at all-guides.com

BLU Model: Grand Max

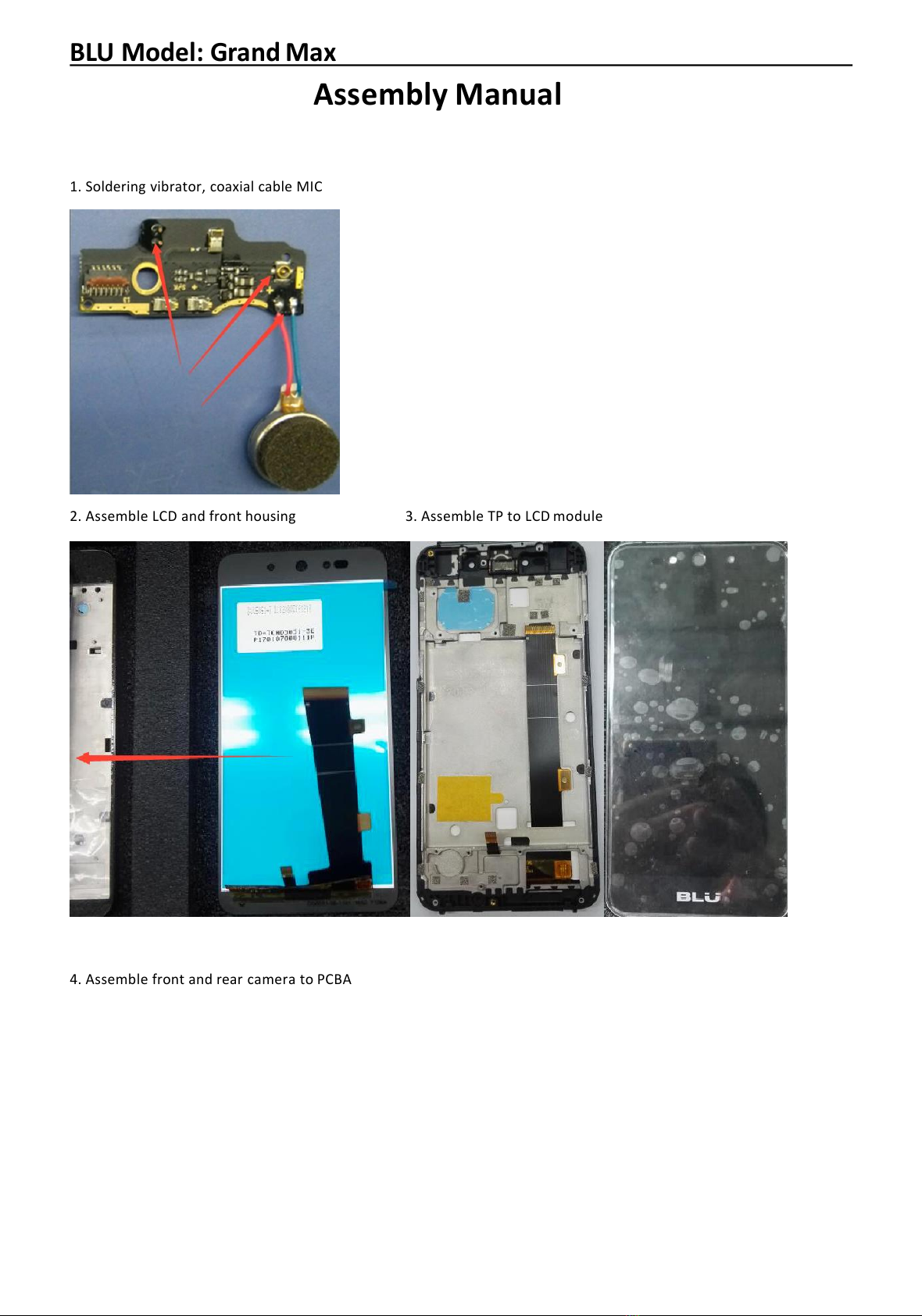

Assembly Manual

1. Soldering vibrator, coaxial cable MIC

2. Assemble LCD and front housing 3. Assemble TP to LCD module

4. Assemble front and rear camera to PCBA

All manuals and user guides at all-guides.com

BLU Model: Grand Max

5. Assemble LCD-fpc connector, put PCBA in front housing, assemble TP-fpc connector, coaxial cable PCBA connector,

side key FPC connector

6. Assemble rear camera supporting rack, PCBA supporting screw, and screw on

7. Assemble sub-board in front housing, put in coaxial cable

All manuals and user guides at all-guides.com

BLU Model: Grand Max

8. Assemble BOX, screw on BOX holding screws

9. Assemble lower metal decoration piece, screw on with T5 screwdriver

All manuals and user guides at all-guides.com

BLU Model: Grand Max

10. Put battery in

11. Assemble metal battery cover, put screws on
