Blu ARIA II Manuel utilisateur

ARIA II

SERVICE MANUAL

CAUTIONS

1、Please read this service manual carefully and make sure all elements of anti-static are in place before the repair work is

carried out.

2、Servicing and alignment MUST be undertaken by qualified personnel only.

3、Please use specified tools and equipments for servicing, in which the parameters need to be calibrated with specified

criteria.

Chapter 1 Specification

Content

1. Brief Introduction….…………………………………………………………………………………...3

2. Exploded View………………………………………………………………………………………….4

3. Tools……………………………………………………………………………………………………..5

4. Assemble & Dissemble

Dissembly..................………………………………………………………………………….........6

Assembly………………………………………………………………………………………….…..7

5. Picture of main board

A&B side of PCBA .…………….…………………………………………………….…………….8

A&B of PCBA Layout………….….………….…………………………….………………….……..9

6. System Block Chart…………………………………………………………………………………...10

7. Unit Circuit Map …………………………………………………………………………..….......11～18

8. Trouble Shooting Guide………..…………………………………………………………….... 19～36

9. CIT testing…………………………………………………………………………………… ……...47

Specification :

Network: 900MHz/1800MHz, 850MHz/1900MHz

Display: 1.8“TFT 128*160

Camera: 0.08M sw upgarde to 0.3M by sw;

Travel Charger AC Adaptor: 5V 500mah

Lithium Battery: Standard (900mAh)

Bluetooth Version: BT 3.0, HFG, OPP

Aria II Features & Functions

Dual SIM

MT 6260M

24Mb+32Mb

Fashion bar phone

FM

Moner detector flash

Multi-Media application

0.08M sw upgarde to 0.3M by sw

T-Flash（Support 8G T Card）

1.8“TFT 128*160

MP3、MP4、AVI

USB1.1，Mini USB

Chapter 2 Exploded View

1. Lens

3. Receiver

4. Front cover

5. FM antenna

7. LCD

9. PCBA

11. Speaker

13 Back cover

18 Battery

19 Camera

21 DOME

22 Keypad

Chapter 3 Tools

Power Supply

Multimeter

Solder iron

Hot Air Gun

Solder wire, Flux

PC, Download cable

Others

Pick

Screw

Driver

Tweezer

Wrist

grounding

strap

Antistatic

gloves

Cable

Chapter 4 Disassembly & Assembly

1. Disassembly Process

1. Remove the battery cover

2. Unfasten the 4 screws by screw driver

4. Remove the PCBA ..

5. Stick protection film for front cover.

3. Prize up the back cover by pick

6. Stick protection film for LCD

Finished.

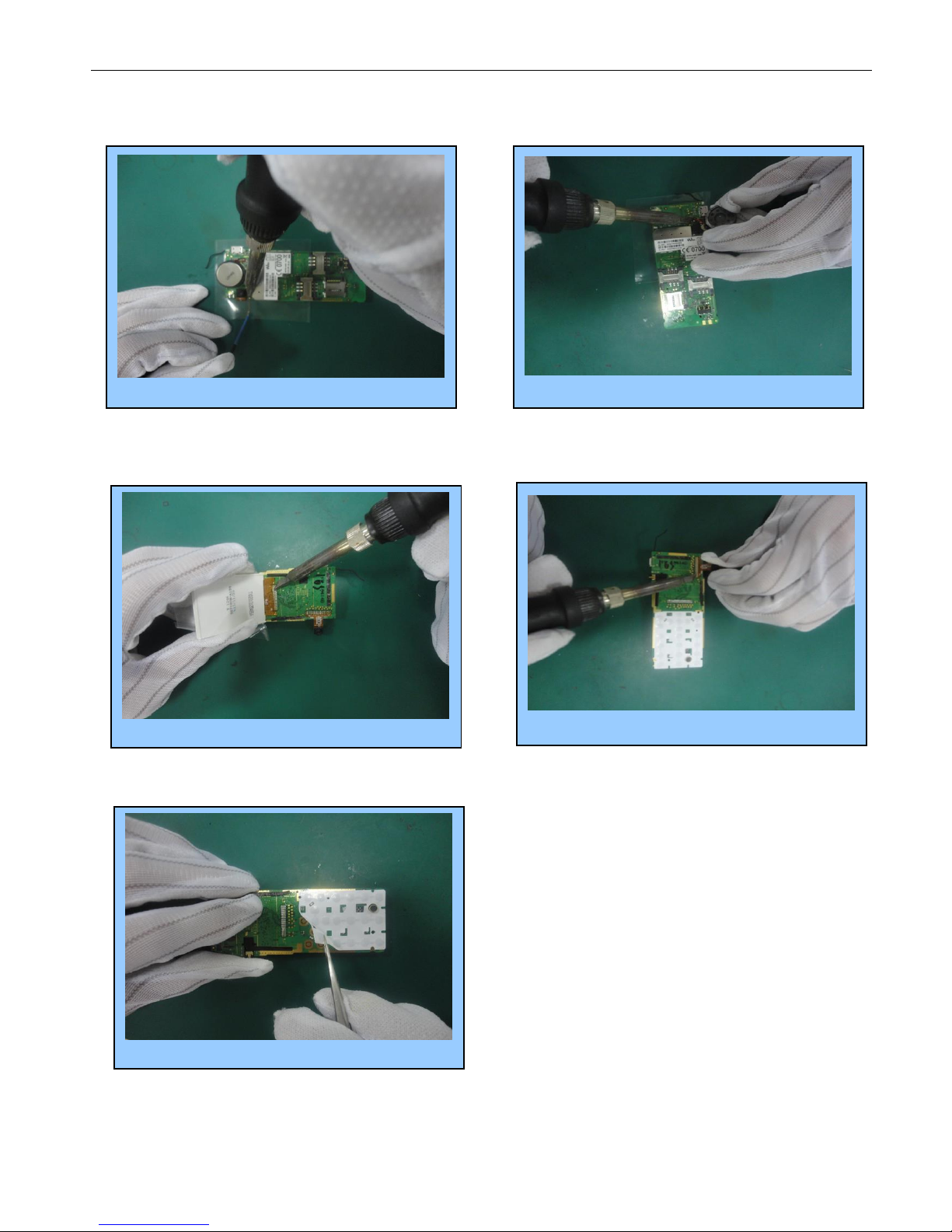

7. Remove the FM antenna by iron

8. Remove the speaker by iron

9. Remove the LCD by iron

10. Remove the camera by iron

11. Remove the keying film

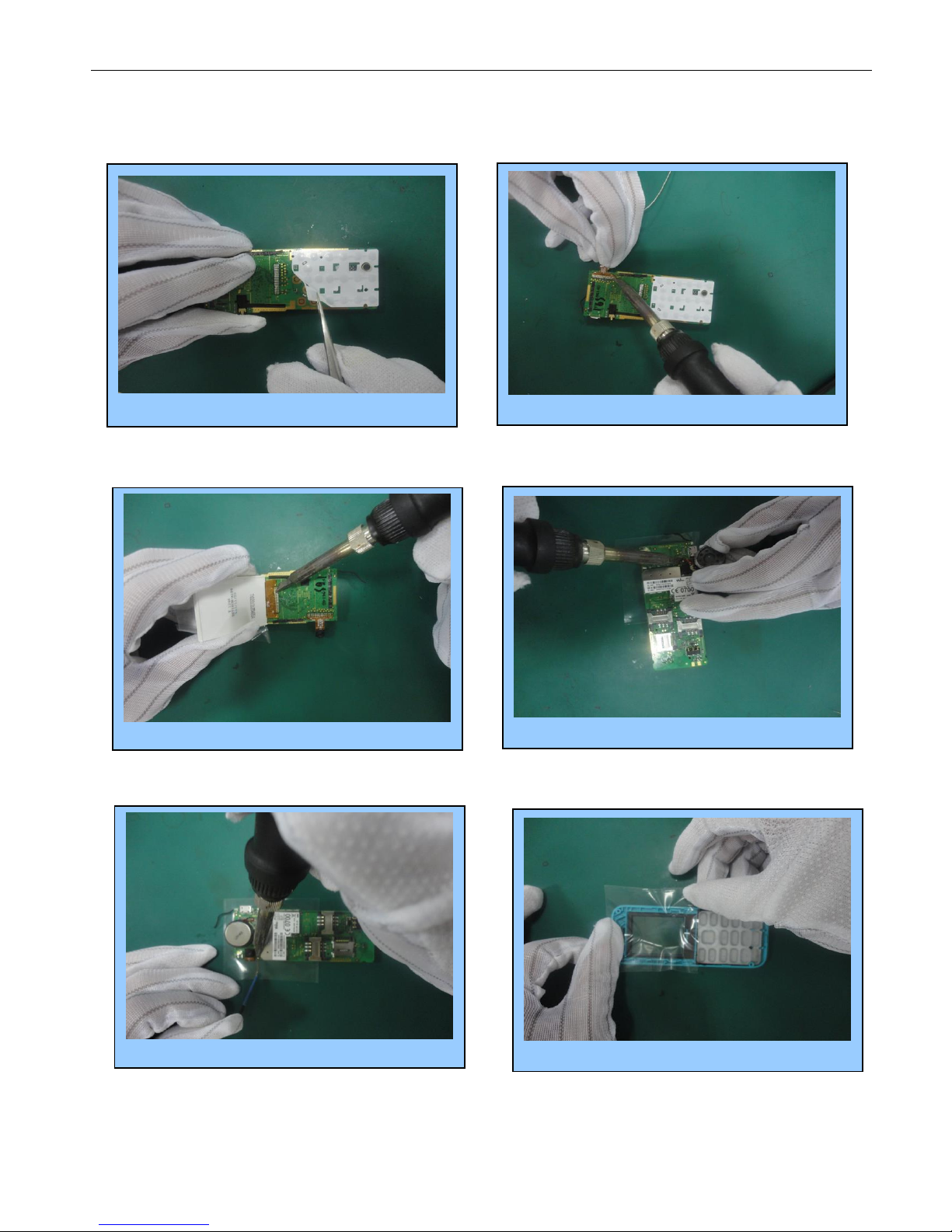

2. Assembly Process

4. Install the speaker by iron.

3. Install the LCD by iron..

1. Install the keying film

2. Install the camera.

6. Remove the protection film front cover

5. Install the FM antenna by iron..

Finished.

6. Install the PCBA.

6. Remove the protection film LCD

6. .Install the back cover

6. Fasten the screws

6.. Install the battery cover
