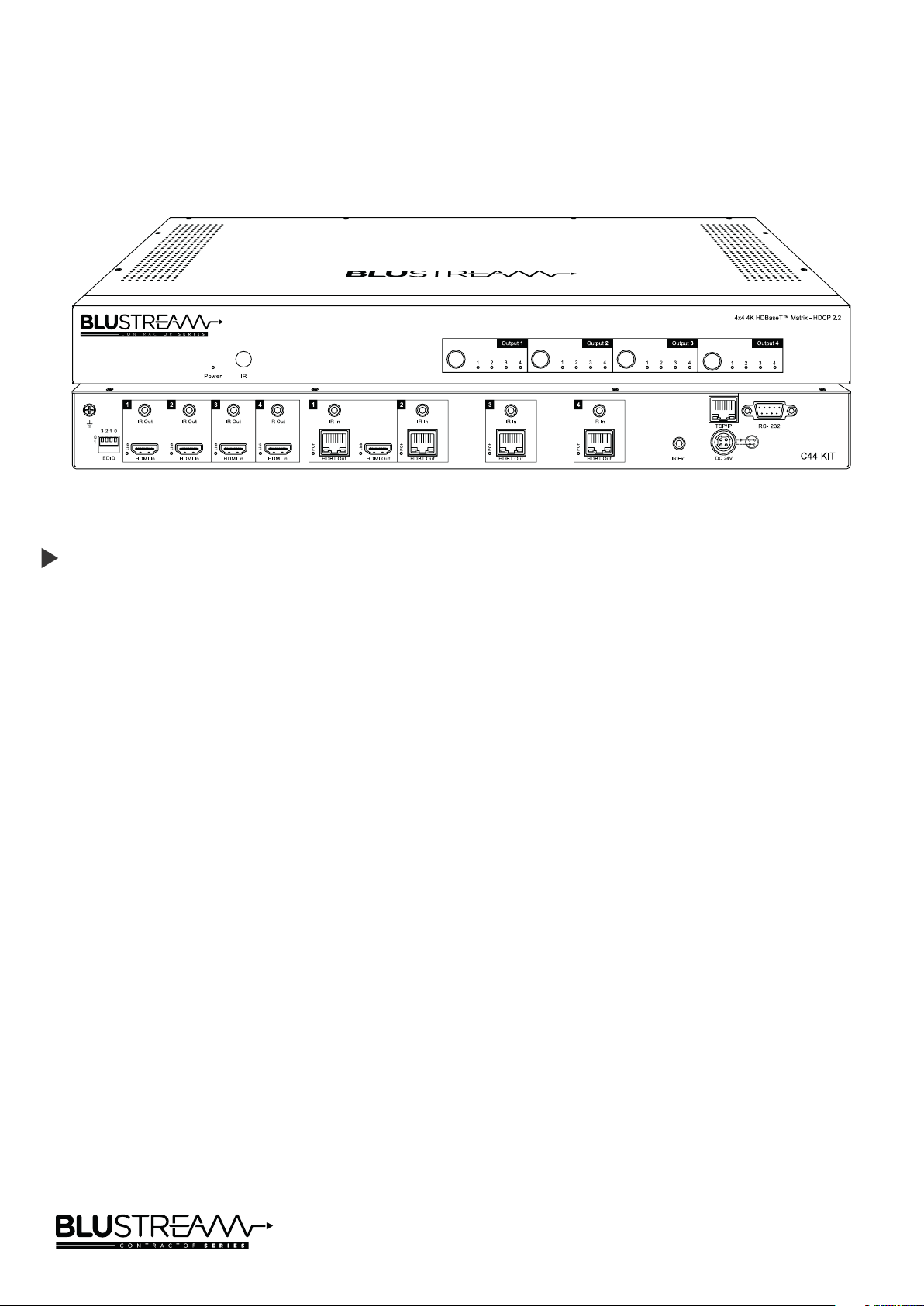

C44-KIT USER MANUAL

www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk02

Surge protection device

recommended

This product contains sensitive

electrical components that may be

damaged by electrical spikes, surges,

electric shock, lightning strikes, etc. Use

of surge protection systems is highly

recommended in order to protect and

extend the life of your equipment.

Safety And

Performance Notice

The transmission distances of HDMI

over UTP cables are measured using TE

CONNECTIVITY 1427071-6

EIA/TIA-568-B termination (T568B) of

cables is recommended for optimal

performance.

To minimise interference of the

unshielded twisted pairs in the

CAT5e/6 cable do not run the HDBaseT

/ Cat5e/6/6a cabling with or in close

parallel proximity to mains power

cables.

Do not substitute or use any other

power supply other than the enclosed

unit, or a Blustream approved

replacement.

Do not disassemble either the

Transmitter or Receiver units for

any reason. Doing so will void the

manufacturer’s warranty.

Contents

Thank you for purchasing

this product.

For optimum performance and safety,

please read these instructions carefully

before connecting, operating or

adjusting this product. Please keep this

manual for future reference.

Introduction 03

Features 03

Panel Descriptions 04

Control Ports 05

Matrix HDBaseT™ Receiver Options 06

Terminating HDBaseT™ CAT Cables 07

Understanding Matrix / RX Status Lights 07

Infrared Distribution 08

Infrared Remote Control 09

EDID Control 10

Example Schematic 11

Specifications 12

Package Contents 12

Maintenance 12

RS-232 and Telnet Commands 13-14

Infrared Commands 15-16

Web Browser Interface 17

PC Configuration Soware 17

Certifications 18

C44-KIT USER MANUAL

Contact: support@blustream.com.au |support@blustream-us.com |support@blustream.co.uk 03

• Advanced HDBaseT™ technology oering uncompressed video and audio with zero latency

• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

• Output 1 features simultaneous HDMI and HDBaseT™ output

• Extends HDMI up to a distance of 70m 1080p over single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports 3D signal display

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD

Master Audio transmission

• Web interface module for control and configuration of matrix

• Supports bi-directional IR on all HDBaseT™ outputs

• Supplied with Blustream IR receivers and emitters

• Control via front panel, IR, RS-232, and TCP/IP

• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers

• 3rd Party drivers available for all major home control brands

• 1U Design for 19” rack mount integration - mounting kit included

• Advanced EDID management

• HDCP 2.2 compliant

Our Contractor 4x4 HDBaseT™ Matrix oers unprecedented performance and

value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 matrix

package, deliveringHDMI, bi-directional IR and PoC up to lengths of 70m over

a single CAT cable. The matrix also provides advanced features including

simultaneous HDBaseT™ / HDMI on output 1 and a web browser interface module

for control and configuration of the matrix. The C44-KIT is supplied with 4 x

HEX70B receivers.

Introduction

FEATURES:

C44-KIT USER MANUAL

www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk04

1IR Outputs 1 to 4 – 3.5mm stereo

jack. Routed IR 5V emitter outputs

for discrete source control

2IR Inputs 1 to 4 – 3.5mm stereo

jack. Sends 5V IR out to corre-

sponding HDBaseT™ zones

3HDMI Output 1 – Output for

displays (Output linked to HDBa-

seT™ Output 1)

4TCP/IP (RJ45) – Connect to LAN

for TCP/IP control of matrix

5RS-232 Port - For control of the

Matrix from PC or third party con-

trol processor.

6EDID Dip-switch – Used for global

EDID settings

7HDMI Inputs 1 to 4 – Connect

HDMI sources

8HDBT Outputs 1 to 4 – Output for

displays

9IR Extension Receiver Input –

3.5mm stereo jack. 5V input for

connection of a remote IR sensor

or control processor for remote IR

control of the matrix

qPower Port – Use included

24V/3.5A DC adaptor to power the

matrix switcher and HDBaseT™

receivers

Rear Panel

Front Panel

Panel Descriptions

3311

1 2

6 87 9

4 5

1Power LED Indicator

2IR Receiver Window

3HDMI Output Selection Buttons 1-4 - Press to scroll through source inputs per HDMI output

C44-KIT USER MANUAL

Contact: support@blustream.com.au |support@blustream-us.com |support@blustream.co.uk 05

The C44 Matrix main communication ports are located on the rear panel and includes the following connections:

Connections:

A. Global IR Input 3.5mm stereo jack - For control of the Matrix Switcher*

B. TCP/IP – For control of the Matrix (RJ45 Connector)

C. RS-232 – For control of the Matrix (9 pin serial connection)

D. IR Output (3.5mm mono jack) for routed IR control of source equipment*

E. IR Input (3.5mm stereo jack) for IR pass-through to the associated output

HDBaseT Receiver*

*Note - Blustream products use 5V IR hardware. For further details please

see page 8 ‘Infrared Distribution’

Blustream C44-KIT Matrix is supplied with all required 5V IR emitters and

receivers

TCP/IP

The Blustream C44-KIT Matrix can be controlled via TCP/IP.

For the full list of protocols please see ' RS-232 and Telnet Commands'

located at the rear of this manual.

The C44-KIT Matrix features a built-in web browser user interface allowing

control and configuration of the matrix. For further details please see page 17

‘Web Browser Interface’.

A ‘Straight-through’ RJ45 patch lead should be used.

RS-232 2-Way

The Blustream Matrix can be controlled via a 9-pin serial cable.

For the full list of protocols please see 'RS-232 and Telnet Commands'

located at the rear of this manual.

Details of RS-232 pin assignment and communication are adjacent. Please

note that depending on your control device serial port pin configuration you

may require either a ‘Straight’ RS-232 cable or ‘Null-modem’ type.

Control Ports

BLUSTREAM RS-232 REMOTE CONTROL

CONSOLE

PIN Assignment PIN Assignment

1 NC 1 NC

2 Tx 2 Rx

3 Rx 3 Tx

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

Baud Rate: 57600 bps

Data Bit: 8-bit

Parity: None

Stop Bit: 1-bit

Flow Control: None

A B

D E

C44-KIT USER MANUAL

www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk06

Matrix HDBaseT™ Receiver Options

HEX70B-RX

HDBaseT™ receiver with 2-way IR pass-through. Supports distances up to 40m @ 4K and 70m @ 1080p.

HDCP 2.2 compliant.

• HDBaseT™ Input

• HDMI Output

• IR Output 3.5mm mono jack

• IR Input 3.5mm stereo jack

C44-KIT USER MANUAL

Contact: support@blustream.com.au |support@blustream-us.com |support@blustream.co.uk 07

Terminating HDBaseT™ CAT Cable

It is important that the interconnecting CAT cable between the Blustream HDBaseT™ products is terminated using the

correct RJ45 pin configuration. The CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is

wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).

When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution

products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for

your installations, especially when running over longer distances, in areas of high EMI, or for 4K signal distribution. It

is advised that using any method of patch panel, wall plate or join in the CAT cable is avoided as these will result in

HDBaseT™ signal degradation. Blustream also recommend using the best quality RJ45 connectors possible.

RJ45 Wiring -

T568B

Understanding The Matrix / Receiver HDBaseT™ Status Lights

The Blustream matrix and HDBaseT™ extender solutions include status LED indicators on both the matrix and receiver

products to show all connections are active and to help diagnose possible problems.

Understanding The Status Lights

Blustream Matrix:

• The Yellow HDBaseT™ status link light will be o when the zone output has been turned o or there is a problem

with the specific matrix output

• The Yellow HDBaseT™ status link light will blink when the zone output is on and working

• The Green HDBaseT™ link light will blink if there is an unstable connection between the Blustream matrix and

HDBaseT™ receiver

• The Green HDBaseT™ link light will be lit when a there is an active HDBaseT™ receiver connected to the matrix

• The Green HDBaseT™ link light will be o when a there is no connection with a HDBaseT™ receiver

Blustream HDBaseT™ Receiver:

• The HDMI link light will be o when there is no connection with a display

• The HDMI link light will be on when there is an active connection with a display (Note - Not all HDBaseT™ RX feature

a HDMI status LED)

• The HDBaseT™ link light will be o when there is no CAT cable / active HDBaseT™ connection on the RJ45 HDBaseT™

input

• The HDBaseT™ link light will blink if there is an unstable connection between the Blustream matrix and HDBaseT™

receiver

• The HDBaseT™ link light will be lit when a CAT cable is connected to the HDBaseT™ RJ45 output on the matrix and

an active connection is achieved with the Blustream HDBaseT™ receiver

C44-KIT USER MANUAL

www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk08

The Blustream range of matrix products include multiple options for control and routing of IR.

IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers

Infrared solutions. When using third party 12V IR control solutions please use optional Blustream IRCAB cable

for IR conversion.

IR Emitter - IRE1 & IRE2 (IRE2 sold separately)

Blustream 5V IR Emitter designed for discrete IR control

of hardware.

IR Receiver - IRR

Blustream 5V IR receiver to receive IR signal and

distribute through Blustream products.

IR Control Cable - IRCAB

Blustream IR Control cable 3.5mm Mono to 3.5mm

Stereo for linking third party control solutions to

Blustream products.

Compatible with 12V IR third party products.

Note: Cable is directional as indicated.

Infrared 3.5mm Pin-Out

IR Emitter - Mono 3.5mm.

IR Receiver - Stereo 3.5mm

Infrared Distribution

Signal

Ground

Signal

Ground

C44-KIT USER MANUAL

Contact: support@blustream.com.au |support@blustream-us.com |support@blustream.co.uk 09

Infrared Remote Control

POWER

OUTPUT

INPUT

1 2 3 4

1080I

2.0CH

USER 1 USER 2 FN1 FN2

EDID

5.1CH 7.1CH COPY

1080P 3D 4K

ALL

PTPALL

EDID

OUTPUT AND INPUT SELECTION

A. Select the zone OUTPUT you wish to change the source on

(Numbers 1-4 correspond to the zone outputs 1-4).

B. Select the source INPUT you wish to change on the selected zone to

(Numbers 1-4 corresponds to the source inputs 1-4).

C. Press PTP button If you wish to instantly mirror all inputs and outputs

(Example - Input 1 to output 1, input 2 to output 2 etc).

EDID SET UP

The C44-KIT Matrix provides a comprehensive range of EDID settings. Below

are three examples of how to deploy the desired EDID setting when using the

supplied remote.

A. Fix EDID to an Input or ALL inputs: Press the desired video resolution

button (1080i / 1080p / 3D / 4K), then select the desired audio format

(2.0ch / 5.1ch / 7.1ch), then select the source input you want this EDID

information allocated to by pressing the INPUT 1–4 or the ALL button.

B. Copy EDID of Output-X to an Input or ALL: Press the COPY button then

select the OUTPUT you wish to copy the EDID information from, then

select the source input you want to copy this EDID to by selecting the

INPUT 1-4 or the ALL button.

NOTE: THE BUTTON PRESS SEQUENCE SHOULD BE FINISHED IN 3

SECONDS, OTHERWISE THE OPERATION IS DISCARDED.

C44-KIT USER MANUAL

www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk10

EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This

data is used by the source to find out what audio and video resolutions are supported by the display then from this

information the source will discover what the best audio and video resolutions need to be outputted.

While the objective of EDID is to make connecting a digital display to a source a simple plug and play procedure issues

do arise when multiple displays or video matrix switching is introduced because of the increased number of variables.

By pre-determining the video resolution and audio format of the source and display device you can reduce the time

need for EDID hand shaking thus making switching quicker and more reliable.

Configuration of matrix EDID settings can be achieved in one of the following ways:

1Using the EDID dip-switches located on the rear of the Matrix

2Using the Supplied Blustream Matrix IR Remote Control

3Using the C44 Web browser interface (For further details see ‘Blustream Web GUI Manual’)

EDID Control

DIP ON ▼/OFF▲ SWITCHING POSITIONS

EDID TYPE

3 2 1 0

OFF OFF OFF OFF 1080p/2.0ch

OFF OFF OFF ON 1080p/5.1ch

OFF OFF ON OFF 1080p/7.1ch

OFF OFF ON ON 1080i/2.0ch

OFF ON OFF OFF 1080i/5.1ch

OFF ON OFF ON 1080i/7.1ch

OFF ON ON OFF 4K60Hz 4:2:0/2.0ch

OFF ON ON ON 4K60Hz 4:2:0/5.1ch

ON OFF OFF OFF 4K60Hz 4:2:0/7.1ch

ON OFF OFF ON 4K30Hz 4:4:4/2.0ch

ON OFF ON OFF 4K30Hz 4:4:4/5.1ch

ON OFF ON ON 4K30Hz 4:4:4/7.1ch

ON ON OFF OFF DVI 1280x1024

ON ON OFF ON DVI 1920x1080

ON ON ON OFF DVI 1920x1200

ON ON ON ON Soware Controlled

EDID

To manage EDID using the App or Web GUI, it is necessary to select the appropriate DIP switch selection on the matrix.

Until the matrix EDID DIP switches have been assigned to 'Soware Controlled EDID', the option to select individual

EDID's per input will remain greyed out within the soware.

Global EDID Settings

Dip-switch Position ‘0’ = O

Dip-switch Position ‘1’ = On

Autres manuels pour C44-KIT

Autres manuels Blu Stream Commutateur matriciel

Blu Stream

Blu Stream HMXL88 V2 Manuel utilisateur

Blu Stream

Blu Stream PLA88CS Manuel utilisateur

Blu Stream

Blu Stream C88 Manuel utilisateur

Blu Stream

Blu Stream Contractor CMX88AB Manuel utilisateur

Blu Stream

Blu Stream CMX44AB Manuel utilisateur

Blu Stream

Blu Stream MX42AB Manuel utilisateur

Blu Stream

Blu Stream Contractor CMX44CS Manuel utilisateur

Blu Stream

Blu Stream C88CS Manuel utilisateur

Blu Stream

Blu Stream C66CS Manuel utilisateur

Blu Stream

Blu Stream MX44KVM Manuel utilisateur

Blu Stream

Blu Stream C66CS Manuel utilisateur

Blu Stream

Blu Stream MX44KVM Manuel utilisateur

Blu Stream

Blu Stream Custom Pro Matrix Series Manuel utilisateur

Blu Stream

Blu Stream Essential HMXL42ARC-KIT Manuel utilisateur

Blu Stream

Blu Stream HMXL88ARC Manuel utilisateur

Blu Stream

Blu Stream HMXL44CS-KIT Manuel utilisateur

Blu Stream

Blu Stream HMXL44AB Manuel utilisateur

Blu Stream

Blu Stream HMXL44-KIT V2 Manuel utilisateur

Blu Stream

Blu Stream C44-KIT Manuel utilisateur

Blu Stream

Blu Stream HMXL44AB Manuel utilisateur

Blu Stream

Blu Stream HMXL66 Manuel utilisateur

Blu Stream

Blu Stream HMXL88 Manuel utilisateur

Blu Stream

Blu Stream MX44AB-V2 Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

Kramer

Kramer XL 3216VS Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

Kramer

Kramer VP-2x2 Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5xl Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Kramer

Kramer LASSEN XL 3232S Manuel utilisateur

Roland

Roland XS-1HD Manuel utilisateur

Kramer

Kramer VS-66HDCPxl Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes
